18 VOLT CORDLESS DRILL

Model

95848

OPERATING INSTRUCTIONS

Due to continuing improvements, actual product may differ slightly from the product described herein.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

TO PREVENT SERIOUS INJURY, READ

AND UNDERSTAND ALL WARNINGS AND

INSTRUCTIONS BEFORE USE.

this manual or any artwork contained herein may be reproduced in any shape

or form without the express written consent of Harbor Freight Tools.

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 2

PRODUCT SPECIFICATIONS

Power Source 18 VDC, 1.3Ah, NiCd

Battery

Charge Time 1 Hour

Charger Input 120 VAC / 60 Hz / 1.8A

Chuck Type 1/2” Single Sleeve Keyless

Torque Settings 16

Variable Speed 0-900 RPM

Maximum Torque 6 ft./lb.

Reversible Yes

Trigger Lock Yes

Weight 5.5 Pounds

Save This Manual

You will need this manual for the safety warnings and precautions, assembly, oper-

ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep this manual and invoice in a safe and dry place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result

in electric shock, ﬁre, and/or serious injury.

SAVE THESE INSTRUCTIONS

Work Area

Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

Do not operate power tools in explosive atmospheres, such as in the pres-

ence of ﬂammable liquids, gases, or dust. Power tools create sparks which may

ignite the dust or fumes.

Keep bystanders and children away while operating a power tool. Distractions

can cause you to lose control. Protect others in the work area from debris such as

chips and sparks. Provide barriers or shields as needed.

Electrical Safety

Grounded tools must be plugged into an outlet properly installed and grounded

in accordance with all codes and ordinances. Never remove the grounding

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 3

prong or modify the plug in any way. Do not use any adapter plugs. Check with

a qualiﬁed electrician if you are in doubt as to whether the outlet is properly

grounded. If the tools should electrically malfunction or break down, grounding

provides a low resistance path to carry electricity away from the user.

Double insulated tools are equipped with a polarized plug (one blade is wider

than the other). This plug will ﬁt in a polarized outlet only one way. If the plug

does not ﬁt fully in the outlet, reverse the plug. If it still does not ﬁt, contact

a qualiﬁed electrician to install a polarized outlet. Do not change the plug

in any way. Double insulation eliminates the need for the three wire grounded

power cord and grounded power supply system.

Avoid body contact with grounded surfaces such as pipes, radiators, ranges,

and refrigerators. There is an increased risk of electric shock if your body is

grounded.

Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

Do not abuse the Charger’s power cord. Never use the Power Cord to carry

the Charger or pull the Plug from an outlet. Keep the Power Cord away from

heat, oil, sharp edges, or moving parts. Replace damaged Power Cords im-

mediately. Damaged Power Cords increase the risk of electric shock.

Personal Safety

Stay alert. Watch what you are doing, and use common sense when operat-

ing a power tool. Do not use a power tool while tired or under the inﬂuence

of drugs, alcohol, or medication. A moment of inattention while operating power

tools may result in serious personal injury.

Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose clothes,

jewelry, or long hair can be caught in moving parts.

Avoid accidental starting. Be sure the Rotation Button (9) is in the locked

position before inserting the Battery. Carrying power tools with your ﬁnger on

the trigger, or inserting the Battery with the trigger depressed, invites accidents.

Do not overreach. Keep proper footing and balance at all times. Proper footing

and balance enables better control of the power tool in unexpected situations.

Use safety equipment. Always wear eye protection. Dust mask, nonskid safety

shoes, hard hat, or hearing protection must be used for appropriate conditions.

Always wear ANSI-approved safety goggles when working with this tool.

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 4

Tool Use and Care

Use clamps (not included) or other practical ways to secure and support the

workpiece to a stable platform. Holding the work by hand or against your body

is unstable and may lead to loss of control.

Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

Do not use the power tool if the trigger does not operate it. Any tool that cannot

be controlled with the trigger is dangerous and must be replaced.

Remove the battery from the tool and set the Rotation Button (9) to the cen-

ter, locked position, before making any adjustments, changing accessories,

or storing the tool. These preventive safety measures reduce the risk of starting

the tool accidentally.

Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

Maintain tools with care. Keep drill bits (not included) sharp and clean. Prop-

erly maintained accessories with a sharp cutting edge are less likely to bind and

are easier to control. Do not use a damaged tool or accessory. Tag damaged tools

“Do not use” until repaired.

Check for misalignment or binding of moving parts, breakage of parts, and any

other condition that may affect the tool’s operation. If damaged, have the tool

serviced before using. Many accidents are caused by poorly maintained tools.

Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

Service

Tool service must be performed only by qualiﬁed repair personnel. Service or

maintenance performed by unqualiﬁed personnel could result in a risk of injury.

When servicing a tool, use only identical replacement parts. Follow instruc-

tions in this manual. Use of unauthorized parts or failure to follow maintenance

instructions may create a risk of electric shock or injury.Speciﬁc Safety Rules

SPECIFIC SAFETY RULES

Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding workspace. Always keep the work area free of

obstructions, grease, oil, trash, and other debris. Do not use the Cordless Drill in

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 5

areas near ﬂammable chemicals, dusts, and vapors. Do not use this product in a

damp or wet location.

Maintain labels and nameplates on the Cordless Drill. These carry important

information. If unreadable or missing, contact Harbor Freight Tools for a replace-

ment.

When using the Cordless Drill, always maintain a ﬁrm grip on the tool with

both hands.

Hold the tool by its insulated gripping surfaces when performing an operation

where the Cordless Drill may contact hidden wiring. Contact with a “live” wire

will make exposed metal parts of the Cordless Drill “live” and shock the operator.

Do not use the Cordless Drill or Charger (29) if it has been dropped, damaged,

left outdoors, or immersed in liquid.

To avoid electric shock, do not pull or carry the Charger by its Power Cord or

pull the Power Cord around sharp corners or edges. Do not unplug the Charger

by pulling on the Power Cord. Keep the Power Cord away from heated surfaces.

To avoid electrical shock, do not handle the Charger, the Adapter (30), or the

Cordless Drill with wet hands.

Keep the Handles of the Cordless Drill dry, clean, and free from oil or

grease.

Avoid unintentional starting. Make sure you are prepared to begin work before

turning on the Cordless Drill.

Never leave the Charger unattended when it is plugged into an electrical outlet.

Unplug the Charger from its electrical outlet before leaving.

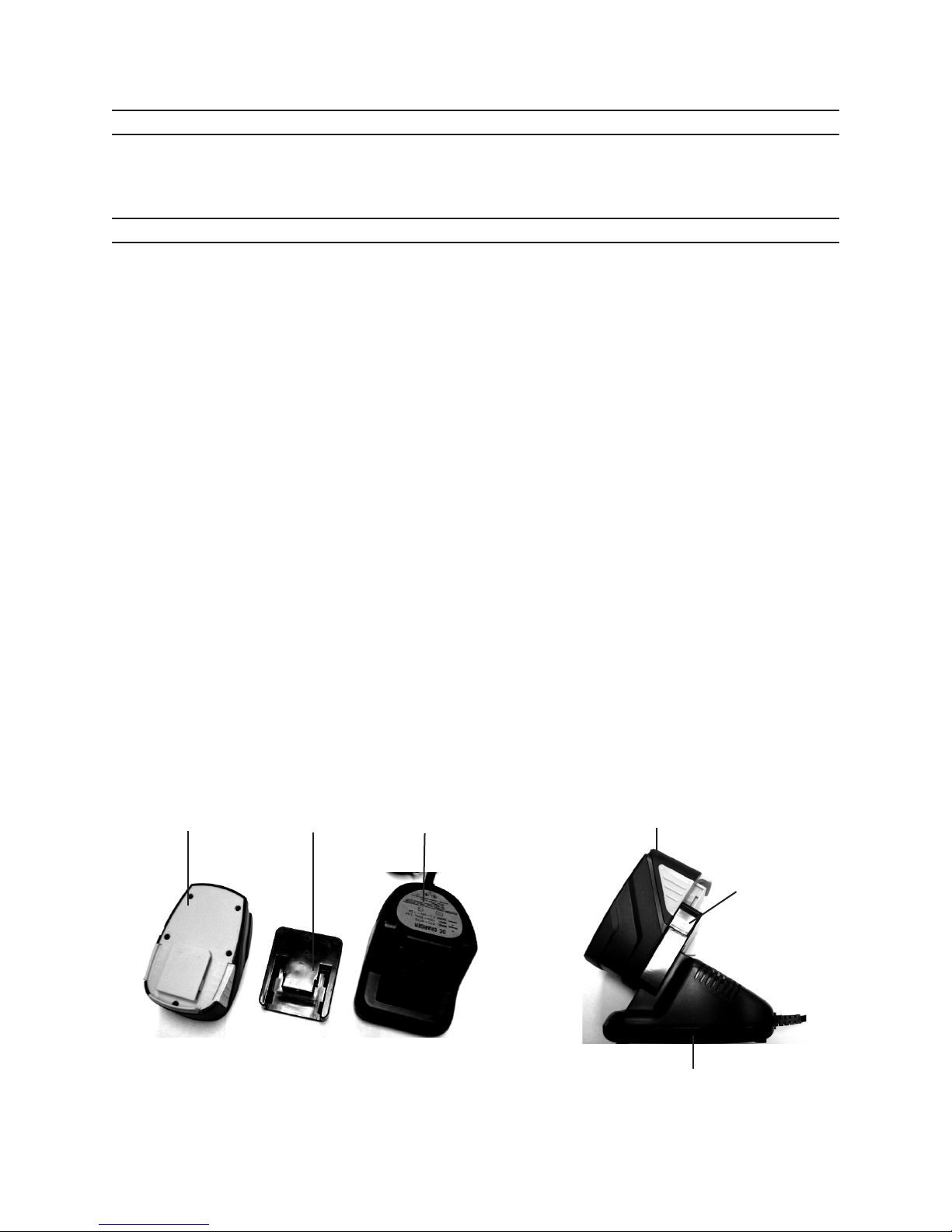

PROPER BATTERY PACK CARE: Battery Pack (28) leakage may occur under

extreme usage or temperature conditions. If Battery Pack ﬂuid comes in contact

with skin, rinse with lemon juice and vinegar then wash with soap and water. If the

ﬂuid comes into contact with the eyes, ﬂush with water for several minutes and contact

a doctor immediately. Never burn the Battery Pack, as it can explode in a ﬁre. Do

not charge the Cordless Drill with a leaking Battery Pack. Contact local solid waste

authorities for instructions on correct disposal or recycling of the Battery Pack.

WARNING! Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities, contain chemicals known (to the State of California) to

cause cancer, birth defects or other reproductive harm. Some examples of these

chemicals are: lead from lead-based paints, crystalline silica from bricks and cement

or other masonry products, arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of

work. To reduce your exposure to these chemicals: work in a well ventilated area,

and work with approved safety equipment, such as dust masks that are specially

10.

11.

12.

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 6

designed to ﬁlter out microscopic particles. (California Health & Safety Code §

25249.5, et seq.)

WARNING! People with pacemakers should consult their physician(s) before

using this product. Operation of electrical equipment in close proximity to a heart

pacemaker could cause interference or failure of the pacemaker.

13.

GROUNDING

WARNING!

Improperly connecting the grounding wire can result in the risk of electric shock.

Check with a qualiﬁed electrician if you are in doubt as to whether the outlet is

properly grounded. Do not modify the power cord plug provided with the tool.

Never remove the grounding prong from the plug. Do not use the tool if the

power cord or plug is damaged. If damaged, have it repaired by a service facil-

ity before use. If the plug will not ﬁt the outlet, have a proper outlet installed by

a qualiﬁed electrician.

GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS

Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If

the tool should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user, reducing the risk of electric

shock. (See Figure A.)

The grounding prong in the plug is connected through the green wire inside the

cord to the grounding system in the tool. The green wire in the cord must be the

only wire connected to the tool’s grounding system and must never be attached to

an electrically “live” terminal. (See Figure A.)

Your tool must be plugged into an appropriate outlet, properly installed and grounded

in accordance with all codes and ordinances. The plug and outlet should look like

those in the following illustration. (Se Figure A.)

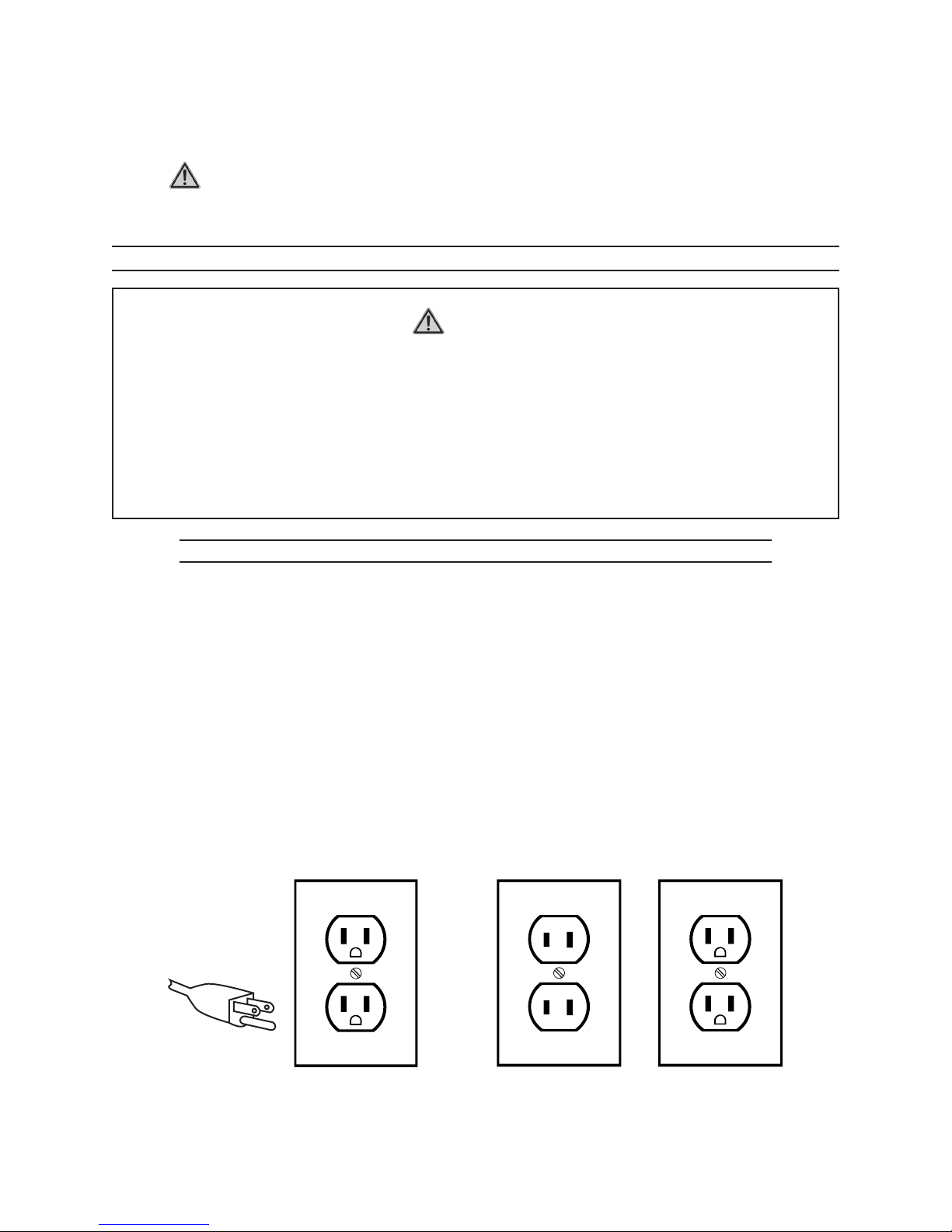

FIGURE A FIGURE

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 7

DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS

Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisﬁes OSHA requirements and complies with

the applicable standards of Underwriters Laboratories, Inc., the Canadian Standard

Association, and the National Electrical Code. (See Figure B.)

Double insulated tools may be used in either of the 120 volt outlets shown in the

preceding illustration. (See Figure B.)

EXTENSION CORDS

Grounded tools require a three wire extension cord. Double Insulated tools can

use either a two or three wire extension cord.

As the distance from the supply outlet increases, you must use a heavier gauge

extension cord. Using extension cords with inadequately sized wire causes a seri-

ous drop in voltage, resulting in loss of power and possible tool damage.

(See Figure C, next page.)

The smaller the gauge number of the wire, the greater the capacity of the cord. For

example, a 14 gauge cord can carry a higher current than a 16 gauge cord.

(See Figure C.)

When using more than one extension cord to make up the total length, make sure

each cord contains at least the minimum wire size required. (See Figure C.)

If you are using one extension cord for more than one tool, add the nameplate am-

peres and use the sum to determine the required minimum cord size.

(See Figure C.)

If you are using an extension cord outdoors, make sure it is marked with the sufﬁx

“W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.

Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualiﬁed electri-

cian before using it.

Protect your extension cords from sharp objects, excessive heat, and damp or wet

areas.

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 8

RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*

(120 OR 240 VOLT)

NAMEPLATE

AMPERES

(at full load)

EXTENSION CORD LENGTH

25 Feet 50 Feet 75 Feet 100 Feet 150 Feet

0 – 2.0 18 18 18 18 16

2.1 – 3.4 18 18 18 16 14

3.5 – 5.0 18 18 16 14 12

5.1 – 7.0 18 16 14 12 12

7.1 – 12.0 18 14 12 10 -

12.1 – 16.0 14 12 10 - -

16.1 – 20.0 12 10 - - -

FIGURE C * Based on limiting the line voltage drop to ﬁve volts at 150% of the rated amperes.

SYMBOLOGY

Double Insulated

Canadian Standards Association

Underwriters Laboratories, Inc.

V~ Volts Alternating Current

AAmperes

n0xxxx/min. No Load Revolutions per Minute (RPM)

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 9

UNPACKING

When unpacking, check to make sure that the product is complete and undamaged.

If any parts are missing or broken, please call Harbor Freight Tools at the number shown

on the cover of this manual as soon as possible.

CHARGING

NOTE: The Battery Pack (28) requires charging before ﬁrst use. The ﬁrst charge

requires a one and a half hour charge prior to initial use of the Cordless Drill.

Note: Always switch to a fresh battery when tool performance begins to diminish.

Severe heat is most destructive to a battery; the more heat generated, the faster

the battery loses power. A battery that gets too hot can be permanently damaged.

Never over-discharge a battery by using the tool after its’ performance is decreasing.

Never attempt to discharge a tool’s battery by continuing to pull the trigger. When

tool performance begins to diminish, stop the tool, recharge the battery and use

the fresh battery for optimal performance.

When the Battery Pack requires recharging, a 1 hour charge allows the tool to

operate at full power.

Charging room temperature: 50° F. – 104° F.

Depress both buttons at the rear of each side of the Battery Pack and slide unit back

to detach from the Drill. Plug Battery Pack into Adapter (30) the same way it plugs

into the Cordless Drill, then slide Adapter onto Charger (29), and plug the Charger

into the nearest 120 volt, grounded, electrical outlet.

While charging, the Battery Pack, Charger, and Adapter may become warm to the

touch. This is normal, and does not indicate a problem.

Once the Battery Pack is fully charged, disconnect the Charger from the electrical

outlet. Disconnect the Adapter and the Battery Pack from the Charger.

Battery

Pack (28)

Charger

(29)

Adapter

(30)

Battery

Pack (28)

Adapter

(30)

Charger

(29)

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 10

OPERATING INSTRUCTIONS

NOTE: For additional information regarding the parts listed in the following pages, refer to

the Assembly Diagram on page 13.

WARNING! Remove the Battery (28) from the tool and set the Rotation Button

(9) to its center, locked, position before making any adjustments, changing accessories,

or storing the tool.

To install a drill/screwdriver bit: with the chuck pointing away from you, hold the

Chuck Sleeve ﬁrmly in place and turn the Chuck (16) counterclockwise. Insert the

shank of the bit all the way into the Chuck. While holding the Chuck Sleeve in place,

turn the Chuck clockwise to lock the bit in place. The Chuck accepts up to 1/2”

diameter bits. Insert the appropriate bit for your application and tighten the Chuck

ﬁrmly. (See Figure E., above.)

Secure the workpiece in place, using a vise or clamps (not included).

Warning! Never change Torque Setting while drill is still rotating, as this can damage the

drill.

Decide on which setting to choose for application:

Torque Settings (1-16):

The different numbers on the Ring are an indication of how much torque the screw-

driver will apply to the bit before the clutch slips, allowing the bit to stop and helping

Accessory Grip (14)

Chuck (16)

Torque Indicator Arrow

Trigger (10)

Battery Pack (28)

Rotation Button (9)

Torque Setting Ring

(15)

2-Head Bit (3)

Figure E.

Inhaltsverzeichnis

Andere Chicago Electric Bohren Handbücher

Chicago Electric

Chicago Electric 42564 Bedienungsanleitung

Chicago Electric

Chicago Electric 47991 Installationshandbuch

Chicago Electric

Chicago Electric 93449 Bedienungsanleitung

Chicago Electric

Chicago Electric 93632 Montageanleitung

Chicago Electric

Chicago Electric 45790 Bedienungsanleitung

Chicago Electric

Chicago Electric 93632 Bedienungsanleitung

Chicago Electric

Chicago Electric Chicago 44849 Betriebsanleitung

Chicago Electric

Chicago Electric 47991 Stücklistenhandbuch

Chicago Electric

Chicago Electric 68851 Montageanleitung

Chicago Electric

Chicago Electric VARIABLE SPEED 18 VOLT CORD- LESS DRILL/HAMMER DRILL... Bedienungsanleitung

Chicago Electric

Chicago Electric 93632 Installationshandbuch

Chicago Electric

Chicago Electric 3670 Bedienungsanleitung

Chicago Electric

Chicago Electric 60495 Montageanleitung

Chicago Electric

Chicago Electric 94434 Bedienungsanleitung

Chicago Electric

Chicago Electric ITEM 62427 Bedienungsanleitung

Chicago Electric

Chicago Electric 60495 Montageanleitung

Chicago Electric

Chicago Electric 1/2" variable Speed Reversible HEAVY DUTY DRILL... Montageanleitung

Chicago Electric

Chicago Electric 68169 Installationshandbuch

Chicago Electric

Chicago Electric 69452 Montageanleitung

Chicago Electric

Chicago Electric 68856 Bedienungsanleitung

Chicago Electric

Chicago Electric 93632 Bedienungsanleitung

Chicago Electric

Chicago Electric 67089 Installationshandbuch

Chicago Electric

Chicago Electric 68126 Installationshandbuch

Chicago Electric

Chicago Electric 66006 Installationshandbuch

Beliebte Bohren Handbücher anderer Marken

Makita

Makita BDF456 Bedienungsanleitung

Black & Decker

Black & Decker LDX220 Bedienungsanleitung

Hitachi

Hitachi DH 40MA Bedienungsanleitung

Challenge

Challenge JO Technisches Referenzhandbuch

Makita

Makita LXFD01 Bedienungsanleitung

Festool

Festool T18+3 Bedienungsanleitung

Milwaukee

Milwaukee M12 FPDX-202X Bedienungsanleitung

EINHELL

EINHELL TE-RH 32 E Bedienungsanleitung

Makita

Makita DHP484 Bedienungsanleitung

Makita

Makita FD05 Bedienungsanleitung

Bosch

Bosch PSB 530 RA Bedienungsanleitung

Maximum

Maximum 054-1359-4 Bedienungsanleitung

Makita

Makita HP332D Bedienungsanleitung

Raider

Raider RDP-HD31H Bedienungsanleitung

Bort

Bort BPM-1400x2 Bedienungsanleitung

Black & Decker

Black & Decker 7266 Bedienungsanleitung

KENT USA

KENT USA TRD1230 Bedienungsanleitung

Bosch

Bosch GSB 19-2 RE Bedienungsanleitung
