Chicago Electric 92115 Bedienungsanleitung

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

92115

ASSEMBLY AND OPERATING INSTRUCTIONS

14 GAUGE

SWIVEL HEAD SHEAR

SKU 92115 Page 2For technical questions, please call 1-800-444-3353.

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures, parts list and as-

sembly diagram. Keep your invoice with this manual. Write the invoice number

on the inside of the front cover. Keep this manual and invoice in a safe and dry

place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed.

:yticapaC

latemteehseguag41otpU

leetssselniatseguag81otpU

etunimrepsehcni051@

:sedalBgnittuCleetSedibraCnotsgnuT

:deriuqeRrewoP -ZH06-V021

spmAdaol-on2.2 :droCrewoP ,devorppALU

gulpdeziralopgnorp2

:hctiwSrewoPmpr005

2-0deepSelbairaV:daeHgnittuC°063sleviwS.munimulA

:snoisnemiDW"2/1-2xH"8xL"11:thgieW.sbL8.4

SKU 92115 Page 3For technical questions, please call 1-800-444-3353.

ELECTRICAL SAFETY

4. Grounded tools must be plugged into an outlet properly installed and

grounded in accordance with all codes and ordinances. Never remove the

grounding prong or modify the plug in any way. Do not use any adapter

plugs. Check with a qualified electrician if you are in doubt as to whether

the outlet is properly grounded. If the tool should electrically malfunction or

break down, grounding provides a low resistance path to carry electricity away

from the user.

5. Double insulated tools are equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician to install a polarized outlet. Do not

change the plug in any way. Double insulation eliminates the need for the

three wire grounded power cord and grounded power supply system.

6. Avoid body contact with grounded surfaces such as pipes, radiators,

ranges, and refrigerators. There is an increased risk of electric shock if your

body is grounded.

7. Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tool

or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,

sharp edges, or moving parts. Replace damaged Power Cords immedi-

ately. Damaged Power Cords increase the risk of electric shock.

9. When operating a power tool outside, use an outdoor extension cord

marked “W-A” or “W”. These extension cords are rated for outdoor use, and

reduce the risk of electric shock.

PERSONAL SAFETY

10. Stay alert. Watch what you are doing, and use common sense when oper-

ating a power tool. Do not use a power tool while tired or under the influ-

ence of drugs, alcohol, or medication. A moment of inattention while operat-

ing power tools may result in serious personal injury.

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose

clothes, jewelry, or long hair can be caught in moving parts.

SKU 92115 Page 4For technical questions, please call 1-800-444-3353.

12. Avoid accidental starting. Be sure the Power Switch is off before plugging

in. Carrying power tools with your finger on the Power Switch, or plugging in

power tools with the Power Switch on, invites accidents.

13. Remove adjusting keys or wrenches before turning the power tool on. A

wrench or a key that is left attached to a rotating part of the power tool may result

in personal injury.

14. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the power tool in unexpected

situations.

15. Use safety equipment. Always wear eye protection. Dust mask, non-skid

safety shoes, hard hat, or hearing protection must be used for appropriate

conditions. Use heavy duty work gloves when working with sheet metal.

TOOL USE AND CARE

16. Use clamps (not included) or other practical ways to secure and support

the workpiece to a stable platform. Holding the work by hand or against your

body is unstable and may lead to loss of control.

17. Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

18. Do not use the power tool if the Power Switch does not turn it on or off.

Any tool that cannot be controlled with the Power Switch is dangerous and must

be replaced.

19. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing accessories, or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally.

20. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

21. Maintain tools with care. Keep cutting tools sharp and clean. Properly

maintained tools with a sharp cutting edge are less likely to bind and are easier

to control. Do not use a damaged tool. Tag damaged tools “Do not use” until

repaired.

22. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool’s operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly main-

tained tools.

SKU 92115 Page 5For technical questions, please call 1-800-444-3353.

23. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

SERVICE

24. Tool service must be performed only by qualified repair personnel. Service

or maintenance performed by unqualified personnel could result in a risk of injury.

25. When servicing a tool, use only identical replacement parts. Follow

instructions in the

“Inspection, Maintenance, And Cleaning”

section of this

manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of electric shock or injury.

SPECIFIC SAFETY RULES

1. Maintain labels and nameplates on the shear. These carry important

information. If unreadable or missing, contact Harbor Freight Tools for a

replacement.

2. Always wear ANSI approved safety impact eye goggles and heavy work

gloves when using the shear. Using personal safety devices reduce the risk for

injury. Safety impact eye goggles and heavy work gloves are available from

Harbor Freight Tools.

3. Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding workspace. Always keep the work area free of

obstructions, grease, oil, trash, and other debris. Do not use a power tool in

areas near flammable chemicals, dusts, and vapors. Do not use this product in a

damp or wet location.

4. When using a hand-held power tool, always maintain a firm grip on the tool

with both hands to resist starting torque.

5. Always keep the extension cord away from moving parts on the tool.

6. Avoid unintentional starting. Make sure you are prepared to begin work

before turning on the shear.

7. Do not force the shear. This tool will do the work better and safer at the

speed and capacity for which it was designed.

SKU 92115 Page 6For technical questions, please call 1-800-444-3353.

8. Never lay the shear down until the motor has come to a complete

stop. The tool may create unforseen risk while the motor cycles down.

9. Never leave the shear unattended when it is plugged into an electrical

outlet. Turn off the tool, and unplug it from its electrical outlet before

leaving.

10. Always unplug the shear from its electrical outlet before performing an

inspection, maintenance, or cleaning procedures.

11. WARNING! Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities, contain chemicals known (to the State of Cali-

fornia) to cause cancer, birth defects or other reproductive harm. Some ex-

amples of these chemicals are: lead from lead-based paints, crystalline silica

from bricks and cement or other masonry products, arsenic and chromium from

chemically treated lumber. Your risk from these exposures varies, depending on

how often you do this type of work. To reduce your exposure to these chemicals:

work in a well ventilated area, and work with approved safety equipment, such as

those dust masks that are specially designed to filter out microscopic particles.

(California Health & Safety Code 25249.5, et seq.)

12. WARNING! People with pacemakers should consult their physician(s)

before using this product. Operation of electrical equipment in close proximity to

a heart pacemaker could cause interference or failure of the pacemaker.

SKU 92115 Page 7For technical questions, please call 1-800-444-3353.

GROUNDING

WARNING!

Improperly connecting the grounding wire can result in the risk of electric

shock. Check with a qualfified electrician if you are in doubt as to whether the

outlet is properly grounded. Do not modify the power cord plug provided with

the tool. Never remove the grounding prong from the plug. Do not use the

tool if the power cord or plug is damaged. If damaged, have it repaired by

a service facility before use. If the plug will not fit the outlet, have a proper

outlet installed by a qualified electrician.

GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If

the tool should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user, reducing the risk of elec-

tric shock. (See Figure A.)

2. The grounding prong in the plug is connected through the green wire inside the

cord to the grounding system in the tool. The green wire in the cord must be the

only wire connected to the tool’s grounding system and must never be attached

to an electrically “live” terminal. (See Figure A.)

3. Your tool must be plugged into an appropriate outlet, properly installed and

grounded in accordance with all codes and ordinances. The plug and outlet

should look like those in the following illustration. (See Figure A.)

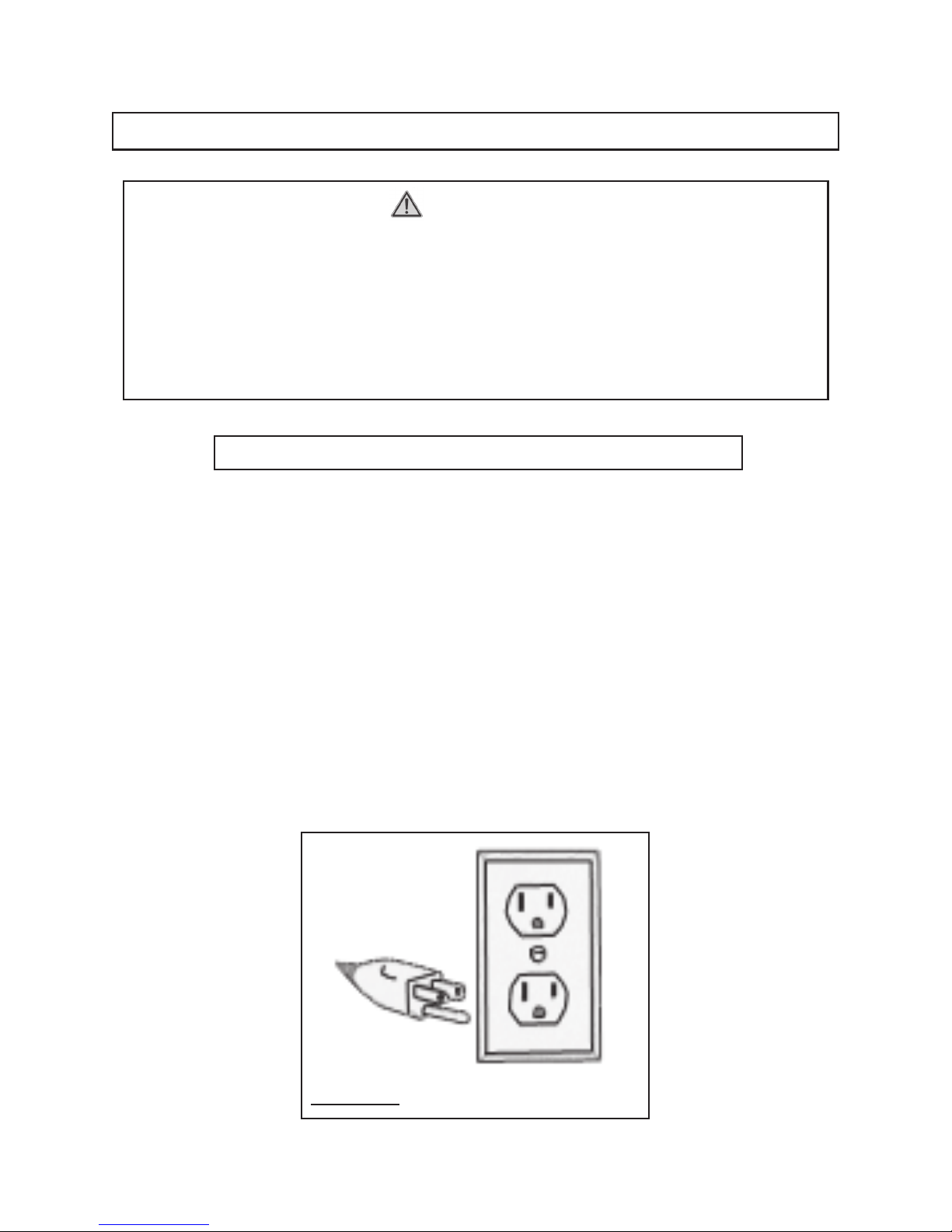

FIGURE A

SKU 92115 Page 8For technical questions, please call 1-800-444-3353.

FIGURE B

DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS

4. Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisfies OSHA requirements and complies with

the applicable standards of Underwriters Laboratories, Inc., the Canadian

Standard Association, and the National Electrical Code. (See Figure B.)

5. Double insulated tools may be used in either of the 120 volt outlets shown in the

following illustration. (See Figure B.)

EXTENSION CORDS

Grounded

tools require a three wire extension cord.

Double Insulated

tools

can use either a two or three wire extension cord.

2. As the distance from the supply outlet increases, you must use a heavier gauge

extension cord. Using extension cords with inadequately sized wire causes a

serious drop in voltage, resulting in loss of power and possible tool damage.

(See Figure C, next page.)

3. The smaller the gauge number of the wire, the greater the capacity of the cord.

For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.

(See Figure C.)

4. When using more than one extension cord to make up the total length, make

sure each cord contains at least the minimum wire size required.

(See Figure C.)

5. If you are using one extension cord for more than one tool, add the nameplate

amperes and use the sum to determine the required minimum cord size.

SKU 92115 Page 9For technical questions, please call 1-800-444-3353.

6. If you are using an extension cord outdoors, make sure it is marked with the

suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.

7. Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified

electrician before using it.

8. Protect your extension cords from sharp objects, excessive heat, and damp or

wet areas.

RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*

(120 VOLT)

NAMEPLATE

AMPERES

(

At Full Load

)

EXTENSION CORD LENGTH

Feet

100

Feet

150

Feet

0 – 2.0 18 18 18 18 16

2.1 – 3.4 18 18 18 16 14

3.5 – 5.0 18 18 16 14 12

5.1 – 7.0 18 16 14 12 12

7.1 – 12.0 18 14 12 10 -

12.1 – 16.0 14 12 10 - -

16.1 – 20.0 12 10 - - -

* Based on limiting the line voltage drop

to five volts at 150% of the rated amperes.

FIGURE C

SYMBOLOGY

Double Insulated

Canadian Standards

Association

Underwriters

Laboratories, Inc.

Volts Alternating Current

Amperes

No Load Revolutions

per Minute (RPM)

noxxxx/min.

V ~

SKU 92115 Page 10For technical questions, please call 1-800-444-3353.

UNPACKING

When unpacking, check to make sure that your item is in good condition, andall the follow-

ing are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

Swivel Head Shear

Plastic Cover for Blades

Hex Key

WARNING: When working with sheet metal, always wear heavy gloves. The edges of

sheet metal can be very sharp, and can cause severe personal injury.

ASSEMBLY AND OPERATING INSTRUCTIONS

NOTE: For additional information regarding the parts listed in the following pages, refer

to the Assembly Diagram on page 13.

NOTE: It is a good idea to make a practice cut on a piece of scrap material before

cuting the work material. This will allow you to be sure you are familiar with the way the

tool operates, and that the cut can be made properly.

1. CAUTION: Always make sure the Power Cord is unplugged from its electrical

outlet

prior

to assembling or making any adjustments to the tool.

2. Follow all safety precautions already discussed.

3. Plug the tool into an appropriate, breaker switch protected power outlet.

4. Position the jaws of the Shear over the edge of the sheet metal you will cut.

5. Squeeze the Power Switch to begin cutting the metal. The Power Switch is

variable, allowing you to vary the cutting speed by the amount you squeeze it. As

you squeeze more, the tool will increase speed, and it will cut more slowly as you

release the Power Switch.

6. Move the Cutting Blades along the desired cutting line in the work material.

7. On large pieces of sheet metal, you may wish to swivel the head to one side or

the other to prevent interference of the tool handle with the work material. Turn to

page 11 for full instructions on how to swival the Cutting Head.

8. When you have completed the cut, release the Power Switch, unplug the tool, and

store it properly.

REV 06/06

Inhaltsverzeichnis

Andere Chicago Electric Elektrowerkzeuge Handbücher

Chicago Electric

Chicago Electric 67631 Installationshandbuch

Chicago Electric

Chicago Electric 68012 Montageanleitung

Chicago Electric

Chicago Electric 43585 Bedienungsanleitung

Chicago Electric

Chicago Electric 61423 Bedienungsanleitung

Chicago Electric

Chicago Electric 67845 Installationshandbuch

Chicago Electric

Chicago Electric 67707 Installationshandbuch

Chicago Electric

Chicago Electric 68696 Montageanleitung

Chicago Electric

Chicago Electric 90304 Bedienungsanleitung

Chicago Electric

Chicago Electric 96289 Installationshandbuch

Chicago Electric

Chicago Electric 94782 Stücklistenhandbuch

Chicago Electric

Chicago Electric 62213 Montageanleitung

Chicago Electric

Chicago Electric 68857 Montageanleitung

Chicago Electric

Chicago Electric 36W-110V HOT BLADE DECAL REMOVER Installationshandbuch

Chicago Electric

Chicago Electric 69077 Bedienungsanleitung

Chicago Electric

Chicago Electric 68303 Bedienungsanleitung

Chicago Electric

Chicago Electric 61441 Montageanleitung

Chicago Electric

Chicago Electric 68848 Bedienungsanleitung

Chicago Electric

Chicago Electric 66001 Installationshandbuch

Chicago Electric

Chicago Electric 68221 Montageanleitung

Chicago Electric

Chicago Electric 35778 Bedienungsanleitung

Chicago Electric

Chicago Electric Chicago Electric Power Tools 1600W Heavy Duty Heat... Montageanleitung

Chicago Electric

Chicago Electric 60713 Original Bedienungsanleitung

Chicago Electric

Chicago Electric 92772 Installationshandbuch

Chicago Electric

Chicago Electric 46935 Installationshandbuch

Beliebte Elektrowerkzeuge Handbücher anderer Marken

AEG

AEG OMNI-JS Bedienungsanleitung

SIP

SIP 01533 Bedienungsanleitung

Ribimex

Ribimex PRS499 Bedienungsanleitung

3M Fiber Optic Connector Crimp Tool Bedienungsanleitung

Ryobi

Ryobi P524 Bedienungsanleitung

ROJEK

ROJEK FSN 300A Bedienungsanleitung

Kemper

Kemper 1740PRO Bedienungsanleitung

WABCO

WABCO OptiTire Bedienungsanleitung

EINHELL

EINHELL TE-MS 18/210 Li Bedienungsanleitung

Orgapack

Orgapack OR-T 85 Kurzanleitung

TOUGHCUT

TOUGHCUT Diamond 400 Bedienungsanleitung

Yaros

Yaros PB-3603 Bedienungsanleitung

Fein

Fein BSS 2.0 E Einrichtungshandbuch

Baileigh Industrial

Baileigh Industrial SS-2725 Bedienungsanleitung

Milwaukee

Milwaukee 2674-20 Bedienungsanleitung

Fein

Fein BLs 1.6 Bedienungsanleitung

Princess

Princess Electric Multi Sharpener Bedienungsanleitung

FOREDOM

FOREDOM K.1050 Handbuch
