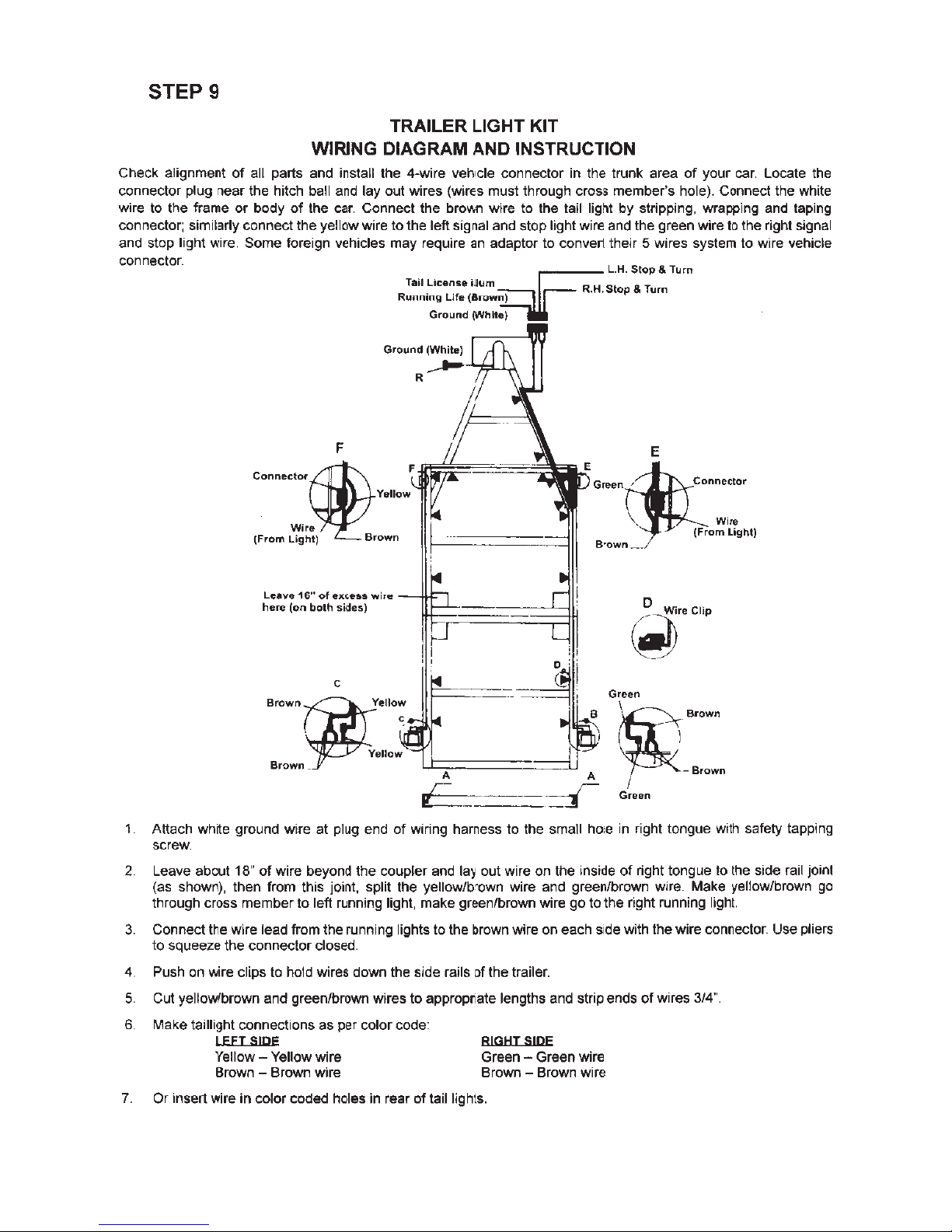

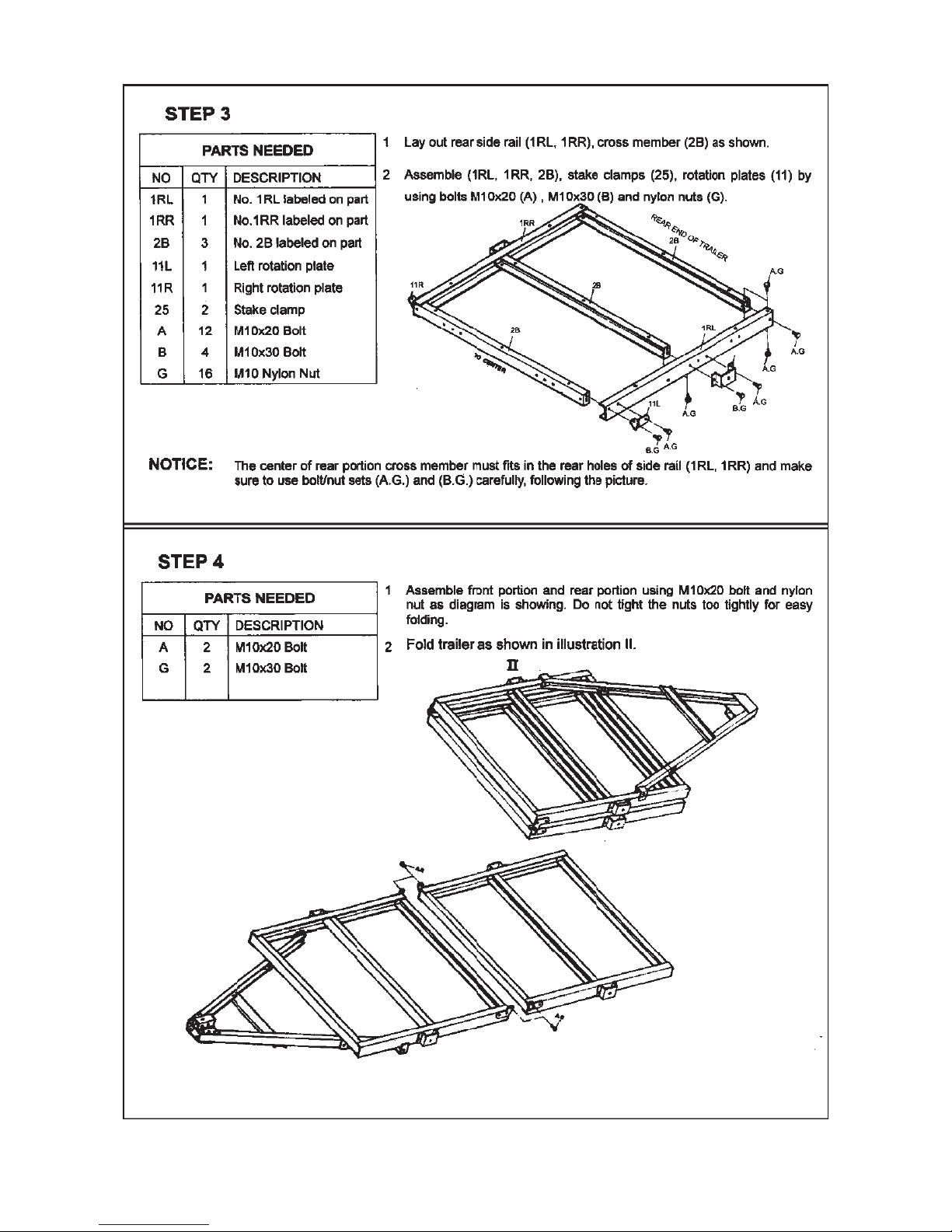

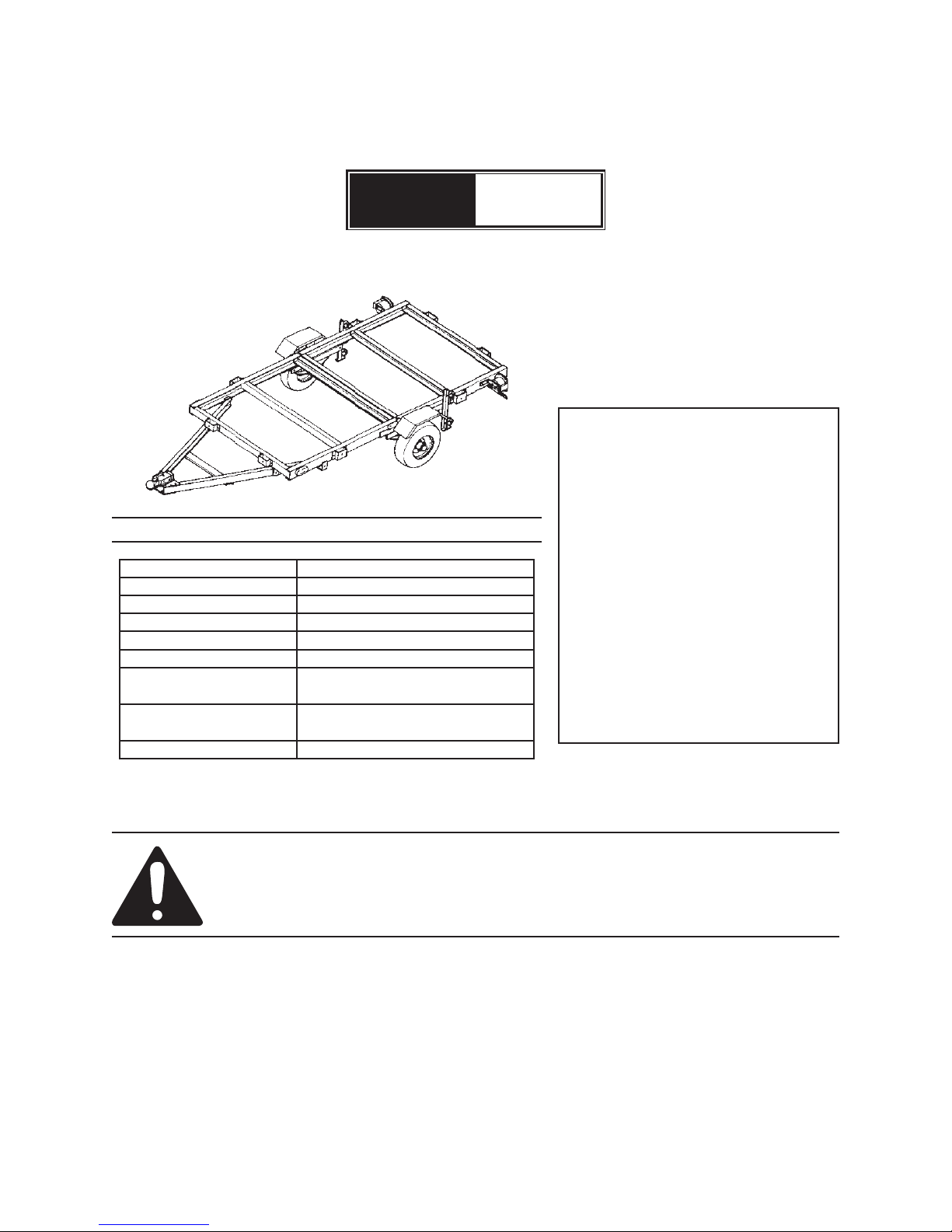

FOLDABLE TRAILER
Model
42709
SET UP AND OPERATING INSTRUCTIONS
SPECIFICATIONS
Bed Frame 4’ x 8’
Overall Dimensions 140” L x 61-1/2” W x 19-1/4” H
Shipping Weight 236 lb.
Max. Load Capacity 950 lb.
Tire 4.8 - 8 (B) Tubeless, 4 PR
Wheel 4 bolt demountable
Coupler capacity Class I, 2000 lb. Max. gross load
for 1-7/8” ball
GAWR 1170 lb. with 4.80-8 (D) tires
8 x 3.75 rims at 60 PSI cold
GVWR 1170 lb.
WARNING!
IMPORTANT INFORMATION
This trailer’s Hitch Coupler MUST be
properly secured to the hitch ball of the towing
vehicle. After assembly and attachment, pull
up and down on the Hitch Coupler to make
sure the hitch ball is tting snugly in the Hitch
Coupler. There must be no play between the
hitch ball and the Hitch Coupler. If there is
play, tighten the Adjustment Nut until no play
is present. If the Adjustment Nut is too tight,
the Handle will not lock. Carefully read and
follow the complete instructions in this
manual BEFORE setup or use.
If the coupler is not secured
properly, the ball could come loose
while the trailer is in motion, possibly
causing property damage, SERIOUS
PERSONAL INJURY, or DEATH.
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2007 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Manual revised 10a
