Chigo CHV Mini Series Bedienungsanleitung

Commercial Air Conditioners

Service

Manual

R410A

Series

CHV Mini VRF 50/60Hz

201908 1

CONTENTS

Part 1General Information ................................................................................. 3

Part 2Outdoor Units ……………………................................................................... 12

Part 3Installation .............................................................................................. 65

Part 4 Troubleshooting ...................................................................................... 81

CHV Mini VRF 50/60Hz

2 201908

CHV Mini Series Service Manual

CHV Mini VRF 50/60Hz

201908 3

Part 1

General Information

1Indoor and Outdoor Unit Capacities ......................................................4

Part 1 -General Information

3Nomenclature…………………..................................................................... 7

2External Appearance..............................................................................5

4Combination Ratio................................................................................. 7

5Features……………................................................................................... 8

4 201908

CHV Mini Series Service Manual

CHV Mini VRF 50/60Hz

1. Indoor and Outdoor Unit Capacities

1.1 Indoor Units

Table 1-1.1: Standard indoor unit abbreviation codes

Abbreviation

code Type

GWall-mounted

LD Floor & Ceiling

TA Low ESP Short Ducted

TB Medium ESP Ducted

TH High ESP Ducted

Abbreviation

code Type

Q1 One-way Cassette

Q2 Two-way Cassette

Q4 Compact four-way Cassette

QFour-way Cassette

QR Round-flow Cassette

FFloor Standing

Table 1-1.2: Standard indoor unit capacity range

Capacity Capacity

kW index Q1 Q2 Q4

TA TB TH

2.2 22 22 —22 ———22 —22 ——

2.8 28 28 —28 ———28 —28 ——

3.6 36 36 —36 ———36 —36 ——

4.5 45 45 45 45 ———45 45 45 ——

5.6 56 56 56 —56 56 —56 56 56 ——

7.1 71 71 71 —71 71 —71 71 71 71 71

8.0 80 —80 —80 80 —80 80 —80 80

9.0 90 — — — 90 90 ——90 —90 90

10.0 100 — — — 100 100 100 — — — 100 100

11.2 112 — — — 112 112 112 —112 — — —

12.0 120 — — — — — — — — — 120 120

12.5 125 — — — 125 125 125 — — — — —

14.0 140 ———140 140 140 —140 — — —

15.0 150 — — — — — — — — — 150 150

16.0 160 — — — 160 160 160 —160 — — —

1.2Outdoor Units

Table 1-1.3: Outdoor unit capacity range

Capacity 8kW 10kW 12.5kW 14kW 16kW

Model CHV-DH080W/R1 CHV-DH100W/R1 CHV-DH125W/R1 CHV-DH140W/R1 CHV-DH160W/R1

CHV Mini VRF 50/60Hz

201908 5

Part 1 -General Information

2. External Appearance

2.1 Indoor Units

Table 1-2.1: Standard indoor unit appearance

One-way Cassette

Two-way Cassette

Compact Four-way Cassette

Four-way Cassette

Round-flow Cassette

Floor Standing

Wall-mounted

Floor & Ceiling

Low ESP Short Ducted

Medium ESP Ducted

High ESP Ducted

CHV Mini VRF 50/60Hz

6 201908

CHV Mini Series Service Manual

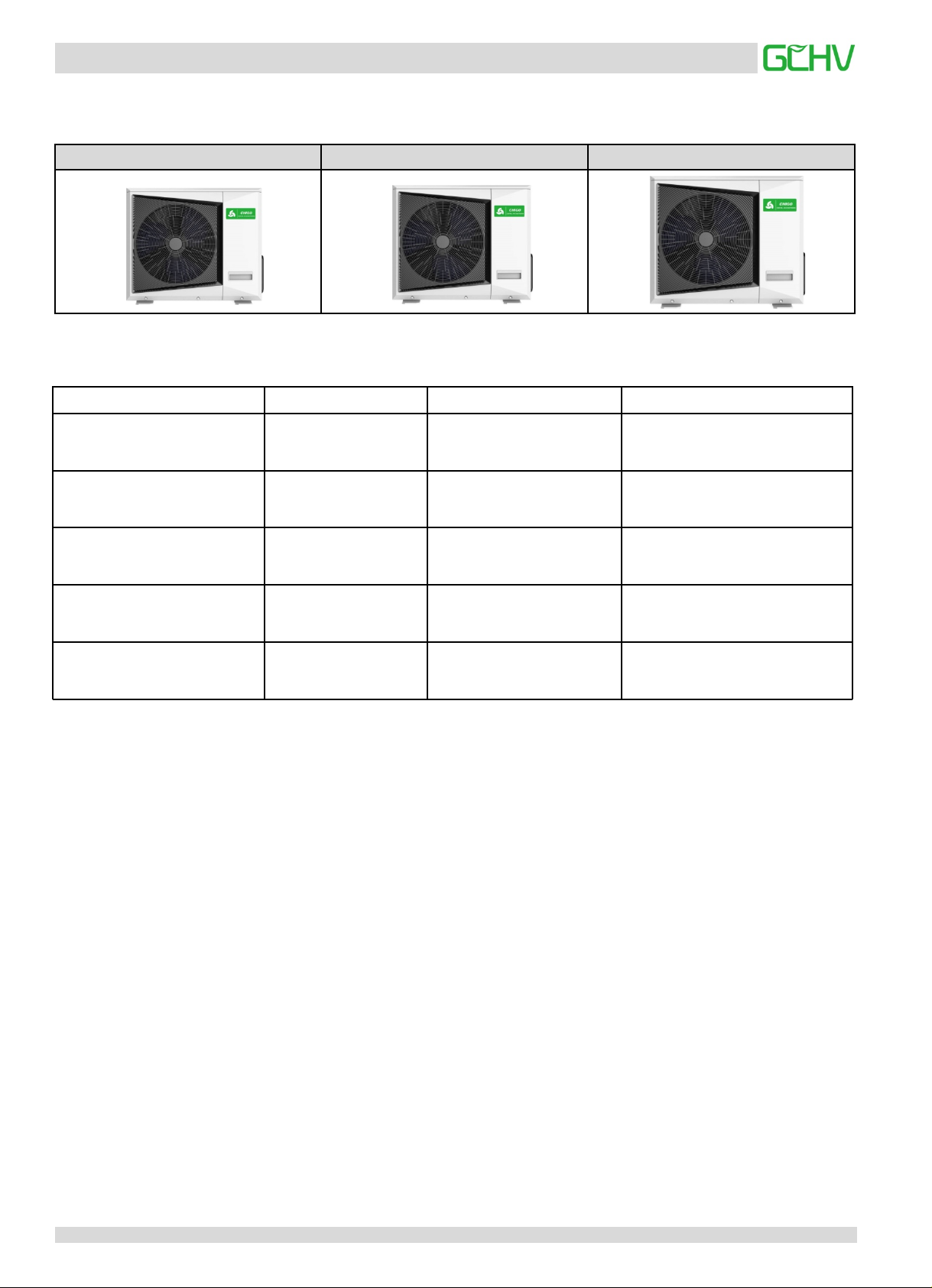

2.2 Outdoor Units

Table 1-2.2: Outdoor unit appearance

8kW 10kW 12.5/14/16kW

Model name Net dimension(mm)Net/Gross weight (kg) Power supply

CHV-DH080W/R1

Width:935

Height: 702

Depth:383

47/50 220~240V/1N/50Hz

CHV-DH100W/R1

Width:1032

Height: 810

Depth:445

60/65220~240V/1N/50Hz

CHV-DH125W/R1

Width:1100

Height: 870

Depth:528

85/95 220~240V/1N/50Hz

CHV-DH140W/R1

Width:1100

Height: 870

Depth:528

90/100 220~240V/1N/50Hz

CHV-DH160W/R1

Width:1100

Height: 870

Depth:528

90/100 220~240V/1N/50Hz

Table 1-2.3: Outdoor unit specification

CHV Mini VRF 50/60Hz

201908 7

Part 1 -General Information

4. Combination Ratio

Table 1-4.1: Indoor and outdoor unit combination ratio limitations

Type Minimum combination ratio Maximum combination ratio

(Standard indoor units)

CHV Mini

Series outdoor units 50% 130%

Sum of capacity indexes of the indoor units

Combination ratio =Capacity index of the outdoor units

3. Nomenclature

Cooling Capacity (×100W )

Side Discharge Outdoor Unit

All DC Inverter

Chigo VRF

Refrigerant Type

R1: R410A

Power Supply

-- 220~240V, 50Hz, 1ph

Z380~415V, 50Hz, 3ph

CHV-DH100W/R1

Outdoor Unit

CHV Mini VRF 50/60Hz

8 201908

CHV Mini Series Service Manual

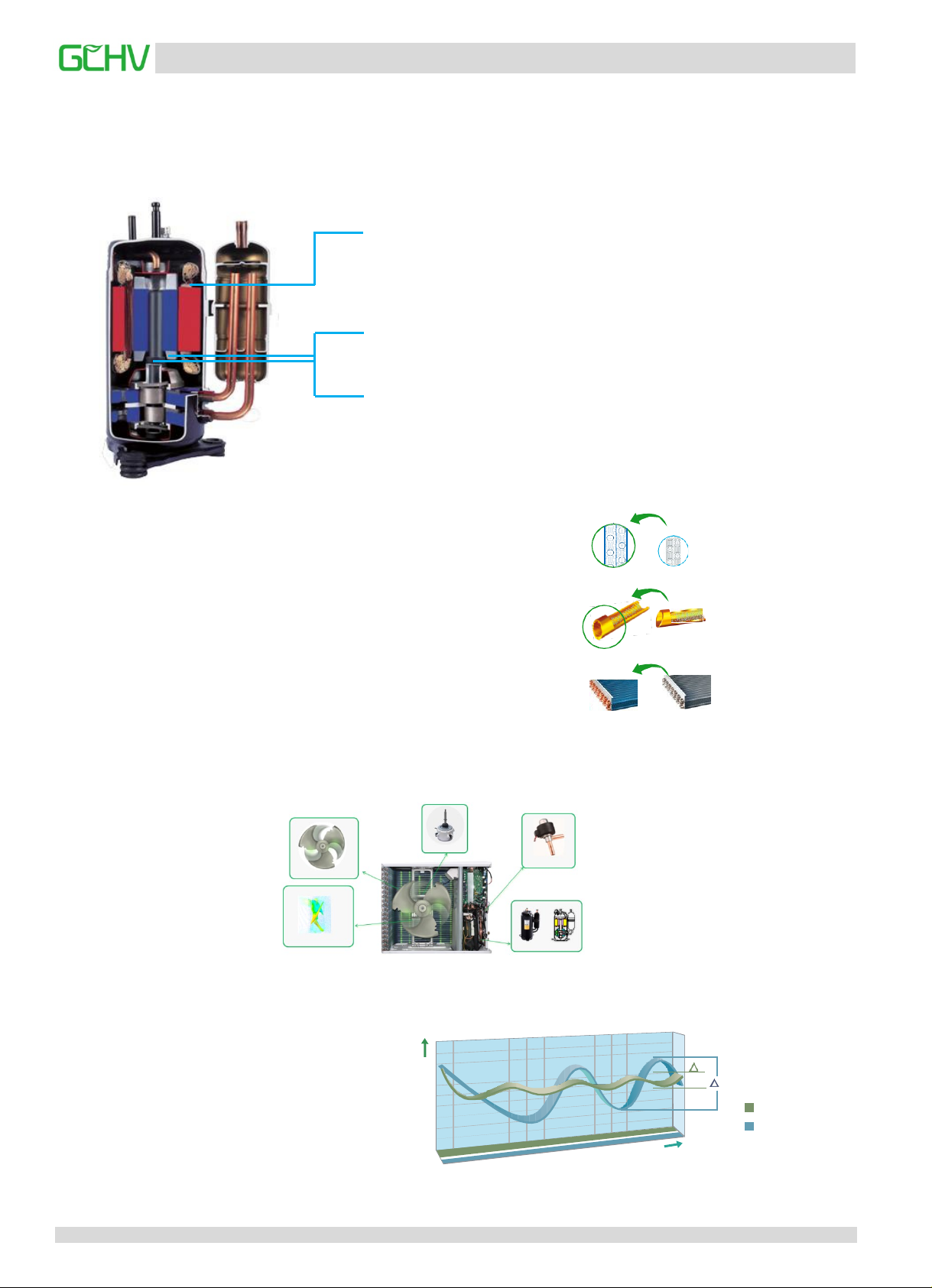

5. Features

5.1 Wide application

The All DC Inverter Mini VRF system is a highly efficient solution for small commercial buildings requiring heating and

cooling of up to 9 zones with one outdoor unit. Such as villa, restaurant, school etc.

Chigo offers various indoor units, more than 100 models of 11 types.Capacity ranges are from 2.2kW to 16kW. It is all

compliance with residential and light commercial place.Our systems can be operated up to 130%of capacity which

allows any system to be designed to the customers’ and applications’ needs.

Compressor

(Twin Rotary) structure

5.3 High performance heat exchanger

The new designed window fins enlarge the heat-exchanging area, which

decrease the air resistance, save more power and enhance heat exchange

performance.

Hydrophilic film fins and inner-grooved copper pipes optimize heat

exchange efficiency.

5.5 Quick warm-up & cool-down design and less temperature fluctuation

Utilizing the inverter compressor benefits,

the system can reach All load quickly and

shorten warm-up or cool-down time for an

immediate comfortable air solution.

Less temperature fluctuation will create a

better living environment.

5.4 Low-operating sound design

Optimally design fan shape and new designed discharge air grille and air deflector, auxiliary with DC fan motor and

world-famous compressor, making higher air volume and lower operation sound.

5.2 High efficient DC inverter compressor

All DC inverter Mini VRF adopts highly intelligent inverter-driven compressor. This advanced technology enables the

output of the outdoor unit to be modulated by the real heat load demands.

This advanced system ensures precise temperature regulation and highly efficient energy usage, making a significant

contribution to the limiting the impact on the environment.

Highly Efficient DC Motor:

-Creative motor core design

-High density neodymium magnet

-Concentrated type stator

-Wider operating frequency range

Better balance and Extremely Low Vibration:

-Twin eccentric cams

-2 balance weights

Highly Stable Moving Parts:

-Optimal material matching rollers and vanes

-Optimize compressor drive technology

-Highly robust bearings

-Compact structure

Fluctuation of room temperature

Temp.

Time

Notn-inverter

Cooling operation

Inverter

New design Original design

High efficiency inner-thread pipe,

enhance heat transfer.

CHV Mini VRF 50/60Hz

Part 1 -General Information

201908 9
