Mik-El / Chilton Page 2of26

Serial Number._________

Date of Purchase. _________

OPERATING INSTRUCTIONS

CM2-4

Guarantee

This Audio Mixer is guaranteed against any defect in material or workmanship for a period of

twelve months from the date of purchase. During this period we undertake to supply

replacements free of charge for any parts which may prove on examination to be defective

provided that such defectiveness is not the result of misuse, accident or modifications. The

mixer or units thereof will be repaired or replaced free of charge, including labour, if

consigned, Carriage Paid, to the manufacturer or agent. The mixer, if sent by carrier, should

be returned in the original packing carton. The manufacturers have no on site service or

maintenance facilities. in special circumstances, at the discretion of the manufacturer or

agent, arrangements are possible, provided travelling and labour costs are paid.

MAGNETIC TAPES LTD., Chilton Works 6-8 Wolsey Rd.,

ASHFORD Middlesex, U.K.

Telephone: 0784 247124 Telex: 912881G MTL

CM 2

Mik-El / Chilton Page 3of26

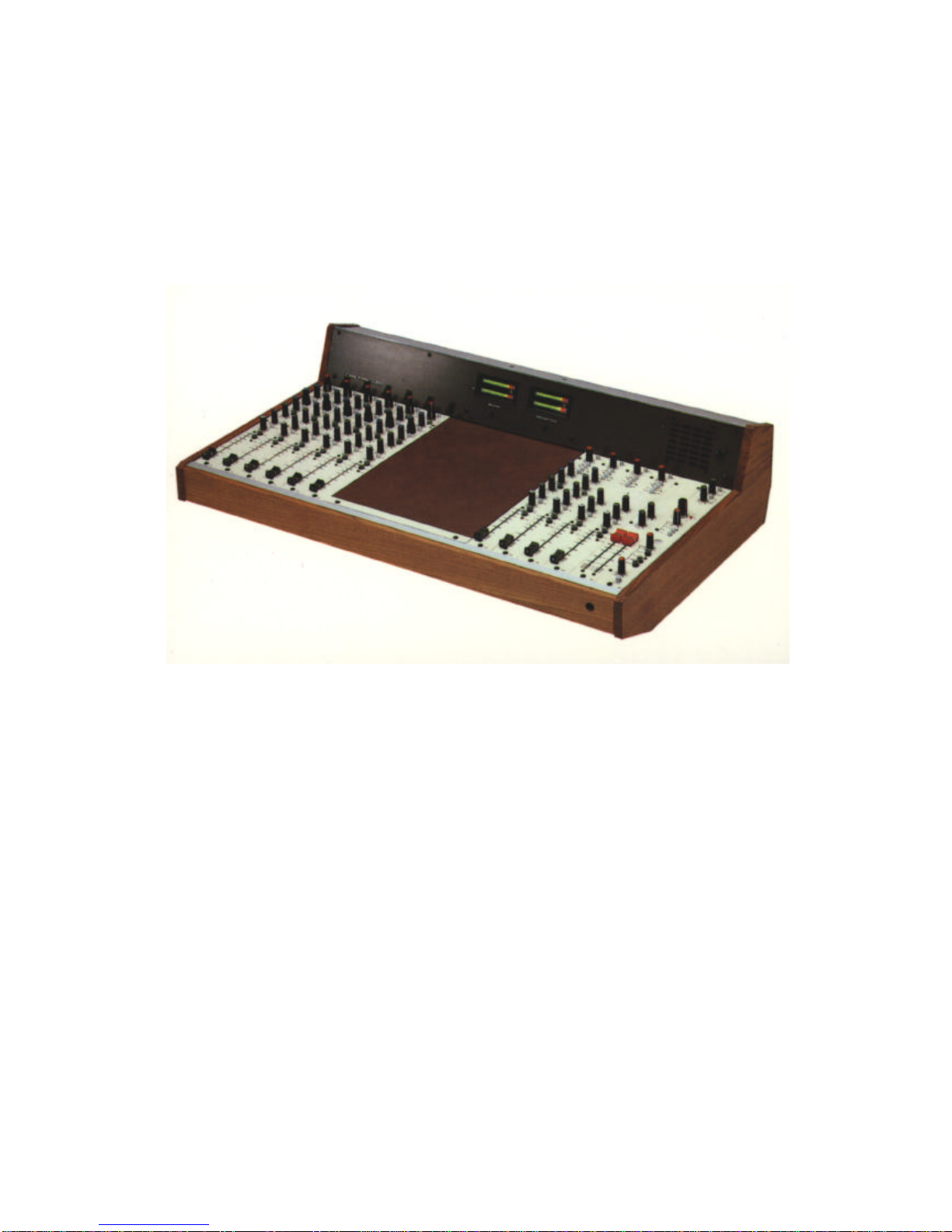

CHILTON CM SERIES

General Instructions.

After opening the packing case, lay horizontally, control side up and slide out.

Then check for any visual damage.

The Power supply (PS30) is packed separately, complete with 2 leads:

1. Mains cable with moulded on connector to PS30.

2. 1-6 metre spire wrap connecting cable.

Check voltage selector on Power supply agrees with mains supply. (Remove PS30 cover)

Connector cable 2 to PS30 and console respectively and secure 8 pin connectors with 2 spring

clips provided. Connect to mains and switch on. If the fuse is OK, the meters will illuminate

and Channel LED's glow and then go out. The LED's on the Power supply are connected to

the +15v DC 1A (Electronic supply) and gives a direct indication of this output.

800mA 20mm Anti-surge 110-120v

400mA 20mm Anti-surge 220-240v

PPM. For operators not familiar with the Peak Programme Meter, each division is 4dBs.

Reference level of 0dBm (0.775v RMS) is 4. It has very rapid needle movement -indicates

Peak Level -and an electronic hold, giving a decay of 3 seconds from 7 to 1 on the scale.

Pre Installation Checks.

The general function of the console can be checked using the internal oscillator.

Output modules M2 -M3: (or generally to M42 -M43 4 Group)

a) Switch oscillator to 1kHz (LED on) press "SLATE" then set Group faders 1 and 2 to ref.

0dB. PPM will indicate "4" or VU -4dB. (This level should hold within 1dB from 40 to

15kHz). Increase both faders to read PPM "5" or 0 VU, then peak LED's below, meter

should now illuminate. To adjust for other levels, see circuit diagrams PPM-R34 VU-R1.

b) Depress MONO button (M3) this will give very small change in meter level. Pulling

down either group faders will show a drop of 6dBs. PPM. 2dB VU.

c) Auxiliary output: Turn down cue loudspeaker volume control, depress A1 button (M3)

hold down AFL button (A1) turn up A1 Master gain to approximately 3 o/c. This will

indicate PPM "5" or 0 VU. repeat with A2. (and A3)

d) Talkback: Group faders ref. 0dB. TB gain control fully clockwise, SLATE button down.

Depress TB MIC button then talking at normal level both group peak LED's will indicate.

* Remove both foam blocks retaining front corners of CONSOLE

CM 2

Mik-El / Chilton Page 4of26

Input Module M1 (and M41)

For this test 1 male and 1 female XLR connectors are required.

Solder pin 2 to 2 and pin 3 to 3. The cable length appropriate to the console size. Screen wire

is not necessary. Plug the female XLR into Aux. 1 output and male XLR into Line input of

M1. (Osc. 1kHz A1 button down only) Adjust A1 master output to 0dBm. (PPM "4" VU -4)

a) Group and channel faders ref. 0dB

b) Pan central

c) Channel to LINE +48v off

d) Set Channel line input gain to 0dB

e) Channel ON

This will give approximately +2dBm (PPM "4 1/2" VU -2dB) on group meters.

Increasing this input level (Master A1 and AFL) by 4dB to +4dB will trip on Channel

LED.

Depressing PFL button will indicate 0dBm on PFL meter independent of Channel

fader.

High pass 70 Hz filter will drop level by 6dB @ 40Hz ref. 1kHz

The EQ section can be checked using spot frequencies 10 kHz for HF 100 Hz for LF

and 100 -1kHz for Mid.

Microphone Input: Set up as for Line with 0dBm input

a) Pad in.

b) Set channel Mic input gain to 20 dB Control fully anticlockwise

c) Switch channel to MIC

Group meter will now read approximately 0dBm.

Frequency check 40 -15kHz within 1dB

CM 2

Mik-El / Chilton Page 5of26

Input module M4 (or M44)

The test lead suitable for M1 inputs can be used only for M4 balanced inputs. Unbalanced

Line and Phono inputs require different pin connections as follows:

Male XLR connector, link pins 2 and 3 to: Female XLR into Auxiliary 1 output and Male

XLR into either stereo input and depress relevant input selector switch L1 or L2. (Osc. 1kHz

A1 button down only). Adjust A1 master output to 0dBm.

a) Group and Channel fader ref. 0dB (set Balance control to "0")

b) Switched input gain control 0dB

Pressing the PFL button will show PPM "4" or VU -4dB on RH meter. Increase input

level by 4dB via A1 control channel, Peak LED will illuminate. Release PFL, reduce

input to 0dBm.

c) Press L and R and CH ON button. (M44 Press 1-2 or 3-4 or LR +CH ON) This will give

approximately +2dBm (PPM "4 1/2" VU -2dB) on group meters. No change will be

observed in MONO mode. A similar procedure can be used for Phono input, but input

level via A1 should be reduced to approximately 9 o/c to give 0dBm on PFL meter.

To test Balanced Line inputs: L1 and L2 are Left and Right channels respectively.

Mik-El / Chilton Page 6of26

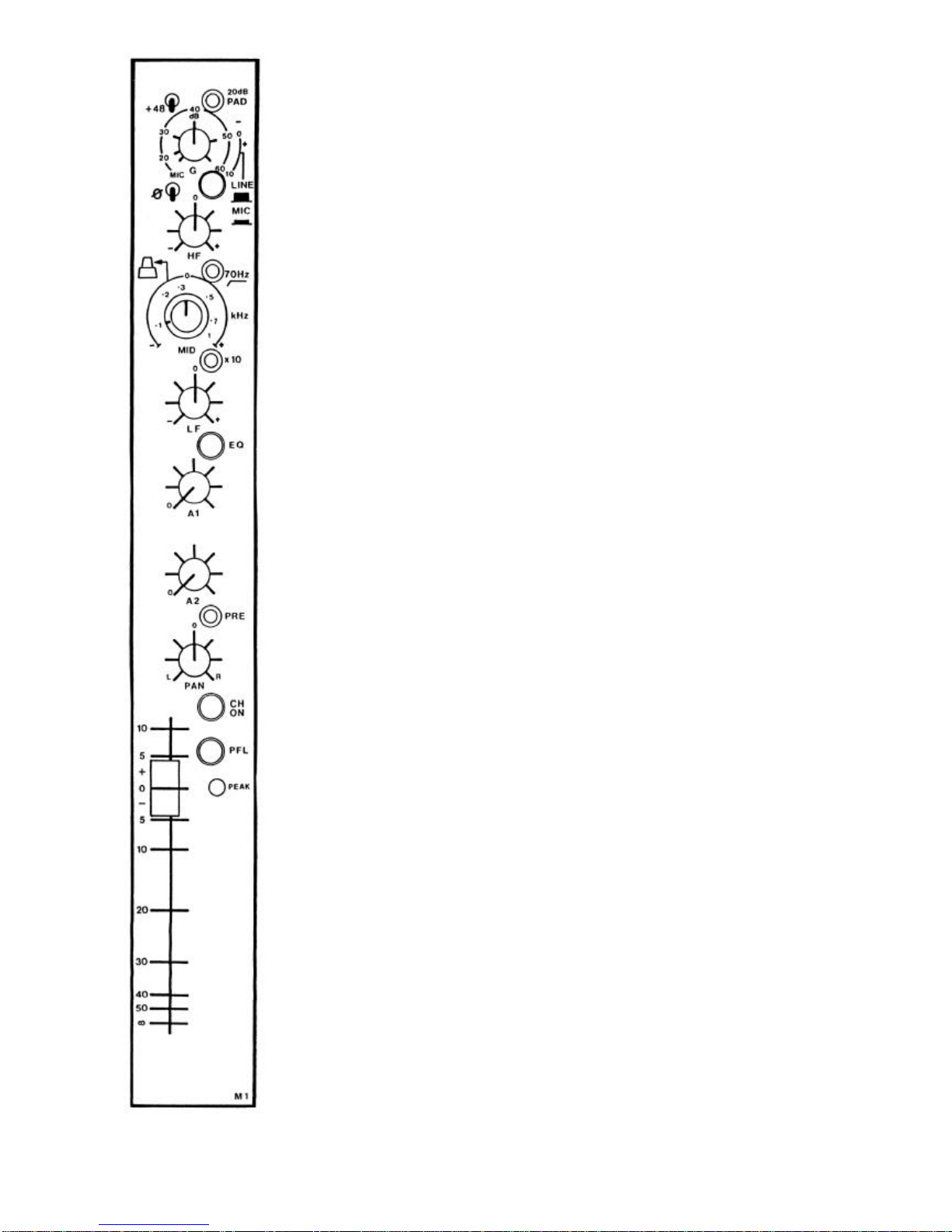

Mono Microphone and Line Input. M1

Dual concentric control, lower Microphone top Line Microphone gain is variable between

20dB. A 20 dB pad or attenuator is provided. Thus should be used when the gain is

around the 20-30dB mark. A 48V supply is available for capacitor microphones which are

not self powered. The accidental use of this supply on dynamic types will not cause

damage. The microphone phase change switches should all point in the same direction

unless a phase problem is suspected. Line gain is variable between +10dB to -20dB

therefore with Channel and Group fader at ref. 0-10dBm to +20dBm input will give 0dBm

on Group meters.

High Frequency shelf control: +-15dBm at 10kHz centre (indent flat)

Switchable High Pass Filter effectively removes low frequency components below 70 Hz at

the rate of 12dB/octave Pre-EQ

Dual concentric mid sweep control. 100 -10kHz.

Lower control knob sweeps 100Hz to 1kHz or with 10 switch depressed 1k -10kHz

(overlap provides up to 13kHz)

Top control knob: Boost or cut +-15dB at frequency selected. Centre Indent flat (Q 1-5)

Low Frequency shelf control: +-15dB at 100Hz. Centre indent flat.

Equalisation in circuit with EQ button depressed (Green fisheye).

High pass filter independent of this control.

Auxiliary 1 Send. A 1 Pre channel fader (can be linked to Post)

Auxiliary 2 Send. A 2 Switchable Pre or Post channel fader.

Panning is provided between Left and Right group outputs or can be used as a Group

Routing switch.

Channel On. Button down (Green fisheye).

Note: Both Auxiliary Sends are muted with button UP.

PFL Pre-Fade Listen switch (lockable fisheye) routes the Channel to Cue Loudspeaker,

Headphones and Control room monitors without affecting the Group output. Illuminates a

Green LED on the M3 Monitor module.

Peak Level indicator is illuminated if the channel level approaches +4dB. This is 16dB

below clip point; allow for subsequent EQ adjustment. Note: (Pre-set adjust -10dB to

+20dB)

104mm Linear fader. Very high quality plastic conductive with rubber end stops. Micro

switch can be fitted for self start or monitor mute.

Rear Panel. Balanced and floating Microphone or Line inputs

Microphone Input: Connections see block diagram. Suitable for 200 ohm type

microphones.

Line Input: Balanced input connect as diagram. Unbalanced input Live to pin 2 Common

to pin 3 Screen only pin 1

Direct Output: Jack tip Live. Sleeve Common. May be wired Pre Fader

Insert: Jack 3 pole type. Tip Return. Ring Send . Sleeve Common.

Mik-El / Chilton Page 7of26

Stereo Line or Phono Input. M4

L1 and L2 select either of two unbalanced Line or Phono inputs.

See M4 module input configurations drawing.

Switched Input level control. When magnetic cartridge pre-amps are fitted,

each has a Gain pre-set accessible by lifting up the meter bridge panel. to

adjust, set level switch to 0dB Channel fader to your required reference

(normally 0 or +10) and Group faders to 0. Adjust pre-set to give required

level on output meters from tone on test record.

Balance control will increase gain by max 3dB to Left or Right channel as

indicated on scale.

Auxiliary Send 2 takes a mono mix of L and R channels Pre fader (Can be

wired Post)

Auxiliary Send 2 takes a mono mix of L and R channels Pre or Post fader

(switchable)

Stereo to Mono Push button

PFL. Mono summation of L and R, otherwise as M1 PFL

Peak Level Indicator. illuminates when left, right or both channels approach

+4dB, otherwise as M1

L. R. push button selection to Group outputs.

104mm Stereo Fader. Otherwise as M1

Rear Panel:

Line In 1-2: See block drawing as M4 Input drawing

Insert L and R: Jacks 3 pole. Tip Return. Ring Send. Sleeve Common

Mik-El / Chilton Page 8of26

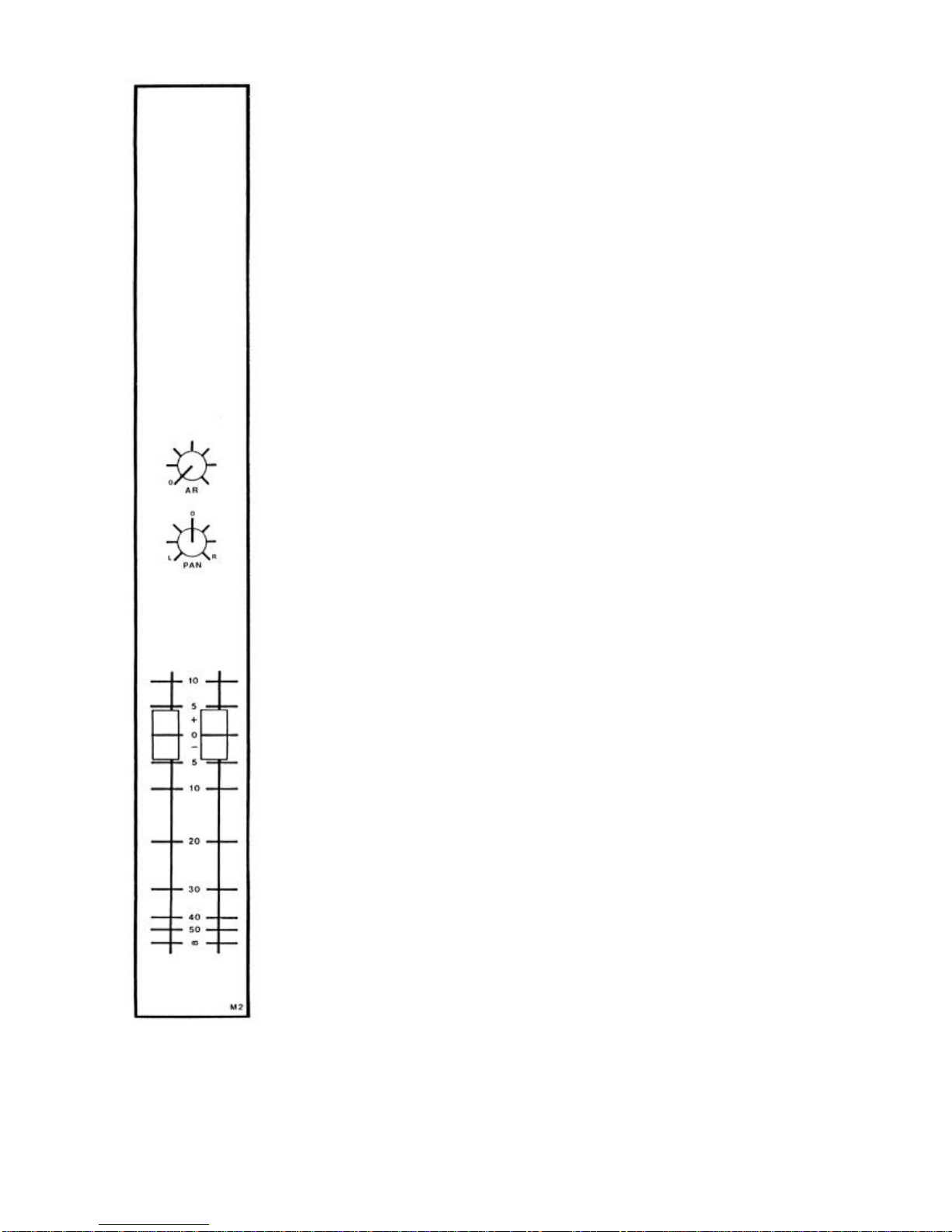

Master Stereo Output. M2

This module houses both Left and Right Mix and Output amplifiers and the Mono

output.

Provision is made to retro fit 3 balanced output transformers for L1 L2 and Mono.

Separate auxiliary return gain controls with direct access to Left and Right mix bus.

Aux return: Jack 3 pole Tip Left Ring Right Sleeve Common

Inserts: Jack 3 pole Tip Return Ring Send Sleeve Common

The fader knobs are off-set so may be spaced apart for sub-grouping in Mono or

closely spaced for Stereo.

Rear Panel:

L1 (left) L2 (right) and Mono outputs see block diagram for connections. Note: Pin

3 is Common or 0 volts in the unbalanced mode and should not be connected in

outer screen. When possible Live pin 2 and Common pin 3 should be screened and

terminated at one end only to pin 1 (Connects to console frame)

Mik-El / Chilton Page 9of26

Master Monitor. M3

A1 Master auxiliary output level control Pre channel fader. The AFL After Fade

Listen button (hold only) routes A1 to headphones, monitors and PFL meter.

A2 Master auxiliary output level control Pre or Post channel fader with AFL

switch

Osc. Low distortion test oscillator. LED indicates ON positions.

Talk back microphone gain control "G" is activated by "TB MIC" hold only

button and routed at Line Level to rear XLR connector when Slate A1 and A2

buttons are not assigned. Both Oscillator and Talk back can be used

independently or together. For example: assigning 40Hz and Talk back to slate

(group outputs) both track indent and fast wind search tone can be recorded.

Note: External Talk back is muted when any button is assigned.

MON control "G" is for control room or studio monitor loudspeaker level.

MUTE: This mutes the monitor output only.

PFL: Green LED indicates Monitors are in PFL mode via channel PFL buttons or

FL for Auxiliary Outputs.

TAPE: Selects stereo or mono tape returns.

MONO: Mono output summation of left and right groups.

HEADPHONE level control follows monitor output but is not muted.

"MIC" button also mutes Monitor signal in all modes.

Rear Panel:

A1 -A2 -TB See block diagram for connections.

Headphones: Jack 3 pole. Tip Left. Ring Right. Sleeve Common.

Parallel to jack socket on console front.

Mon: Monitor output wired as headphones.

TR Jack 3 pole. Tip Left. Ring Right. Sleeve Common.

Mik-El / Chilton Page 10 of 26

MODULE SERVICE.

To removed or transpose modules, a pozidriver size 2 screwdriver is required.

Procedure:

First, remove lower fixing screws on meter bridge front panel, (3 off 10 inputs -4 off 16 inputs) complete

with fibre washers. Then lift to a horizontal position and fix. NOTE (xx)

Remove rear Jack socket fixing nuts* on module to be changed or removed and front 2BA black

countersunk fixing screw. Remove internal mini jacket plug, if fitted. Lift up front of module using Pan

or A2 knobs (NOT FADER KNOB) until fader body is just clear of case; pull forward to release rear

connectors from back panel (rear label will drop clear) finally hook round meter bridge tie rod to pull

clear. Reverse procedure to replace.

Always check rear connectors are fully engaged into rear panel before pressing module fully home into

the Bus connector. If problems are experienced in replacing the far left hand module try removing both

middle and bottom rear panel fixing screws.

When removing internal connectors on M2 or M3 modules use a pair of pliers, DO NOT PULL CABLE

(applies to M45-M42a-M42b-M43 on 4 Group)

* Replace finger tight only.

Blank panels: These have a small movement in the rear fixing holes to align with existing modules.

FIRST ISSUE CM2 MODULES

M1 Module

a. Delete +48v Phantom Power switched.

b. Delete Phase reverse switch.

c. Mid x 10 switch. 100 -1kHz range button down.

d. Balanced Line input Jack socket. Tip + Ring -Sleeve Common

M4 Module

a. LINE IN 1 Jack socket. Tip Left. Ring Right. Sleeve Common

M3 Module

a. oscillator frequency 10kHx incorrectly printed 1kHz

xx If difficulty is experienced when replacing fixing screws (locate centre screws first) slacken off upper countersunk

screws first.

Inhaltsverzeichnis

Andere Chilton Musikmixer Handbücher

Chilton

Chilton QM 3 Series Bedienungsanleitung

Beliebte Musikmixer Handbücher anderer Marken

Neve

Neve 8816 Bedienungsanleitung

Mackie

Mackie Onyx Analogue Mixer Bedienungsanleitung

Behringer

Behringer EUROPOWER PMP518M Bedienungsanleitung

Peavey

Peavey S-32 Sanctuary Series Bedienungsanleitung

Rane

Rane MP 4 Bedienungsanleitung

True

True T9 Touchscreen Console Bedienungsanleitung

Studiomaster

Studiomaster Air Pro 24 Bedienungsanleitung

Pioneer

Pioneer SVM 1000 - Audio/Video Mixer Bedienungsanleitung

Roland

Roland M-160 Bedienungsanleitung

Yamaha

Yamaha MR1642 Bedienungsanleitung

Ecler

Ecler MAC40v Bedienungsanleitung

Pioneer

Pioneer DJM 909 - Battle Mixer W/Effects Bedienungsanleitung

Veeder-Root

Veeder-Root TLS-350 Series Bedienungsanleitung

Alto

Alto APM80.QUAD Bedienungsanleitung

Omnitronic

Omnitronic PM-211 Bedienungsanleitung

SoundCraft

SoundCraft B400 Bedienungsanleitung

Roland

Roland SoundCanvas SC-8820 Bedienungsanleitung

CARVIN

CARVIN RX 1200 Bedienungsanleitung
