Refrigerator Service Manual

Applicable to

Model: FSS559NEI32D(BCD-570WPDR)(C1873)

Contents

I. Product features............................................................................................................................ 3

II. Outer appearance and structure ................................................................................................. 4

III. Main technical parameters ....................................................................... 错误！未定义书签。

IV. Operation instructions.................................................................................................................. 4

V. Display rules................................................................................................................................... 7

VI. Cooling system .............................................................................................................................. 8

VII. Control system............................................................................................................................... 8

VIII. Maintenance guide ..................................................................................................................... 11

IX. Explosive view and spare parts list .......................................................... 错误！未定义书签。

I. Product features

This is a frost-free side-by-side fridgefreezer. Its right side is the fridge compartment for fresh

food storage, such as fruits, vegetables, eggs, milk, cooked foods, etc.; and its leftside is the

freezer compartment where fish, meat, etc. can be frozen for the long-term storage.

★Real-time monitoring; The states of the fridge compartment, freezer compartment and variable

temperature chamber are monitored in the real-time manner to ensure they are operating

under the optimal conditions with the best humidity maintained, so that the food

preservation time can be extended.

★Stylish appearance; Adopting the optimized man-machine engineering design, this hidden

handle refrigerator has an elegant and novel appearance.

★Multi-airflow; The stereo multiple air outlets are adopted by the refrigerator, which guarantees

uniformity of the storage temperature.

★Smart defrosting; Featuring the smart defrosting design, the refrigerator performs the defrost

operation according to the actual use frequency and frost formation speed, thus more

energy-saving. Before the defrost operation, the refrigerator internal temperatures are

automatically judged and pre-refrigeration is made, so that the internal temperatures before

and after defrosting do not change significantly, which is conducive to the food preservation.

★More user-friendly designs; Such functions as wide working voltage range, automatic

temperature control, power-off memory, power-on delay, automatic alarm, fast freezing, and

fridge power-off, etc. are available.

★LED display and induction keys; The parameters and control states of the fridge and freezer

compartments can be displayed by the LED screen; the fridge temperature adjustment range

is between 2 °C and 8 °C, and the temperature range of the freezer compartment is between

-16 °C and -24 °C. The fan of each compartment is synchronized with the cooling request of

the corresponding compartment, and the lamp of each compartment is controlled by the

door lamp switch of the corresponding compartment.

II. Outer appearance and structure

Note: Due to technological innovation, the product descriptions in this manual may not be completely consistent

with your refrigerator. Details are in accordance with the real product.

III. Operation instructions

1. Keys

Temp.Zone

1) This is the key to select the temperature zone, and the temperature zone changes once

with each response of the key. When the fridge zone is selected (with icon of the fridge

door flickering), temperature digits starts flickering. After temperature setting, press

the OK key to validate it. When the freezer zone is selected (with the icon the freezer

door flickering), set the temperature by reference to the fridge temperature setup.

2) The temperature zone selection changes through the following cycle:

Fridge → Freezer →Fridge;

Note: When the function program is enabled, temperature setting becomes invalid.

3) Every time when settings are finished (with no flickering any more), if the Temp. Zone

key is pressed again, the Fridge icon starts flickering first.

4) Fridge OFF: When the fridge temperature is set, the temperature setting progresses

through the following cycle.

2℃→3℃→4℃→5℃→6℃→7℃→8℃→OF→2℃

(‘OF’ represents the OFF state, and when the OF setting takes effect, the fridge will be

shut off, with no refrigeration request.)

Temp. (temperature setting)

1）Under the temperature setting state, the temperature rises by 1℃with each key

response.

2）Adjustable temperature range for each compartment:

Fridge compartment : 2℃～ 8℃;

Freezer compartment: -16℃～ -24℃;

OK

1）Under the state of function selection or temperature setting, the selected function or

the set temperature value takes effect when this key is pressed, with the corresponding

flickering stopped immediately.

2）Under the function selection or the temperature setting state, if this key is not pressed,

flickering will stop in 5 seconds, with the selected function or the set temperature value

invalid.

Function

1）This is the key to select functions, and the function selected changes with each key

response.

2）Function selection changes through the following cycle:

“Smart”→“Fast freeze”→“Smart”

3）The selected function takes effect after the ‘OK’ key is pressed. When a function has not

been set, press this key to select the function, and then press the OK key, the selected

function can be enabled; and if a function has been set, press this key to select the

function, and then press the OK key, the function will exit.

Child lock

1）Under the state of “Child lock”, hold down this key for 3s, then the child lock function

can be disabled.

2. Function program rules

Press the key to perform the corresponding function of Smart, Fast Freeze, Fridge OFF, or

Child Lock.

‘Fast freeze’ function

1) To enter ‘Fast Freeze’

Refer to the key operation;

2) To exit ‘Fast Freeze’

a) The ‘Fast Freeze’ function will exit automatically when the refrigerator total run

time reaches 26 hours, counting from the moment the fast freeze function is

enabled, with the character ‘Fast Freeze’ and its icon extinguished.

b) When the ‘Smart’ function is enabled, the ‘Fast Freeze’ function exits, with its

icon extinguished.

c) Refer to the key operation.

3) When the ‘Fast Freeze’ function is enabled, the freezer temperature can’t be

modified.

4) When the ‘Fast Freeze’ function gets exited, the freezer temperature restores to its

original temperature that is set before the ‘Fast Freeze’ function is enabled

’Smart’ function

1) To enter ‘Smart’.

Refer to the Key operation;

2) To exit ‘Smart’ (the following refers to the OR relationship):

a) Refer to the key operation.

b) When the ‘Fast Freeze’ or ‘Vacation’ function is enabled, the ‘Smart’ function

exits.

3) When the ‘Smart’ function is enabled, the fridge temperature is set at 05℃and the

freezer temperature at -18℃, which are subject to no change.

4) When the ‘Smart’ function gets exited, the temperature of each compartment

restores to its original temperature that is set before the ‘Smart’ function is enabled

‘Child Lock’ function

1) To enter Child Lock.

When the display is unlocked, the Child Lock function will be enabled automatically if

no key operation within 3 minutes.

2) To exit Child Lock.

Refer to the Key operation.

3) When the Child Lock function is enabled, the refrigerator temperature and function

are subject to no change.

IV. Display rules

Under normal operation, the temperature of the compartment whose icon lights up is

displayed at the digit zone.

The display fullylights up when the refrigerator is energized for the first time, which will

restore to the normal display in 2 seconds.

When the display lights up, it will be off if no key operation within 3 minutes.

When the display screen is off, a key can be awakened when it is pressed for the first time,

and the function of the key can be enabled if it is pressed again.

In the case of failure or any door open action, the display lights up.

In the case of temperature setting, temperature of the current corresponding compartment

is displayed, with the ‘2-digit’ and ‘-’ icons flickering.

Over-temperature alarm

When energized, if the freezer sensor temperature is higher than -10℃, its corresponding

icon and temperature gets flickering. The temperature of the freezer when it is energized

can be displayed by pressing any key. And the normal display is restored 10s later or by

pressing any key again.

Special function program display contents

When the ‘Smart’ function is enabled, the character ‘Smart’ and its icon light up, with the

fridge temperature and the freezer temperature displayed as 5℃and -18℃; when the ‘Fast

Freeze’ function is enabled, the character ‘Fast Freeze’ and its icon light up, with the freezer

temperature displayed to be ‘-32’.

V. Cooling system

Schematic diagram of the cooling system

VI. Control system

(Including the control system diagram, main control board circuit layout diagram, each

component control）

1. Schematic diagram of the control system

Components output:

Compressor（~220V / 50Hz,200W）

Buzzer

LED display

Fridge lamp（12V,3W）

Fridge lamp (12V,3.5W)

Freezer fan（12VDC,4W）

Freezer defrosting heater（~240V / 50Hz,240W）

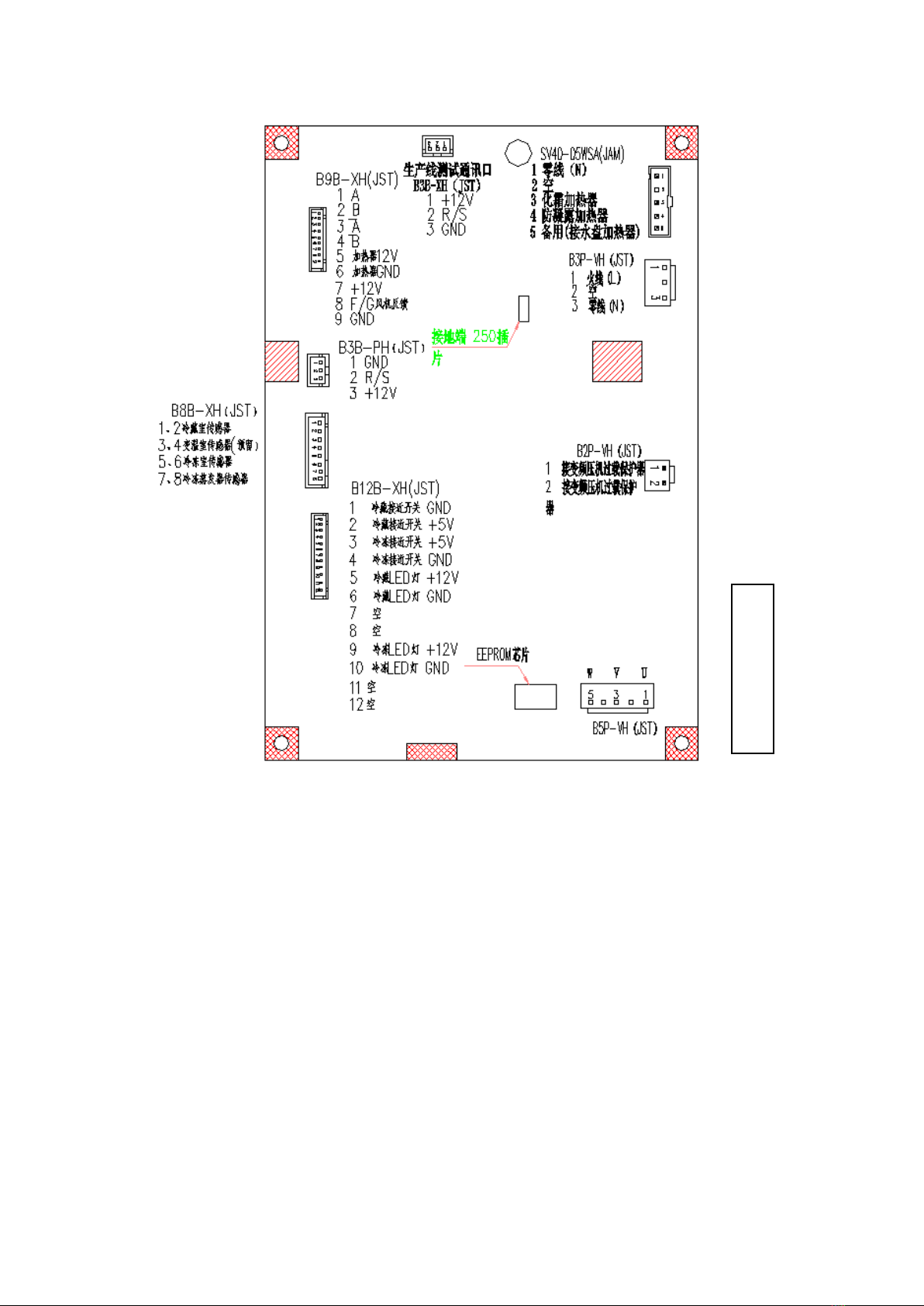

2. Diagram of the control board-the board integrating the inverter control with the main

control

3. Components control rules

1) Compressor

Make sure to wait for at least 5 minutes before you start it again after it is shut down.

控

制

板

简

图
