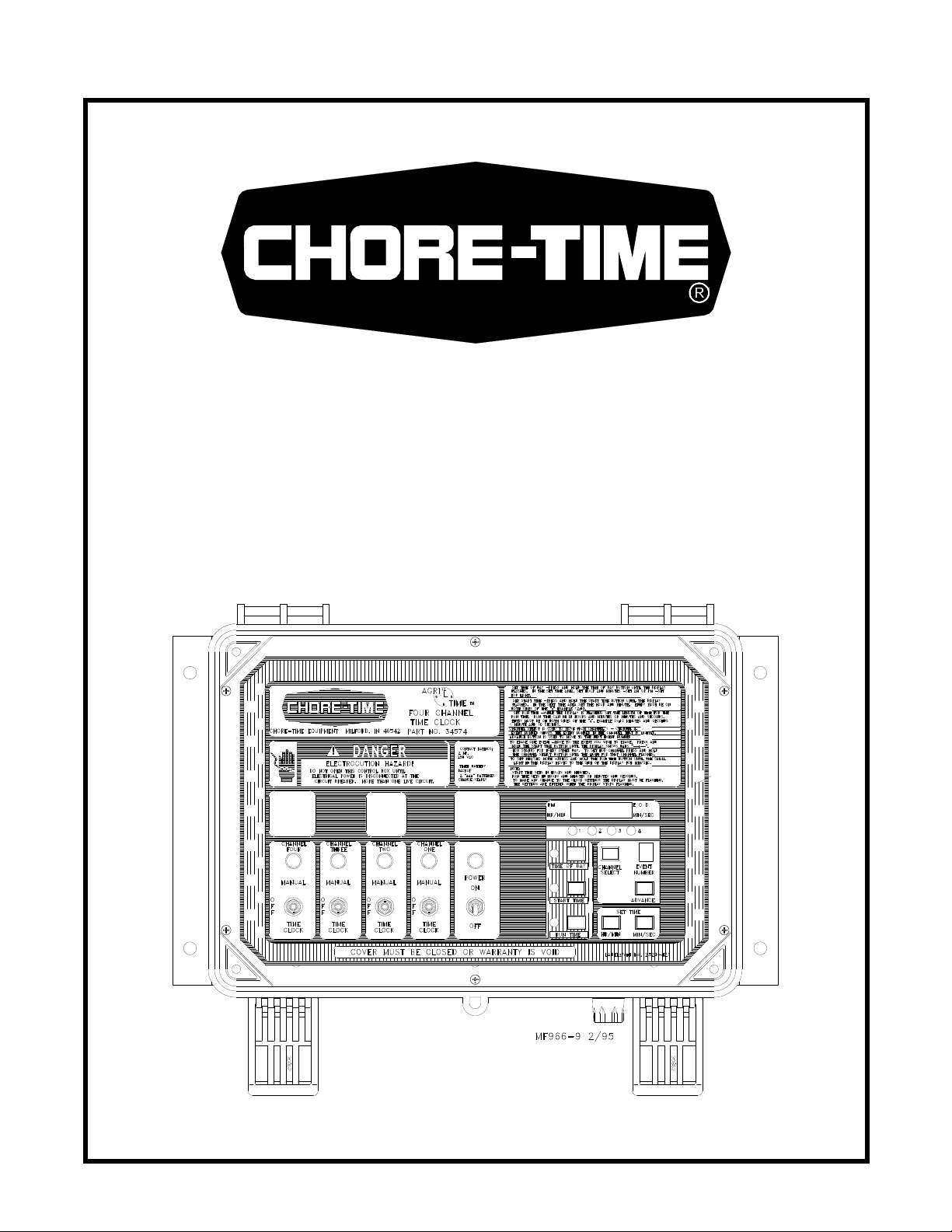

AGRI-TIME

DIGITAL TIME CLOCK

used with the

34574 Control Panel

MF1115B12

May 1995

AGRI-TIMETM Control Instruction

Page 2

Chore-Time Equipment warrants each new product manufactured by it to be free from defects in material or work-

manship for one year from the date of initial installation by the original purchaser. If such a defect is found by

Chore-Time to exist within the one year period, Chore-Time will, at its option, (a)repair or replace such product free

of charge, F.O.B. the factory of manufacture, or (b) refund to the original purchaser the original purchase price, in

lieu of such repair or replacement.

Additional extended warranties are herewith provided to the original purchaser as follows:

1. RLX Fans, less motors, for three years from date of installation.

*2. Poultry feeder pans that become unusable within five years from date of installation. Warranty

prorated after three years usage.

3. MEAL-TIMEHog Feeder pans that become unusable within five years of installation.

4. Rotating centerless augers, excluding applications involving High Moisture Corn (exceeding

18%), for ten years from date of installation. Note: MULTIFLOand applications involving

High Moisture Corn are subject to a one year warranty.

5. Chore-Time manufactured roll-formed steel auger tubes for ten years from date of installation.

*6. Laying cages that become unusable within ten years. Warranty prorated after three years usage.

*7. ULTRAFLOAuger and ULTRAFLOFeed Trough (except ULTRAFLOTrough Liners)

are warranted for a period of five (5) years from date of original purchase against repeated

breakage of the auger or wear-through of the feed trough.

Conditions and limitations:

1. The product must be installed and operated in accordance with instructions published by

Chore-Time or warranty will be void.

2. Warranty is void if all components of a system are not supplied by Chore-Time.

3. This product must be purchased from and installed by an authorized Chore-Time dealer or cer-

tified representative thereof, or the warranty will be void.

4. Malfunctions or failure resulting from misuse, abuse, negligence, alteration, accident, or lack

of proper maintenance shall not be considered defects under this warranty.

5. This warranty applies only to systems for the care of poultry and livestock. Other applications

in industry or commerce are not covered by this warranty.

Chore-Time shall not be liable for any consequential or special damage which any purchaser may suffer or claim to

have suffered as a result of any defect in the product. "Consequential" or "special damages" as used herein include,

but are not limited to, lost or damaged products or goods, costs of transportation, lost sales, lost orders, lost income,

increased overhead, labor and incidental costs and operational inefficiencies.

THIS WARRANTY CONSTITUTES CHORE-TIME’S ENTIRE AND SOLE WARRANTY AND CHORE-TIME EX-

PRESSLY DISCLAIMS ANY AND ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, EX-

PRESS AND IMPLIED WARRANTIES AS TO MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE

SOLD AND DESCRIPTION OR QUALITY OF THE PRODUCT FURNISHED HEREUNDER.

Any exceptions to this warranty must be authorized in writing by an officer of the company. Chore-Time reserves the

right to change models and specifications at any time without notice or obligation to improve previous models.

*See separate "WARRANTY ADDITION" as to these products

CTB, Inc.

P.O. Box 2000, Milford, Indiana 46542-2000 U.S.A.

Warranty Information

AGRI-TIMETM Control Instruction

Page 3

SAFETY INFORMATION

Caution, Warning and Danger Decals have been placed on the equipment to warn of potentially dangerous situations. Care

should be taken to keep this information intact and easy to read at all times. Replace missing or damaged safety signs.

Using the equipment for purposes other than specified in this manual may cause personal injury or damage to the equipment.

Safety–Alert Symbol

This is a safety–alert symbol. When you see this symbol on your equipment, be alert

to the potential for personal injury. Chore-Time equipment is designed to be installed

and operated as safely as possible...however, hazards do exist.

DANGER

WARNING

CAUTION

Signal Words

Signal words are used in conjunction with the safety–alert symbol to identify the

severity of the warning.

DANGER ..........indicates an imminently hazardous situation

which, if not avoided, WILL result in death or

serious injury.

WARNING........indicates a potentially hazardous situation which,

if not avoided, COULD result in death or serious

injury.

CAUTION.........indicates a hazardous situation which, if not

avoided, MAY result in minor or moderate injury.

DANGER—ELECTRICAL HAZARD

Disconnect electrical power before inspecting or servicing equipment unless

maintenance instructions specifically state otherwise.

Ground all electrical equipment for safety.

All electrical wiring must be done by a qualified electrician in accordance with

local and national electric codes.

Ground all non-current carrying metal parts to guard against electrical shock.

With the exception of motor overload protection, electrical disconnects and

over current protection are not supplied with the equipment.

Using this equipment for any other purpose or in a way not within the

operating recommendations specified in this manual will void the

warranty and may cause personal injury and/or death.

This manual is designed to provide comprehensive installation,

wiring, operation, and parts listing information.

IMPORTANT: CE stands for certified Europe. It is a standard which

equipment must meet or exceed in order to be sold in Europe. CE

provides a benchmark for safety and manufacturing issues. CE is

required only on equipment sold in Europe.

Chore-Time Equipment recognizes CE Mark and pursues compliance

in all applicable products.

SUPPORT INFORMATION

AGRI-TIMETM Control Instruction

Page 4

Time Clock Control: Part No. 34574

The 4-Channel Time Clock may be used in a variety of applications requiring a

time clock to start and run equipment, lights, etc. at a predetermined time, for a

predetermined amount of time.

Each channel has a 2 H.P. (max.), 230 V. power relay.

Figure 1 shows the front of the 4-Channel Time Clock Control. The individual

switches, pilot lights, and the Time Clock Control are noted.

Key Description

1Pilot lights indicating active channels.

2Pilot light indicating the power switch is “ON”.

3Switches used to set individual Channels to

MANUAL,OFF, or TIME CLOCK mode.

44-Channel Control Power Switch

5AGRI-TIME Timer

AGRI-TIMETM Control Instruction

Page 5

Features & Functions

-The Agri Timer has (4) programmable channels.

-Each channel can have up to 8 events (feedings, waterings, etc.).

-Each event will have a start time and run time programmed into the timer.

The start times are programmed in hours/minutes. The run times are pro-

grammed in hours/minutes or minutes/seconds.

-Any or all the channels can be set up as an every-other-day channel.

-Two “AAA” batteries are used as a backup only for time of day if power is

temporarily removed. The batteries should be replaced annually.

Battery replacement procedure: Cut the wire tie to remove batteries. Replace

with new batteries (observe + and - poles of battery). Use a wire tie to secure

the new batteries in the battery holder.

-Program settings will be stored in memory until a program change is made.

Power loss will not erase the programs.

-The Start Time, Run Time, and Channel Select buttons have dual functions.

Legend: Figure 1.

Key Description

1P.M. Indicator

2Hour/Minute Indicator

3Used to set time of day,

a.m./p.m., and every-other-day

mode.

4Used to set start time and to

erase individual operations.

5Used to set length of run time.

Also used to toggle between

hours/minutes and min-

utes/seconds.

6Used to set hours/minutes.

7Used to set minutes/seconds

8Used to advance to next

event in channel.

9Displays the event number

being programmed.

10 Used to advance through the

channels. Also used to set

every-other-day channel.

11 Indicates which channel(s) is

active.

12 Indicates the day to be

skipped.

13 Minutes/Seconds Indicator

14 Display Window

Figure 1.

AGRI-TIMETM Control Instruction

Page 6

CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4

RUN

TIME

RUN

TIME

RUN

TIME RUN

TIME

START

TIME START

TIME

Programming the 4-Channel Time Clock

Before beginning programming the time clock, fill in the desired starting times

and running times. This will make programming the clock much easier.

IMPORTANT: A start time and a run time must be entered for each desired

operation. If either are missing or incomplete, the operation will

be ignored.

The display must be flashing in order to make any program

changes.

When the display stops flashing, the new infomation will be added.

To Reset the Time Clock:

The time clock must be reset upon initial installation.

With power off to the system, press and hold the START TIME button while

turning the power on. This will erase any entries that were programmed in

the factory or field.

To Set the Time of Day:

Press and hold the TIME OF DAY button until the display begins to flash.

Use the HR/MIN key on the time clock. Be sure to set the clock to the ap-

propriate a.m. or p.m.

NOTE: Entries must be on both sides of the colon (i.e. 01:20).

To Set Every Other Day Mode:

Press the HR/MIN button to advance the display until the indicator beside

the EOD TODAY is illuminated. Press the appropriate a.m. or p.m. This will

set the proper sequence for the every-other-day mode. It does not, howev-

er, set the every-other-day Channel. The every-other-day Channel will be

set later in the programming.

AGRI-TIMETM Control Instruction

Page 7

To Set a Start Time:

Press and hold the START TIME button until the display starts flashing.

Enter the start time for the first channel using the buttons in the SET TIME

area of the time clock. The start times will be set in hours and minutes. Be

sure to set the appropriate a.m. or p.m. settings.

NOTE: Entries must be on both sides of the colon (i.e. 01:20).

To Enter a Run Time:

Use the buttons in the SET TIME area of the time clock. The run times may

be set in minutes/seconds or hours/minutes (i.e. 01:20).

NOTE: To set the run times in minutes/seconds, press and hold the RUN

TIME button until the indicator beside MIN/SEC is illuminated.

NOTE: Entries must be on both sides of the colon (i.e. 01:20).

To Assign Every-Other-Day Mode to a Channel:

Press and hold the CHANNEL SELECT button until the appropriate CHAN-

NEL indicator starts to flash. To remove every-other-day mode from a

channel, press and hold the CHANNEL SELECT button until the indicator

stops flashing.

To Move Through a Channel:

Press the ADVANCE button to move to the next event in a channel. The

EVENT NUMBER display window changes as the ADVANCE button is

pressed.

Follow the steps above to set the remainder of the channels and events.

To Erase a Single Event:

Press the CHANNEL SELECT button and the ADVANCE button to select

the event you wish to remove.

Press and hold the START TIME button until the display shows bars. This

will remove appropriate start time and run time.

To Erase All Start Times and Run Times:

Remove power to the Control Box.

Press and hold the START TIME button (for approximately 5 seconds)

while turning power on to the Control Box. This should remove all entries

from the program. However, the time of day will not be erased.

To Review the Program:

Press and hold the START TIME button until the display begins to flash.

Using the START TIME, RUN TIME, ADVANCE, and CHANNEL SELECT

buttons you can view each of the programmed entries (events).

AGRI-TIMETM Control Instruction

Page 8

34574 4-Channel Time Clock Control Wiring

for Single Boot and Two-Motor Tandem Applications

34574 4-Channel Time Clock Control Wiring

for Ext. Length Systems and Circulating Systems using a Hopper Level Control

AGRI-TIMETM Control Instruction

Page 9

34574 4-Channel Time Clock Control Wiring

for Ext. Length Systems and Circulating Systems using a Prox. Drop Tube Switch

34574 4-Channel Time Clock Control Wiring

for Ext. Length Systems and Circulating Systems using a Mech. Drop Tube Switch

AGRI-TIMETM Control Instruction

Page 10

34574 Time Clock Control Logic Wiring Diagram

34574 4-Channel Time Clock Control Wiring

for Meal-Time Hog Feeding Applications

Andere Handbücher für AGRI-TIME

Inhaltsverzeichnis

Andere Chore-Time Zeiterfassung Handbücher

Chore-Time

Chore-Time AGRI-TIME Einrichtungshandbuch

Beliebte Zeiterfassung Handbücher anderer Marken

Dyflexis

Dyflexis Rex-O-Matic Noa Bedienungsanleitung

L’EPEE 1839

L’EPEE 1839 TIME FAST II Bedienungsanleitung

TimeMoto

TimeMoto TM-616 Bedienungsanleitung

Videx

Videx 701T Bedienungsanleitung

Kronos

Kronos Timekeeper 400 Series Betriebsanleitung

Scarlett

Scarlett SC-810 Bedienungsanleitung

Funtronix

Funtronix SCORE-N-TIME T-240 Bedienungsanleitung

IKEA

IKEA NUFFRA 10357872 Bedienungsanleitung

Multipipe

Multipipe 22-23015 Benutzerhandbuch

L’EPEE 1839

L’EPEE 1839 SUN CLOCK Bedienungsanleitung

Oregon Scientific

Oregon Scientific TW331 Bedienungsanleitung

MT Logic

MT Logic CL-471 Bedienungsanleitung

Easy Clocking

Easy Clocking XENIO 500 Handbuch

Amano

Amano MTX-15 Bedienungsanleitung

LA CROSSE CLOCK

LA CROSSE CLOCK Harper 404-3450A Bedienungsanleitung

Europa components

Europa components ET167DYD Bedienungsanleitung

TONIN CASA

TONIN CASA Opaca circle Bedienungsanleitung

CS TIMECLOCK

CS TIMECLOCK 2110 Gebrauchsanweisung
