CICOGNANI ENGINEERING 1959 TIMEDRIVE Bedienungsanleitung

1959 TIMEDRIVE

CICOGNANI SRLS

sales@cicognani.eu

CICOGNANI SRLS

Via Faentina, 44 - 48013 Brisighella (RA), Italy

WARRANTY TERMS

The guarantee of the products is two years from the

purchase data. Switches, buttons, relays are one

year. The thermionic valves, indicator lights, wiring

cables are guaranteed for three months.

Responsibility of CICOGNANI SRLS is limited to

repair of replacement of the product at our

discretion.

CICOGNANICICOGNANI SRLS not be liable for damages

resulting from loss of use of the product, lost time

operation interrupted by non-use, loss of business or

any other damages or incidental, consequential or

otherwise; damage in transit or damage caused

by inadequate packaging.

HHow to receive assistance: Send an email to

sales@cicognani.eu in order to make agreements

on how and where to send the product.

The product must be sent together with a copy of

the receipt/sales receipt. Shipping and packing

costs are the responsibility of the purchaser.

THETHE WARRANTY IS NOT VALID WITHOUT A COPY OF

YOUR RECEIPT OF SALE CERTIFYING THE DATE OF

PURCHASE.

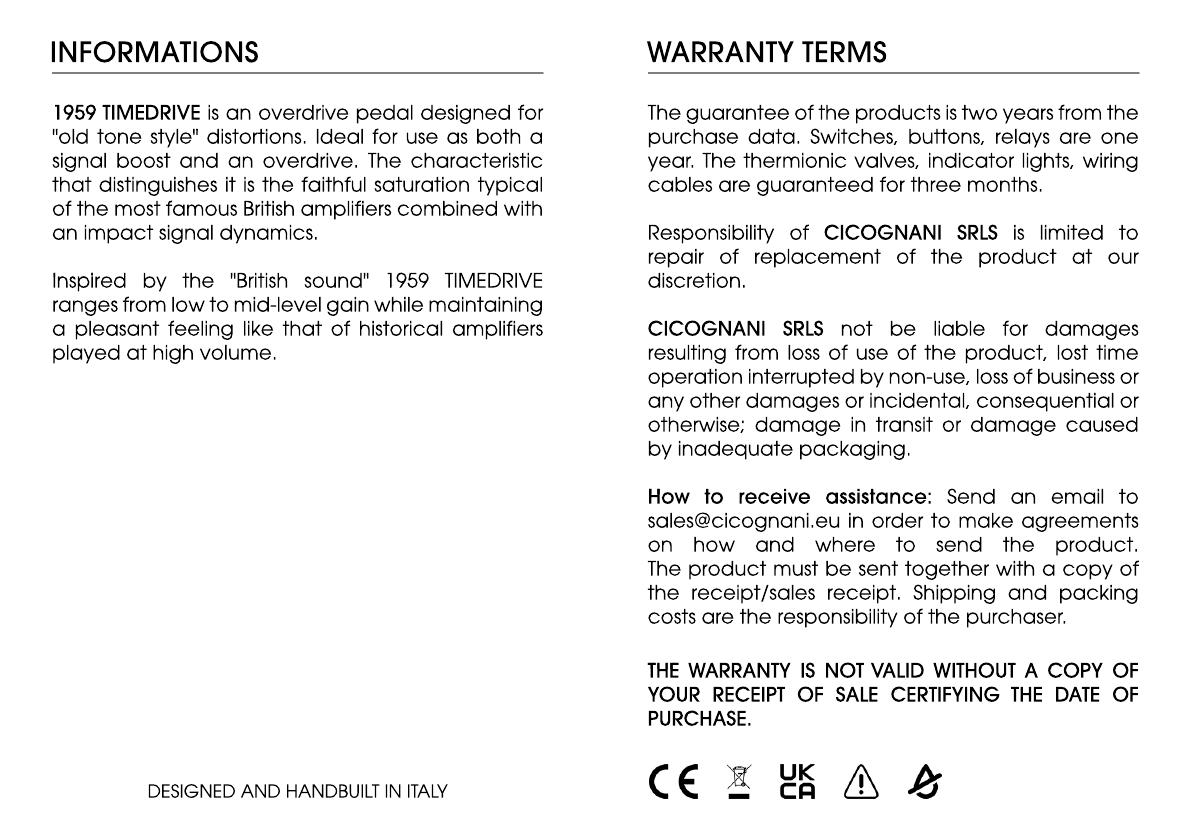

INFORMATIONS

1959 TIMEDRIVE is an overdrive pedal designed for

"old tone style" distortions. Ideal for use as both a

signal boost and an overdrive. The characteristic

that distinguishes it is the faithful saturation typical

of the most famous British amplifiers combined with

an impact signal dynamics.

InspiInspired by the "British sound" 1959 TIMEDRIVE

ranges from low to mid-level gain while maintaining

a pleasant feeling like that of historical amplifiers

played at high volume.

DESIGNED AND HANDBUILT IN ITALY

DETAILS

The dual power circuit increases performance to

the point of providing excellent touch benefits with

an amazing sound definition.

Active tone control sculpting sound effectively

allowing you to easily find the sound we have

in mind.

The input stage with parallel double buffer

magicallymagically adapts the input impedance is if you

enter with the guitar (high impedance) or in series

with effects pedal, (low impedance) example,

boost or overdrive.

CICOGNANI SRLS reserves the right to modify

the technical characteristics and layout of the

products at any time and without notice.

ThisThis product is built to the rule of art

and observes the technical requirements of the

Directives Europee 89/366EEC.

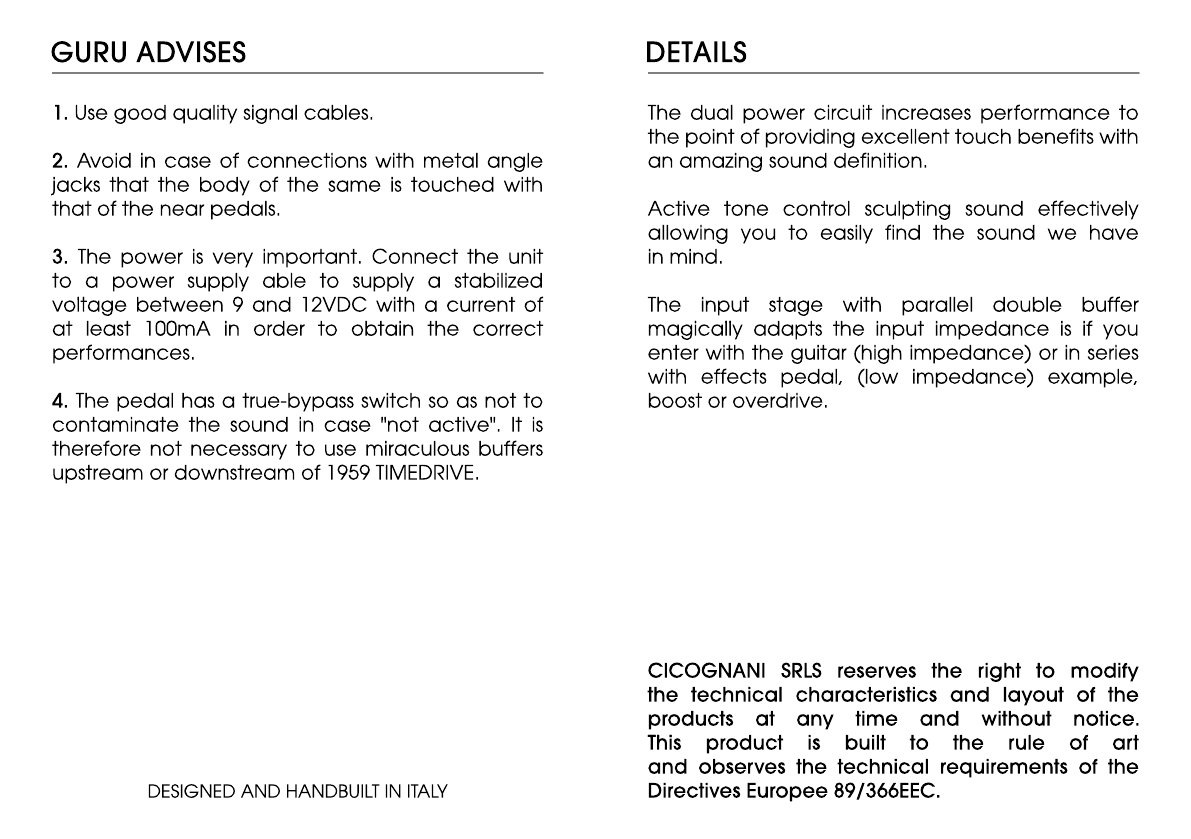

GURU ADVISES

1. Use good quality signal cables.

2. Avoid in case of connections with metal angle

jacks that the body of the same is touched with

that of the near pedals.

3. The power is very important. Connect the unit

to a power supply able to supply a stabilized

voltagevoltage between 9 and 12VDC with a current of

at least 100mA in order to obtain the correct

performances.

4. The pedal has a true-bypass switch so as not to

contaminate the sound in case "not active". It is

therefore not necessary to use miraculous buffers

upstream or downstream of 1959 TIMEDRIVE.

DESIGNED AND HANDBUIDESIGNED AND HANDBUILT IN ITALY

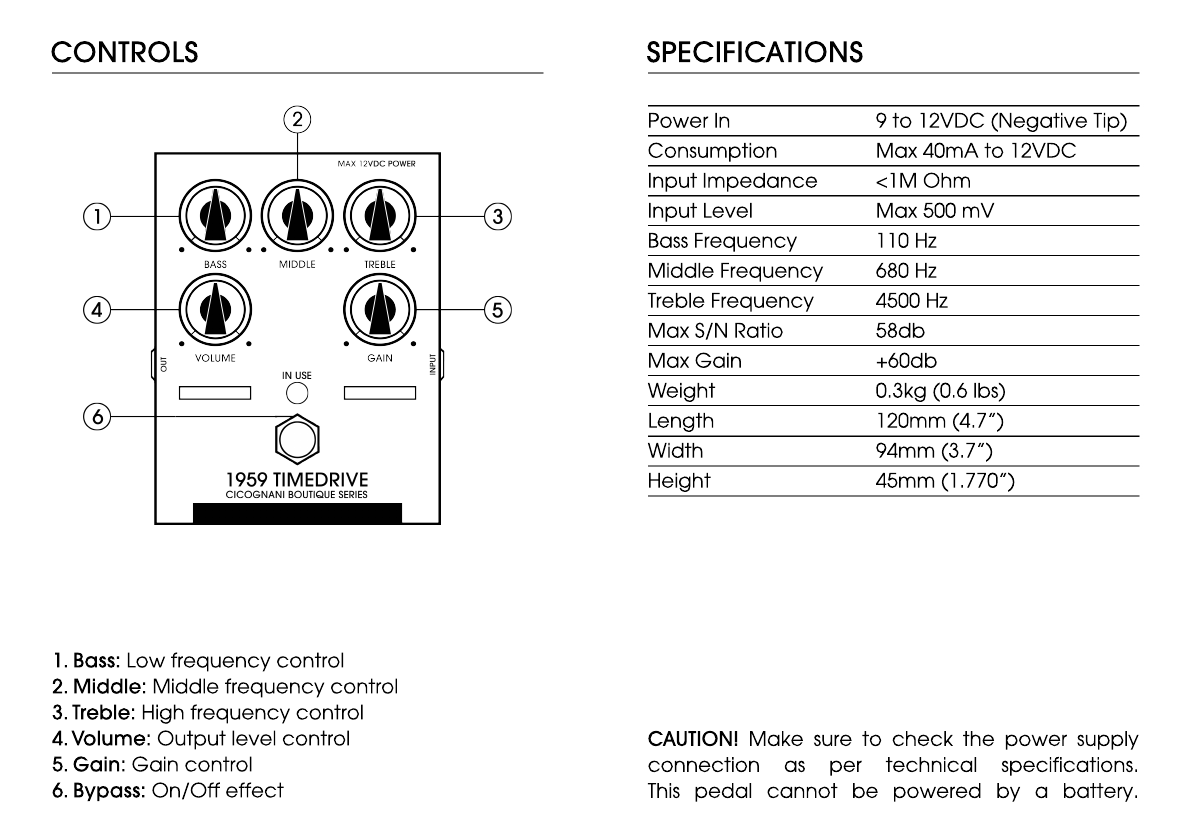

CONTROLS

1. Bass: Low frequency control

2. Middle: Middle frequency control

3. Treble: High frequency control

4. Volume: Output level control

5. Gain: Gain control

6. Bypass: On/Off effect

SPECIFICATIONS

Power In 9 to 12VDC (Negative Tip)

Consumption Max 40mA to 12VDC

Input Impedance <1M Ohm

Input Level Max 500 mV

Bass Frequency 110 Hz

Middle Frequency 680 Hz

TTreble Frequency 4500 Hz

Max S/N Ratio 58db

Max Gain +60db

Weight 0.3kg (0.6 lbs)

Length 120mm (4.7”)

Width 94mm (3.7”)

Height 45mm (1.770”)

CAUTION! Make sure to check the power supply

connection as per technical specifications.

This pedal cannot be powered by a battery.
