technological solutions

TECHNICAL DATA SHEET

Cav. Uff. Giacomo Cimberio S.p.A.

AUTOMATIC FLOW

BALANCING VALVE

790

Main features:

Cim 790 is used for balancing the ﬂow in cooling, heating and domestic water systems.

Cim 790 is an automatic balancing valve with following features:

• Constant ﬂow regardless system pressure ﬂuctuations;

• System balancing is assured automatically, even under ﬂuctuating pressure condi-

tions;

• Automatic balancing is achieved by means of cartridges that provide constant ﬂow

within a ﬁxed range of differential pressures;

• The self-cleaning cartridge design makes very difﬁcult for any particles to accumulate

and compromise the accuracy of the valve.

It is supplied with internal thread.

It is made of “CR” brass (“CR” - Corrosion Resistant).

This article is made in compliance with the quality management requirements of ISO

9001:2008 standard.

All articles are tested according to the EN 12266-1:2003 standard.

It can be used in a wide variety of sectors: heating, air conditioning, water, sanitary systems

and generally with any non corrosive liquid.

PN 25

Approved by:

Technical data:

Max. static working pressure 25 bar

Max. ﬂow temperature 120 °C

Min. temperature -20°C

Fluids: Water and Glycol

Material of parts in contact with water:

Valve body;

Cartridge, etc.

Materials:

“CR”Brass (EN 12165-CW602N-M)

O-rings: EPDM Perox

Threads: ISO 228

Rev. 3 del 03/2015

technological solutions

TECHNICAL DATA SHEET

Cav. Uff. Giacomo Cimberio S.p.A.

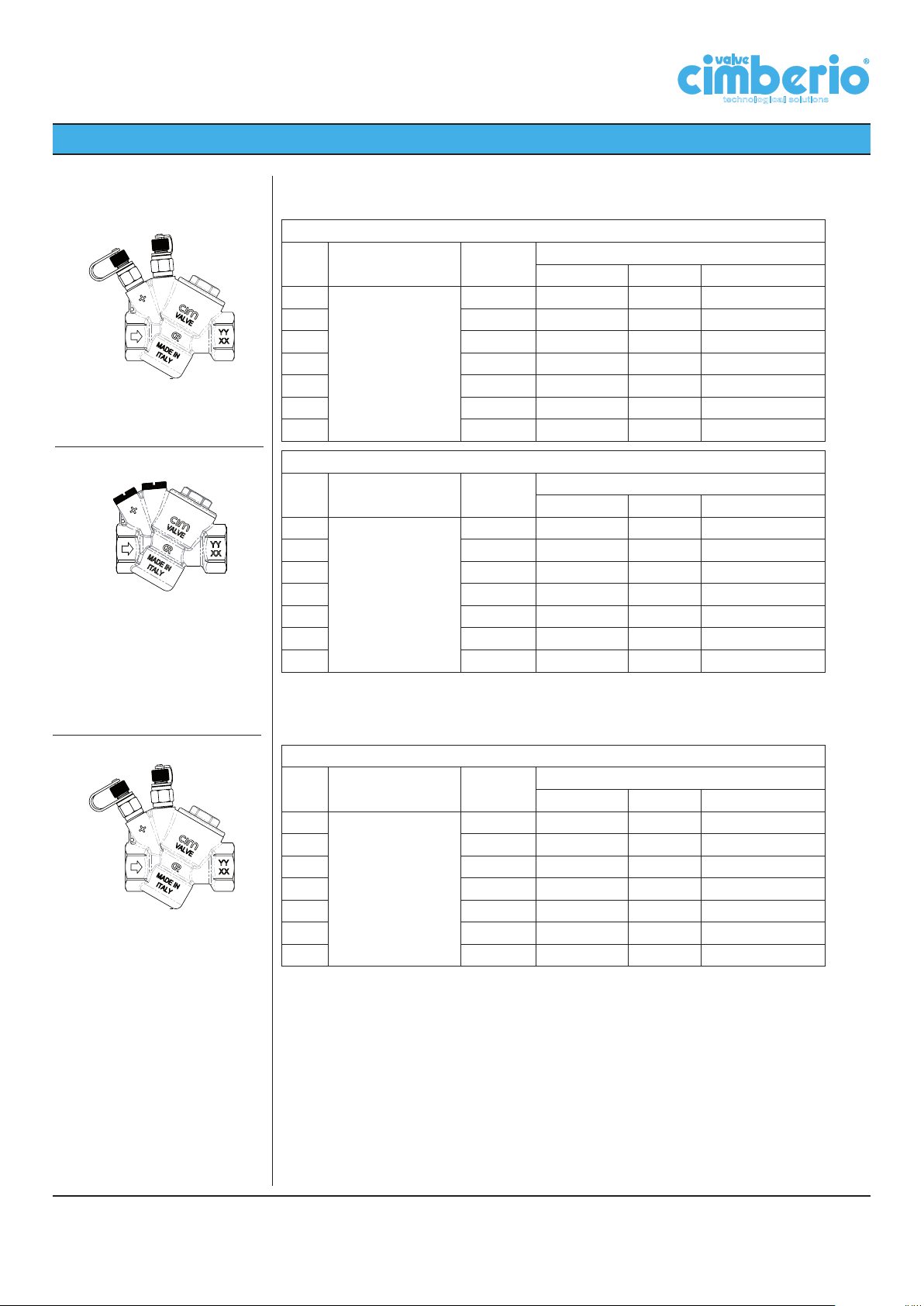

Models:

Cim 790 - Automatic balancing valve - PN 25 - “CR” Brass*

DN Material Thread Flow rate range

(l/s) (l/h) (GPM)

CR Brass

EN 12165-CW602N-M

G. 1/2” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78

20 G. 3/4” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78

25 G. 1” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78

25L G. 1” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

32 G. 1”1/4 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

40 G. 1”1/2 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

50 G. 2” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

Cim 790/2P - Automatic balancing valve - PN 25 - “CR” Brass - without test points*

DN Material Thread Flow rate range

(l/s) (l/h) (GPM)

CR Brass

EN 12165-CW602N-M

G. 1/2” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78

20 G. 3/4” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78

25 G. 1” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78

25L G. 1” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

32 G. 1”1/4 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

40 G. 1”1/2 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

50 G. 2” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

* The valve is supplied with the cartridge already installed. For orders specify the

code of the required cartridge in accordance with the attached tables.

Cim 790B - Automatic balancing valve - PN 25 - “CR” Brass - without cartridge

DN Material Thread Flow rate range

(l/s) (l/h) (GPM)

CR Brass

EN 12165-CW602N-M

G. 1/2” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78

20 G. 3/4” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78

25 G. 1” 0.00694 ÷ 0.68 25 ÷ 2448 0.111 ÷ 10.78

25L G. 1” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

32 G. 1”1/4 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

40 G. 1”1/2 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

50 G. 2” 0.187 ÷ 3.15 674 ÷ 11355 2.97 ÷ 50.00

technological solutions

TECHNICAL DATA SHEET

Cav. Uff. Giacomo Cimberio S.p.A. 3

Cross section:

1. Valve body

2. Cartridge

3. Oriﬁce

4. Elastic ring

5. O-ring

6. Plug

7. Blue binder point

8. Red binder point

Installation procedure:

Before installation of Cim 790, check that inside the valve and the pipes there are no foreign

matters which might damage the tightness of the valve.

Burr pipe connections after having threaded them and distribute the sealing material on

pipe threads only and not on valve threads.

It is advisable to install a ﬁlter and an intercepting valve on the feed line.

Before installation of Cim 790, check that cartridge ﬂow rate is properly matching the pro-

ject requirements and that pump is able to assure the minimum differential pressure (Δp

min) stated in the tables of following pages (section “Tables”).

Valves may be installed either on horizontal or vertical pipelines, following the arrow direc-

tion casted on the valve body, which shall be the same as the ﬂow one.

For assembly purposes, use a spanner, not a pipe wrench, by applying necessary work-

ing torque only on the valve end nearest the pipe. This helps get a ﬁrmer grip and avoids

potential damages to valve body.

Make sure that pipe threading length is not longer than valve threads.

It is advisable to ﬂush the installation before service. To this purpose, remove all cartridges

of the installed valves, following the instructions detailed in “Maintenance” part of the pre-

sent brochure.

technological solutions

TECHNICAL DATA SHEET

Cav. Uff. Giacomo Cimberio S.p.A. 4

Balancing:

Flow rate balancing is achieved automatically by Cim 790, regardless pressure ﬂuctua-

tions. The ﬂow rate of each cartridge depends on the ﬁxed oriﬁce installed therein. Each

ﬁxed oriﬁce has a four digit code number,corresponding to the last four digits of Cimberio

cartridge code.

Once the cartridge is identiﬁed by Cimberio code, the relevant ﬂow rates and minimum Δp

can be read in the tables shown in “Tables” section of this brochure.

Using the electronic differential manometer Cim 726, check that the differential pressure is

higher or the same as the minimum value shown in said tables. The differential manometer

interfaces with the balancing valve through two sensors inserted in the binder points of the

valve.

→

Calibrated orifice

Typical installations:

LOAD:

Power (kW)

Differential

temperature (°C)

Controller

LOAD:

Power (kW)

Differential

temperature (°C)

Controller

Cim 790 is suitable for constant volume system, where diverting or mixing valves are in-

stalled as fancoil control. Below a typical installation with a diverting valve: in each moment

the ﬂow rate will result constant and there will not be extra-ﬂow due to the pressure ﬂuc-

tuations introduced by the hidraulic shortcircuit that would be created when the ﬂow goes

across the by-pass.

The automatic ﬂow balancing valves can also be used with variable speed pumps. By us-

ing a 2 ports control valve (ON/OFF), the ﬂow in each emitters can be stopped as soon as

the desired room temperature in reached. In this way the branches that are still opened will

not be affected by the total ﬂow variations. The effect is that there is an energy saving due

to the reduction of the total pumped ﬂow.

technological solutions

TECHNICAL DATA SHEET

Cav. Uff. Giacomo Cimberio S.p.A.

When the pressure increases, the spring is compressed and the piston reduces outlet win-

dows, in order to maintain the same ﬂow rate; when ∆p decreases the windows start to

open again (see picture on the right).

Constant ﬂow is obtained through the valve, despite pressure ﬂuctuations.

By simply measuring differential pressure across the valve, the ﬂow through the cartridge

is obtained as follows:

• If measured differential pressure is above ∆pmin (start-up pressure), the ﬂow rate is the

same as the one stated on the cartridge table;

• If measured differential pressure is below minimum ∆pmin stated on cartridge table,

ﬂow rate is calculated with one of the following formula:

where:

Q is the ﬂow rate in m3/h, r is the relative density, ∆p is the pressure drop across the valve .

Sizing:

Kvs

Kvs - Kv across the valve when it is

fully open (at start up pressure)

FLOW COEFFICIENT

Kv, in metric system represents the ﬂow in m3/h of water at the temperature of 15.5°C

(density =998 kg/m3) which causes a pressure drop of 1 bar. In the USA ﬂow coefﬁcient is

called Cv (Kv = 0.865 Cv).

Relative density

Fluid r

Water 1.000

Water and glycol 10% 1.012

Water and glycol 20% 1.028

Water and glycol 30% 1.040

Water and glycol 40% 1.054

Water and glycol 50% 1.067

0.02

0.04

0.06

0.08

0.10

0.12

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340

Differential pressure - kPa

Flow rate - l/s

∆pmin

technological solutions

TECHNICAL DATA SHEET

Cav. Uff. Giacomo Cimberio S.p.A.

Pressure drop across Cim 790

Pressure drop across the control valve

Circuit pressure drop

Available pressure for the riser

Δp

+ Δp

EXAMPLE

It is required to balance the circuit in the ﬁgure, the given data are:

• Circuit pressure drop: ∆pc=10 kPa;

• Pressure drop across the control valve: ∆pm= 8 kPa;

• Flow rate: Q= 3.2 m3/h=0.889 l/s;

• Maximum head: ∆pa,max = 60 kPa (Pump head);

• Pipeline size: DN 32.

It is possible to install a valve with the same diameter of the pipe, to avoid ﬁttings installa-

tion. Using a Cim 790 DN32, it is possible to select from the list of the installable cartridges

the closest value of nominal ﬂow rate to the required one.

It is possible to install the cartridge CA3156 with nominal ﬂow rate of 0.886 l/s (the error is

less than 2.5 %).

This cartridge needs at least 21 kPa of differential pressure in order to work properly, the

available pressure on the riser should be at least:

SUGGESTED VALUES AND TIPS:

• Velocities in the pipeline:

Max = 1.15 m/s

Min = 0.75 m/s

For the preliminary sizings where the

value of maximum available pressure is

not known, it is possible to use the ma-

ximum head of the pump directly.

The maximum allowable differential pressure across the balancing valve is 350 kPa, it

means that the maximum head at the riser shall be:

Being the maximum head less than the calculated limit, the installation is correct.

If it wasn’t, it would be possible to install the high differential pressure version: CA3156H

(up to 600 kPa).

technological solutions

TECHNICAL DATA SHEET

Cav. Uff. Giacomo Cimberio S.p.A. 7

Pressure-temperature

ratings:

p [bar]

T [°C]

100

120

140

160

180

8 12 16 20 24 282 6 10 14 18 22 26

58 116 174 232 290 349 406

29 87 145 203 261 319 377

[lbf/in ]

104

140

176

212

248

284

320

356

T [°F]

FROM MULTIPLY BY

TO OBTAIN

inches 0,0254 m, metres

inches 2,54 cm, centimetres

feet 0,3048 m, metres

feet 30,48 cm, centimetres

yards 0,9144 m, metres

square inches 0,00064516 m2, metri quadrati

square feet 0,09290304 m2, square metres

square inches 6,4516 cm2, square centimetres

square feet 929,0304 cm 2, square centimetres

square yards 0,8361274 m2, square metres

l, litres 0,001 m3, cubic metres

gallons 0,003789412 m3, cubic metres

cubic yards 0,7645549 m3, cubic metres

cubic feet 0,02831685 m3, cubic metres

cubic inches 0,0000164 m3, cubic metres

cubic inches 16,38706 cm 3, cubic centimetres

cubic feet 28,31685 l, litres

gallons 3,875412 l, litres

TO OBTAIN DIVIDE BY

FROM

Pressure

Length, Area, Volume, Density

FROM

MULTIPLY BY TO OBTAIN

Pa, Pascal 0,001 kPa, kiloPascal

Pa, Pascal 0,000001 MPa, Mega Pascal

Pa, Pascal 0,00001 bar

Pa, Pascal 0,00010972 mH2O , metres of water

Pa, Pascal 0,000145038 psi, pound per square inch

bar 1,01325 atm, atmosphere

bar 0,980665

Kg/cm2,kilograms per square centimetre

bar 10,1972 mH2O , metres of water

bar 14,5038 psi, pound per square inch

atm, atmosphere 1,03323

Kg/cm2,kilograms per square centimetre

atm, atmosphere 10,3323 mH2O , metres of water

atm, atmosphere 14,6959 psi, pound per square inch

Kg/cm 210 mH2O , metres of water

Kg/cm 214,2233 psi, pound per square inch

mH2O 1,42233 psi, pound per square inch

TO OBTAIN DIVIDE BY

FROM

FROM MULTIPLY BY

TO OBTAIN

inches 0,0254 m, metres

inches 2,54 cm, centimetres

feet 0,3048 m, metres

feet 30,48 cm, centimetres

yards 0,9144 m, metres

square inches 0,00064516 m2, metri quadrati

square feet 0,09290304 m2, square metres

square inches 6,4516 cm2, square centimetres

square feet 929,0304 cm 2, square centimetres

square yards 0,8361274 m2, square metres

l, litres 0,001 m3, cubic metres

gallons 0,003789412 m3, cubic metres

cubic yards 0,7645549 m3, cubic metres

cubic feet 0,02831685 m3, cubic metres

cubic inches 0,0000164 m3, cubic metres

cubic inches 16,38706 cm 3, cubic centimetres

cubic feet 28,31685 l, litres

gallons 3,875412 l, litres

TO OBTAIN DIVIDE BY

FROM

Pressure

Len

gth, Area, Volume, Density

FROM

MULTIPLY BY TO OBTAIN

Pa, Pascal 0,001 kPa, kiloPascal

Pa, Pascal 0,000001 MPa, Mega Pascal

Pa, Pascal 0,00001 bar

Pa, Pascal 0,00010972 mH2O , metres of water

Pa, Pascal 0,000145038 psi, pound per square inch

bar 1,01325 atm, atmosphere

bar 0,980665

Kg/cm2,kilograms per square centimetre

bar 10,1972 mH2O , metres of water

bar 14,5038 psi, pound per square inch

atm, atmosphere 1,03323

Kg/cm2,kilograms per square centimetre

atm, atmosphere 10,3323 mH2O , metres of water

atm, atmosphere 14,6959 psi, pound per square inch

Kg/cm 210 mH2O , metres of water

Kg/cm 214,2233 psi, pound per square inch

mH2O 1,42233 psi, pound per square inch

TO OBTAIN DIVIDE BY

FROM

Measurement conversion

chart:

technological solutions

TECHNICAL DATA SHEET

Cav. Uff. Giacomo Cimberio S.p.A. 8

Cartridges

DN 15, DN20, DN25

Cim 790

∆p ≥∆pmin --> Q = Qnom

∆p < ∆pmin --> Q = Kvs √∆p

Cartridge code Flow rate ∆pmin Kvs

Max. 350

kPa

Max. 600

kPa

l/s l/h GPM kPa (m3/h)/bar0.5

CA1150 - 0.007 25 0.11 7 0.09

CA1170 - 0.010 35 0.15 7 0.14

CA1190 CA1190H 0.012 46 0.20 7 0.16

CA1210 CA1210H 0.015 55 0.24 7 0.21

CA1230 CA1230H 0.021 75 0.33 8 0.27

CA1260 CA1260H 0.023 84 0.37 9 0.28

CA1290 CA1290H 0.029 104 0.46 10 0.33

CA1300 CA1300H 0.032 114 0.50 10 0.36

CA1320 CA1320H 0.036 129 0.57 11 0.39

CA1350 CA1350H 0.043 154 0.68 11 0.46

CA1370 CA1370H 0.049 175 0.77 12 0.51

CA1400 CA1400H 0.057 204 0.90 12 0.59

CA1430 CA1430H 0.067 241 1.06 12 0.70

CA1460 CA1460H 0.078 279 1.23 12 0.81

CA1490 CA1490H 0.089 320 1.41 13 0.89

CA1510 CA1510H 0.097 350 1.54 13 0.97

CA1540 CA1540H 0.111 400 1.76 13 1.11

CA1570 CA1570H 0.132 477 2.10 14 1.27

CA1620 CA1620H 0.151 545 2.40 14 1.46

CA1725 CA1725H 0.171 615 2.71 14 1.64

CA1730 CA1730H 0.186 670 2.95 14 1.79

CA1735 CA1735H 0.204 736 3.24 14 1.97

CA1740 CA1740H 0.222 799 3.52 16 2.00

CA1745 CA1745H 0.242 870 3.83 19 2.00

CA1750 CA1750H 0.260 936 4.12 21 2.01

CA2070 CA2070H 0.283 1020 4.49 22 2.17

CA2074 CA2074H 0.300 1081 4.76 22 2.30

CA2077 CA2077H 0.332 1195 5.26 22 2.55

CA2082 CA2082H 0.371 1335 5.88 23 2.78

CA2086 CA2086H 0.412 1438 6.53 23 3.09

CA2088 CA2088H 0.439 1581 6.96 23 3.30

CA2092 CA2092H 0.493 1774 7.81 24 3.62

CA2094 CA2094H 0.509 1833 8.07 24 3.74

CA2099 CA2099H 0.578 2080 9.16 25 4.16

CA2103 CA2103H 0.625 2251 9.91 26 4.41

CA2106 CA2106H 0.644 2319 10.21 27 4.46

CA2109 CA2109H 0.680 2448 10.78 28 4.63

technological solutions

TECHNICAL DATA SHEET

Cav. Uff. Giacomo Cimberio S.p.A.

Cartridges

DN 25L, DN32, DN40, DN 50

Cim 790

Cartridge code Flow rate ∆pmin Kvs

Max. 350

kPa

Max. 600

kPa

l/s l/h GPM kPa (m3/h)/bar0.5

CA3073 CA3073H 0.187 674 2.97 12 1.95

CA3082 CA3082H 0.239 861 3.79 12 2.49

CA3089 CA3089H 0.283 1020 4.49 12 2.94

CA3094 CA3094H 0.315 1136 5.00 12 3.28

CA3096 CA3096H 0.331 1190 5.24 12 3.44

CA3098 CA3098H 0.353 1272 5.60 13 3.53

CA3102 CA3102H 0.375 1349 5.94 13 3.74

CA3107 CA3107H 0.413 1485 6.54 13 4.12

CA3111 CA3111H 0.435 1567 6.90 14 4.19

CA3112 CA3112H 0.453 1631 7.18 14 4.36

CA3118 CA3118H 0.504 1815 7.99 14 4.85

CA3124 CA3124H 0.556 2001 8.81 15 5.17

CA3125 CA3125H 0.568 2044 9.00 16 5.11

CA3129 CA3129H 0.603 2171 9.56 16 5.43

CA3132 CA3132H 0.631 2271 10.00 17 5.51

CA3135 CA3135H 0.661 2380 10.48 17 5.77

CA3138 CA3138H 0.694 2498 11.00 18 5.89

CA3142 CA3142H 0.733 2639 11.62 18 6.22

CA3148 CA3148H 0.797 2871 12.64 19 6.59

CA3156 CA3156H 0.886 3191 14.05 21 6.96

CA3161 CA3161H 0.946 3407 15.00 22 7.26

CA3163 CA3163H 0.968 3486 15.35 22 7.43

CA4148 CA4148H 1.009 3635 16.00 20 8.13

CA4152 CA4152H 1.023 3681 16.21 21 8.03

CA4156 CA4156H 1.136 4090 18.00 21 8.92

CA4164 CA4164H 1.199 4315 19.00 21 9.42

CA4168 CA4168H 1.262 4540 20.00 22 9.68

CA4173 CA4173H 1.325 4770 21.00 22 10.17

CA4176 CA4176H 1.388 4995 22.00 23 10.42

CA4182 CA4182H 1.514 5450 24.00 24 11.12

CA4191 CA4191H 1.640 5905 26.00 25 11.81

CA4194 CA4194H 1.816 6539 29.00 26 12.82

CA4200 CA4200H 1.893 6815 30.00 27 13.11

CA4205 CA4205H 2.019 7265 32.00 28 13.73

CA4211 CA4211H 2.145 7720 34.00 30 14.10

CA4217 CA4217H 2.271 8175 36.00 31 14.68

CA4222 CA4222H 2.397 8630 38.00 33 15.02

CA4229 CA4229H 2.523 9085 40.00 34 15.58

CA4235 CA4235H 2.650 9540 42.00 36 15.90

CA4241 CA4241H 2.776 9990 44.00 38 16.21

CA4248 CA4248H 2.902 10445 46.00 40 16.51

CA4250 CA4250H 3.028 10900 48.00 42 16.82

CA4262 CA4262H 3.154 11355 50.00 44 17.12

∆p ≥∆pmin --> Q = Qnom

∆p < ∆pmin --> Q = Kvs √∆p

technological solutions

TECHNICAL DATA SHEET

Cav. Uff. Giacomo Cimberio S.p.A.

Main dimensions:

Cim 790

DN 15 20 25 25L 32 40 50

Grms. 505 520 600 600 1500 1565 1670

B 74 74 74 93 93 93 93

C 78 78 85 123 123 123 132

C1 89 89 93 125 125 125 130

D 11.5 12.5 14.5 14.5 16.8 16.8 21.1

CH 25 31 38 38 46 52 64

CA1150÷CA2109 CA3073÷CA4262

B 40

C 28

B1 64

C1 48

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Cimberio Steuereinheit Handbücher

Cimberio

Cimberio CIM 776 Handbuch

Cimberio

Cimberio CIM 747 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
