Cisco LightStream 1010 Montageanleitung

Mount the Chassis

•Unpack and Inspect the Chassis, on page 1

•Desktop-Mount the Chassis, on page 2

•Wall-Mount the Chassis, on page 2

•Rack-Mount the Chassis, on page 5

Unpack and Inspect the Chassis

The chassis is thoroughly inspected before shipment. If any damage occurred during transportation or any

items are missing, contact your customer service representative immediately. Keep the shipping container in

case you need to send the chassis back due to damage.

Note

See Package Contents for a list of what shipped with the chassis.

Step 1 Remove the chassis from its cardboard container and save all packaging material.

Step 2 Compare the shipment to the equipment list provided by your customer service representative. Verify that you have all

items.

Step 3 Check for damage and report any discrepancies or damage to your customer service representative. Have the following

information ready:

• Invoice number of shipper (see the packing slip)

• Model and serial number of the damaged unit

• Description of damage

• Effect of damage on the installation

Mount the Chassis

Desktop-Mount the Chassis

You can mount the chassis on a desktop by placing it on a desk in a horizontal position. Make sure there are

no blockages or obstructions within one inch of the top of the chassis or within .5 inches of the sides and back,

so that nothing interferes with cooling. Do not remove the rubber feet included with the chassis. They are also

needed for proper cooling.

Figure 1: Desk Top Mount the Chassis

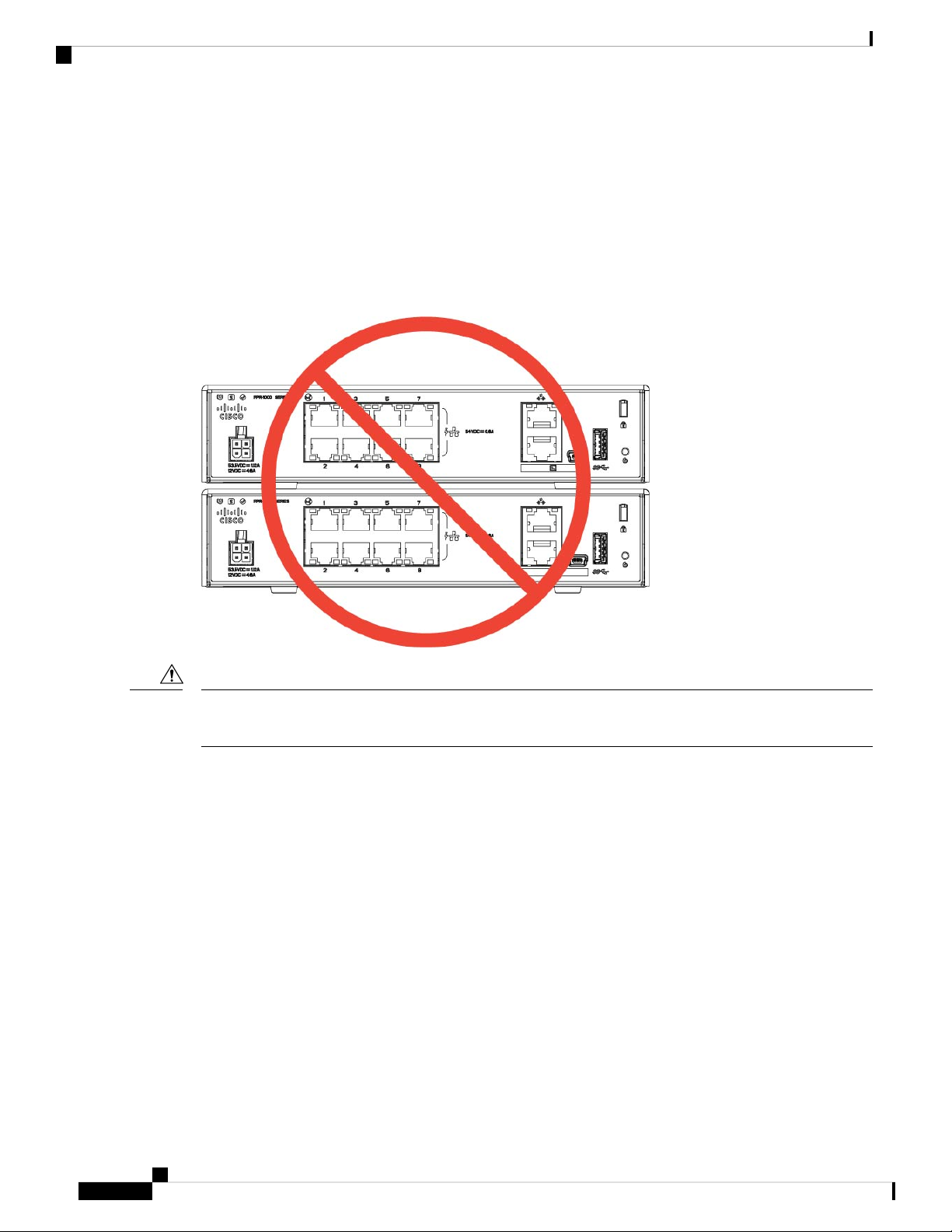

Do not stack one chassis on top of another chassis. If you stack the units, they will overheat, which causes

the units to power cycle.

Caution

What to do next

See Install the FIPS Opacity Shield if you need to install a FIPS opacity shield.

Install the cables according to your default software configuration as described in the Cisco Firepower 1010

Getting Started Guide.

Wall-Mount the Chassis

You can purchase an optional wall-mount kit. You can wall-mount the chassis left-, right-, or rear panel-side

up. You can use the wall-mount bracket to mark the holes for mounting it on the wall. The wall-mount bracket

is 7.682 x 6 inches. You need to make two level marks on the wall where you want to hang the chassis. For

vertical orientation (rear panel up), the holes should be 6.826 inches apart. For side to side orientation, the

holes should be 5.134 inches apart.

The wall-mount kit (part number 69-100647-01) contains the following items:

• Wall-mount bracket (part number 700-118506-01)

Mount the Chassis

Desktop-Mount the Chassis

• Three Phillips M3 x 6 mm screws (part number 48-0460-01)

• Two Phillips #6 x 1¼ inch screws (part number 48-2289-01)

• One anchor #8 wall screw (part number 51-4718-01)

Follow these steps to mount your chassis on a wall.

Step 1 Choose an orientation (left-, right-, or rear panel-side up) and a location on the wall for the chassis.

Step 2 Use a pencil, ruler, and level to mark locations for the two mounting screws (#6 x 1¼ inch). You can use the wall-mount

bracket itself to mark either the top holes or the side holes.

Figure 2: Wall-Mount Bracket

Horizontal mounting2Vertical mounting1

Step 3 Attach the wall-mount bracket to the chassis using the three Phillips M3 x 6 mm screws.

Mount the Chassis

Wall-Mount the Chassis

Figure 3: Attach the Wall-Mount Bracket to the Chassis

Step 4 Use the two #6 x 1¼ inch screws to drill into a stud, or use the anchors (#8 wall screw) from the dry-wall kit to hang it

into dry wall.

If you are mounting the chassis onto something other than drywall, such as wood or sheet metal, anchors may not be

required.

Step 5 Drill a hole into the wall at each mark that you made in Step 2.

These holes should be slightly smaller in diameter than anchors if you are using them. The recommended drill hole size

is 3/16 inches.

Step 6 Insert the anchors into the holes if needed, and be sure they are properly seated.

Step 7 Fasten each screw into its anchor until it protrudes about 1/4 inch.

Step 8 Pick up the chassis, align the screws in the anchors with the holes in the bottom of the wall-mount bracket, move the

chassis toward the wall until the screw heads are in the wall-mount bracket, and then slide it down until it rests on the

screws.

Mount the Chassis

Wall-Mount the Chassis

Do not mount the chassis with the rear panel facing downward. This orientation is not supported.

Caution

Step 9 To uninstall the chassis from the wall mount, slide the wall-mounted chassis from the wall, and remove the three screws

from the bottom of the chassis.

What to do next

If you are installing a FIPS cover on the chassis, follow the steps in Install the FIPS Opacity Shield.

Install the cables according to your default software configuration as described in the Cisco Firepower 1010

Getting Started Guide.

Rack-Mount the Chassis

The rack-shelf kit (part number 800-107605-01) contains the following items:

There are two sets of four screws that you can use to secure the chassis to your rack. Chose the screws that

fit your rack.

Note

• Rack shelf (part number 700-122662-01)

• Sliding rack tray (part number 800-107648-01)

• Two cable guides (part number 700-122664-01)

• Six Phillips M3 x 0.5 x 10 mm screws (part number 48-0796-01); use these screws to install the cable

guides.

• Six Phillips M3 x 6 mm screws (part number 48-0384-01); use these screws to secure the rack shelf onto

the chassis.

• Four Phillips 12-24 x 0.75 inch screws (part number 48-0440-01); use these screws to secure the

sliding-rack tray to your rack.

• Four Phillips 10-32 x 0.75 inch screws (part number 48-0441-01); use these screws to secure the

sliding-rack tray to your rack.

Step 1 Install the cable guides on the sliding rack tray:

Mount the Chassis

Rack-Mount the Chassis

Figure 4: Attach the Cable Guides to the Sliding-Rack Tray Flange

Left cable guide rack tray cutouts2Two cable guides (part number 700-122664-01)1

Six Phillips M3 x 0.5 x 10 mm screws (part number

48-0796-01)

4Right cable guide rack tray cutouts3

a) Align the cable guides with the cutouts on the sliding-rack tray flange (see figure above).

b) At the rear of the sliding-rack tray, attach the left and right cable guides using the six Phillips M3 x 0.5 x 10 mm

screws (part number 48-0796-01).

Drive the screws in while facing the back of the sliding-rack tray.

Note

c) Set the sliding-rack tray aside. Continue with Step 2 to install the rack shelf on the chassis.

The figure in Step 8 shows the sliding rack tray with the cable guides attached.

Step 2 Place the chassis with the top facing down on a large, stable work area.

Step 3 Invert the rack shelf and position it on the chassis. You can mount the chassis with the front or rear panel facing front.

Mount the Chassis

Rack-Mount the Chassis

Figure 5: Install the Rack Shelf on the Chassis

—Three short black screws M3 x 6 mm (part number

48-0384-01)

Step 4 Adjust the position of the chassis and the rack shelf until the three mounting holes in the dimples in the bottom of the

shelf are aligned with the mounting holes in the bottom of the chassis.

Step 5 Tighten the screws to lock the chassis into place on the rack shelf.

Make sure you are using the short black screws (M3 x 6 mm), otherwise you will damage the chassis.

Caution

Step 6 Carefully turn the rack shelf right-side up.

Step 7 Install the power supply in the rack shelf behind the chassis.

Mount the Chassis

Rack-Mount the Chassis

Figure 6: Install the Power Supply in the Rack Shelf

Velcro straps for power supply2Velcro straps for power supply1

Power supply stop4Power supply stop3

—Rear sliding stop and screw (one of two screws on the

sliding stop)

a) Loosen the Velcro straps and place the power supply on the rack shelf behind the chassis.

Make sure the AC inlet cord faces the rear.

b) Align the power supply to the side and rear stops.

If the rear sliding stop is not touching the power supply, loosen the two screws, slide the stop up to touch the power

supply, and then retighten screws.

c) Re-engage the Velcro straps and tighten them to secure the power supply.

Mount the Chassis

Rack-Mount the Chassis

Figure 7: Tighten the Velcro Straps

—Velcro straps tightened over power supply1

Step 8 Slide the rack shelf into the sliding-rack tray.

Figure 8: Slide the Rack Shelf into the Sliding-Rack Tray

Step 9 The chassis is now installed in the rack shelf, which is installed in the sliding-rack tray. Repeat Steps 1 through 8 to

install a second chassis.

Mount the Chassis

Rack-Mount the Chassis

Figure 9: Completed Rack Shelf/Tray Installation

Step 10 Install the sliding-rack tray into your rack using the correct screws (12-24 x 0.75 inch or 10-32 x 0.75 inch) from the

rack-mount kit that fit your rack type.

You can now attach your power supply cord and run it through the cable guides.

What to do next

Install the cables according to your default software configuration as described in the Cisco Firepower 1010

Getting Started Guide.

Mount the Chassis

Rack-Mount the Chassis
