Cisco 1005 Installationsanleitung

CHAPTER

Overview of the Cisco 1005 1-1

Overview of the Cisco 1005

The Cisco 1005 router is a small desktop router that links small remote sites with Ethernet

LANs to regional and central ofﬁces through WAN connections.

Features The router includes the following features:

•One Ethernet 10BaseT port (RJ-45)

•One console port (RJ-45)

•One serial port (DB-60) that supports the following types of WAN communications:

—Permanent and switched synchronous WAN links at speeds up to 2.048 Mbps

—EIA/TIA-232 asynchronous WAN links at speeds up to 115.2 kbps

•One slot for an optional Personal Computer Memory Card International Association

(PCMCIA) Flash memory card

•Software boot using Trivial File Transfer Protocol (TFTP) over an Ethernet LAN

connection or by using the optional Flash memory card

•Internet Protocol (IP), Internetwork Packet Exchange (IPX), and AppleTalk routing

•Transparent bridging, which supports protocols that cannot be routed

•Support for the following WAN encapsulations: Point-to-Point Protocol (PPP),

High-Level Data Link Control (HDLC), Link Access Procedure Balanced (LAPB),

Frame Relay, Switched Multimegabit Data Service (SMDS), and X.25

1-2 Cisco 1005 User Guide

Features

•Routermanagementthroughtheconsoleportorover the networkusingSimpleNetwork

Management Protocol (SNMP) or Telnet

•AutoInstall for downloading conﬁguration ﬁles automatically over a WAN

Figure 1-1 illustrates the Cisco 1005 router.

Figure 1-1 Front View of the Cisco 1005

H4203

Overview of the Cisco 1005 1-3

Features

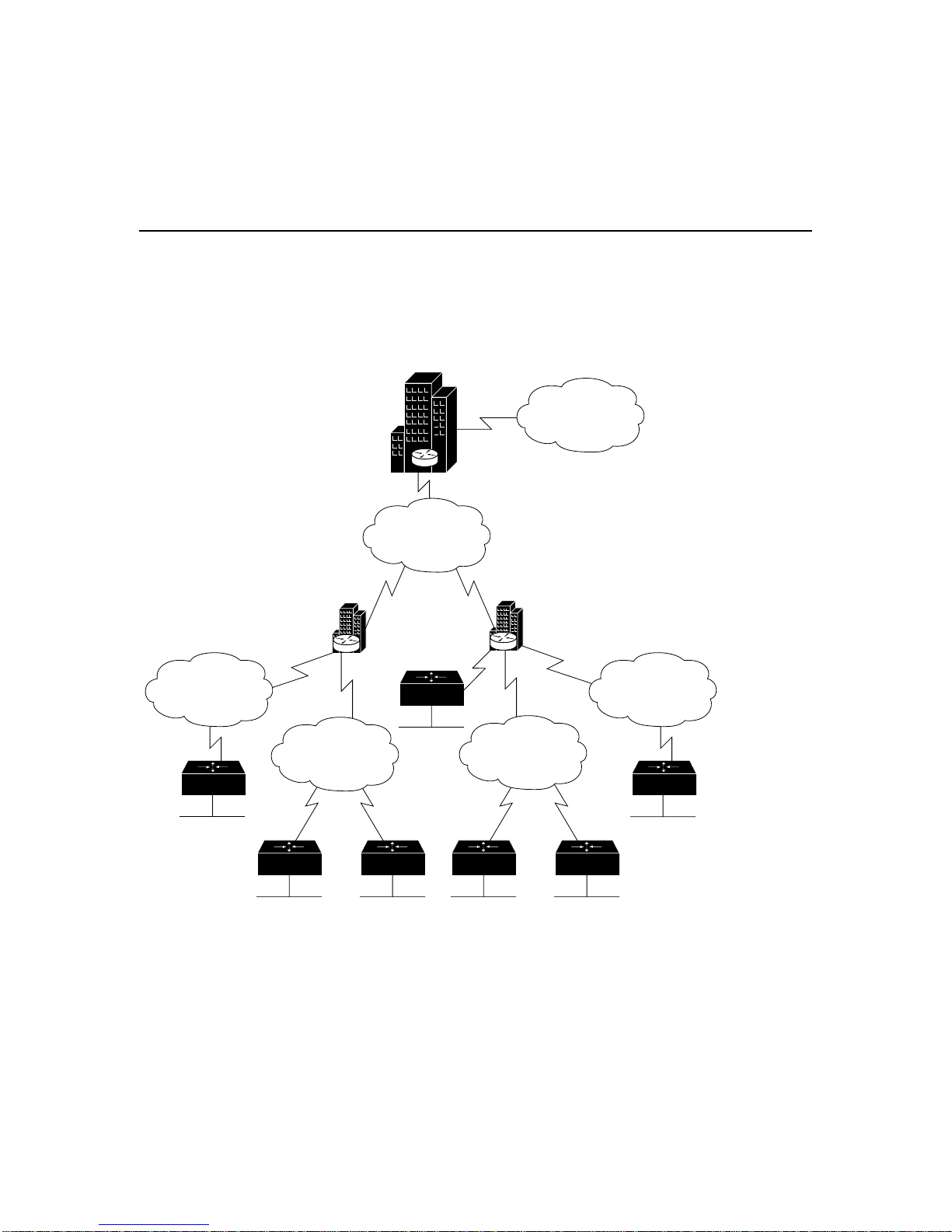

Figure 1-2 illustrates a typical internetwork using the Cisco 1005 router.

Figure 1-2 Example of the Cisco 1005 in a Network

1005

H3829

Regional office

Cisco 4000 Regional office

Cisco 4500

Headquarters

Cisco 7000 Internet

1005 1005

X.25

T1/E1

leased lines

Frame Relay

1005 1005

1005

Switched 56

1005

Switched

Multimegabit

Data Service

1-4 Cisco 1005 User Guide

Specifications

Speciﬁcations

The speciﬁcations of the router are listed in Table 1-1.

Table 1-1 System Speciﬁcations

1. DRAM = dynamic random-access memory.

2. SIMM = single in-line memory module.

3. PROM = programmable read-only memory.

4. NVRAM = nonvolatile random-access memory.

5. The serial port supports the following synchronous interfaces: EIA/TIA-232, EIA/TIA-449, V.35, X.21,

and EIA-530. The serial port supports EIA/TIA-232 asynchronous interfaces.

6. EIA/TIA-232 and EIA/TIA-449 were known as recommended standards RS-232 and RS-449 before their

acceptance as standards by the Electronic Industries Association (EIA) and Telecommunications Industry

Association (TIA).

Description Speciﬁcation

Dimensions (H x W x D) 1.75 x 8.0 x 8.3" (4.4 x 20.3 x 21.1 cm)

Weight 2.6 lb (1.2 kg)

Input voltage, frequency,

and power dissipation 12 VDC output, minimum 0.5A

External power supply: 100–240 VAC at 50–60 Hz, 1.0A input

Memory 4-MB DRAM1SIMM2

1-MB boot PROM3

8-KB NVRAM4

WAN interface 1 serial (DB-60)5

Ethernet interface 1 10BaseT (RJ-45)

PCMCIA slot 1 Type 2 (for Flash ROM card)

Console interface 1 asynchronous serial (EIA/TIA-2326) (RJ-45)

Operating environment 32–104°F (0–40°C)

Operating humidity 10–90%, noncondensing

Agency compliance FCC Class B, VCCI Class 2, CISPR-22 Class B,

EN 55022 Class B

Overview of the Cisco 1005 1-5

VCCI Class 2 Compliance Statement

This equipment is in the 2nd Class category (information equipment to be used in a

residential area or adjacent area thereto) and conforms to the standards set by the Voluntary

Control Council for Interference by data processing equipment and electronic ofﬁce

machines aimed at preventing radio interference in such residential area. When used near a

radio or TV receiver, it may become the cause of radio interference. Read the instructions

for correct handling.

1-6 Cisco 1005 User Guide

VCCI Class 2 Compliance Statement
