Cisco DVB CAR100 Series Bedienungsanleitung

English

Introduction

The Cisco DVB CAR100 cable access router connects a cable TV (CATV) network to either one computer or to an

Ethernet hub with one or more PCs connected. The Cisco DVB CAR100 enables bi-directional data communication at

high bit-rates.

The Cisco DVB CAR100-PC version can connect a single computer to the CATV network. The Cisco DVB

CAR100-LAN version can connect up to 20 computers to the CATV network using an Ethernet hub (not included in the

delivery).

Reference Material

Before you install the Cisco DVB CAR100, make sure you have a copy of the Cisco DVB CAR100 Cable Access Router

Hardware Installation Guide (Cisco document number 78-10685-02).

If you do not have a printed copy of this guide, one can be downloaded from Cisco Connection Online on the World Wide

Web at http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.

System Requirements

This section identiﬁes the hardware requirements necessary to install and operate the Cisco DVB CAR100.

Cisco DVB CAR100-PC version:

• A computer equipped with an Ethernet network adapter

• A crossover Ethernet cable (not included in the delivery)

• Coaxial cable (not included in the delivery)

• Power supply unit

English

Introduction (Continued)

Cisco DVB CAR100-LAN version:

• Up to 20 computers equipped with Ethernet network adapters

• An Ethernet hub (not included in the delivery)

• A straight-through Ethernet cable (not included in the delivery)

• Coaxial cable (not included in the delivery)

• Power supply unit

Getting Help

Please contact the vendor who supplied your equipment or the cable service provider for technical support information.

English

Installing the Cisco DVB CAR100

This section provides basic information necessary to install the Cisco DVB CAR100. Refer to the Cisco DVB CAR100

Cable Access Router Hardware Installation Guide for detailed installation instructions and illustrations.

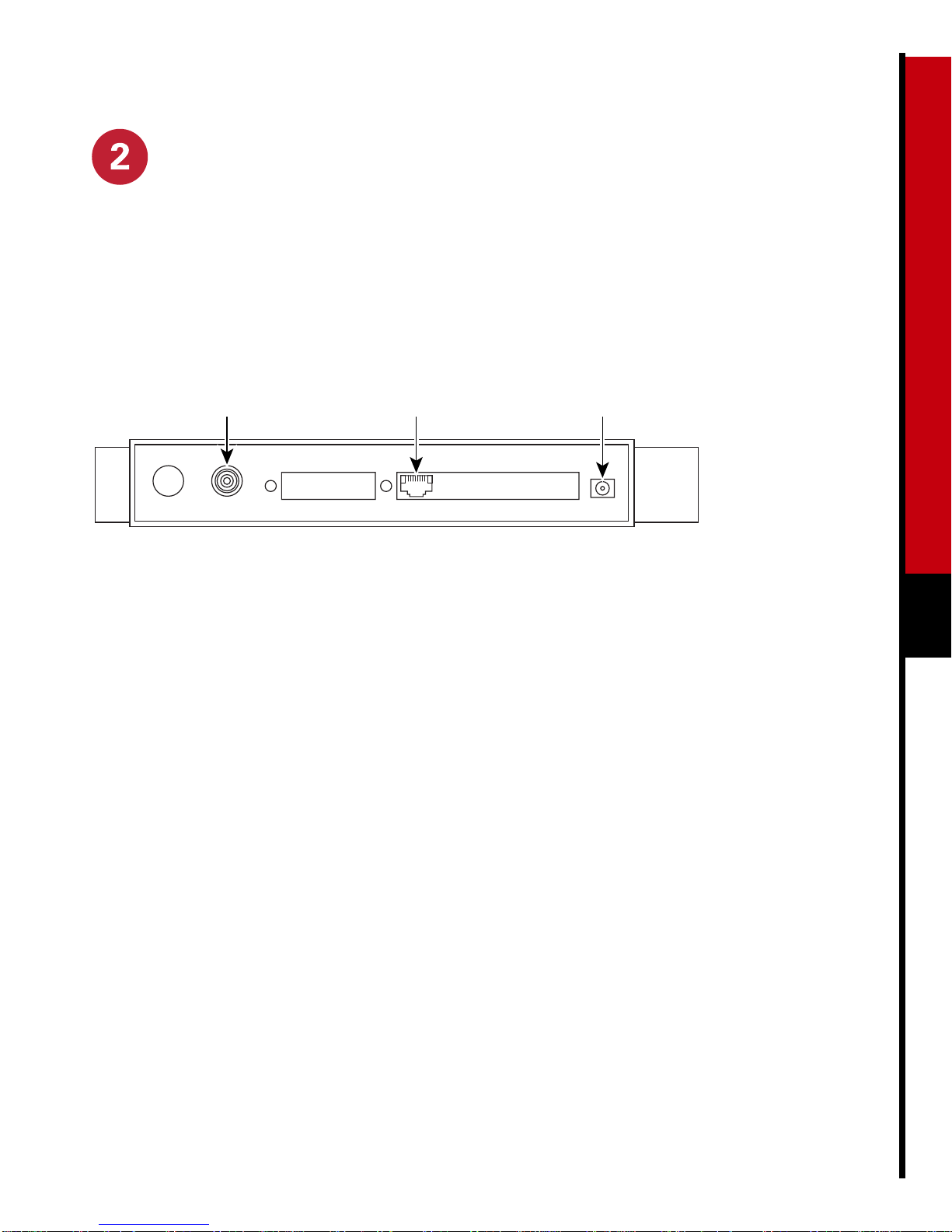

The following ﬁgure shows the locations for connecting all cables to the rear panel connectors of the Cisco DVB

CAR100.

Step 1 Connect the Cisco DVB CAR100 to the CATV network:

Connect the coaxial cable to the CATV wall outlet and to the socket labelled Cable on the rear of the Cisco

DVB CAR100.

Step 2 Connect the Cisco DVB CAR100 to the computer or hub:

If you have the Cisco DVB CAR100-PC, use a crossover Ethernet cable to connect the socket labelled

Ethernet to the computer’s Ethernet network adapter. If you have the Cisco DVB CAR100-LAN, use a

straight-through Ethernet cable to connect the socket labelled Ethernet to the hub’s Ethernet network

adapter.

Step 3 Cisco DVB CAR100-LAN only:

Connect the computers to the Ethernet hub according to the hub manufacturer’s instructions.

Step 4 Connect the power supply unit to the socket labelled Power on the back of the Cisco DVB CAR100, then

connect the power supply unit to the electrical wall outlet.

Note Always use the power supply unit supplied with the Cisco DVB CAR100.

PowerEthernetCable

38045

English

Computer Conﬁguration

Having completed the installation procedures, you have now successfully installed your Cisco DVB CAR100. It comes

pre-conﬁguredforfullend-useroperation.However, you will need to conﬁgure the connected computers to communicate

with the CATV network.

Note Consult the documentation provided by your CATV Service Provider, if your CATV network supports

Automatic Network Conﬁguration then follow the steps in Automatic Network Conﬁguration below, if Automatic

Network Conﬁguration is nor supported proceed to Manual Network Conﬁgutation.

Automatic Network Conﬁguration:

Automatic Network Conﬁguration for Windows 95/98

Step 1 Choose Start>Settings>Control Panel>Network

Step 2 Select the Conﬁguration tab

Step 3 Select the TCP/IP➠[your Ethernet adapter] entry, Properties, then the IP Address tab.

Step 4 Click Obtain an IP address from a DHCP Server.

Step 5 Click OK and Reboot the PC if neccessary.

If you have the CAR100-LAN version repeat steps 1 to 5 for each connected PC

Automatic Network Conﬁguration for Windows NT

Step 1 Choose Start>Settings>Control Panel>Network>Protocols

Step 2 Click the TCP/IP Protocols entry in the list, then Properties and select the IP Address tab.

Step 3 Click Obtain an IP address from a DHCP Server.

Step 4 Click Apply.

Step 5 Click OK and Reboot the PC if neccessary

If you have the CAR100-LAN version repeat steps 1 to 5 for each connected PC

English

Computer Conﬁguration (Continued)

Manual Network Conﬁgutation:

Note All Operating Systems: use the TCP/IP settings provided by your CATV Service Provider, or if no other data

is provided use the values from the TCP/IP Settings Table below. Refer to your Operating System documentation for

TCP/IP conﬁguration procedures.

Manual TCP/IP Conﬁguration for Windows 95/98

Step 1 Choose Start>Settings>Control Panel>Network

Step 2 Select the Conﬁguration tab.

Step 3 Select the TCP/IP➠[your Ethernet adapter] entry, Properties, then the IP Address tab.

Step 4 Click Specify an IP address and enter values for IP address and subnet mask from the TCP/IP Settings

Table above to conﬁgure the TCP/IP settings of your PC.

Step 5 Click the Gateway tab and enter values for the default gateway from the TCP/IP Settings Table

Step 6 Select DNS Conﬁguration,Enable DNS and enter the DNS Server information supplied by your CATV

Service Provider.

Step 7 Click OK and Reboot the PC if neccessary.

If you have the CAR100-LAN version repeat steps 1 to 7 for each connected PC

TCP/IP Settings

Table IP Address

Cisco DVB

CAR100-PC Single PC 192.168.128.10

Cisco DVB

CAR100-LAN

PC 1 192.168.128.10

PC 2 192.168.128.11

PC 3 192.168.128.12

PC 4 to PC 20 192.168.128.13 to 29

All versions Subnet Mask Default Gateway

255.255.255.0 192.168.128.2

English

Computer Conﬁguration (Continued)

Manual TCP/IP Conﬁguration for Windows NT

Step 1 Choose Start>Settings>Control Panel>Network>Protocols

Step 2 Click the TCP/IP Protocols entry in the list, then Properties and select the IP Address tab.

Step 3 Click Specify an IP Address. If no other conﬁguration data is provided by your Cable Operator, enter the

values from the TCP/IP Settings Table above to conﬁgure the TCP/IP settings of your PC.

Step 4 Click Apply.

Step 5 Select the DNS tab and input the DNS Server information supplied by your cable service provider.

Step 6 Click OK and Reboot the PC if neccessary.

Note If you have the CAR100-LAN version repeat steps 1 to 6 for each connected PC.

The PCs are now ready to access the CATV network using the Cisco DVB CAR100.

Troubleshooting Tips

For detailed troubleshooting information, refer to the Cisco DVB CAR100 Cable Access Router Hardware Installation

Guide.

If the power LED on the front of the Cisco DVB CAR100 does not turn green after the initialization procedure, the

modem is not functioning correctly.

If the Cisco DVB CAR100 is powered off, it should remain off for at least 10 minutes before being restarted. If the unit

is powered on within 10 minutes, it is possible it will fail to reestablish communication with the service provider's

headend unit. If this occurs, power the unit off again, and leave it off for at least 10 minutes. Then power on the Cisco

DVB CAR100 again and communication with the service provider's headend unit should be reestablished as normal.

Contact your cable service provider for technical support information.

Safety

Ensure free air-ﬂow around the Cisco DVB CAR100 and power supply unit at all times to prevent overheating.

Software Updates & Upgrades

Software Updates

Software updates for the Cisco DVB CAR100 are handled automatically by the cable service provider by means of the

CATV network. This requires no user intervention.

Note Cisco recommends leaving the modem switched on at all times so that automatic software updates can be

completed successfully.

Upgrading the Cisco DVB CAR100-PC to the

Cisco DVB CAR100-LAN

To upgrade the Cisco DVB CAR100 from the PC to the LAN version, contact the cable service provider.

English
