Quick Start Guide

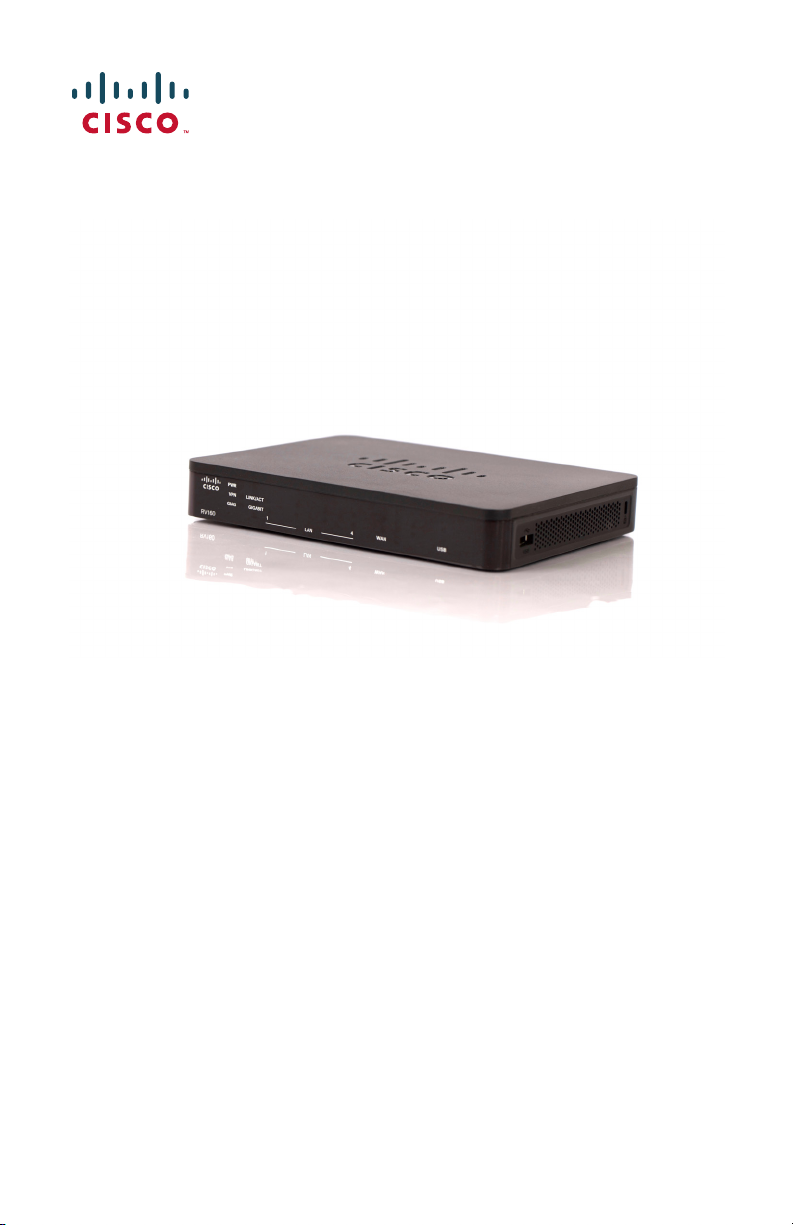

Cisco RV160 Router

Package Contents

•Cisco RV160 Router

•Power Adapter

•This Quick Start Guide

•Pointer Card/RoHS

•Technical Support Contact Card

•Ethernet Cable

•EU Directives 2014/53/EU Compliance Information (for EU SKU only)

2 Cisco RV160 Router Quick Start Guide

Welcome

Thank you for choosing the Cisco RV160 router.

The RV160 router provides reliable internet access connectivity and

includes the following features:

•Easy to use UI with multiple set-up wizards.

•Four port VPN router.

•Support for IPv6 firewall.

•Business-grade small business network in a box.

This guide describes how to install your Cisco RV160 and launch the web-

based Device Manager.

Installing the Cisco RV160

To prevent the device from overheating or being damaged:

• Ambient Temperature — Do not operate it in an area that exceeds an

ambient temperature of 104°F (40°C).

•AirFlow— Be sure that there is adequate airflow around the device. If

wall mounting the device, make sure that the heat dissipation holes are

to the side.

• Circuit Overloading — Adding the device to the power outlet must not

overload that circuit.

•MechanicalLoading— Be sure that the device is level and stable to

avoid any hazardous conditions and that it is secure to prevent it from

sliding or shifting out of position. Do not place anything on top of the

device, as excessive weight may damage it.

Desktop Mounting

For desktop mounting, place the device on a flat surface so that it sits on its

four rubber feet.

Wall Mounting

The router has two wall-mount slots on the bottom panel. To mount the

router on a wall, you will need to use the wall-mount kit screws (included).

Guidelines for Mounting the Router on a Wall

When choosing a location for mounting the router on a wall, consider cable

limitations and wall structure.

Cisco RV160 Router Quick Start Guide 3

•Mount the router with the front panel facing upward. Make sure to mount

the router low enough so that you can see the LEDs.

•Make sure that the power supply rests on a horizontal surface such as

the floor or a table. If the power supply is not supported, the strain on

the power adapter cable could cause it to disconnect from the router.

•Do not install the router or its power supply next to a heat source of any

kind, including heating vents.

You can mount the router on a hollow wall or a wall stud. To mount the

router, follow these steps:

STEP 1Position the router on the wall to determine where to attach the two

mounting screws. Drill two pilot holes at approximately 109 mm

apart.

STEP 2Insert a screw into each hole, leaving a gap between the surface

and the base of the screw head of 1 to 1.2 mm.

STEP 3Place the router wall-mount slots over the screws and slide the

router down until the screws fit snugly into the wall-mount slots.

WARNING Insecure mounting might damage the router or cause injury.

Cisco is not responsible for damages incurred due to insecure

wall-mounting.

WARNING For safety reasons, please ensure that the heat dissipation

holes are facing sideways.

4 Cisco RV160 Router Quick Start Guide

Cisco RV160 Features

Front Panel

PWR Power Off or in rescue mode.

Solid green when the power is on and in normal

operation.

Flashing green when the device is booting up.

VPN Off when no VPN tunnel is defined, or all defined

VPN tunnels have been disabled.

Solid green when at least one VPN tunnel is up.

Flashing green when transmitting or receiving

data over VPN tunnel.

Solid amber when no enabled VPN tunnel is up.

DIAG Off when the system is on track to bootup.

Slow blinking red (1Hz) when the firmware

upgrade is in progress.

Fast blinking red (3Hz) when the firmware

upgrade is failing.

Solid red when the system failed to boot-up with both

the active and inactive images or in rescue mode.

LINK/ACT of WAN

and LAN1-4

Off when there is no Ethernet connection.

Solid green when the GE Ethernet link is on.

Flashing green when transmitting or receiving data.

GIGABIT of WAN

and LAN1-4

Solid green when at 1000M speed.

Off when at non-1000M speed.

USB Off when the USB is not connected, or the USB

is inserted and not recognized.

Solid green when USB storage is recognized.

Flashing green when transmitting or receiving data.

Amber when the USB storage access has errors.

Cisco RV160 Router Quick Start Guide 5

Back Panel

RESET — The RESET button has two functions:

•To reboot the unit and retain the current configuration, press and hold

RESET for a least 3 but no more than 10 seconds, by using a paper clip

or a pen tip.

•To reboot the unit and restore the factory default configuration, press

and hold the RESET button for more than 10 seconds. Changes you

have made to the router are lost.

Console Port

— The router console port is designed for a serial cable connection

to a terminal or a computer that is running a terminal emulation program.

LAN — (1 - 4) RJ-45 device connections to link local area network devices,

such as PCs, print servers, or switches to the router.

WAN — Connecting the router to a wide area network device such as a

cable or DSL modem.

SFP Port

— A small factor-form pluggable (SFP) is a hot-swappable input/output

device that plugs into the SFP port, linking the port with the network.

POWER — Toggles power to the device on or off.

12VDC (1.5A) — Power port that connects the device to the provided

12VDC, 1.5 amp power adapter.

Side Panel

USB — Type A USB port that supports flash drives. Caution: Use only the

power supply provided with the device; using another power supply may

cause the USB dongle to fail.

6 Cisco RV160 Router Quick Start Guide

Kensington Lock Slot — Lock slot on the right side to secure the device

physically, using the Kensington lock-down equipment.

Connecting the Equipment

Connect a configuration terminal (PC) to the device by using a LAN port.

The terminal must be in the same wired subnetwork as the device to

perform the initial configuration. As part of the initial configuration, the

device can be configured to allow remote management.

To connect a computer to the device:

STEP 1Power off all equipment, including the cable or DSL modem, the

computer, and this device.

STEP 2Use an Ethernet cable to connect your cable or DSL modem to the

WAN port on this device.

STEP 3Connect another Ethernet cable from one of the LAN (Ethernet)

ports to the Ethernet port on the computer.

STEP 4Power on the WAN device and wait until the connection is active.

STEP 5Connect the power adapter to the 12VDC port of this device.

CAUTION Use only the power adapter that is supplied with the device.

Using a different power adapter could damage the device or

cause the USB dongles to fail.

The power switch is on by default. The power light on the front

panel is solid green when the power adapter is connected

properly and the device is finished booting.

STEP 6Plug the other end of the adapter into an electrical outlet. Use the

plug (supplied) specific to your country.

STEP 7Continue with the instructions in the Using the Setup Wizard to

configure the device.

Using the Setup Wizard

The Setup Wizard and Device Manager are supported on Microsoft

Internet Explorer, Mozilla Firefox, Apple Safari, and Google Chrome.

444

Cisco RV160 Router Quick Start Guide 7

To configure the device using the Setup Wizard, follow these steps:

STEP 1

Power on the PC that you connected to the LAN1 port in Step 3 of the

Connecting Equipment section. Your PC becomes a DHCP client of the

device and receives an IP address in the 192.168.1.xxx range.

STEP 2Launch a web browser.

STEP 3

In the address bar, enter the default IP address of the device,

https://

192.168.1.1

. A site security certificate message is displayed. The Cisco

RV160 uses a self-signed security certificate. This message appears

because the device is not known to your computer.

STEP 4

Click

Continue to this website

to continue. The sign-in page appears.

STEP 5Enter the username and password. The default username is cisco.

The default password is cisco. Passwords are case-sensitive.

STEP 6Click Log In. The Router Setup Wizard is launched.

STEP 7Follow the on-screen instructions to set up your device. The Router

Setup Wizard should detect and configure your connection. If it is

unable to do so, it asks you for information about your Internet

connection. Contact your ISP for this information.

STEP 8Change the password as instructed by the Router Setup Wizard or

follow the instructions in the Changing the Administrator Username

and Password section. Log in to the device with the new username

and password.

NOTE We recommend that you change the password. You are

required to change the password before enabling features such as

remote management.

The Device Manager Getting Started page appears. It displays the

most common configuration tasks.

STEP 9

Click one of the tasks listed in the navigation bar to complete the

configuration.

STEP10 Save any additional configuration changes and log out of the

device manager.

Changing the Administrator Username and Password

To change the Administrator username and password on the device:

STEP 1From the Getting Started page, select Change Administrator

Password or select System Configuration > User Accounts from

the navigation bar.

STEP 2

Check a username from the Local User Membership list and click

Edit.

8 Cisco RV160 Router Quick Start Guide

STEP 3Enter the Username.

STEP 4Enter the old Password.

STEP 5Enter the new Password.

STEP 6Confirm the new Password.

STEP 7Select the group (admin, guest) from the drop-down list in the

Password Strength Meter.

STEP 8Click Save.

Troubleshoot Your Connection

If you cannot access your device by using the Setup Wizard, the device

may not be reachable from your computer. You can test network

connections by using ping on a computer running Windows:

STEP 1Open a command window by using Start > Run and enter cmd.

STEP 2At the Command window prompt, enter ping and the device IP

address. For example, ping 192.168.1.1 (the default static IP

address of the device).

If you can reach the device, you should get a reply similar to the

following:

Pinging 192.168.1.1 with 32 bytes of data:

Reply from 192.168.1.1: bytes=32 time<1ms TTL=128

If you cannot reach the device, you should get a reply similar to the

following:

Pinging 192.168.1.1 with 32 bytes of data:

Request timed out.

Possible Causes and Resolutions

Bad Ethernet connection:

Check the LEDs for the proper indications. Check the connectors of the

Ethernet cable to ensure that they are firmly plugged into the device

and your computer.

Wrong or conflicting IP address:

Verify that you are using the correct IP address of the device.

Verify that no other device is using the same IP address as this device.

No IP route:

Cisco RV160 Router Quick Start Guide 9

If the device and your computer are in different IP subnetworks,

remote access must be enabled and you need at least one router on

the network to route the packets between the two subnetworks.

Unusually long access time:

Adding new connections may take 30–60 seconds for the affected

interfaces and LAN to become operational.

Where to Go From Here

For EU Lot 26 related test results, see www.cisco.com/go/eu-lot26-results

Support

Cisco Support

Community

https://community.cisco.com/t5/small-

business-support-community/ct-p/5541-

small-business-support

Cisco Firmware

Downloads

https://software.cisco.com/download/home

Select a link to download firmware for Cisco

products. No login is required.

Cisco Partner Central

(Partner Login Required)

http://www.cisco.com/c/en/us/

partners.html

Product Documentation

Cisco RV160 https://www.cisco.com/c/en/us/support/

routers/rv160-vpn-router/model.html

Americas Headquarters

Cisco Systems, Inc.

www.cisco.com

Cisco has more than 200 offices worldwide.

Addresses, phone numbers, and fax numbers

are listed on the Cisco website at

www.cisco.com/go/offices.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates

in the U.S. and other countries. To view a list of Ciscotrademarks, go to this URL:

www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their

respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (1110R)

78-100991-01

Inhaltsverzeichnis

Andere Cisco Netzwerk-Router Handbücher

Cisco

Cisco SLM2024 - Small Business Smart Switch Bedienungsanleitung

Cisco

Cisco Nexus 1000V Bedienungsanleitung

Cisco

Cisco 850 Series Bedienungsanleitung

Cisco

Cisco 7200 VXR Series Bedienungsanleitung

Cisco

Cisco ADSL Modem Router Bedienungsanleitung

Cisco

Cisco 7301 Series Bedienungsanleitung

Cisco

Cisco ASR 1000 series Handbuch

Cisco

Cisco ASR-920-20SZ-M Bedienungs- und Sicherheitshinweise

Cisco

Cisco 7609 Bedienungsanleitung

Cisco

Cisco NCS 5500 Series Bedienungsanleitung

Cisco

Cisco 2600 Series Installationsanleitung

Cisco

Cisco RV082 - Small Business VPN Router Bedienungsanleitung

Cisco

Cisco 12406 series Bedienerhandbuch

Cisco

Cisco uBR924 Installationshandbuch

Cisco

Cisco Catalyst 9300 Series Handbuch

Cisco

Cisco Linksys RAN201 Bedienungsanleitung

Cisco

Cisco RV042 - Small Business Dual WAN VPN Router Bedienungsanleitung

Cisco

Cisco Nexus 3000 series Installationshandbuch

Cisco

Cisco RV345 Bedienungsanleitung

Cisco

Cisco 7206-VXR NPE-400 Bedienungsanleitung

Cisco

Cisco Linksys WRT54G3GV2-ST Bedienungsanleitung

Cisco

Cisco ME-4924-10GE Handbuch

Cisco

Cisco ASR 907 Handbuch

Cisco

Cisco Linksys E1200 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

LevelOne

LevelOne FBR-1416 Bedienungsanleitung

Dynacord

Dynacord Promatrix 6000 Bedienungsanleitung

Lorex

Lorex F5D8230-4 Bedienungsanleitung
