USER GUIDE

BUSINESS SERIES

24-Port

10/100 Switch

Model: SR224R

24-Port 10/100 Switch

Table of Contents

Chapter 1: Introduction 1

The 24-Port 10/100 Switch. . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Chapter 2: Product Overview 3

Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Placement Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 3: Connect the Switch 5

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Connection Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Appendix A: Specifications 7

Appendix B: Warranty and Regulatory Information 9

Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Industry Canada (Canada) . . . . . . . . . . . . . . . . . . . . . . . . . 12

IC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Règlement d’Industry Canada . . . . . . . . . . . . . . . . . . . . . . 12

EC Declaration of Conformity (Europe) . . . . . . . . . . . . . . . . . 12

Appendix C: Contact Information 21

ii 24-Port 10/100 Switch

About This User Guide

Icon Descriptions

While reading through the User Guide, you may encounter various icons designed to call

attention to a specific item. Below are descriptions of these icons:

NOTE: This check mark indicates that there is a note of interest and is

something that you should pay special attention to while using the product.

WARNING: This exclamation point indicates that there is a caution or

warning and it is something that could damage your property or product.

WEB: This globe icon indicates a noteworthy website address or e-mail

address.

Online Resources

Most web browsers allow you to enter the web address without adding the http:// in front

of the address. This User Guide will refer to websites without including http:// in front of

the address. Some older web browsers may require you to add it.

Resource Website

Linksys www.linksys.com

Linksys International www.linksys.com/international

Glossary www.linksys.com/glossary

Network Security www.linksys.com/security

Specifications are subject to change without notice. Linksys is a registered trademark or

trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries.

are trademarks or registered trademarks of their respective holders.

24-Port 10/100 Switch

Chapter 1: Introduction

Chapter 1:

Introduction

The 24-Port 10/100 Switch

With its advanced switching technology, the 24-Port 10/100 Switch will

boost your network performance with much more than just full duplex

data transfer and dedicated bandwidth. It features non-blocking, wire-

speed switching that forwards packets as fast as your network can deliver

them. Address learning and aging are included to prevent data transfer

errors and data flow control to help prevent packet collisions.

The SR224R is designed to fit in a standard equipment rack using the

included rack mount brackets. However, its minimal depth and fanless

design makes it suitable to be located anywhere.

No matter how intensive your network demands, the 24-Port 10/100

Switch has speed, flexibility, and reliability that you can count on.

Features

Ideal for integrating your 10BaseT and 100BaseTX network

hardware

24 10/100 Ports provide dedicated bandwidth in half or full-duplex

modes

Switched 10/100 ports run at up to 200Mbps in full-duplex mode

Each port supports Auto MDI/MDI-X cable detection

Compatible with all major network operating systems

Advanced Store-and-Forward packet switching optimizes data

transfers

Auto partitioning protects PCs from downed network lines

Signal regeneration ensures data transfer integrity

•

224-Port 10/100 Switch

Chapter 1: Introduction

Chapter 2: Product Overview

24-Port 10/100 Switch

Chapter 2:

Product Overview

Front Panel

The LEDs are located on the front panel of the Switch.

Front Panel of the 24-Port Switch

System (Green) This LED lights up and remains lit when the Switch is

powered on.

1-24 (Green) Each LED lights up when a connection is made through its

corresponding port. It flashes when the corresponding port is active.

1-24 These ports connect the Switch to network devices,

such as computers.

Back Panel

The Ethernet network ports are located on the back panel of the

Switch.

Back Panel of the 24-Port Switch

Power The power port is where you will connect the included

power cord.

Chapter 2: Product Overview

424-Port 10/100 Switch

Side Panel

The security slot is located on the side panel of the Switch.

Side Panel with Security Slot

Security slot The security slot is where you can attach a lock

to protect the Switch from theft.

Placement Options

There are two ways to physically install the Switch:

Set the Switch on its four rubber feet.

Mount the Switch in a standard rack (1U high).

Rack-mount

To rack-mount the Switch, follow these instructions:

The Switch has four mounting holes on each side. Screw an included

mounting bracket into each side.

Rack-mounting the Switch

Lift the Switch into the rack, and secure the brackets with additional

screws (not included).

•

24-Port 10/100 Switch

Chapter 3: Connect the Switch

Chapter 3:

Connect the Switch

Overview

This chapter will explain how to connect network devices to the Switch.

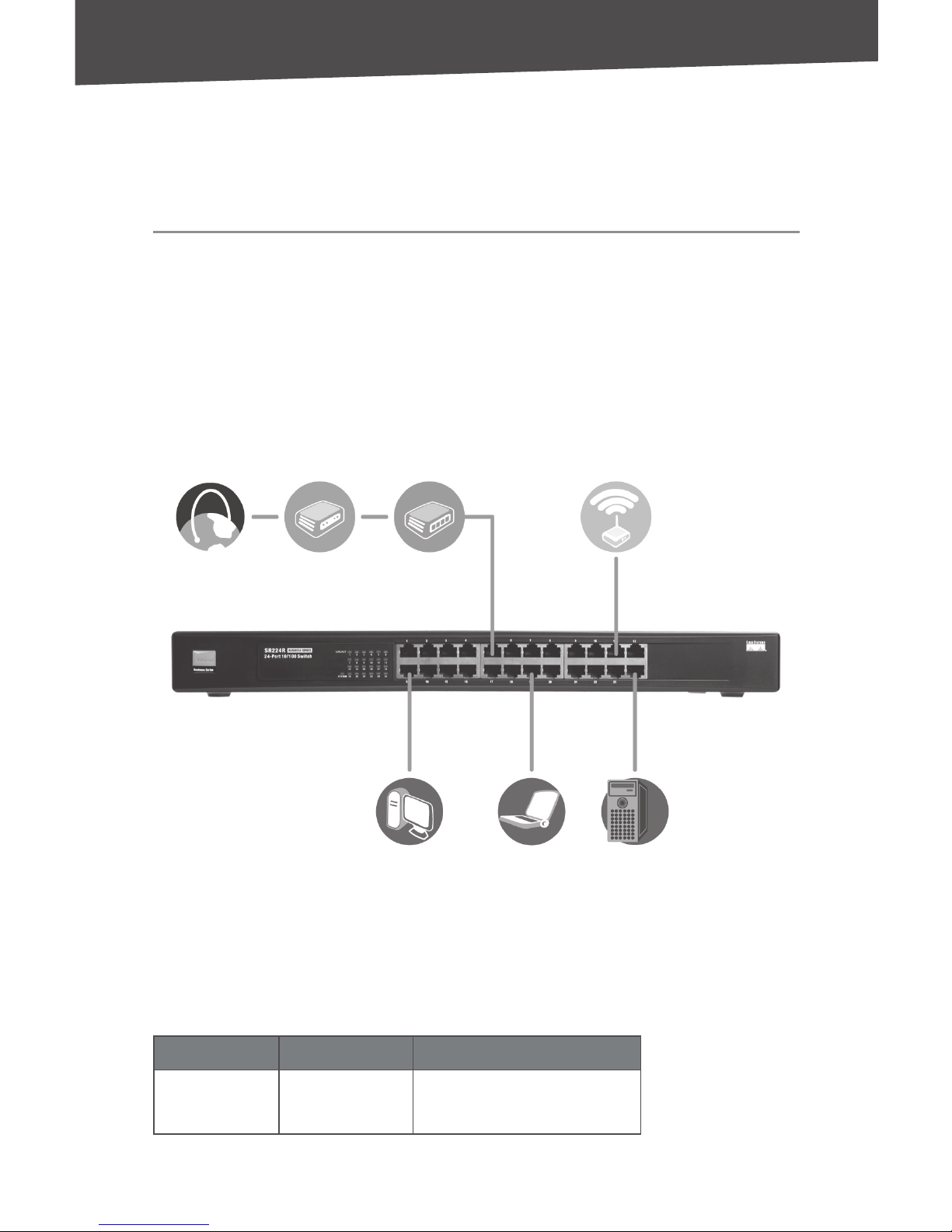

The application diagram shown here is an example of a typical network

configuration.

Internet

Cable/DSL

Modem Router

Wireless

Access Point

Desktop Notebook Server

Application Diagram

When you connect your network devices, make sure you don’t exceed

the maximum cabling distances, which are listed in the following table:

Maximum Cabling Distances

From To Maximum Distance

Switch Switch 100 meters (328 feet)

Switch Computer 100 meters (328 feet)

624-Port 10/100 Switch

Chapter 3: Connect the Switch

Connection Instructions

Make sure all of the devices you will connect to the Switch are

powered off.

ConnectaCategory5Ethernetnetworkcabletooneofthenumbered

ports on the Switch. Connect the other end to a computer or other

network device.

Connect the Ethernet Network Cable

Repeat step 2 to connect additional devices.

Connect the supplied power cord to the Switch’s power port. Plug

the other end of the adapter into an electrical outlet.

Power on the devices connected to the Switch. Each active port’s

corresponding LED will light up on the Switch.

Congratulations! The installation of the 10/100 Switch is complete.
