Cissell IPSO HF234 Bedienungsanleitung
Part No. D0051
Contents
Contents
Code: 249/00173/00
19-12-00
1 General safety instructions .............................................................. 3
2 Technical data and dimensions ....................................................... 4
Technical data ................................................................................ 4
Dimensions ..................................................................................... 5
3 Installation and connection ............................................................. 6
Ground ............................................................................................ 6
Removing the transport brackets .................................................... 6
Water connection ............................................................................ 6
Water drain ..................................................................................... 7
Main power connection .................................................................... 7
Liquid soap connection ................................................................... 8
Steam connection ........................................................................... 9
4 Operating instructions ..................................................................... 10
Machine with start button ................................................................ 10
5 Standard programs .......................................................................... 18
6 Technical remarks ............................................................................ 19
Internal connection of the electrical heating .................................... 19
Tilt switch ....................................................................................... 19
Error messages .............................................................................. 20
7 Maintenance of the machine ........................................................... 22
3
1
General safety instructions
Ignoring any of the safety instructions can cause serious
personal injury and can also cause damage to the linen or the
machine
S
S
S
S
S
S
S
S
S
S
S
S
S
Remark:
Read the installation and instruction manual carefully before connecting the
machine.
It is recommended that the machine be installed by qualified technicians.
The machine should be installed according to the installation instructions. (See
chapter 3)
The machine should be grounded according to the instructions in order to
eliminate the risk of electrocution.
Do not expose the machine to high humidity or extreme high or low temperatures.
Cut off all main water inlets, steam and electrical supplies at the end of each
operating day.
Before starting repairs or maintenance, shut off all power and water supplies.
To prevent fire and explosion:
Keep the area around the machine free from inflammable or combustible
products.
Do not put fabrics that are treated with inflammable products into the machine.
These fabrics should be hand-washed or air-dried first.
Always carefully read and follow the instructions on the packing of detergents.
Store these products out of the reach of children.
Always take into account the instructions on the labels of clothes.
Never allow children to play in the surroundings of a machine.
These instructions surely cannot prevent all risks of accidents. It is up to the user to act with the
utmost precaution.
Do not hesitate to contact the dealer in case of a problem.
4
2
Capacity (dry weight)
1/11
1/10
1/9
Cylinder
Diameter
Depth
Volume
Cabinet
Height
Width
Depth
Front loading
Diameter door opening
Door height - lower edge
Door height - center
Speed
Wash
Distribution
Spin
High spin
G-force
Spin
High spin
Motors (3-phase)
4p. 1470 rot./min
Drain
Depend-O-Drain
Option
Water-inlet
Hard, soft, hot water & cool-down
Steam connection
Steam connection
Heating
Electric 220/380 V
Electric 380 V
Steam
Boiler fed
Boiler fed (with auxiliary heating)
Packing dimensions
(H x W x D)
Weight
Net
Gross
Technical data and dimensions
Technical data
HF 176 HF 234
16,0 kg 21,3 kg
17,6 kg 23,4 kg
19,5 kg 26,0 kg
750 mm 750 mm
399 mm 530 mm
176 Lit. 234 Lit.
1505 mm 1505 mm
900 mm 900 mm
885 mm 985 mm
395 mm 395 mm
630 mm 630 mm
820 mm 820 mm
10...50 tr/min.
100 tr/min.
250...500 tr/min.
500...1000 tr/min.
74
373
2 kW 3 kW
3"
2"
3/4"
3/8"
12/15/18 kW
24 kW
X
X
X
1650x1020x1150 mm
455 kg 570 kg
524 kg 630 kg
5
2
S
S
S
S
S
S
S
S

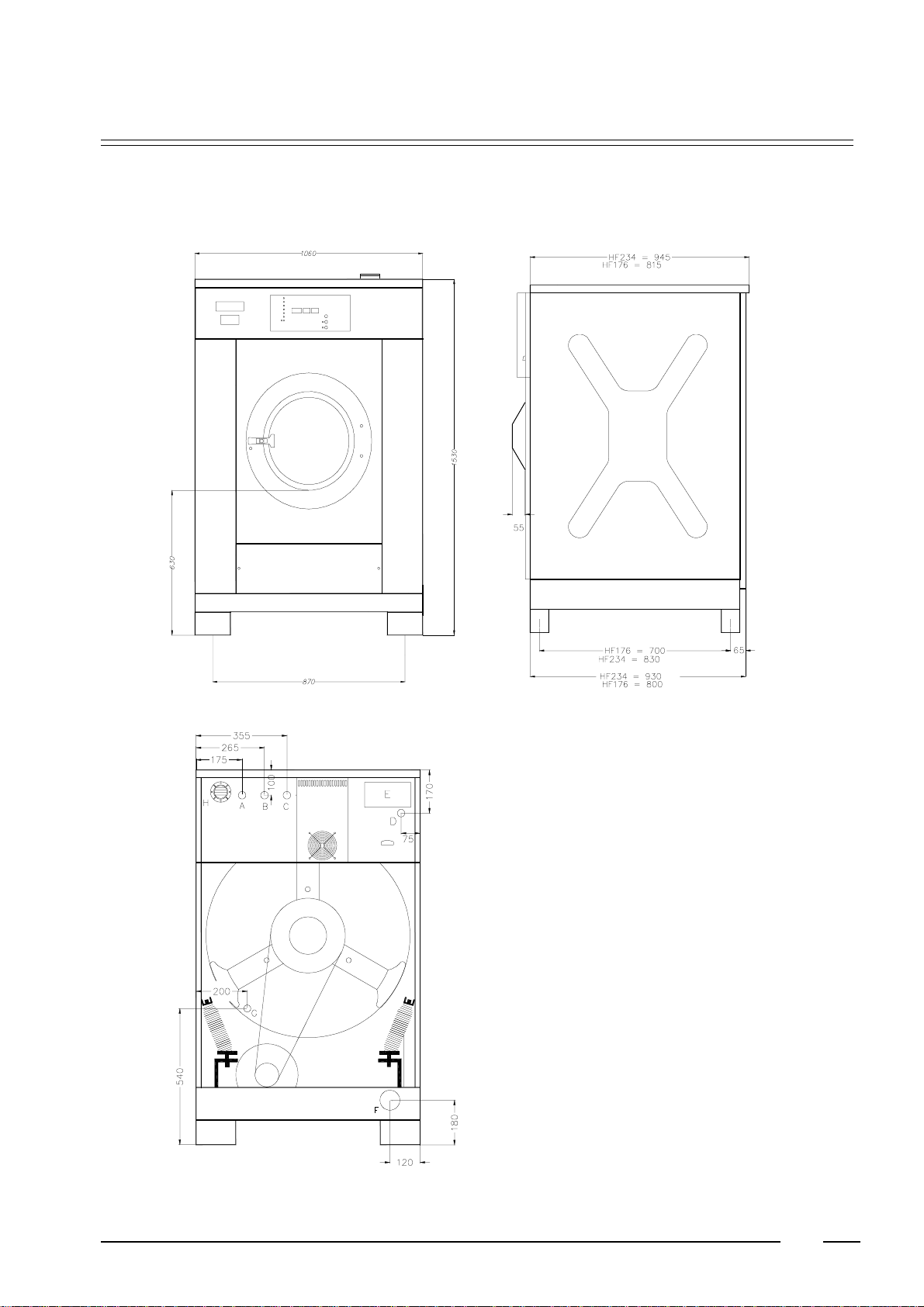

Dimensions
S
A. Hard water connection 3/4"
B. Warm water connection 3/4"
C. Soft water connection 3/4"
D. Electrical connection
E. Electrical connection clamps
F. Output steam valve
G. Water drain
H. Steam connection
I. Ventilation soap dispenser
6
3

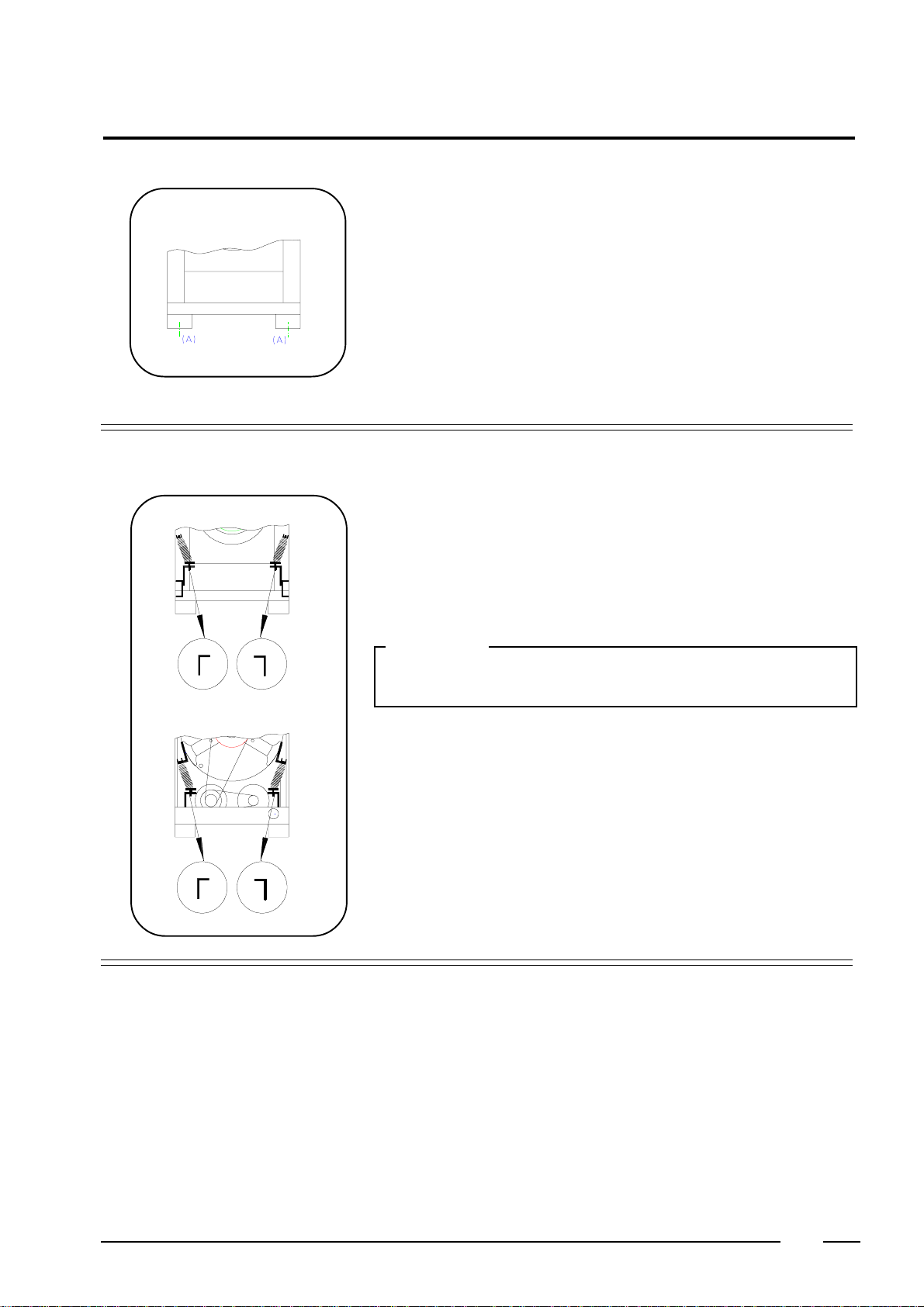

To prevent damage during transportation, the machine has been equipped with
four red transport brackets (D) to eliminate every possible movement of the tub.
After the machine has been placed level, take off the service- and the back panel
to remove these transport brackets.
Important
The machine must never be activated before removing these transport
brackets.
Installation and connection
Ground
The machine must be placed on a flat, solid surface (metal base, concrete or solid
ground). It is recommended that the machine be anchored on the provided
places (A) in the base, especially in case of a plinth
(see Dimensions 2).
The machine must be placed entirely level. For easy maintenance it is recommen-
ded to keep a minimal distance of 600 mm between the wall and the back of the
machine.
If several machines are placed next to each another, there should be a minimal
distance of 30 mm between each machine.
The machine is delivered with hoses with 3/4" connections. These hoses fit the
water inlet valves of the machine and the main water inlet taps. To ensure the
optimal functioning of the water inlet valves, the water pressure on the inlet
should be between 0,5 and 10 kg/cm² (7 and 145 psi). If the pressure is too low,
the cycle time will increase considerably.
Incaseofboilerfedmachines,aminimumofhotwaterof90°Cshouldbeavailable:
For the HF176: 125 l. HF234: 150l.
Water connection
Removing the transport brackets
7
3
machine with steam heating or boiler fed machines without additional
electrical heating
Power of the breaker plugs:
220V3AC 380V3AC+N
12 kW 40 A 20 A
15 kW 50 A 25 A
18 kW 50 A 32 A
21 kW ---- 40 A
24 kW ---- 40 A
machine with electrical heating
220V3AC 380V3AC+N
16 A 16 A
The machine is equipped with a drain valve with 3" outer diameter (80 mm).
This drain valve should be connected to the drain by means of the drain
elbow which is delivered with the machine.
The diameter of the main drain should be adapted to the water flow and
the number of machines. It should be sufficient to handle at least 160L/
min. per machine.
It is necessary to connect the main drain at least on one side to an open
air-brake to allow ventilation.
When the main drain has not been sufficiently deodorized, every
machine should be installed seperately with a deodorizer.
S
S
S
Water drain

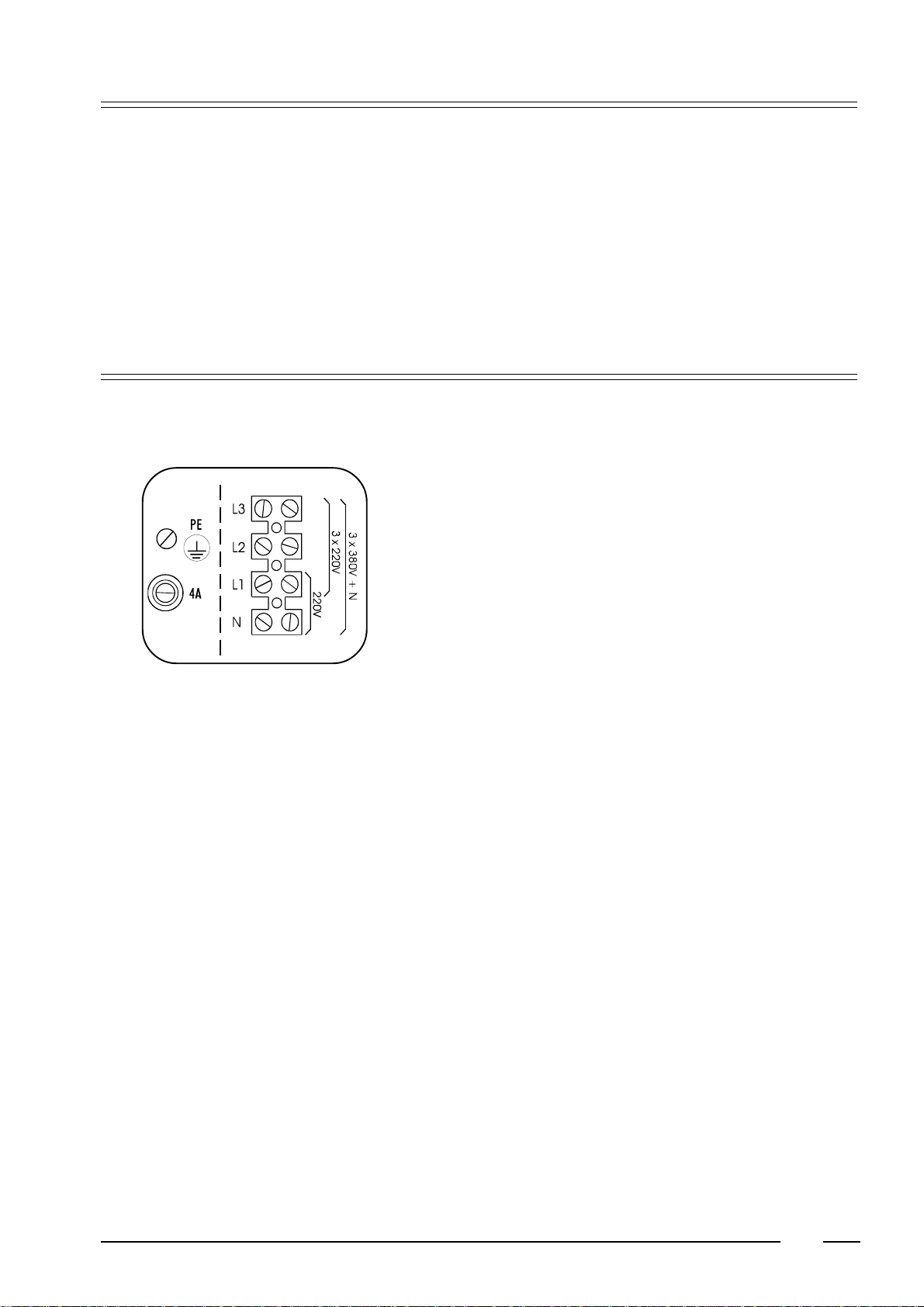

Remove the cover plate at the back of the machine. (See dimensions (E)).
Connect the power cable to the connectors.
220V 3AC
220V 3 phase (3AC) should be connected to the connectors “L1,L2,L3”.
The green/yellow grounding clamp has to be connected to the grounding
wire “PE”.
380 V 3AC + N
380 V 3 phase (3AC + N) has to be connected to the connectors
“L1,L2,L3”, the blue neutral to the “N” connector.
The green/yellow grounding clamp has to be connected to the groun-
ding wire “PE”.
After connection, check the spin direction. The cylinder must spin in the
direction of the arrow, showed on the sticker on the door window
(clockwise).
A wrong spin direction can damage the motor, and can also cause water
to spurt from the soap dispenser.
In case of wrong spin direction: switch the terminal clamps of the motor
Main power connection S
S
S
S
8
3
With an external tension 24V DC
Electrical connection of
the liquid soap pumps

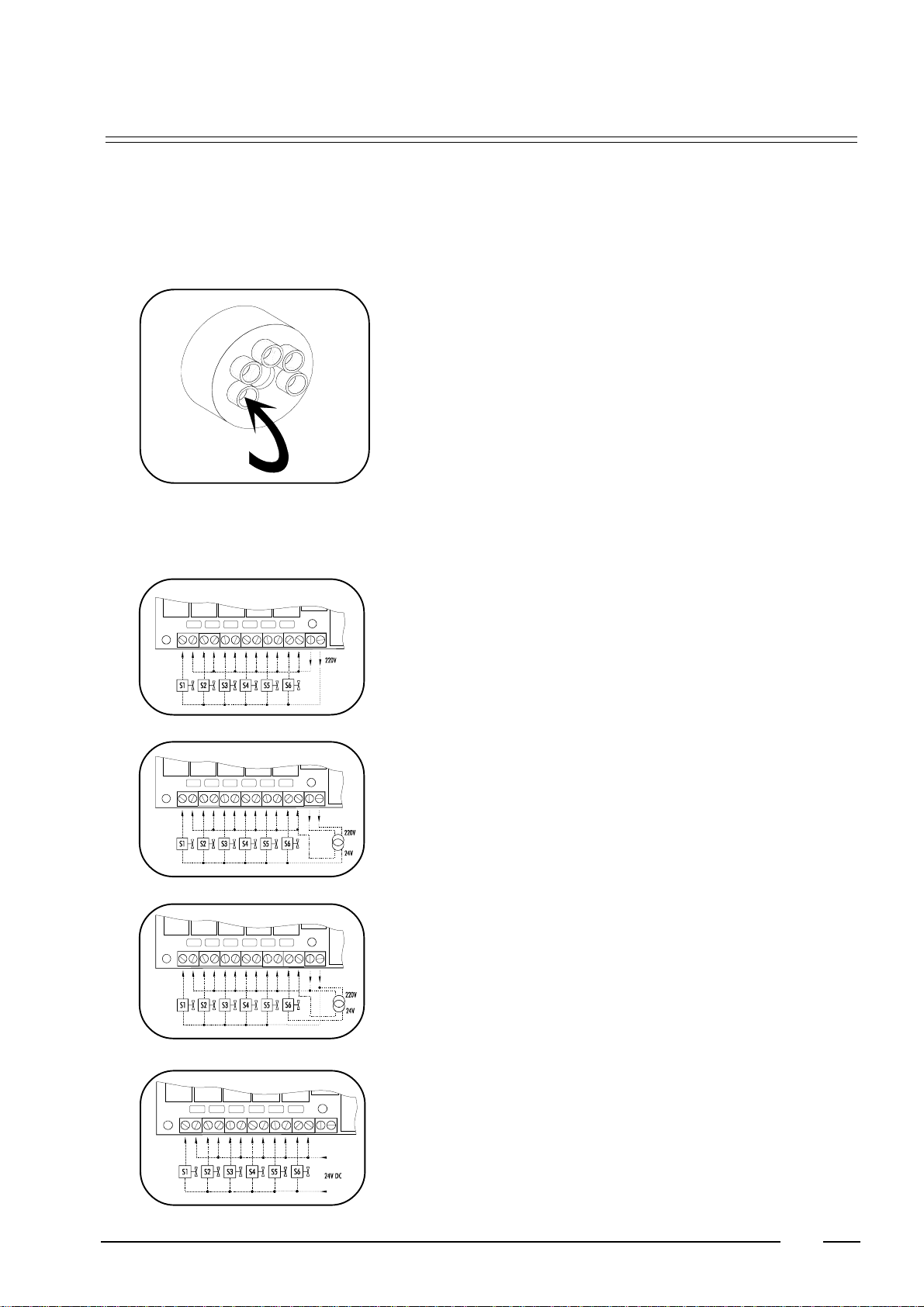

On machines equipped with a liquid soap connection, connect the wires
directly on the print board next to the ground wire connection (option).
Connect as indicated on the wiring diagram.
The two connectors on the right give a tension of 220V ~ (max. 4A) which
can be applied to drive 220V ~ soap pumps. If more than 4A is required, an
external tension will have to be used. 6 connections have been provided,
of which one (S6) can be used to drive a waterproofing pump (e.g. for rain
coats, etc.).
The 220V can be transformed to other values to drive other type soap
pumps.
Example:pumps24V~.
Also, pumps with different operating tension can be combined.
Example: 5 pumps 220V ~ and 1 pump 24V ~.
A rubber connection has been placed over the air break opening at the back
of the machine. There are 5 holes in this rubber connection, through each
of which a liquid soap hose can be driven (S1...S5). Press the hoses until they
appear well inside the soap dispenser.
The central gap in the rubber connection remains and serves as air breaker.
Liquid soap connection (option)
Connection of the liquid soap
hoses
9
3

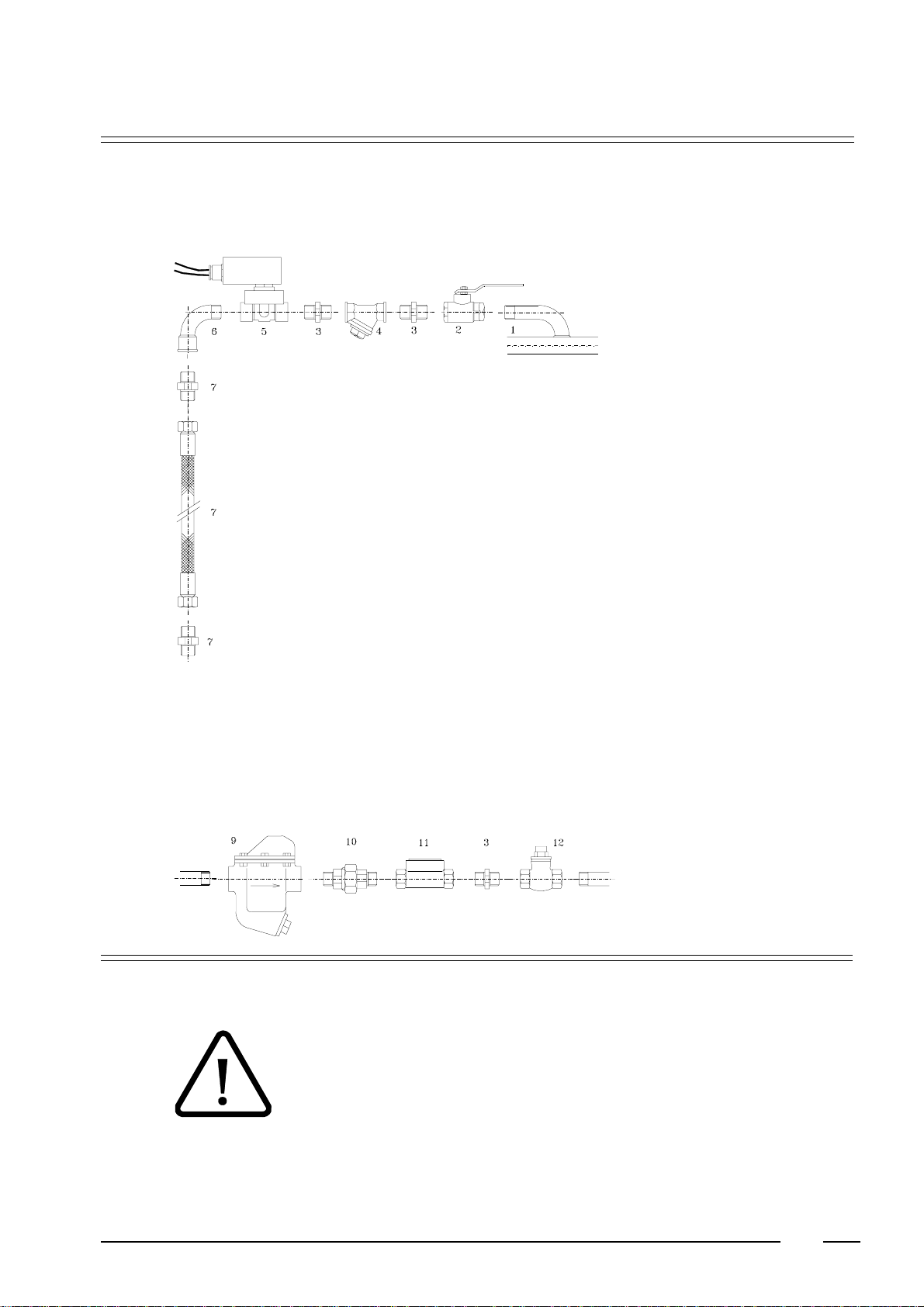

Steam connection
With direct steam injection into the machine
1. Steam pipe
2. Steam cut-off valve 3/8"
3. Pipe coupling 3/8"
4. Steam filter 3/8"
5. Magnetic steam valve 3/8"
6. Curve MF 3/8"
7. Steam hose with appropriate pipe coupling 3/8"
The manufacturer is not responsible for damage or accidents
caused by not following the installation instructions!
Added parts for steam heating with heat exchanger
3. Double pipe coupling 1/2"
9. Condensation accumulator with filter 1/2"
10. Conical coupling MM 1/2"
11. Single window 1/2"
12. One-way valve 1/2"
M = inner wire, F = outer wire
10
4
Operating instructions
Machine with start button
Sort the linen according to the type and required temperature of the linen. Empty
all pockets of the garments so that no garments can be damaged and no left articles
can cause damage to the machine. Turn sleeves of shirts, blouses inside out. It is
recommended to mix small and large items to enhance the drop of the linen during
the wash cycle and hence improve the wash quality. Wash loads of below 80%
of machine capacity can obstruct the proper functioning of the machine and can
damage the machine. Overloading the machine can also lead to a bad wash result.
It is recommended to only use detergents with a “foam-breaker”. These are often
found in the launderette or laundry or can easily be found in retail stores.
Recommended doses are mentioned on the detergent packing.
Overdosing of detergents can lead to reduced wash results and “overfoaming”
which can damage the machine.
Close the door
Fill the drum

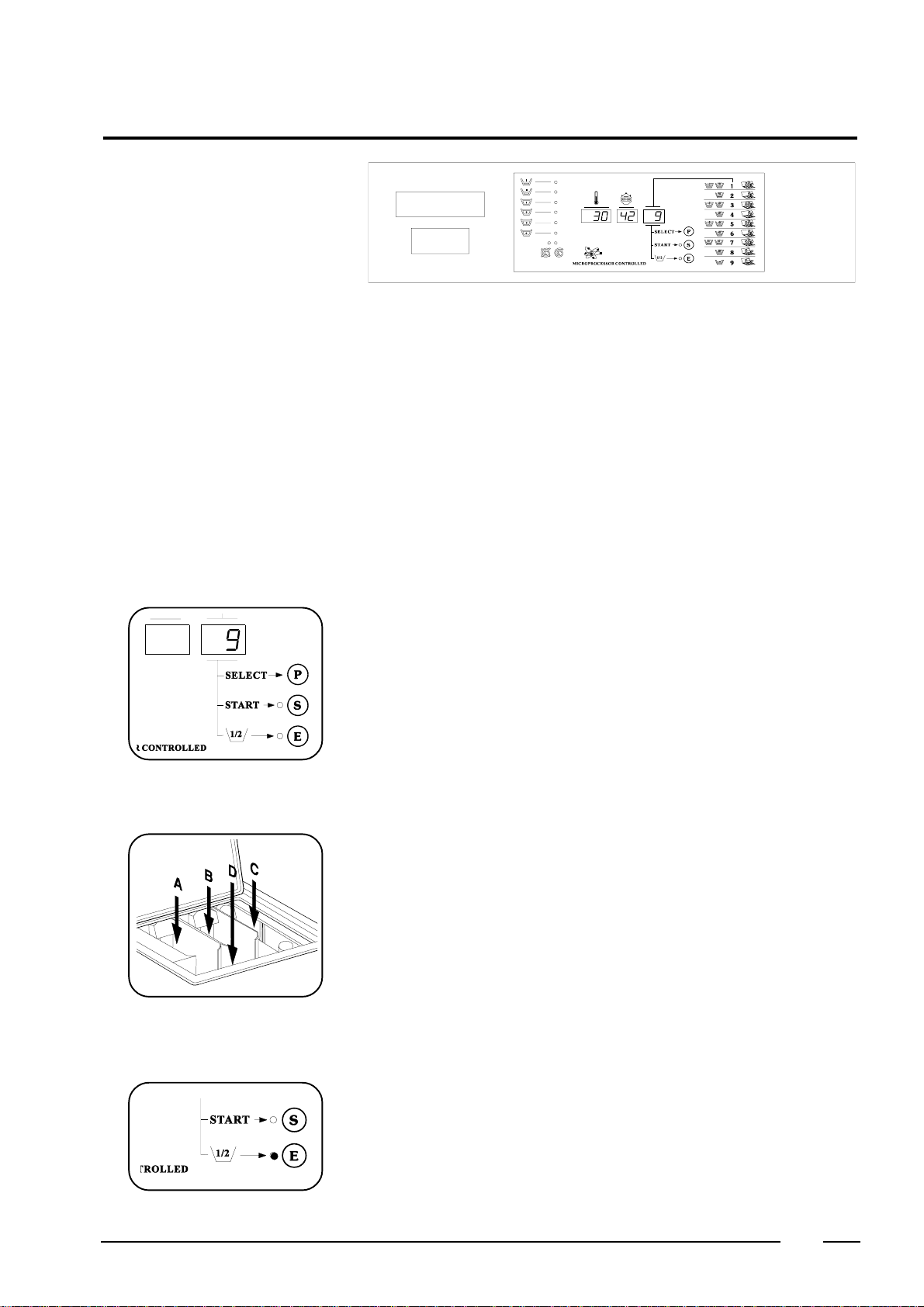

On machines with a start button, the programmer can contain up to 100 programs
(0-99). The program number is displayed on the right display.
By pressing the SELECT-button (P), the next program will be displayed.
By pressing the ECO-button (E), the previous program will be displayed. By
keeping this button pressed, this function will be accelerated.
Remark
Select program “0” by keeping the SELECT-button pressed continuously for more
than 5 seconds.
Add detergent
Left compartment A: Prewash (1st wash)
Central compartment B: Main Wash (2nd wash)
Right compartment C: Final Rinse (fabric softener)
Bottom compartment D: Direct access to tub
Moderately soiled linen can be washed using the Economy Wash function, which
reduces the water level of washes and rinses by 20%, allowing savings of water
and energy.
Press the ECO-button during the wash cycle to activate the economy wash
function. The ECO-LED will light up.
At the end of the program the ECO-function will be automatically eliminated. If
the ECO-function is required in the following wash cycle as well, reactivate this
function by repeating the actions described above.
Economy Wash
Opening the door Push the red button on the door handle to open the door.
Select program
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Cissell Waschmaschine Handbücher
Cissell
Cissell CSHW75-HF245-304 Bedienungsanleitung
Cissell
Cissell CSHW50-HF135-234 Bedienungsanleitung
Cissell
Cissell CHHW50-WE176-234 Bedienungsanleitung
Cissell
Cissell CSHW35-HW55-164 Bedienungsanleitung
Cissell
Cissell CHHW50-WE234 Leitfaden
Cissell
Cissell CHMW35-WE55-165 Bedienungsanleitung
Cissell
Cissell WE176 Bedienungsanleitung
Cissell
Cissell CT055 Bedienungsanleitung
Cissell
Cissell CSHW35-HW131-164 Leitfaden
Cissell
Cissell CSHW50-HF145-176-234 Leitfaden
