Citizen CMP-20II series Bedienungsanleitung

Mobile Printer CMP-20II/30II/40

Utility Manual

V2.64

CITIZEN CMP-20I/30II/40 Utility Manual

1. Startup screen

On this screen, you can set following items. (Note: Related emulation with the function)

Printer Connection Settings (Common)

Density Settings: Default density (ESC/POS)

Code Page Settings: Default code page (ESC/POS)

Emulation Settings (Common)

Power Save Mode (Common)

Label Media Settings / Sensor to detect label (CPCL)

Wi-Fi or Bluetooth Settings (Common)

True-Type Font Download (CPCL)

Advanced Options (CPCL)

CMP-20/30 compatible mode settings (Common)

Calibration (CPCL)

Additional screens show up for the settings of Advanced Options (CPCL), Wi-Fi settings and

Bluetooth settings.

Caution: When the application connects to the printer, emulation setting is checked. The settings

items are not for the emulation, you cannot change it.

CITIZEN CMP-20I/30II/40 Utility Manual

2. Settings other than Wi-Fi or Bluetooth

2-1. Printer Connection Settings

You can connect the printer to PC by Serial (COM1 – COM9) or USB port.

When you use Serial Port, you have to check the Baud Rate setting between the printer & PC.

Once the printer is connected with PC via serial interface, you can change the Baud Rate setting of

the printer and you can save the changed Baud Rate to the printer by ‘Save Serial Port

Configuration’.

You can disconnect printer from the PC by clicking ‘Close Port’.

2-2 Density (ESC/POS)

Print density can be set in five grades between -1 to +3.

2-3 Code Page (ESC/POS)

You can choose codepage and print the codepage data here.

CITIZEN CMP-20I/30II/40 Utility Manual

2-4. Emulation settings

“Get Emulation” shows current emulation.

Press “Set CPCL” or “Set ESC/POS” to change the emulation. It turned the printer off automatically.

2-5. Power Save/Power Off Mode

You can set the power save mode like “No Power Save”, “Power Save Mode” & “Power Off Mode”

and you can set the waiting time to Power Save Mode.

Mode

Description

No Power Save

Do not use Power Save Mode

Power Off Mode

After the fixed time passes without working, the printer power

becomes off automatically.

Power Save Mode

After the fixed time passes without working, the printer goes into

Power Save Mode automatically. To go back to normal mode,

printer needs to receive few bytes dummy data. We recommend

using NULL for dummy data.

CITIZEN CMP-20I/30II/40 Utility Manual

2-6 Label Media Settings (CPCL)

Media can be set here for CPCL. You can choose Label paper (Set Gap), Black mark paper (Set

Black mark) or Receipt paper (Set Continuous).

If you choose Black mark, sensor position needs to be set as well. If black mark is on backside of

paper, choose “Upper”. If black mark is on recording side of paper, choose” Lower”.

2-7 True-Type Font Download (CPCL)

You can see the dialogue below by pressing “Open File”. Choose the TrueType font to download.

You can check and delete the already downloaded TrueType font on the printer too. After choosing

TypeType font, press Download button on the original screen. Then chosen TrueType font data is

downloaded to the printer.

CITIZEN CMP-20I/30II/40 Utility Manual

2-8 Advanced Options (CPCL)

By pressing this button, the dialogue below shows up.

On this dialogue, you can check and set the Language setting, Left margin, Top margin and margin

from TOF to print area.

CITIZEN CMP-20I/30II/40 Utility Manual

2-9 CMP-20/30 compatible mode setting (ESC/POS)

This function make the ID of CMP-20II/30II same as CMP-20/30 type I. If the applicatio for type1

does not work for typeII, try this function. (This does not guarantee to solve the issue.)

2-10 Calibration (CPCL)

If label gap or black mark cannot be recognized well and printing from top of form does not work

well, try to adjust the sensor level by this function. Please refer to the User’s manual for the

condition to use this function.

CITIZEN CMP-20I/30II/40 Utility Manual

3. Bluetooth Interface settings

3-1. Start Bluetooth Settings

If you connect this software to the pritner, “Start Bluetooth Settings” button on top screen of this

software becomes effective. Then press the button.

Then the screen below shows up.

CITIZEN CMP-20I/30II/40 Utility Manual

3-1. BT address and device name

There is unique 12 digits BD address assigned to each Bluetooth module.

You can check the BD address by “Get Bluetooth Information” button,

Bluetooth device name can be changed by “Set Bluetooth Information” however if the firmware

version is old and does not support this function, the message “Not supported…” is shown.

3-2. PIN Code Information

When you try to connect to the printer via Bluetooth, you may be required to enter PIN code to

establish the connection. In such case, you need to enter PIN code. Default PIN code is “0000”.

To change the Bluetooth PIN Code, enter new PIN Code and press “Save Bluetooth PIN Code”

button

3-3. Discoverable Mode Information

If you set “Discoverable Mode” ON, other Bluetooth devices (PDA, Smart Phone…) can detect the

printer and if you set it “OFF”, other devices cannot detect the printer.

CITIZEN CMP-20I/30II/40 Utility Manual

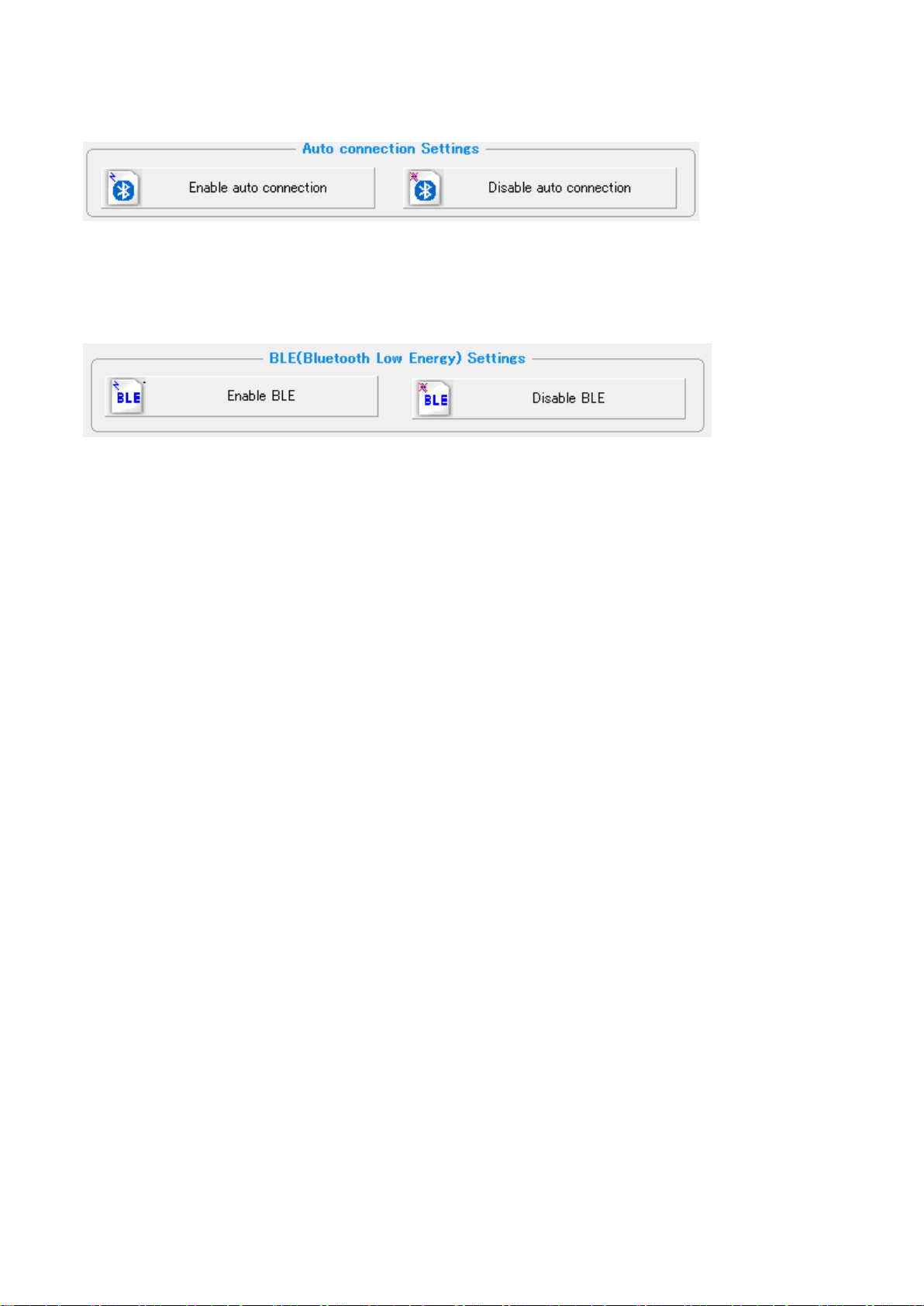

3-4. Auto Connection Settings

If the printer supports Auto connection setting of Bluetooth to iOS device and you want to disable

the function or change back to enable the function, press Disable/Enable buttons.

3-5. Auto Connection Settings

There is no plan to use this function so far. So please keep it Disabled.
