MOVEMENT SPECIFICATIONS
CAL.0S60
13-1/2 LINGE, 3 EYES CHRONOGRAPH
ANALOGUE QUARTZ, 0 JEWEL
BY CITIZEN WATCH CO., LTD. JAPAN
MANUFACTURED IN JAPAN
1. BASIC SPECIFICATION
S
(1) Cal. No. *TO CONFIRM WITH MOV'T DRAWING ATTACHED
CALIBRE
Ligne
Size*mm
Date
Total heigh
t
4.13MM
Battery life
Batter
y
(* 60 minutes chronograph operation per day)
(2) Time standard
Type of quartz : Tuning fork type quartz crysta
l
Frequency : 32,768H
z
A
ccuracy : +/-20 s/month worn under normal circumstances
(3) Balanceable weight of hand
Minute hand Max. 0.4 μN.m
Center Chrono Second hand Max. 0.11 μN.m
Other small hands Max. 0.02 μN.m
(4) Function
Chronograph 1/20 sec. basis
(Up to 11 hour 59 min. 59 sec.)
Powercell Saving Reset Mechanism(PSRM)
Over-loading Compensation Device(OLCD)
Digital Frequency Control(DFC) for time adjustment
0S60
O
A
pprox. 2 years
*
SILVER OXIDE SR927
W
or equivalen
t
13-1/2
Φ30.80mm

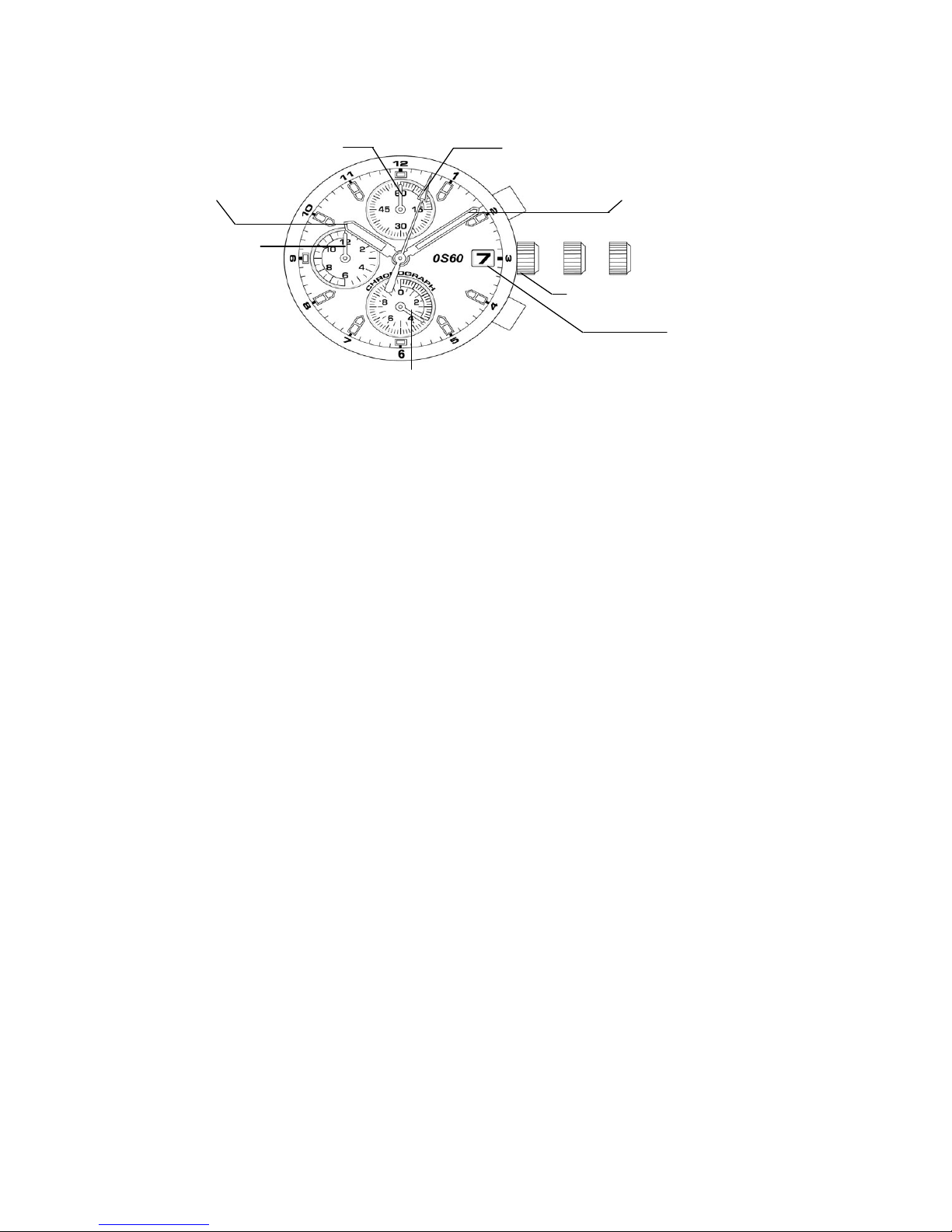

Chronograph
minute hand
Hour hand
Chronograph
hour hand
Second hand
or 1/20 sec
chronograph hand
Minute hand
Normal crown
position
Button B
Button A
Calendar
Chronograph
second hand
2. SEPARATED PART
S
Setting stem x1
Code 065-453
Length from movement center to far end 23.00mm
of setting stem
Thread................................. Ф0.9mm x 8.50mm
3. OTHERS
* Measurement of time rate
The unit(gate) time of measurement must be set at "10 sec." or integer fold
value of 10 sec. owing to the DFC system, and the measurement must be
performed in the form of complete watch.
* Marking on movement
JAPAN
MIYOTA CO.
(CAL. NO.)
NO JEWELS
* Typical clearance
Mov't - Caseback minimum 150 microns
Top of hands - Glass 300 - 400 microns *
* subject to the glass, case structure, and the length of hand
* Note
Please use aluminum material hand for Chrono second hand
* TACHYMETER
The tachymeter is the device which measures the speed of an automobile. Knowing is how
many seconds the car covers a distance of 1km, the meter can measure the approximate
average speed per hour during a journey (up to the maximum measurable range of
tachymeter is 60 seconds.)
If the chronograph is started at the same time as measurement, and stopped after 1 km,
the average speed per hour can be determined according to the position of the second
hand. If the car covers the distance of 1km in 45second, the average hourly speed during
the journey will be about 80 km.
4. INSTRUCTION MANUAL
A
) DISPLAYS AND BUTTONS
B) SETTING THE TIME
1. Pull the crown out to the 2nd position so that the second hand stops at (0) position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position in synchronization with a time
signal, small second hand begins to run.
C) SETTING THE DATE
1. Pull the crown out to the 1st position.
2. Turn the crown to left to set the date.
* If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may
not change on the following day.
3. After the date has been set, push the crown back to the normal position.
D) USING THE CHRONOGRAPH
This chronograph is able to measure and display time in 1/20 second united up to
maximum of 12 hours.
The chronograph 1/20 second hand keeps continuously for 30 seconds after starting,
and then stops at 0 position.
Measuring time with the chronograph
1. Press button "B" to change the watch to the chronograph mode.
The second hand stops at the 0 second position, and changes to the chronograph
1/20 second hand.
2. The chronograph can be started and stopped each time button "A" is pressed.
The chronograph 1/20 second hand stops at the 0 second position 30 seconds after
starting, When button "A" is pressed to stop the chronograph, the chronograph 1/20
second hand advances rapidly to display the measured time.
3. Pressing button "B" resets the chronograph and all hands return to their 0 positions.
Chronograph
minute hand
Hour hand
Chronograph
hour hand
Second hand
or 1/20 sec
chronograph hand
Minute hand
Normal crown
position
Button B
Button A
Calendar
Chronograph
second hand
"A"
RESET "A" TIME MEASUREMENT STOP
"B" "A"
"B"
E) CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)
This procedure should be performed when the chronograph second hand and
chronograph 1/20 second hand do not return to the 0 second position after the
chronograph has been reset, and including after the battery has been replaced.
1. Pull the crown out to the 2nd position.
2. Press button "A" to set the chronograph second hand to the 0 position.
3. Press button "B" to set the chronograph 1/20 second hand to 0 position.
The chronograph hands can be advanced rapidly by continuously pressing button
"A" or "B".
4. Once the hands have been zeroed, reset the time and return the crown to its
normal position.
5. Press button "B" to check that the chronograph hands are reset to the 0 position.
* Do not return crown to normal position while chronograph second hand and 1/20
chronograph second hand return to 12:00 (ZERO) position.
Each hands stop on the way when crown are returned to normal position and these
positions are recognized as 12:00 (ZERO) position.
Chronograph
minute hand
Hour hand
Chronograph
hour hand
Second hand
or 1/20 sec
chronograph hand
Minute hand
Normal crown
position
Button B
Button A
Calendar
Chronograph
second hand
Chronograph
minute hand
Hour hand
Chronograph
hour hand
Second hand
or 1/20 sec
chronograph hand
Minute hand
Normal crown
position
Button B
Button A
Calendar
Chronograph
second hand
F) FITTING METHOD OF HANDS
Place the module on case back shown in the figure and position the reference hand,
then fit the hands according to the following procedure.
1. Pull out the crown to the time setting position. (2nd Click Position
)
2. Turn the crown anticlockwise, and stop turning right after the date changes. After the date
starts changing, turn the crown slowly.
3. Push in the crown by one step. Be careful of not turning the crown.
4.Fit the reference hand, hour hand and minute hand to the 12-o'clock position.
When fitting the hands, remove the case back and place the movement on work stand.
These specifications might be changed without prior notice.
Chronograph
minute hand
Hour hand
Chronograph
hour hand
Second hand
or 1/20 sec
chronograph hand
Minute hand
Normal crown
position
Button B
Button A
Calendar
Chronograph
second hand
