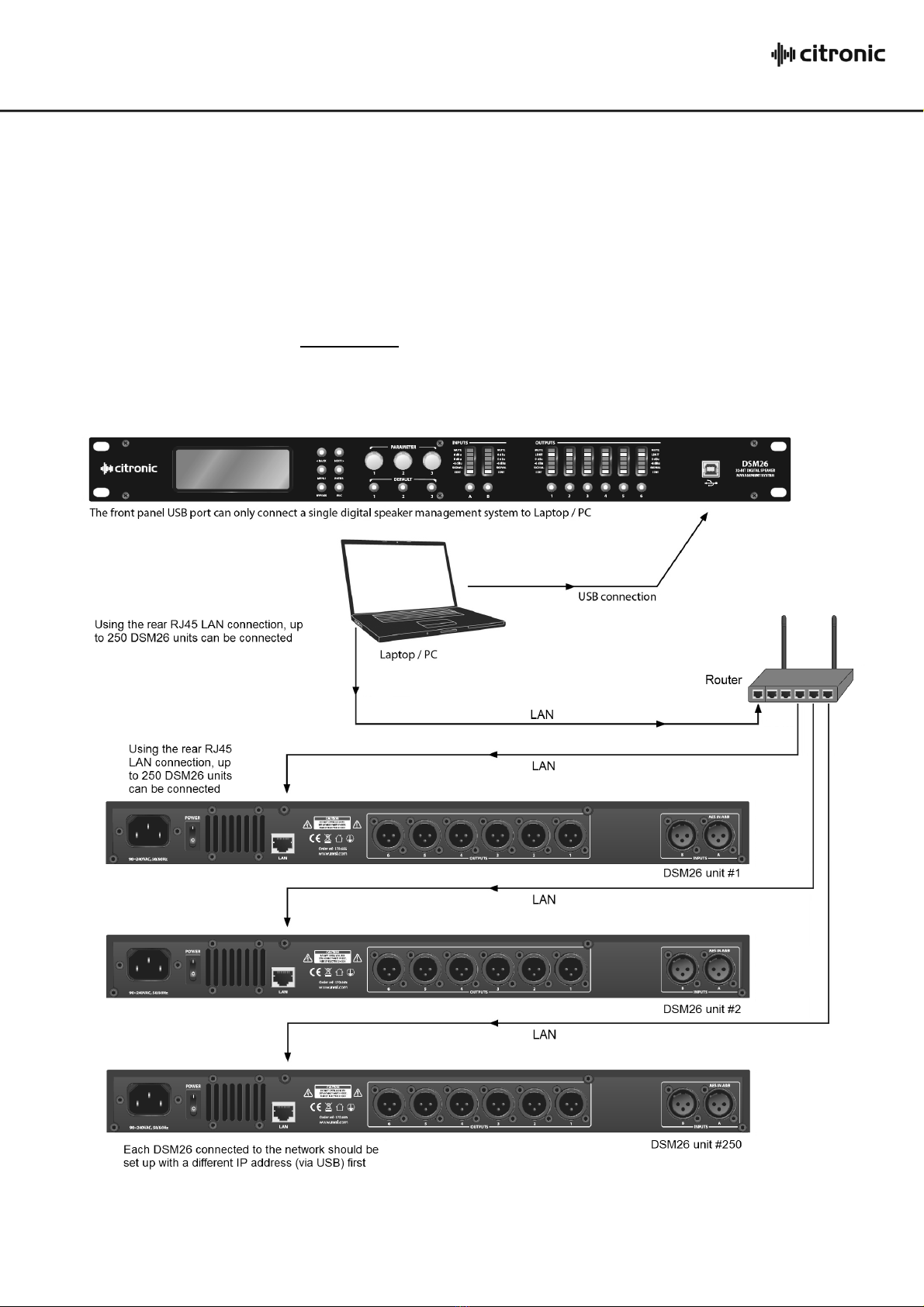

6 170.665UK User Manual

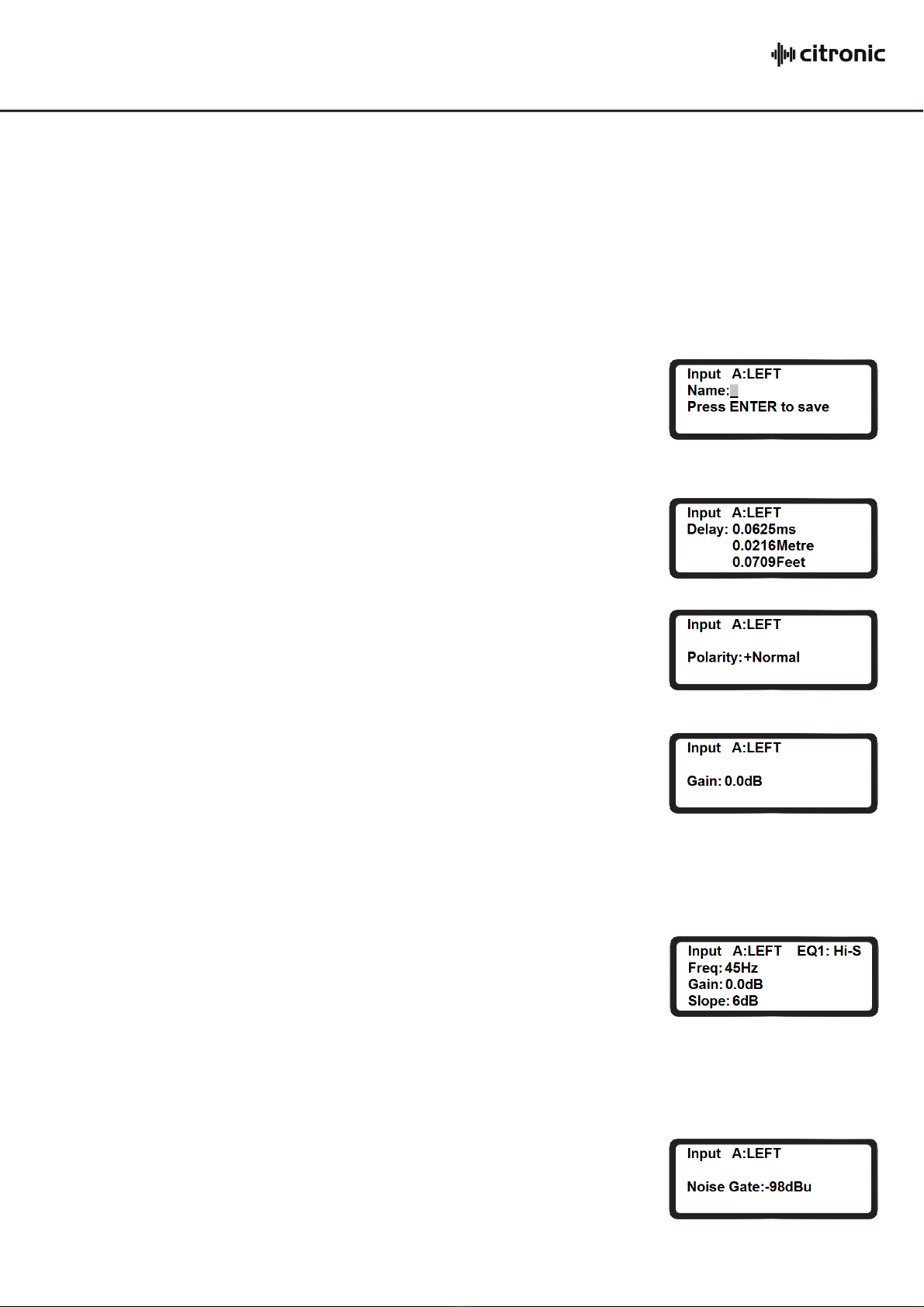

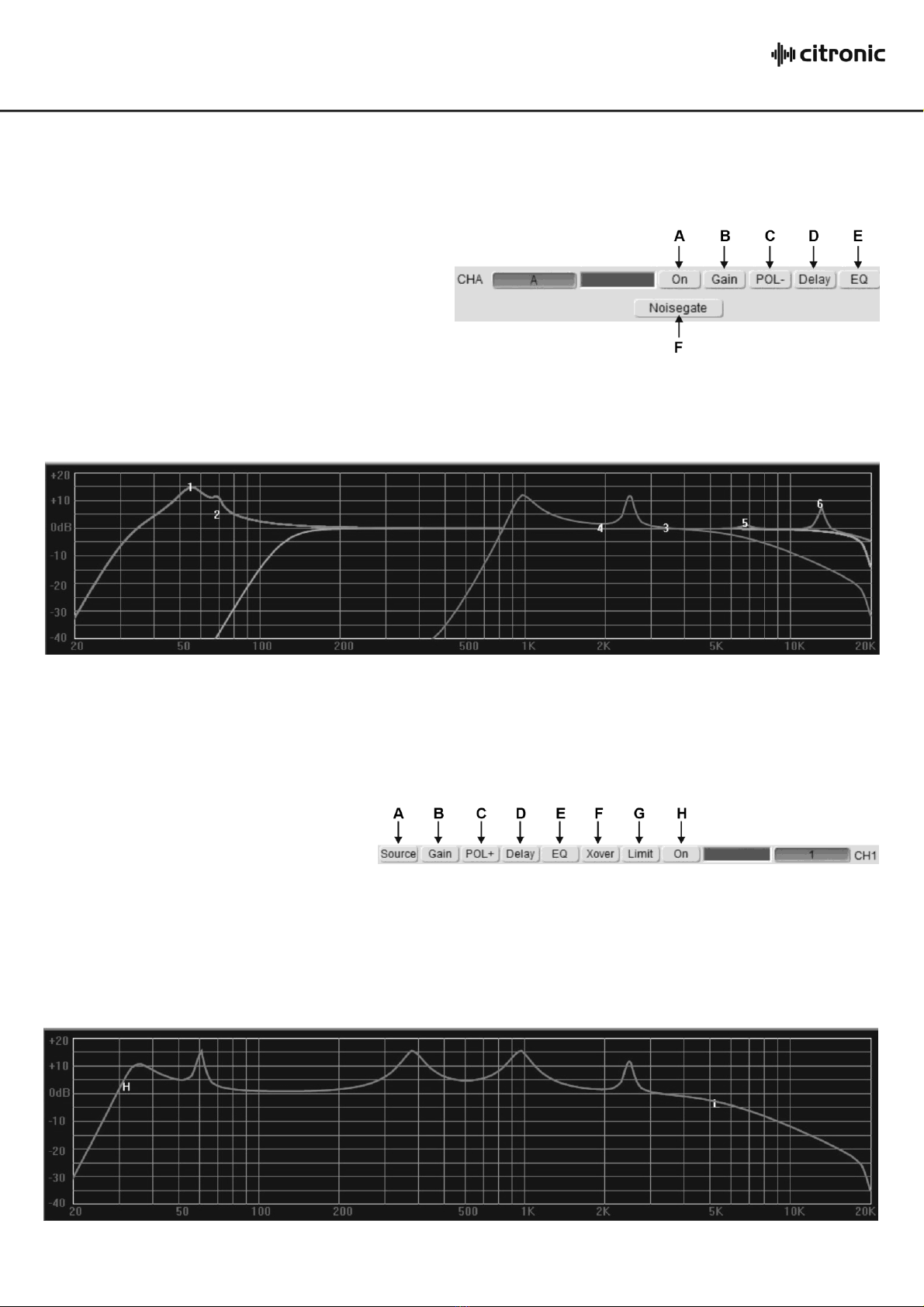

8. Output EQ
Output EQ1 - EQ6 (6 independent EQs for each channel)
Press BACK or NEXT buttons to step through EQ1 to EQ6
Parameter 1 rotary selects the filter type:
Parametric (PEQ), High-Shelf (Hi-S) or Low-Shelf (Lo-S)
Press ENTER to confirm the filter type and move down to parameter settings.
Parameter 1 rotary control adjusts the cutoff frequency (20Hz to 20kHz)
Parameter 2 rotary control adjusts the gain (-30 to +15dB)
Parameter 3 rotary control selects bandwidth/slope (0.05-3.00oct or 6-12dB/oct)
Press ENTER to confirm the parameter settings.
9. Output compressor/limiter
Output Compressor or Limiter (independent for each channel)
Parameter 1 rotary control selects Compressor or Limiter. Press ENTER to confirm
In Compressor mode, press BACK or NEXT buttons to toggle between 2 pages:
Page 1: Parameter 1 adjusts the Threshold (-30 to +20dBu)
Page 1: Parameter 2 adjusts the Attack (0.3 to 100ms)
Page 1: Parameter 3 adjusts the Release time (2x, 4x, 6x, 8x, 16x, 32x Attack time)
Page 2: Parameter 1 selects Manual or Auto mode (Auto overrides Page 1 parameters)
Page 2: Parameter 2 adjusts the Clip Limiter (2dB to 12dB above threshold)
Page 2: Parameter 3 adjusts the Ratio (1:1, 1:2, 1:4, 1:8, 1:16, 1:32, 1:64, 1:Max)
In Limiter mode, there is only one page of parameters.
Page 1: Parameter 1 adjusts the Threshold (-30 to +20dBu)
Page 1: Parameter 2 adjusts the Attack (0.3 to 100ms)
Page 1: Parameter 3 adjusts the Release time (2x, 4x, 6x, 8x, 16x, 32x Attack time)

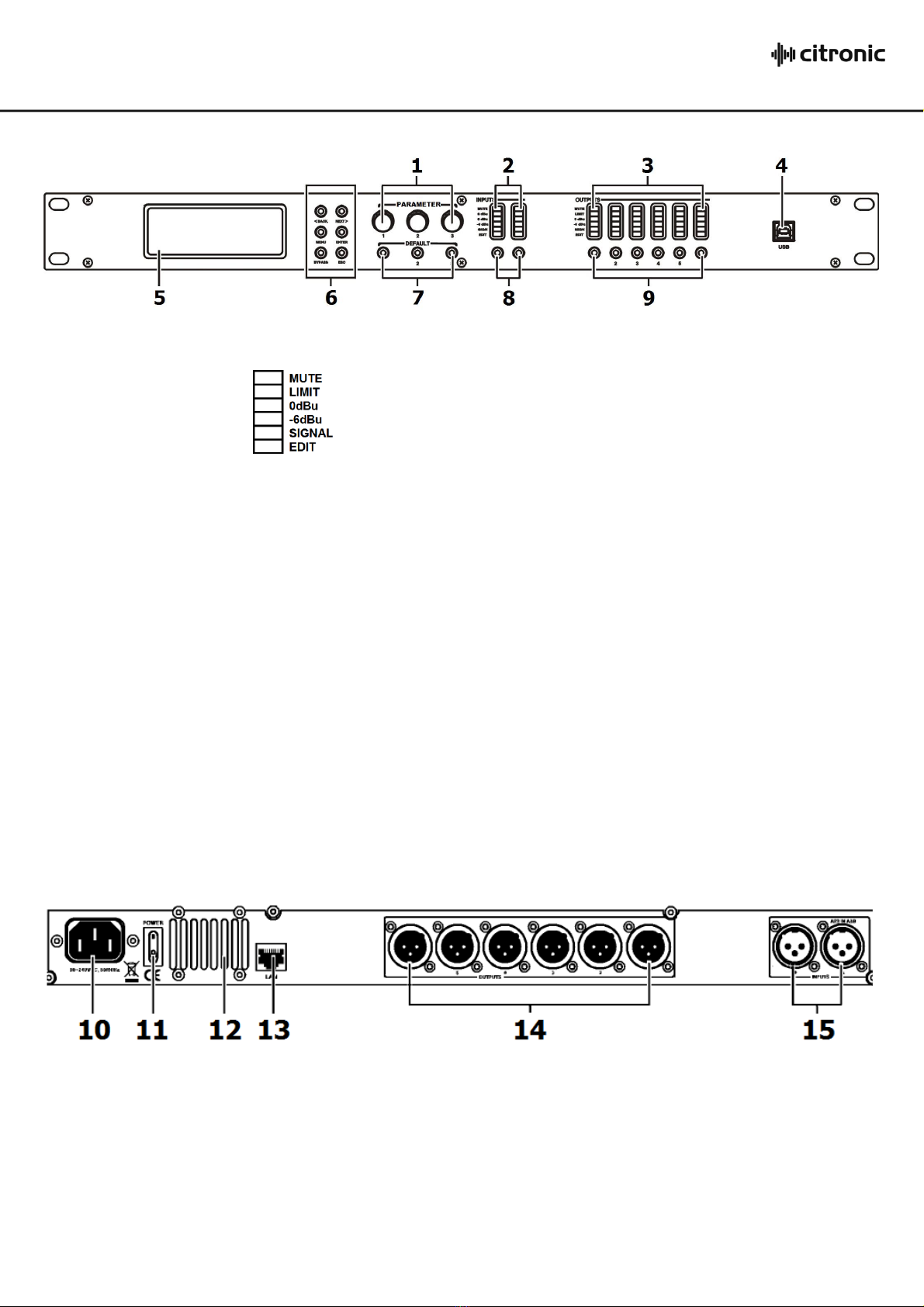

Main Menu
Pressing the MENU button enters the main menu for system settings.
The BACK and NEXT buttons or Parameter 1 to navigate through the sub-menus. Press ENTER to select an option.
1. X-over (crossover) 1) Load program, 2) Store program, 3) Erase program
2. Program copy Copy all input and output settings from a stored program to another program
Parameter 1 selects source, Parameter 2 selects target, Press ENTER to copy
3. Channel copy Copy all parameter settings from any input or output channel to another channel
Parameter 1 selects source, Parameter 2 selects target, Press ENTER to copy
4. Input Parameter 1 selects between Analogue or Digital (AES) input type
5. Security Parameter 1 = character, Parameter 2 = previous/ next, Press ENTER = lock (or unlock)
6. System 1) Backlight Keep On or Auto-off after 25s
2) System info. Press ENTER to see the system information
3) Temperature: Parameter 1 adjusts the maximum temperature before cut-out
4) Filter Display: Parameter 1 selects filter Bandwidth or Q parameter display
5) Scene change: Enable/disable buttons 1, 2 and 3 as hot keys for 3 favourite programs
6) Scene key setup: Use Parameter 1, 2 and 3 to set Favourites 1, 2 and 3
7) WIFI Factory Reset –not used (future development)
