Claypaky AROLLA PROFILE MP Bedienungsanleitung

INST UCTION MANUAL

Congratulations on choosing a Claypaky product!

We thank you for your custom.

Please note that this product, as all the others in the

rich Claypaky range, has been designed and made with

total quality to ensure excellent performance and best

meet your expectations and requirements.

INDEX

ENGLISH

Page Contents

2 1. Safety information

3 2. Unpacking and preparation

4 3. Installation and start-up

4 3.1 Installing the fixture

5 3.2 Connecting to manis supply

5 3.3 Connecting the control signal line: DMX / Art-Net

6 3.4 Switching on the fixture and basic SetUp

8 4. Maintenance

8 4.1 Opening the covers

9 4.2 Periodical cleaning

10 4.3 Effects module removal

14 4.4 Rotating gobos

15 4.5 Battery removal

16 5. Dimensions

16 6. Cause and solution of problems

CL3013

AROLLA PROFILE MP

PELIMINAY

AROLLA PROFILE MP

SAFETY INFO MATION

IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also

available in digital format at the following link:

www.claypaky.com

Ref: FIS025 - Safety Information Arolla Spot/Profile MP

INFO MAZIONI DI SICU EZZA

IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative

a questo prodotto, sempre reperibili in versione digitale al seguente link:

www.claypaky.com

Rif: FIS025 - Safety Information Arolla Spot/Profile MP

INFO MATIONEN ZU SICHE HEIT

WICHTIG: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und

aufzubewahren. Sie sind in Digitalversion immer unter folgendem ink auffindbar:

www.claypaky.com

Ref: FIS025 - Safety Information Arolla Spot/Profile MP

INFO MACIONES DE SEGU IDAD

IMPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este

producto. Además, está disponible una versión digital de la misma en el siguiente enlace:

www.claypaky.com

Ref: FIS025 - Safety Information Arolla Spot/Profile MP

CONSIGNES DE SÉCU ITÉ

IMPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à

ce produit, disponibles en version digitale au lien suivant:

www.claypaky.com

Réf. : FIS025 - Safety Information Arolla Spot/Profile MP

ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ

ВАЖНО: Claypaky рекомендует внимательно прочитать и сохранить инструкцию по технике безопасности

данного изделия, которая всегда доступна в электронном ормате по следующей ссылке:

www.claypaky.com

Наименование: FIS025 - Safety Information Arolla Spot/Profile MP

1. SAFETY INFO MATION

AROLLA PROFILE MP

PAN Mechanism Lock and elease (every 90°) - Fig. 2

TILT Mechanism Lock and elease (every 45°) - Fig. 3

Packing contents - Fig. 1

90°

UNLOCKED

LOCKED

45°

LOCKED

UNLOCKED

2 x 183102/805

2. UNPACKING AND P EPA ATION

2 3

AROLLA PROFILE MP

3. INSTALLATION AND STA T-UP

Installing the projector - Fig. 4

The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.

WA NING: with the exception o when the projector is positioned on the loor, the sa ety cable must be itted. (Cod. 105041/003 available on request).

This must be securely ixed to the support structure o the projector and then connected to the ixing point at the centre o the base.

3.1 Installing the fixture

Fuse Power INEthernetDMX IN

(5 pin)

DMX THRU

(5 pin)

Display User buttons

Control panel - Fig. 5

AROLLA PROFILE MP

740VA

Fuse

T10A

250V

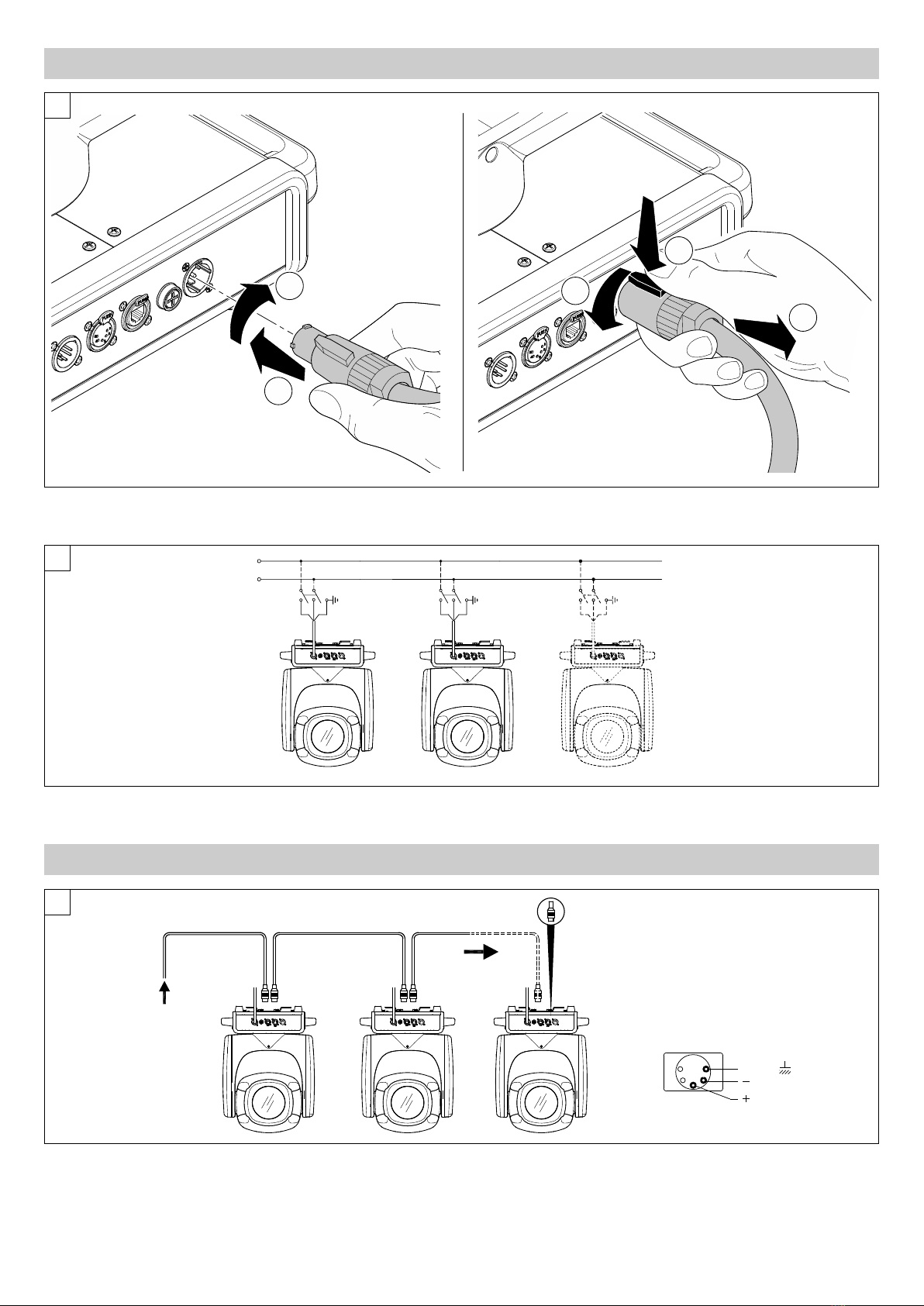

Connecting and disconnecting power cable - Fig. 6

3.2 Connecting to manis supply

Connecting to the mains supply - Fig. 7

Mains

Connecting to the control signal line (DMX) - Fig. 8

Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use

microphone cable or other cable with characteristics differing from those specified. The end connections must be made using X R type 5 pin male/female

connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.

IMPO TANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the

shield braid and to pin 1 of the connectors.

SIGNAL

SCREEN

DMX 512

5 PIN

SIGNAL

3.3 Connecting the control signal line: DMX / Art-Net

Continue ➔

AROLLA PROFILE MP

Switching on the projector - Fig. 9

Switch-on the fixture. The projector starts resetting the effects. At the same time, the following information scrolls on the display:

Model Firmware Dmx Address xxx

Arolla Version X.X.X

Profile MP Date - Hour

On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control panel

(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:

rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address.

During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.

It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the

key will be cancelled.

Dmx Address

Warning Message

3.4 Switching on the fixture and basic SetUp

eversal of the display - Fig. 10

To activate this function, press UP

and DOWN

keys simultaneously while the display is in the rest mode. This status will be memorised and

maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.

Setting the projector starting address

On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

The address can also be set with the projector switched off.

AROLLA PROFILE MP

Functions of the buttons - Using the menu

Setting addresses and options with the projector disconnected

The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.

All that is needed is to press

RIGHT

to momentarily activate the display and thus access the settings. Once the required operations have been

carried out, the display will switch off again after a wait time of 30 seconds.

USING THE MENU:

1) Press EFT

once – “Main Menu” appears on the display.

2) Use the UP

and DOWN

keys to select the menu to be used:

• Setup (Setup Menu): To set the setting options.

• Option (Option Menu): To set the operating options

• Informations (Informations Menu): To read the counters, software version and other information.

• Manual Control (Manual control Menu): To trigger the test and manual control functions.

• Test (Test Menu): To check the proper functionning of effects

• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.

3) Press

to display the first item in the selected menu.

4) Use the UP

and DOWN

keys to select the MENU items.

Confirms the displayed value, or activates the displayed function, or enters the successive

menu.

Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.

Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.

Return to the top level

Enters the successive menu.

DOWN

EFT

RIGHT

AROLLA PROFILE MP

Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.

Opening the head covers - Fig. 11.

Closing the head covers - Fig. 12.

1/4 Tur n 2

1/4 Tur n

11 12

4. MAINTENANCE

4.1 Opening the covers

Lower side

Upper side

AROLLA PROFILE MP

Periodical cleaning - Fig. 13

To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The

frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the

working environment (air humidity, presence of dust, salinity, etc.).

Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended

that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:

•General cleaning of internal parts.

•Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.

•General visual check of the internal components, cabling, mechanical parts, etc.

•Electrical, photometric and functional checks; eventual repairs.

NOTE: keep a careful cleaning

of the ''CMY/colour filters assembly''

to prevent rapid deterioration.

Light collimation system

This product contains internal

light collimation system. Avoid

intense light from any angle.

4.2 Periodical cleaning

Continue ➔

AROLLA PROFILE MP

Upper side

Extraction of the effect modules - Fig. 14.

IMPO TANT: Grasp the modules using the support structure and not the details which could get damaged.

Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15 and 16 in reverse order.

4.3 Effects module removal
