CONVERGE®Pro 2 USB Expander unit
A USB audio interface device for CONVERGE®Pro 2
Quick-Start Guide
CONVERGE PRO 2 USB EXPANDER............................................ 1
UNPACKING .................................................................................. 1
Parts Included................................................................................. 1
Parts not Included.......................................................................... 1
tools requIred................................................................................ 2
QUICK-START OVERVIEW ............................................................ 2
MOUNT THE USB EXPANDER ...................................................... 3
rack shelf MountIng....................................................................... 3
MountIng under the table .............................................................. 4
MountIng onthe Wall .................................................................... 5
MountIng above the ceIlIng ............................................................ 5
CONNECTIONS ............................................................................. 6
back Panel ...................................................................................... 7
front Panel..................................................................................... 8
CONFIGURE THE USB EXPANDER.............................................. 9
PART NUMBERS.......................................................................... 10
CONTACT INFORMATION .......................................................... 10
Table of Contents
QUICK-START GUIDE
1
CONVERGE PRO 2 USB EXPANDER
Congratulations on purchasing your USB Expander.
The CP2 USB expander is a flexible, easy-to-use USB audio interface for
CP2 units that gives you an additional audio USB port with 2 x 2 audio
channels in compact form. It is designed specifically for CP2 DSP Mixers.
IMPORTANT: The CP2 USB expander can only be used only with
CONVERGE Pro 2 systems. It is not compatible with first generation
CONVERGE Pro.
UNPACKING
Parts Included

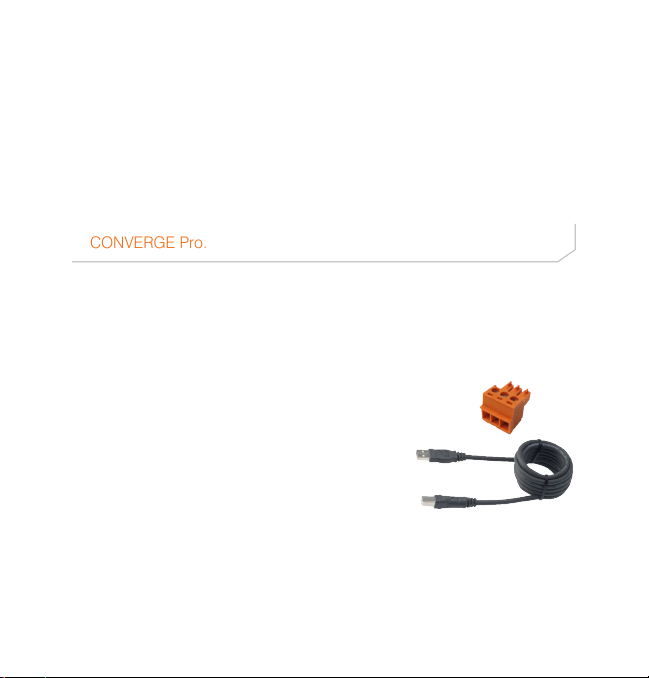

The following items are included with the CP2 USB Expander:
• CP2 USB Expander Unit
• 1 Qty 3.81mm Terminal Block Connector, 3 Position
(Orange) for RS-232 connection.
• 1 USB Cable, Type A to Type B, 6 Ft (1.8M)
for USB (Audio) connection.
Verify that all items have been received.
If there is any issue, please contact your ClearOne representative.
Parts not Included
NOTE: Installer is responsible for ensuring CP2 expander is firmly
attached to sturdy support that holds weight of expander unit and
mounting hardware.
CONVERGE PRO 2 USB EXPANDER
2
Drywall saw for cutting hole in
ceiling or wall for cable passage
for above ceiling mounting
#1 Phillips screwdriver
Level used to level the expander
Drill bits appropriate
to fastener type Electric or portable drill
4 Qty
#6 or M3.5 screws
4 Qty
Wall fasteners appropriate to the wall/ceiling material
T15 Torx screwdriver
tools requIred
The following tools are required to install the USB expander:
QUICK-START OVERVIEW
Perform these steps in the following order to use the USB Expander in
your CP2 system:
1. Mount the USB Expander. (Optional)
2. Connect the USB Expander.
3. Configure the USB Expander.
The following parts are not included with the CP2 USB Expander:
QUICK-START GUIDE
3
MOUNT THE USB EXPANDER
The USB expander can be mounted in 1) a rack shelf , 2) under the table,
3) on the wall, 4) above the ceiling. Each mounting type is explained
below. Mounting hardware is not provided.
rack shelf MountIng
ClearOne offers a standard 1U rack shelf with 20lb (9kg) weight capacity.
ClearOne 1U Rack Shelf
(Part No. 910-6106-001)
1. Determine location for rack shelf.
2. Align mounting holes on rack shelf mounting ears with holes on the
rack (at determined location).
3. Insert the four #10-32 screws included with the ClearOne 1U rack
shelf (or proper screws for your 3rd-party mount) and tighten.
NOTE: Remove pre-installed mounting ears on expander to fit up to 3
expander units side-by-side on a single ClearOne 1U rack shelf.
4. Torx drive screws secure the pre-installed mounting ears to the
main body of the expander unit. Remove them with a Torx T15
screwdriver. (optional)
CONVERGE PRO 2 USB EXPANDER
4
Pre-installed mounting ear
Pre-installed mounting ear
Pre-installed
Torx screws
Pre-installed
Torx screws
5. Secure expander unit(s) to the rack shelf. You must supply your own
hardware (four #6 or M3.5 screws) for securing the expander(s).
MountIng under the table
Mounting hardware is not provided. Select your own hardware based on
your specific installation needs.
1. Determine location for the mount.
2. Using expander as a guide (and level if needed), mark four
mounting hole locations with a pencil.
3. Determine proper depth and diameter, and drill four pilot holes for
the #6 or M3.5 screws.
Pre-installed
mounting ear
Pre-installed
mounting ear
Front Panel
Back Panel
QUICK-START GUIDE
5
4. Align mounting holes on expander mounting ears with pilot holes.
5. Insert four #6 or M3.5 screws and tighten.
MountIng onthe Wall
Mounting hardware is not provided. Select your own hardware based on
your specific installation needs.
1. Determine location for the mount.
2. Using expander as a guide (and level if needed), mark four
mounting hole locations with a pencil.
3. Drill four pilot holes for fasteners/anchors using proper size drill bits.
4. Install fasteners/anchors.
5. Align mounting holes on expander mounting ears with pilot holes.
6. Insert four #6 or M3.5 screws and tighten.
NOTE: Anchors and screws used to mount the expander are not
provided and must be selected by installer for the type of wall material
supporting the expander. Take care while drilling and installing anchors
so wall material does not tear out and weaken attachment.
MountIng above the ceIlIng
Mounting hardware is not provided. Select your own hardware based on
your specific installation needs.
NOTE: It is the installer’s responsibility to ensure that the installation
and cable routing complies with local safety codes.
1. Determine location for the mount, and where to route cables.
Mark location where you want to route cables through with a
pencil (on finished side of ceiling tile) if you need to cut a hole.
CONVERGE PRO 2 USB EXPANDER
6
CONNECTIONS
Connect the USB expander to:
• Peripheral Link (P-Link) In or Power-over-Ethernet (PoE) power
injector with a CAT5e or CAT6 cable,
• A laptop/PC/MAC, other audio devices, or VC codec with the Audio
USB port via the Type A to Type B USB cable,
• A remote control serial device (such as ClearOne’s Touch Panel
Controller, or any 3rd-party controller) with the RS232 port via the 3
Position Terminal Block Plug 3.81mm GY connector.
2. Remove affected ceiling tile and adjacent tiles required for access.
3. Install fasteners/anchors.
4. Install expander unit at determined location.
5. Use drywall saw to cut hole into finished side of ceiling tile at
marked location.
6. Route the cables through the hole.
NOTE: Carefully run connected cables so they do not block the
cooling vents or put strain on the connectors.
NOTE: Anchors and screws used to mount the expander are not
provided and must be selected by installer for the type of ceiling
material supporting the expander. Take care while drilling and installing
anchors so ceiling material does not tear out and weaken attachment.
QUICK-START GUIDE
7
back Panel
The CP2 USB Expander can be powered by a standard PoE injector, or a
P-Link connection.
Set the Power Select switch towards P-Link In or PoE In based on the
power source.
The P-Link In and Out ports enable you to connect with a CP2 unit or
other P-Link devices. P-Link connections carry power, control, and audio
through CAT5e or CAT6 cable.
When not supplying power to an expander via a P-Link connection,
power an expander via PoE by connecting a PoE Power Injector to the
PoE In port.
USB Expander Powered by PoE
P-Link
CP2
USB
Expander
CAT5e / CAT6 cable
Up to 200 Ft
PoE
CONVERGE PRO 2 USB EXPANDER
8

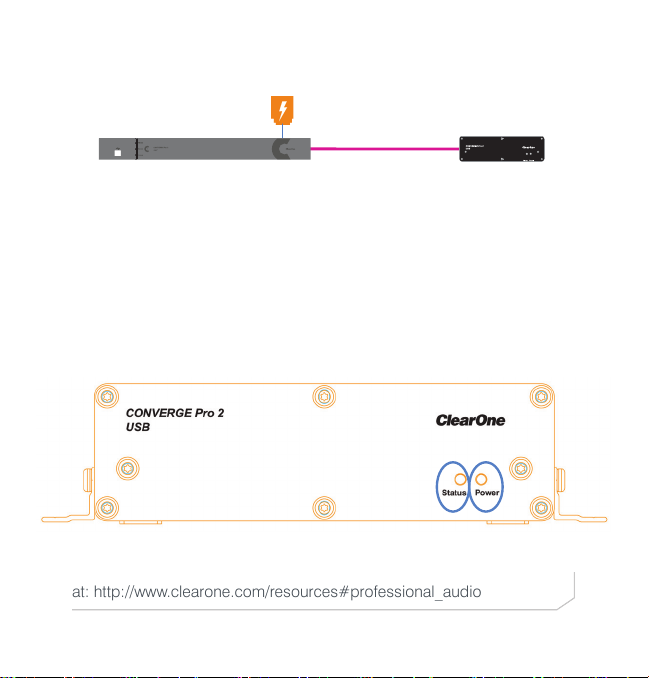

front Panel
Power LED
Off - not powered
Solid Blue - powered
Status LED
Off - No P-Link plugged in
Solid Blue - P-Link plugged in and system working normally
Flashing Blue - Locate mode initiated from CP2 Console Software
Red - Error condition
Detailed instructions on using the Locate function in the CP2 CONSOLE
software can be found in the CONVERGE Pro 2 CONSOLE User Manual
at: http://www.clearone.com/resources#professional_audio
P-Link
CP2 USB
Expander
PoE
CAT5e / CAT6 cable
Up to 200 Ft
USB Expander Powered by P-Link
