Clear Spot 4G Bedienungsanleitung

CLEAR 4G MOBILE USB

USER GUIDE

GET TO KNOW YOUR CLEAR 4G MOBILE USB 3

WHAT’S IN THE BOX? 3

USE WITH CARE 3

SET UP THE MOBILE USB 3

INSERT THE MOBILE USB 3

INSTALL THE CLEAR CONNECTION MANAGER 4

INSTALLATION FOR MAC® OS X 4

READ AND ACCEPT THE CLEAR TERMS OF SERVICE 5

CLEAR CONNECTION MANAGER DIDN’T INSTALL AUTOMATICALLY? 7

INSTALLATION FOR WINDOWS® XP 7

INSTALLATION FOR WINDOWS® VISTA® / WINDOWS® 7 7

MANAGE YOUR MOBILE USB 8

CLEAR CONNECTION MANAGER OVERVIEW 8

CLEAR CONNECTION MANAGER – CONNECTION TYPE 8

CLEAR CONNECTION MANAGER – SETTINGS 9

CLEAR CONNECTION MANAGER – SETTINGS / MANAGE WI-FI CONNECTIONS 10

CLEAR CONNECTION MANAGER – HELP 11

CLEAR CONNECTION MANAGER – CLEAR.COM 11

CLEAR CONNECTION MANAGER – MY ACCOUNT 12

CLEAR CONNECTION MANAGER SYSTEM TRAY TASK BAR ICON 12

QUICK TIPS 13

TO MAXIMIZE SIGNAL STRENGTH 13

CLEAR CONNECTION MANAGER 13

COMPUTER DOESN’T RECOGNIZE YOUR MOBILE USB? 13

IMPORTANT MESSAGE FROM CLEAR 13

WINDOWS® USB SELECTIVE SUSPEND FEATURE ISSUE 13

IMPORTANT INFORMATION 14

TECHNICAL SPECIFICATIONS 14

STILL NEED HELP? 14

FAQS AND LIVE CHAT SUPPORT 14

TELEPHONE SUPPORT 14

QUESTIONS ABOUT YOUR BILL? 14

IMPORTANT INFORMATION DOCUMENT 14

WARRANTY INFORMATION 14

LEGAL DISCLOSURES 14

Get to Know Your CLEAR 4G Mobile USB

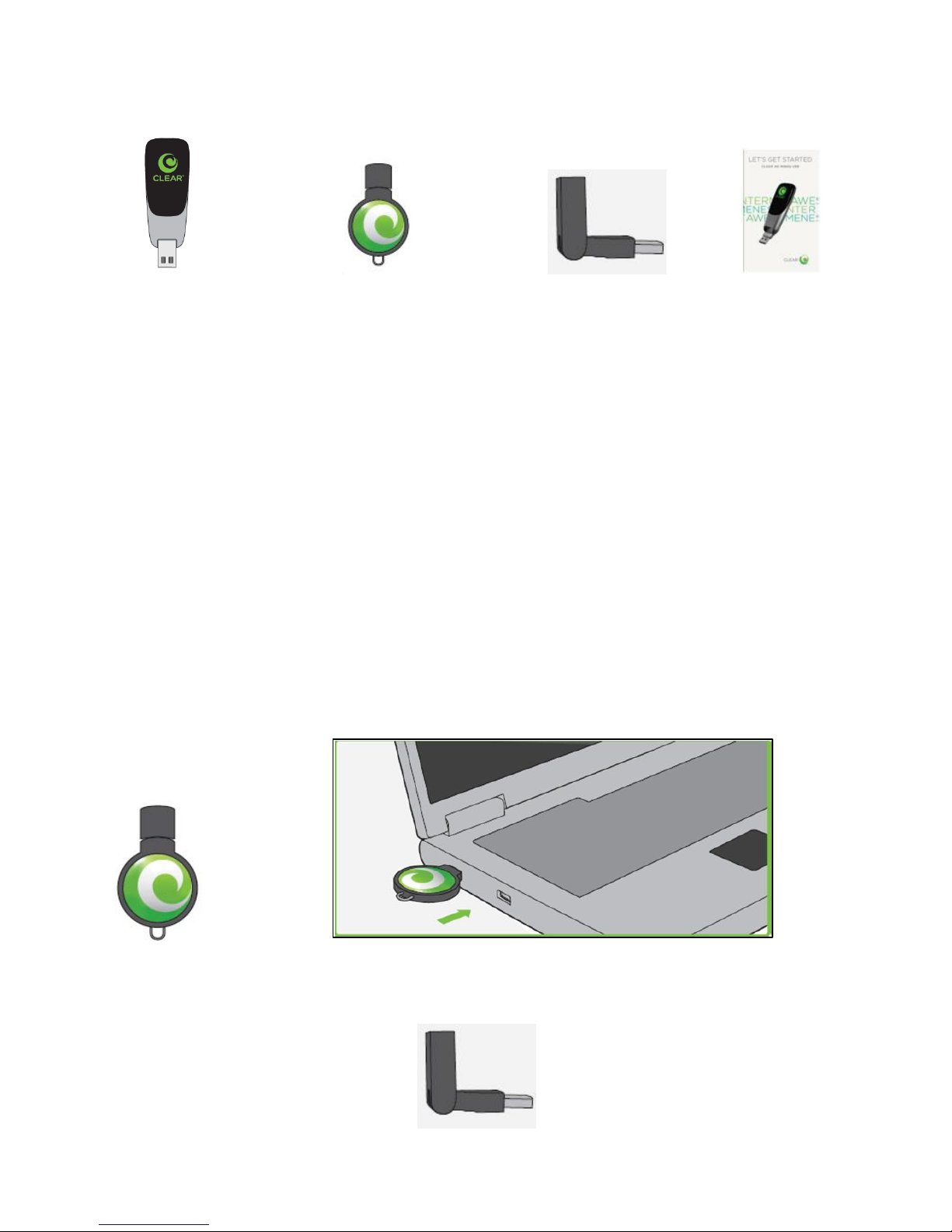

What’s in the Box?

CLEAR 4G Mobile USB Installation Right Angle Quick Start Guide

Use with Care

 Do not throw, drop, or dismantle the Mobile USB.

 Keep the Mobile USB out of direct sunlight.

 Keep pets and children from playing with the Mobile USB.

 Do not immerse the Mobile USB in water or other liquid.

 Make sure your hands are dry before handling the Mobile USB.

 Don’t operate the Mobile USB while driving.

Set up the Mobile USB

Insert the Mobile USB

Insert the Installation USB Flash Drive into an available USB port on your computer.

When inserting the Installation USB Flash Drive into a vertical USB port, the Right Angle Connector is

needed.

USB Flash Drive Connector

Installation USB Flash

Drive

Right Angle Connector

Set up the Mobile USB (continued)

Install the CLEAR Connection Manager

For most users (having computers with Windows® operating systems), after you insert the Installation

USB Flash Drive, the CLEAR Connection Manager begins to install automatically.

Windows may ask you what you want to do. Select Auto Run.

Windows® XP Windows® Vista® Windows® 7

The installation wizard should appear.

Please follow the on-screen directions to read / accept the CLEAR Terms of Service and complete

the installation process.

If the CLEAR Connection Manager does not automatically begin to install, click here to learn more

and continue. If you printed this document, refer to page 7 to read the instructions on how to

manually install the CLEAR Connection Manager.

Installation for Mac® OS X

If you’re using a device with a Mac® operating system, you need to manually install the CLEAR

Connection Manager. After you insert the Installation USB Flash Drive:

Follow the on-screen instructions to read / accept the CLEAR Terms of Service and complete the

installation process.

Double click the CLEAR

USB icon on your desktop.

Double click the

Mac OS X folder.

Double click “Install

CLEAR.mpkg” to launch the Mac

installer.

Set up the Mobile USB (continued)

Read and Accept the CLEAR Terms of Service

Connect to the Internet

After you’ve read and accepted the CLEAR Terms of Service and completed the installation process,

insert the Mobile USB into an available USB port on your computer.

Before you get online, make sure the CLEAR Connection Manager is running.

 If you’re using a laptop with Microsoft Windows, your CLEAR Connection Manager automatically

starts running.

 If you’re using a device with a Mac® operating system, you need to open the CLEAR Connection

Manager.

Once the CLEAR Connection Manager is opened, it will automatically connect to the CLEAR 4G

signal.

 The light on the Mobile USB is red when the Mobile USB has power, and the light on the Mobile

USB is green or blue when the Mobile USB is receiving the CLEAR 4G signal.

During the CLEAR Connection Manager

installation process, a window will open

displaying the CLEAR Terms of Service. You

will be prompted to read them and instructed on

how to accept them.

When inserting the Mobile

USB into a vertical USB

port, the Right Angle

Connector is needed.

The first time you connect to the internet, using your Mobile USB, you need to set up your CLEAR

online account. Open a new browser session and you’ll be directed to a webpage in order to review

your rate plan information and to set up your CLEAR online account.

Congrats! You’re ready for INTERNET AWESOMENESS!

CLEAR Connection Manager Didn’t Install Automatically?

Installation for WINDOWS® XP

Installation for WINDOWS® VISTA® / WINDOWS® 7

Go to “My Computer”.



Double click the CLEAR logo.



Double click the “Win” folder.



Double click “Seteup.exe”.



Follow the on-screen instructions

to complete the installation.

Select the “Windows Start” menu.



Select “Computer” or select the “Computer”

icon on your desktop.



Double click the “CLEAR logo”.



Double click the “Win” folder.



Double click “Setup.exe”.



Follow the on-screen instructions to complete

the installation.

Manage Your Mobile USB

CLEAR Connection Manager Overview

CLEAR Connection Manager – Connection Type

It’s easy to manage your Mobile USB with the CLEAR

Connection Manager.



Manage your connections.



View signal strength (the more dots, the stronger the

signal).



View connection time.



Access your CLEAR online account.



Access clear.com.



Manage your wi-fi settings.

The green text on the tab indicates the

connection type (4G WiMAX or wi-fi).



Double click “disconnect” to disconnect from

4G WiMAX to wi-fi, for example.

Manage Your Mobile USB (continued)

CLEAR Connection Manager – Settings

On the Settings Tab, you can:

 Set your CLEAR Connection Manager Preferences.

 Check for software updates.

Select “Preferences” to perform the following functions:

 Run App on PC Startup: Opens the CLEAR Connection Manager every time you turn on your

computer.

 Always on Top: The CLEAR Connection Manager always appears on top of other windows.

 Dock to System Tray: Use if you want the CLEAR Connection Manager to remain attached to

the System Tray.

 Display Connection Timer: Shows the length of time for each connection on the CLEAR

Connection Manager.

 Connect Automatically: The factory default setting in “ON.” Keep this setting “ON” if you want

your Mobile USB to connect automatically whenever there is a signal. “Connect Automatically”

occurs only if the computer is not connected to wi-fi.

 Manage Wi-Fi Connections: Manage your wi-fi access through your CLEAR Connection

Manager.

 Allow Simultaneous Connections: The factory default setting is “ON.” Keep the setting “ON” if

you want your computer to be allowed to connect to both 4G and wi-fi at the same time.

 Profiles: Use if you want to change your network profile. This is rarely used, except for

administrative purposes.
