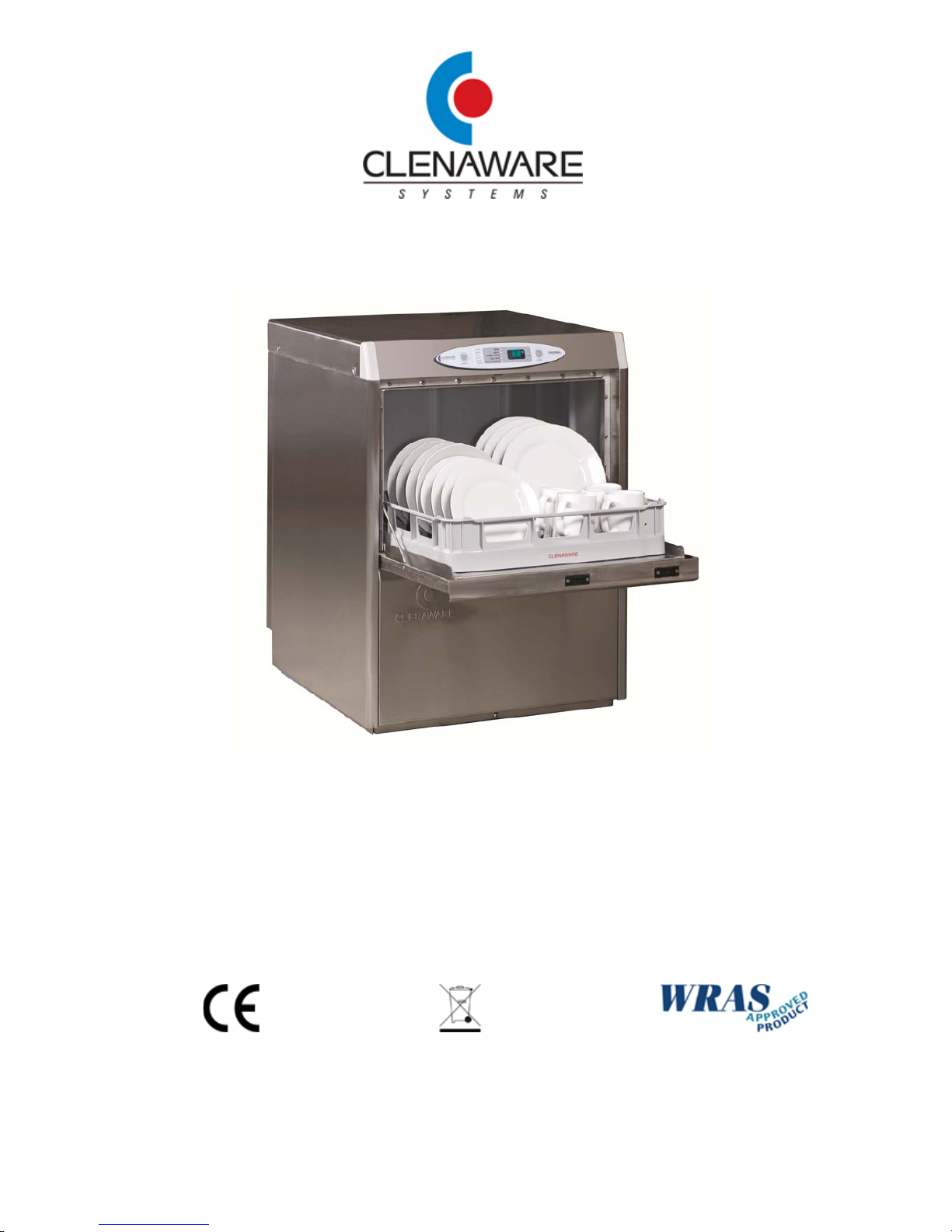

Owner’s Manual

Thermal TD50 & Advanced SD50 Mark 5

Dish Washing Machine

WEE/DE2076RU

Machines are manufactured to ISO 9001 : 2008

www.clenaware.co.uk

Index

Thermal TD50 Dish Washer Operating Instructions.....................................................3

Preparation (TD50)...............................................................................................3

Filling (TD50).......................................................................................................4

Washing (TD50)...................................................................................................5

Close Down Cycle (TD50)......................................................................................7

Advanced SD50 Dish Washer Operating Instructions...................................................8

Preparation (SD) ..................................................................................................8

Filling (SD)...........................................................................................................9

Standby Mode (SD) ............................................................................................10

Washing (SD).....................................................................................................11

Closedown Cycle (SD).........................................................................................12

Chemical Injection and Warnings (TD & SD).........................................................13

Spraybar Rotation Warning (TD & SD)..................................................................13

Spraybar Rotation Warning (TD & SD)..................................................................14

Other Features (TD & SD)...................................................................................15

Daily Maintenance..................................................................................................16

Vital Parts To Be Regularly Cleaned / Maintained...................................................18

Caring For Your Dish Washer..................................................................................19

Simple Fault Finding...............................................................................................21

Machine Errors ......................................................................................................26

Dish Washer Installation.........................................................................................28

WEEE ................................................................................................................38

Service And Warranty.............................................................................................39

Warranty ...........................................................................................................39

Service ..............................................................................................................41

Disclaimer..........................................................................................................42

www.clenaware.co.uk

Thermal TD50 Dish Washer Operating

Instructions

Preparation (TD50)

Ensure that the machine interior is clean and soil-free, and that the top and bottom

spray bars rotate freely, and jets are clean and correctly located.

Ensure that all four filters are in position in the wash tank trough:

Primary Flat Disc Filters (2) are fitted to the wash and waste outlets. Secondary Drum

Filter fitted over the wash outlet (left-hand outlet). Main Tray Filter that encloses the

wash tank trough.

Check that the detergent and rinse aid containers have sufficient liquid level and

that the suction tubes are in their appropriate products. Blue Tube for rinse aid,

and Clear Tube for detergent.

Switch on the water and electrical supplies to the machine. Close the door.

The Select Switch will be illuminated red.

Switch The Machine On

Press the I SELECT Switch: The Select Switch will be illuminated blue.

CLOSEDOWN

ROTATION

SELECT

SWITCH

FILL/READY

DETERGENT

START

SWITCH

CYCLE PROGRESS LED’S

SERVICE

RINSEAID

DOOR LOCK

DISPLAY

www.clenaware.co.uk

Filling (TD50)

When the machine is switched on, a fill heat sequence will be performed as

follows:

The rinse tank will fill with water.

The drain pump will operate to vacate any water from the wash tank.

The Fill/Ready Lamp will be illuminated orange.

The Start Switch will be illuminated green (rotating).

Once the rinse tank is full, the water will be heated to 82°C.

The Fill/Ready Lamp will flash orange during heating.

Once up to temperature, the rinse water will be pumped into the wash tank.

After the Fill/Heat sequence has been completed, the audible alarm will bleep

five times.

The Fill/Ready Lamp and Start switch will be illuminated green.

“TD” will be displayed.

The rinse tank will re-fill and heat to standby temperature.

The machine will now be in STANDBY MODE, ready to operate wash cycles.

Note:

If the machine has not been switched off using the CLOSEDOWN Cycle (or

suffered a power failure) a short refreshment cycle will be performed at start-up

to ensure that all water is vacated from the machine. The Fill/Ready Lamp being

illuminated red indicates this.

To avoid this, and to ensure hygienic conditions, ALWAYS use the

CLOSEDOWN cycle at the end of a session.

www.clenaware.co.uk

Washing (TD50)

The TD50 incorporates two possible temperature/time regimes for thermal

disinfection:

82°C for 2 minutes (default)

72°C for 3 minutes

The ‘72°C for 3 minute’ thermal disinfection can be selected by an engineer upon

request.

The TD cycle consists of the following functions:

Re-circulating wash period with detergent.

Refill period, replacing the wash tank water.

Thermal Rinse period, raising the rinse water to TD temperature and holding

for the TD time.

Final Cooling Rinse.

Starting A Wash Cycle

Fill the rack with crockery etc to be washed having first removed any liquid or

solid waste elsewhere. Pre-rinsing is recommended. Open the door and slide the

rack into position. Close the door.

Press the START Switch to begin the cycle:

The Start Switch will be illuminated green (rotating).

The ‘WASH’ progress indicator lamp will be lit.

The wash pump will be energised for the initial two minutes of the cycle, re-

circulating the wash water via the rotating spraybars.

The door must not be opened during the wash cycle.

During the wash period the rinse water will be heated to the correct operating

temperature.

If the rinse water is not up to temperature at the end of the wash period, the

machine will continue washing until the correct temperature is reached.

www.clenaware.co.uk

At the end of the wash period, the wash pump will de-energise.

The ‘REFILL’ progress indicator lamp will be lit.

The Door will be locked, indicated by the Door Lock lamp illuminated orange.

The wash water will be emptied and replaced with pre-heated fresh water.

Following this, the ‘THERMAL RINSE’ progress indicator lamp will be lit.

During Thermal Rinse, the TD rinse water will be re-circulated via the

spraybars.

The TD rinse water will be heated to 82°C (or 72°C). The temperature is

displayed.

Once up to TD temperature, this temperature will be held for the 2 minute (or

3 minute) TD period. The temperature will flash in the display during the TD

period.

Following this, the ‘FINAL RINSE’ progress indicator lamp will be lit.

The Door will be unlocked, indicated by the Door Lock lamp illuminated green.

The cycle will conclude with a short drain and cooling rinse sequence.

At the end of the cycle, the audible alarm will bleep five times.

‘TD’ will flash in the display.

Open the door and remove the rack. Close the door.

The Fill/Ready Lamp and Start switch will be illuminated green.

The rinse tank will re-fill and heat to standby temperature.

The machine will be in Standby, ready for another wash cycle to be started.

www.clenaware.co.uk

Close Down Cycle (TD50)

The machine can be closed down at any time by pressing the SELECT Switch (the

Closedown Lamp will flash green), followed by the START Switch. This will force a

Closedown Cycle.

The Start Switch will be illuminated green (rotating).

The drain pump will be energised during the entire cycle, removing water

from the wash tank.

The door must not be opened during the closedown cycle.

The rinse pump will be energised for the initial 20 seconds of the cycle to

remove the water from the rinse tank.

At the end of the 40 second cycle, the machine will switch off, with the Select

Switch illuminated red.

Isolate the water and electrical supplies to the machine.

www.clenaware.co.uk

Advanced SD50 Dish Washer Operating

Instructions

Preparation (SD)

Ensure that the machine interior is clean and soil-free, and that the top and

bottom spray bar rotates freely, jets are clean and correctly located.

Ensure that all four filters are in position in the wash tank trough:

Primary Flat Disc Filters (2) are fitted to the wash and waste outlets. Secondary

Drum Filter fitted over the wash outlet (left-hand outlet). Main Tray Filter that

encloses the wash tank trough.

Check that the detergent and rinse aid containers have sufficient liquid level and

that the suction tubes are in their appropriate products. Blue Tube for rinse aid,

and Clear Tube for detergent.

Switch on the water and electrical supplies to the machine. Close the door.

The Select Switch will be illuminated red.

Switch The Machine On

Press the I SELECT Switch: The Select Switch will be illuminated blue.

ROTATION

RINSE-AID

SELECT

SWITCH

FILL/READY

DETERGENT

START

SWITCH

CYCLE TYPES

SERVICE

www.clenaware.co.uk

Filling (SD)

When the machine is switched on, a fill heat sequence will be performed as

follows:

The rinse tank will fill with water.

The drain pump will operate to vacate any water from the wash tank.

The Fill/Ready Lamp will be illuminated orange.

The Start Switch will be illuminated green (rotating).

Once the rinse tank is full, the water will be heated to 82°C.

The Fill/Ready Lamp will flash orange during heating.

Once up to temperature, the rinse water will be pumped into the wash tank.

After the Fill/Heat sequence has been completed, the audible alarm will bleep

five times.

The Fill/Ready Lamp and Start switch will be illuminated green.

The Glass Cycle Lamp will be illuminated blue.

The rinse tank will re-fill and heat to standby temperature.

The machine will now be in STANDBY MODE, ready to operate wash cycles.

Note:

If the machine has not been switched off using the CLOSEDOWN Cycle (or

suffered a power failure) a short refreshment cycle will be performed at start-up

to ensure that all water is vacated from the machine. The Fill/Ready Lamp being

illuminated red indicates this.

To avoid this, and to ensure hygienic conditions, ALWAYS use the

CLOSEDOWN cycle at the end of a session.

www.clenaware.co.uk

Standby Mode (SD)

Pressing the ‘SELECT Switch’ will step through the cycle options as follows:

Light Soil

NormalSoil

HeavySoil

CloseDown

The appropriate indicator will be illuminated blue.

LIGHT SOIL provides a TWO*-minute wash cycle for washing lightly soiled ware.

NORMAL SOIL provides a THREE*-minute wash cycle for washing normally soiled

ware. This is the default cycle type when the machine is switched on.

HEAVY SOIL provides a FOUR*-minute wash cycle for washing heavily soiled ware.

CLOSEDOWN CYCLE is used at the end of a washing session to empty all tanks and

flush the system clean.

Note: that whichever cycle type (light, normal, or heavy) is operated, the machine will

revert back to the same chosen cycle.

* Note: that the cycle times may be extended depending on incoming water

temperature and heavy usage.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere clenaware Spülmaschine Handbücher

clenaware

clenaware Sovereign 45 MK5 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung

clenaware Advanced SD50 Mark 5 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken
