MODULAR BASES

MODELS:c18-DM-K6

c24-DM-K6

c36-DM-K66

Cleveland Standard Features

nFactory assembled Kettle/Modular Base combination with

one or two, 6 gallon kettle(s) for direct connection to steam

from another source

nSteam Control Kit: includes needle type Steam Control

Valve(s), Steam Trap, Condensate Strainer, Check Valve,

nipples and fittings, factory assembled and mounted on

kettle(s)

nType 430 Stainless Steel exterior enclosure, kettle(s) and

table top (with drain Trough which has 1.50" diameter male

drain); #4 exterior finish

n6gallon kettle(s) are 2/3 Steam Jacketed and include

Lift-Off Cover(s)

nHot and Cold Water Faucet with Swing Spout

nKettle(s) have 50 psi Steam Jacket Rating, 50 psi chrome

plated Safety Valve(s) and Manual Tilting, balanced design

nTilt Handles can be mounted on either side of kettle(s)

nAdjustable Flanged Feet (FF-A)

Options & Accessories

pType 316 Stainless Steel Kettle interior(s) for high acid food

products (316)

pFood Strainers (FS)

pPressure Reducing Valvefor incoming supply over 50 psi

(PRV)

pStainless Steel Base Frame (FSS)

Shall be CLEVELAND, Direct Steam, Modular Cabinet Base with one or two,

6gallon kettle(s), Model _____ DM-K _____ Type 430 Stainless Steel exterior

enclosure, Table Top and 4 Level adjustable Feet. 2/3 Steam Jacketed,

type 304 Stainless Steel kettle(s) with 50 psi Steam Jacket Rating. Needle

type Steam Control Valve on each kettle. To operate connect directly to a

steam source supplying from 5 to 10 psi steam. Steam Condensate Trap and

Strainer, factory assembled and installed. Includes Hot and Cold Water

Faucet with Spring Spout and Lift-Off Kettle Cover(s).

Short Form Specifications

SECT. VII PAGE 35

0707

MODULAR BASE WITH KETTLE(S)

DIRECT STEAM

ONE or TWO, 6 GALLON KETTLE(S)

CABINET BASE: 18" (450MM), 24" (600MM) or 36" (900MM) WIDE

11/2” IPS common drain.

Do not connect other units

to this drain.

Do not use PVC pipe for

drain.

NOTES:

Cleveland Range reserves right of design improvement or modification, as warranted.

Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.

Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are UL, ULC, UL/NSF#4 and CSA.

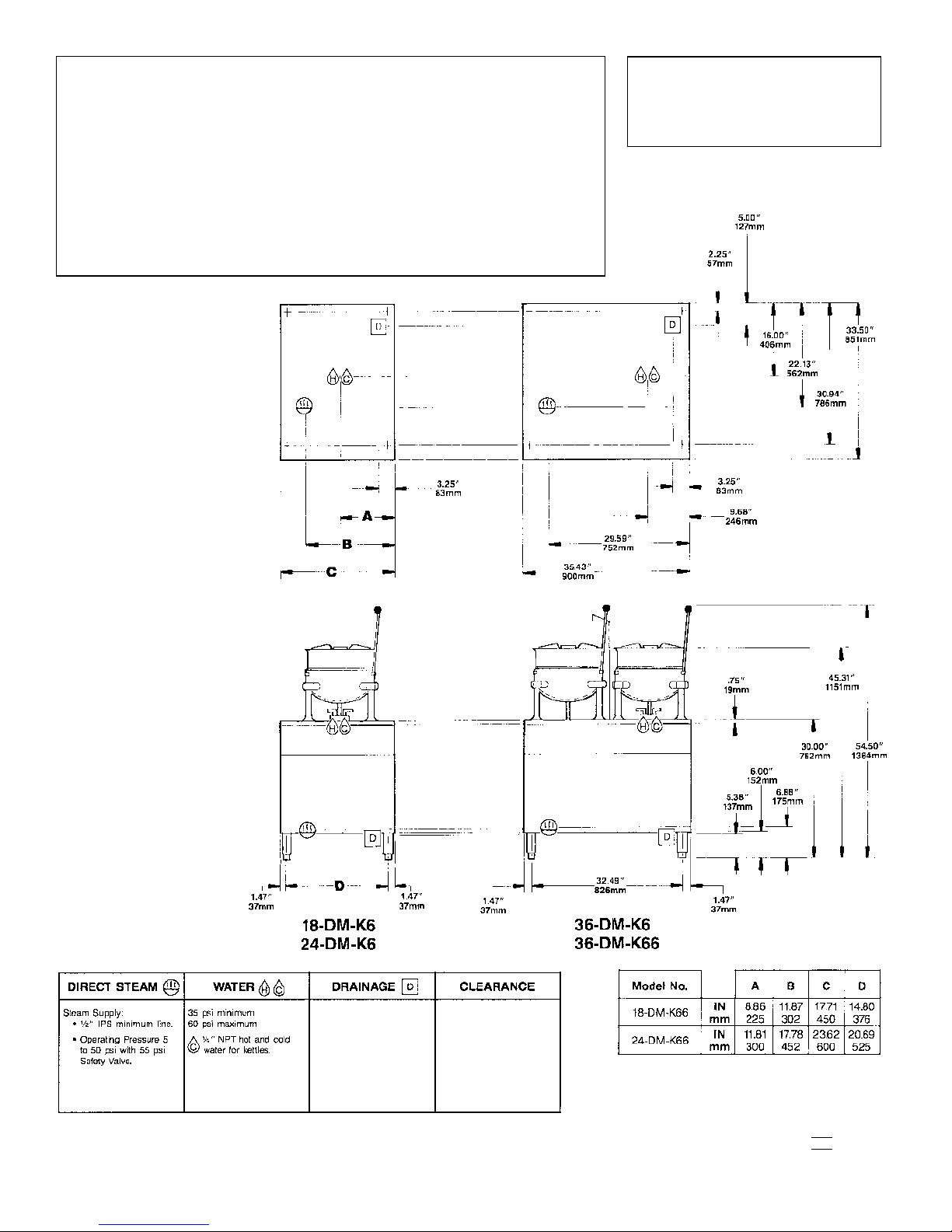

(NOT TO SCALE)

SECT

.VII P

AGE 36

0707

Litho in U.S.A.

CAPACITIES

(in 4 oz. servings)

(Other sizes may be calculated.)

6gallon / 23 liters ..... 160 per kettle

WATER QUALITY REQUIREMENT

The recommended minimum water quality standards whether untreated or pre-treated,

based upon 10 hours of use per day, and a Daily Blowdown, are as follows:

TOTAL DISSOLVED SOLIDS less than 60 parts per million

TOTAL ALKALINITY less than 20 parts per million

SILICA less than 13 parts per million

pH FACTOR greater than 7.5

CHLORINE less than 30 parts per million

Consult a local water treatment specialist for an on site water analysis for recommendations

concerning steam generator feed water treatment (if required), in order to remove or

reduce harmful concentrations of minerals. The use of highly mineralized water will mean

that more frequent servicing of the steam generator will be necessary. The fact that a water

supply is potable is not proof that it will be suitable for the generator.

Right - 3”, Left - 3”, Rear - 3”

(12” on control side if

adjoining wall or equipment is

over 30” high for service

access)

Contact factory for

variances to clearances.
