CMA Dishmachines EAH Bedienungsanleitung

MODEL EAH/EC

MODEL EAH / EC

Parts Manual

Revision 1.02

800-854-6417

FAX 714-895-2141

CMA DISHMACHINES

12700 KNOTT AVENUE

GARDEN GROVE, CALIFORNIA 92841

Title Rev 1.02

Parts Manual

Model EAH / EC Dishwasher 02/12/08

Page 2

TABLE OF CONTENTS

PARTS MANUAL ....................................................................................................................................3

Initial Parts Kit (Part # 01100.85) .........................................................................................................................3

Exploded View Drawings......................................................................................................................................4

Cabinet Assembly..............................................................................................................................................4

Control Box.......................................................................................................................................................5

Plumbing System...............................................................................................................................................6

Pump Assembly.................................................................................................................................................7

Spray System Assembly....................................................................................................................................8

Sani Alarm System Assembly...........................................................................................................................9

Drain System Assembly ..................................................................................................................................10

Door Actuator Assembly (Straight).................................................................................................................11

Door Actuator Assembly (Corner)..................................................................................................................12

Peristaltic Pump Assembly..............................................................................................................................13

Title Rev 1.02

Parts Manual

Model EAH / EC Dishwasher 02/12/08

Page 3

PARTS MANUAL

Initial Parts Kit (Part # 01100.85)

PART NO. D E S C R I P T I O N QTY

00100.00 Drain Ball Solenoid 120V 1

00115.06 Drain Sump Screen (A/C) 1

00120.00 Thermometer (Bi Metal) 1

00121.00 Drain Ball 1

00200.10 Pump Assy 110/220V 60Hz (Open) 1

00206.00 Pump Seal Kit 1

00304.06 Spray Arm A & C 1

00308.50 Spray Arm End Plug SS 1

00341.20 Spray Arm Bearing (Welded) 1

00404.82 Motor Contactor 115V/60HZ 1

00411.00 Micro Switch 1

00415.00 Peristaltic Pump Assy 120V/60hz 1

00418.00 Peristaltic Pump Cover 1

00425.51 Chemical Tubing Blue 50

00425.53 Chemical Tubing Red 50

00425.54 Chemical Tubing White 50

00433.10 Master Switch (20 Amp) 1

00435.00 Squeeze Tube 8" Silicone 1

00500.00 Timer Motor 90 Sec 110V/60Hz 1

00562.00 Roller Door Switch 1

00602.00 Door Spring 1

00631.00 Ice Cube Relay 120V 1

00707.00 1/2 Water Solenoid Repair Kit JE 1

00738.10 Solenoid Coil JE 120V (3/4 &1/2) 1

00955.00 5/16-18 X 5/8 Thumbscrew 1

01550.00 Solenoid Stop 1

03470.01 Toggle Switch(Moment) .25 Flat Term 1

03623.00 1/2 Vac Breaker Repair Kit Watts 1

Title Rev 1.02

Parts Manual

Model EAH / EC Dishwasher 02/12/08

Page 4

Exploded View Drawings

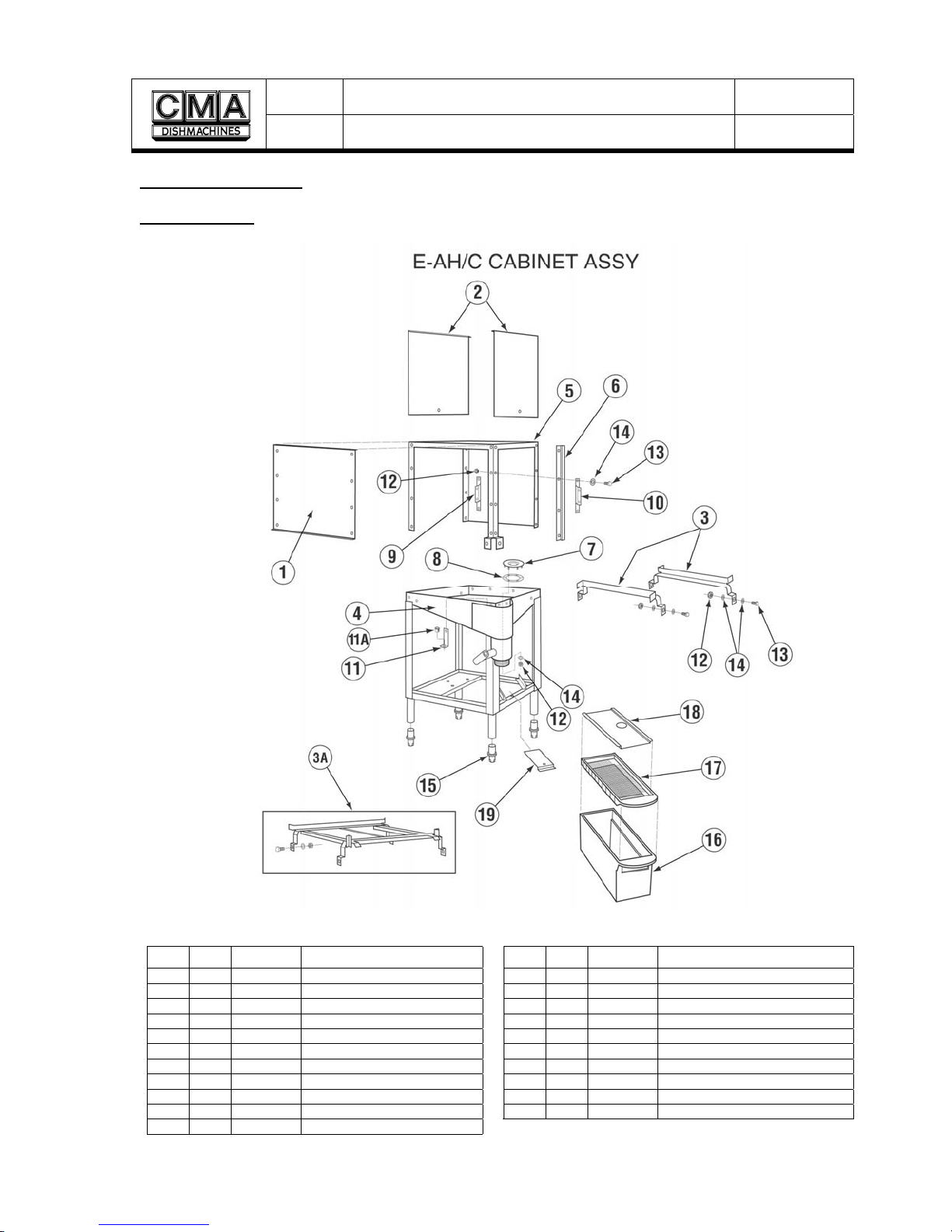

Cabinet Assembly

Item Qty PartNo Description Item Qty PartNo Description

01 1 01540.40 Wrapper Panel EAH/EC 11 1 01558.10 Chem Tube Support Bracket eah

02 2 01506.31 Door EAH/EC (No Dimple) 11a 1 00427.00 Snap Bushing 375-4

03 2 01505.32 Tray Track Inline AH

12 31 00912.00 1/4-20 Nylon Lock Nut

03a 1 01505.04 Tray Track (C) 13 4 00906.00 1/4-20 X 1/2 Hexhead Bolt

04 1 01502.00 Stand/Pan w/sump EAH/EC 14 9 00924.00 1/4 SS Washer

05 1 01500.40 Wrapper EAH/EC 15 4 01310.20 Bullet Foot Plastic

06 4 01554.00 Door Guides 16 1 01577.10 Molded Scrap Trap Body - New

07 1 00124.60 Drain Ball Seat EAH/EC 17 1 01577.20 Molded Scrap Trap Drawer -New

08 1 00125.10 Drain Sump Gasket For E Dm 18 1 01577.30 Molded Scrap Trap Lid - SS

09 1 00101.10 Solenoid Bracket C RH 19 1 01577.50 Molded Scrap Trap-Mount Bracket

10 1 00101.20 Solenoid Bracket C LH

Title Rev 1.02

Parts Manual

Model EAH / EC Dishwasher 02/12/08

Page 5

Control Box

Item Qty PartNo Description Item Qty PartNo Description

1 1 01503.09 Control Box Body EAH/EC 15 2 00907.00 6-32 X 1/2 SS Panhead Screw

2 1 01504.09 Control Box Lid EAH/EC 16 4 00906.00 1/4-20 X 1/2 Hexhead Bolt

3 1 00449.00 Lock And Key

17 4 00924.00 1/4 SS Washer

4 1 00407.80 Timer 90 Sec 8 Cam 120/60Hz 18 4 00912.00 1/4-20 Nylon Lock Nut

5 1 00475.00 Toggle Sw dpdt 5 amp/Delimer 19 12 00911.00 8-32 X 1/2 Panhead Screw

6 1 00631.00 Ice Cube Relay 120V 20 3 00418.00 Peristaltic Pump Cover

7 1 00404.82 Motor Contactor 115V/60HZ 21 3 00419.00 Peristaltic Pump Rotor Assy

8 1 00454.10 3 Pole Socket Terminal Block 22 6 00919.00 10-32 X 1 1/2 Panhead Bolt

9 2 03470.00 Toggle Sw Momentary ScTerm 23 3 00417.00 Peristaltic Pump Block

10 1 00471.10 Toggle switch DPST 20AMP 24 3 00416.00 Peristaltic Pump Motor 120/60

11 5 00470.10 Toggle Switch Rubber Boot 25 3 00918.00 10-32 X 1 1/2 Filister Bolt

12 4 00911.50 8-32 X 3/8 Pan Head Screw 26 4 00917.00 8-32 PM Nut

13 1 00406.00 Control Box Light .5" Dia Red 27 1 03470.01 Toggle Sw Moment 25 Flat Term

14 1 03408.50 Counter (Panel Mount) 120/60 28 1 00414.86 Wiring Harness - EAH / EC

Title Rev 1.02

Parts Manual

Model EAH / EC Dishwasher 02/12/08

Page 6

Plumbing System

Item Qty PartNo Description Item Qty PartNo Description

01 1 03603.10 ½ Water Sol Valve 120v/60hz 09 8 00924.00 1/4 SS Washer

02 1 00786.00 Water Sol Plunger G JE ¾ & ½ 10 4 00912.00 1/4-20 Nylon Lock Nut

03 1 03603.20 ½ Water Solenoid Bonnet 11 1 04306.00 Square Manifold Gasket

04 1 00738.10 Solenoid Coil JE 120V (¾ & ½) 12 1 00710.00 Air Gap

05 1 00706.10 ¾ Solenoid JE Spring Only 13 1 03614.00 Nipple, Brass 1/2” Close

06 1 00707.00 ½ Water Solenoid Repair Kit JE 14 1 03604.00 SS Water Solenoid Valve 1/2"

07 1 00760.00 5/8 Comp X 1/2 MIP Adapter 15 1 41062.00 1/2" Strainer Ball Valves

08 4 00914.10 1/4-20 X 5/8 Hexhead Bolt

Title Rev 1.02

Parts Manual

Model EAH / EC Dishwasher 02/12/08

Page 7

Pump Assembly

Item Qty PartNo Description Item Qty PartNo Description

01 1 00206.00 Pump Seal Kit 09 1 03108.11 Transfer Hose 19" EAH/C

02 1 00201.00 Pump Motor 1Hp 115/208-230V 10 2 03101.00 Hose Clamp # 16 1"

03 1 03222.05 Impeller (Universal) Open 11 2 00238.00 3/8 Male Plug

04 1 03224.00 Pump Base 12 1 00906.00 1/4-20 X 1/2 Hexhead Bolt

05 1 03226.00 Pump O Ring Gasket 13 1 00912.00 1/4-20 Nylon Lock Nut

06 1 04206.00 Pump Cover 14 4 00921.00 3/8-16 X 3/4 SS Hexhead Bolt

07 1 50302.40 1 ¼ MIP X 1" Barb Fitting 15 1 00924.00 1/4 SS Washer

08 1 50302.06 1" MPT X 1" Barb PVC Sch 80 16 1 00200.10 Pump Assy 110/220V 60Hz open

Title Rev 1.02

Parts Manual

Model EAH / EC Dishwasher 02/12/08

Page 8

Spray System Assembly

Item Qty PartNo Description Item Qty PartNo Description

01 4 00914.00 1/4-20 X 3/4 Hexhead Bolt 09 1 04306.00 Square Manifold Gasket

02 9 00924.00 1/4 SS Washer 10 1 03108.10 Transfer Hose 10" EAH/C

03 4 00912.00 1/4-20 Nylon Lock Nut 11 2 03101.00 Hose Clamp # 16 1"

04 1 00966.10 10-32 X 1/4 Hexhead SS Bolt 12 1 00905.82 1/4-20 X 3/8 Truss Head Bolt

05 2 00341.20 Spray Arm Bearing (Welded) 13 1 00357.10 Lower Spray Base EAH

06 2 00304.06 Spray Arm A & C 14 4 00955.00 5/16-18 X 5/8 Thumbscrew

07 4 00308.50 Spray Arm End Plug SS 15 1 50302.06 1" MPT X 1" Barb PVC Sch 80

08 1 00305.03 Spray Manifold EAH 16 1 00302.84 Spray Base O ring E VA

Title Rev 1.02

Parts Manual

Model EAH / EC Dishwasher 02/12/08

Page 9

Sani Alarm System Assembly

Item Qty PartNo Description Item Qty PartNo Description

01 3 00400.00 Conduit 3/8 Sealtite 08 5 00931.00 Wire Tie Small

02 1 00401.00 St-3/8 Straight Connector 09 1 12510.00 Sanitizer Alarm Box

03 1 00402.00 St-90 Deg 3/8 Connector 10 1 12511.50 Sanitizer Low Level Vacuum Sw

04 1 00406.00 Control Box Light .5" Dia Red 11 1 12512.00 Sanitizer Alarm Buzzer 120V

05 1 00435.00 Squeeze Tube 8" Silicone 12 8 40126.10 #10 X 3/4 Sheet Metal Screw

06 1 00521.00 Wire 18 Gauge Orange 13 4 40127.00 Wall Anchors

07 1 00531.00 Wire 18 Gauge White 14 1 00426.00 Y Hose Connector 3/16 Single Rib

Title Rev 1.02

Parts Manual

Model EAH / EC Dishwasher 02/12/08

Page 10

Drain System Assembly

Item Qty PartNo Description Item Qty PartNo Description

01 1 00900.10 Cotter pin 1/8" X 1" 16 1 00120.00 Thermometer (Bi Metal)

02 2 00927.00 8-32 Nylon Lock Nut 17 4 00914.00 1/4-20 X 3/4 Hexhead Bolt

03 1 00110.07 Drain Ball Chain-12 Link 18 4 00915.00 1/4-20 SS Nut

04 1 00902.00 8-32 X 1 1/4 Panhead Bolt 19 1 01507.50 Solenoid Cover TM A/B/C

05 6 00922.00 1/4 Lock Star Washer 20 1 00122.00 Drain Solenoid Spring Assy

06 1 00121.20 Drain Ball Round for E Units 21 1 01551.00 Solenoid Link

07 1 00115.06 Drain Sump Screen (A/C) 22 1 00105.00 Solenoid Spring

08 1 03812.00 8-32 X 5/8 Panhead Screw 23 1 00100.00 Drain Ball Solenoid 120V

09 1 01313.20 2" Spg X Fip Adapter 24 1 01550.00 Solenoid Stop

10 3 01312.20 2" Vent ELL Hub X Hub 25 1 00464.07 3/8 SS Tubing(TM A/B Sol Wire)

11 1 41019.11 1/2 ID X 11/16 OD Hose 9"L 26 1 00102.00 Solenoid Base

12 1 00105.20 Drain Solenoid Linkage Washer 27 9 00906.00 1/4-20 X 1/2 Hexhead Bolt

13 1 05030.22 Tubing 2" X 3 3/4" 28 2 00103.00 Solenoid Bar

14 1 05030.24 Tubing 2" X 13 ¾" 29 2 00106.00 Slot Washer Large-SS

15 2 00936.00 312-250 Shorty Bushing

* Includes items 1,2, 8, 12, 21, 22, 24 and 29
