MODEL L-1X & L-1X16

PARTS MANUAL

Rev 1.18B

800-854-6417

FAX 714-895-2141

CMA DISHMACHINES

12700 KNOTT AVENUE

GARDEN GROVE, CALIFORNIA 92841

TABLE OF CONTENTS

MODEL CMA-L-1X &L-1X16

1. PARTS MANUAL ..........................................................................................3

1.1. INITIAL PARTS KIT (P/N 4001.00)................................................................................................... 3

1.2. EXPLODED VIEW DRAWINGS........................................................................................................... 4

1.2.1. Cabinet Assembly ................................................................................................................... 4

1.2.2. Cabinet Assembly (Effective 06/2007).................................................................................... 5

1.2.3. L-1X Door Assembly (Old Style) ............................................................................................ 6

1.2.4. L-1X/L-1X16 Door Assembly.................................................................................................. 7

1.2.5. Spray System Assembly........................................................................................................... 8

1.2.6. S/S Pump Assembly (Effective August 2009).......................................................................... 9

1.2.7. Pump Assembly......................................................................................................................10

1.2.8. Plumbing System Assembly (Effective August 2012).............................................................11

1.2.9. Plumbing System Assembly....................................................................................................12

1.2.10. Drain System Assembly..........................................................................................................13

1.2.11. Control Box ...........................................................................................................................14

1.2.12. Control Box (Effective 06/2007)............................................................................................15

1.2.13. Peristalic Pump Assembly .....................................................................................................16

1.2.14. Drain Valve ...........................................................................................................................17

1.2.15. Drain Valve (Effective January 2011)...................................................................................18

1.2.16. Optional Sani Alarm..............................................................................................................19

Parts Manual

MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 3

1. Parts Manual

1.1. Initial Parts Kit (P/N 4001.00)

P/N DESCRIPTION Qty

00200.75 SS Pump w/115v Motor Assy. 1

00206.30 Pump Seal Kit New (11/07) 1

00208.40 Slip Joint Nut O Ring Gasket Buna 1

00304.03 Spray Arm L-1C, L-1X, L-1X16 1

00308.50 Spray Arm End Plug SS 1

00404.82 Motor Contactor Relay 1

00411.00 Micro Switch 1

00415.00 Peristaltic Pump Assembly, 120V/60Hz 1

00421.40 Start/Fill Rocker Switch Amber 1

00425.51 Chemical Tubing Blue 50 ft.

00425.53 Chemical Tubing Red 50 ft.

00425.54 Chemical Tubing White 50 ft.

00501.00 Timer Motor, 2-Minute 1

00556.10 Reed Switch - ISI 1

00715.00 1/2 Ball Check Valve 1

02257.00 Squeeze Tube 8" Norprene 1

02257.22 Squeeze Tube 22" Norprene For L-1X 1

03415.00 Chemical Tube Bulkhead 1

03415.60 Chemical Bulkhead (Teflon) Assy. 1

03481.00 Drain Rocker Switch (GL-X/L-1X) 1

03604.30 Dema Valve Repair Kit 1/2" 1

04110.00 SS L-1C, L-1X, L-1X16, GLX Drain Screen 1

04113.00 Drain Valve 115V New Style 1

41015.60 Water Solenoid’s Coil Only 110V 1

04303.00 L1-X Spray Arm Bearing 1

04305.10 Red Silicone Gasket, 1/16 Thick 1

04517.15 Door Stop (Parallel) 1

15524.00 Power Rocker Switch Red 125V 1

NOTE: CMA recommends that the initial parts kit be kept on hand as a back up supply of critical parts

in the event your machine should require emergency service. All the parts included in this kit

are unique to the L-1X and L-1X16 dishmachine.

Parts Manual

MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 4

1.2. Exploded View Drawings

1.2.1. Cabinet Assembly

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 04903.73 L-1X Top Cover 14A 1 00752.60 Hole Stopper Gasket

2 1 03420.00 Undercounter Bell Box 15 9 00912.00 Nylon Lock Nut 1/4”-20

3 1 03423.00 Undercounter Bell Box Cover 16 1 00401.10 St-1/2 Straight Connector

4 1 04109.11 ^Band Sump Heater 115V 17 2 00941.00 10-32 x 5/8” Pan head Screw

5 1 04901.60 Stainless Steel Body 18 1 04914.78 Peri Pump Mount w/ Prime Switch

5A 1 04901.73 Stainless Steel Body L-1X16 19 2 03415.00 Chemical Tube Bulkhead

6 1 04911.60 Tray Track (RH) 20 4 00914.00 1/4-20 x 3/4" Hex Head Bolt

7 1 04902.82 Stand “Open Style” L-1X, L-1X16 21 1 14558.00 Body Magnet Holder

7A 1 04902.20 Bottom Panel (comes w/L1X16) 22 2 00557.80 Door Magnet

8 2 04902.84 Panels for Open Style Stand 23 10 00940.50 10-32 x 3/8” Truss Head Screw

9 4 01146.50 4” Leg (Optional) 24 2 03816.00 Nylon Retaining Washer

10 4 01146.00 6” Leg (Optional) 25 1 03415.60 Chemical Tube Bulkhead Barbed

11 1 04915.78 Peri Pump Panel w/ Prime Switch 26 2 00924.00 Washer SS 1/4"

12 1 04912.60 Tray Track (LH) 27 4 01310.60 Leg Adjusters

13 1 13463.10 Liquid Level Switch) 28 1 14506.45 Gasket Bracket

14 1 01513.60 Hole Stopper 29 1 14506.50 Door Gasket

Thermometer 03202.00 not shown

Parts Manual

MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 5

1.2.2. Cabinet Assembly (Effective 06/2007)

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 04903.73 L-1X Top Cover 15 9 00912.00 Nylon Lock Nut 1/4”-20

2 1 03420.00 Undercounter Bell Box 16 1 00401.10 St-1/2 Straight Connector

3 1 03423.00 Undercounter Bell Box Cover 17 2 00941.00 10-32 x 5/8” Pan head Screw

4 1 04109.11 ^Band Sump Heater 115V 18 1 04914.78 Peri Pump Mount w/ Prime Switch

5 1 04901.60 Stainless Steel Body 19 2 03415.00 Chemical Tube Bulkhead

5A 1 04901.73 Stainless Steel Body L-1X16 20 4 00914.00 1/4-20 x 3/4" Hex Head Bolt

6 1 04911.60 Tray Track (RH) 21 1 14558.00 Body Magnet Holder

7 1 04902.82 Stand “Open Style” L-1X,L1X16 22 2 00557.80 Door Magnet

7A 1 04902.20 Bottom Panel (comes w/L1X16) 23 10 00940.50 10-32 x 3/8” Truss Head Screw

8 2 04902.84 Panels for Open Style Stand 24 2 03816.00 Nylon Retaining Washer

9 4 01146.50 4” Leg (Optional) 25 1 03415.60 Chemical Tube Bulkhead Barbed

10 4 01146.00 6” Leg (Optional) 26 2 00924.00 Washer SS 1/4"

11 1 04915.78 Peri Pump Panel w/ Prime Switch 27 4 01310.60 Leg Adjusters

12 1 04912.60 Tray Track (LH) 28 1 14506.45 Gasket Bracket

13 1 13463.10 Liquid Level Switch (Optional) 29 1 14506.50 Door Gasket

14 1 01513.60 Hole Stopper 30 3 03475.00 Prime Switches

14A 1 00752.60 Hole Stopper Gasket 31 3 03476.00 Prime Switch Boots

Parts Manual

MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 6

1.2.3. L-1X Door Assembly (Old Style)

ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 04906.90 Inner & Outer Panel Assy.

2 2 00605.30 Door Rod Spacer

3 1 00557.60 Reed Switch Magnet

4 2 13805.00 5/6” 18 Lock Nut

5 2 00926.00 5/15” SS Washer

6 2 04517.15 Door Stop (Silicone) Parallel

7 2 04918.10 Door Support Rod Angled

8 1 04916.00 Door Clevis

9 3 13825.00 #8 32 x 1” Pan Head Screw

10 2 00927.00 #8-32 Lock Nut

11 4 00914.10 Bolt 1/4"-20 x 5/8”

12 1 00558.61 Reed Switch Magnet Bracket ITEM

NO. NO.

REQ’D P/N DESCRIPTION

13* 1 04509.20 Door Complete

14 2 04517.62 Door Support Rod Block 1 1 04509.10 L1-C Door Complete

15 8 00924.00 Washer 1/4" SS 2 1 04510.00 L-1C Door Catch Plate

16 4 00912.00 Lock Nut Nylon 1/4"-20 3 1 04511.00 L-1C Catch Hemi-Ball SS

*Excludes Item #2, 11, 14, 15 & 16 4 1 04512.00 L-1C Catch Ball Spring

Parts Manual

MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 7

1.2.4. L-1X/L-1X16 Door Assembly

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 04907.90 L-1X Door (New 7-2002) 10 1 14558.61 Door Magnet Holder

1A 1 14506.00 Door for L-1X16 11 2 00965.00 06-32 Lock Nut

2 2 04517.60 Door Support Rod Block 12 2 00605.20 Door Rod Spacer

3 1 14570.00 Door Hinge (RH) 13 2 04517.15 Door Stop (Parallel)

4 1 14570.50 Door Hinge (LR) 14 10 00912.00 1/4"-20 Nylon Lock Nut

5 2 04919.00 Door Rod Screw Pin for Door 15 14 00924.00 1/4" SS Washer

6 1 04918.60 Door Support Rod Right 16 4 00914.10 1/4"-20 x 5/8” Hex Head Bolt

7 1 04919.50 Door Support Rod Left 17 2 14518.00 Splash Guard

8 3 00557.80 Door Magnet 18 4 00924.00 1/4 SS Washer

9 2 00970.60 6 32 x 1/2" Flathead Screw

Parts Manual

MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 8

1.2.5. Spray System Assembly

ITEM

NO. NO.

REQ’D

P/N DESCRIPTION

1 8 00912.00 1/4"-20 Nylon Lock Nut

2 16 00924.00 1/4" SS Washer

3 8 00929.00 1/4"-20 x 3/4" Truss Head Bolt

4 2 04306.00 Square Manifold Gasket

5 2 04305.10 Silicon Gasket

6 2 04303.00 L-1X Spray Arm Bearing

7 2 00304.03 Spray Arm

8 4 00308.50 Spray Arm End Plug

9 1 04301.00 L-1X Spray Manifold

9A 1 04301.60 L1-X16 Spray Manifold

Parts Manual

MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 9

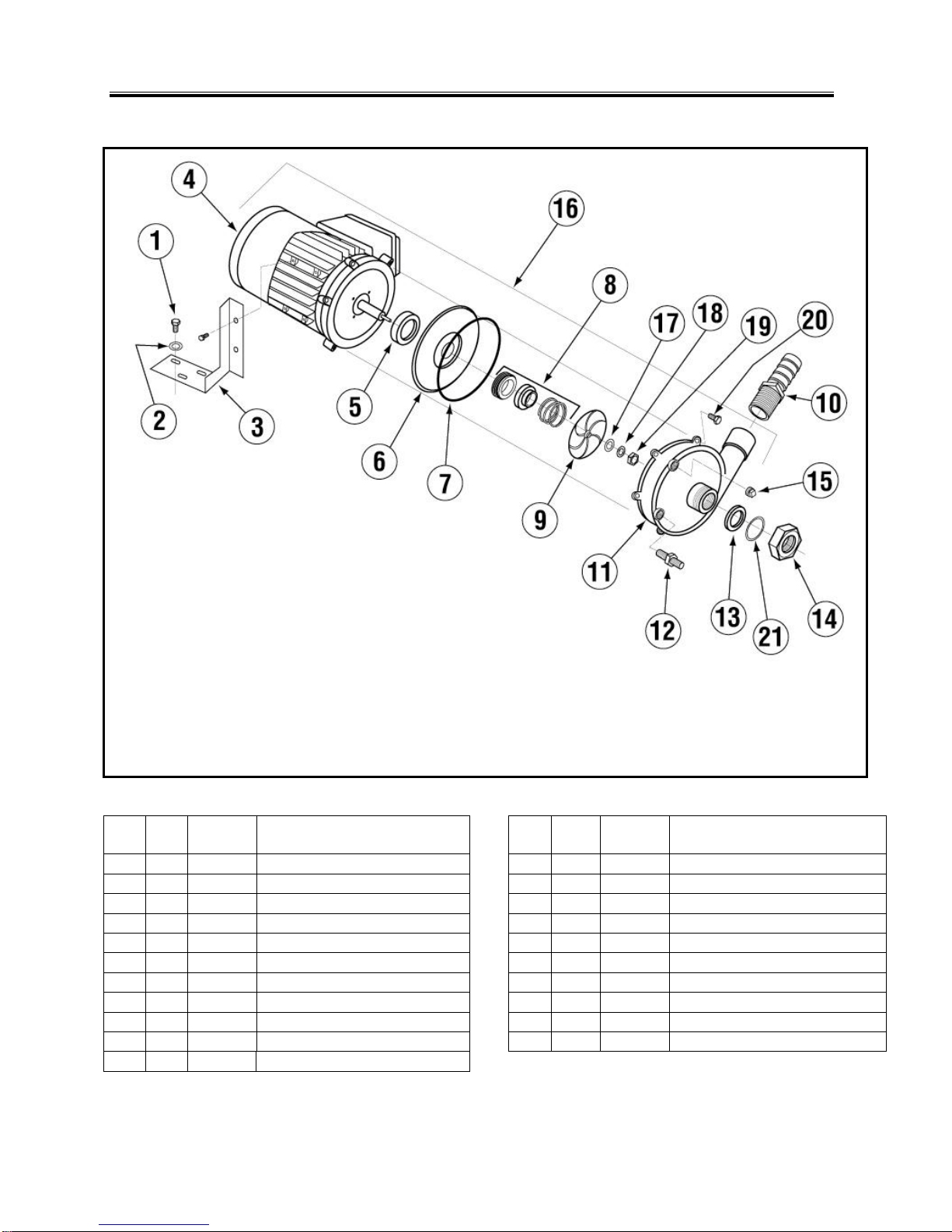

1.2.6. S/S Pump Assembly (Effective August 2009)

ITEM

NO. NO.

REQ’D

P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 3 00908.00 5/16”-18 x 5/8” SS Hexhead Bolt 12 1 00214.50 1/2" Comp x 3/8” MIP Adapter

2 3 00926.00 5/16” SS Washer 13 1 00208.40 Slip Joint Nut O Ring Buna

3 1 00200.78 SS Pump Motor Holder "L" 14 1 00207.00 Slip Joint Nut 1 1/2 x 1 1/4

4 1 00201.65 SS Wash Pump Motor 115v 15 1 00238.00 3/8” Male Plug

5 1 00201.96 Slinger Washer Cone Shape 16 1 00200.75 Includes Items 4,5,6,7,8,9,and 11

6 1 03224.60 SS Pump Backplate 17 1 03222.74 Flat Washer 8 mm

7 1 03226.70 Volute O-Ring For SS Pump 18 1 03222.72 Shaft Nut Lock Washer 8mm

8 1 00206.70 SS Pump Seal Kit 19 1 13809.70 SS Pump Seal Shaft Nut 8mm

9 1 03222.60 SS Pump Impeller 20 6 00914.70 Socket Head Screw 10 mm

10 1 50302.10 1" MPT x 1" Barb Brass 21 1 00208.21 Slip Joint Nut Friction Ring Plastic

11 1 04206.75 SS Pump Cover

Parts Manual

MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 10

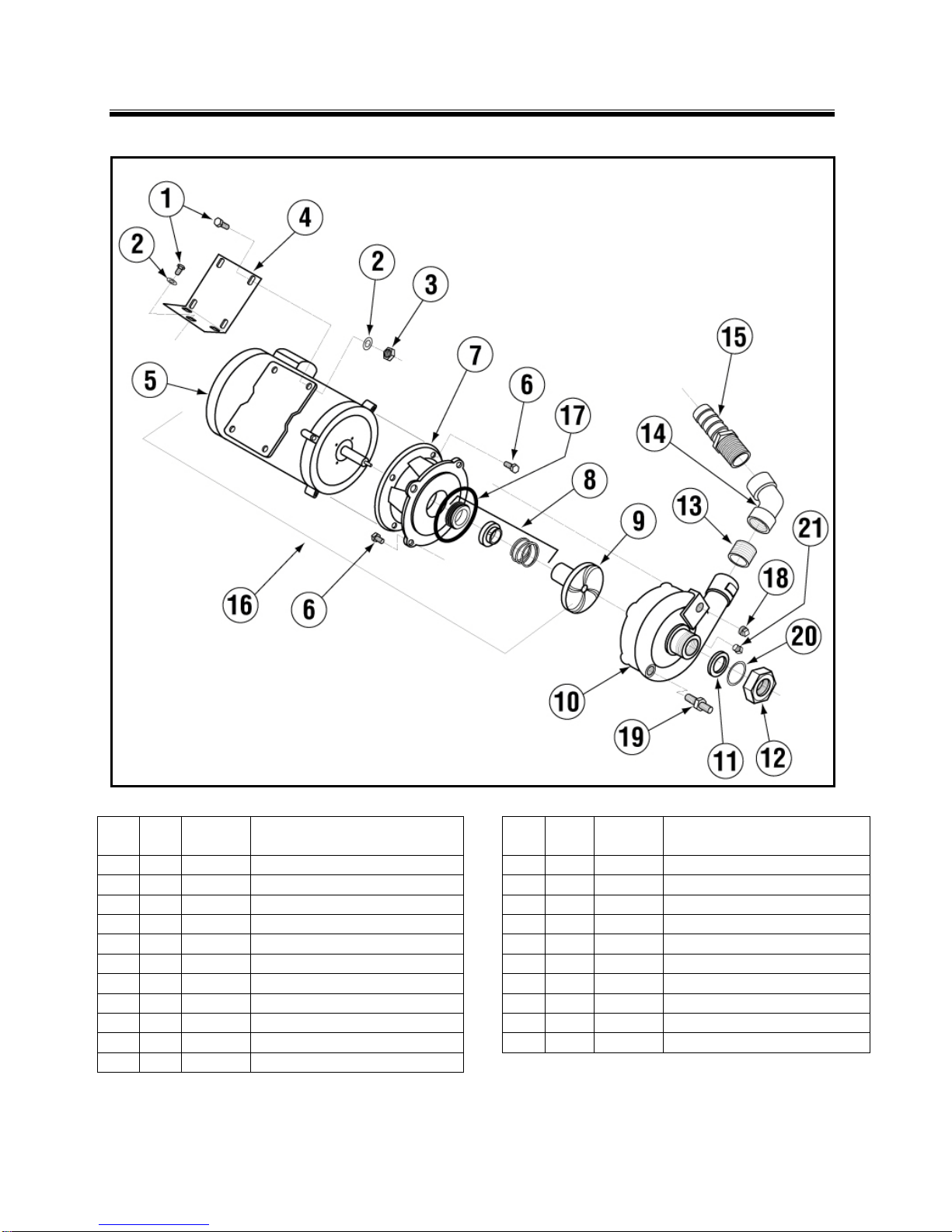

1.2.7. Pump Assembly

ITEM

NO. NO.

REQ’D

P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 7 00908.00 5/16”-18 x 5/8” SS Hexhead Bolt 12 1 04204.00 Compression Nut 2.5”

2 7 00926.00 5/16” SS Washer 13 1 14004.00 1” close Nipple SS

3 4 13805.00 5/16”-18 Nylon Lock Nut 14 1 04601.00 45 Degree Elbow FIP x FIP

4 1 04909.00 Motor Mount 15 1 50302.06 1” MIP x 1” Barb PVC

5 1 00201.00 Water Pump Motor 1 HP 16 1 00200.10 Includes Items 5, 6, 7, 8 and 9

6 8 00921.00 3/8”-16 x 3/4" Hex Bolt 17 1 03226.00 Pump “O” Ring Gasket

7 1 03224.00 Pump Base (Mount) 18 1 00238.00 3/8” Male Plug

8 1 00206.30 Pump Seal Kit New (11/07) 19 1 00214.50 1/2" Comp x 3/8” MIP Adapter

9 1 03222.05 Impeller (universal) open 20 1 00208.21 Slip Joint Nut Friction Ring Plastic

10 1 04206.30 Pump cover for L-1X/L-1X16 21 1 03232.00 1/8” Male Plug

11 1 00208.40 Slip Joint Nut O Ring Gasket Buna

Andere Handbücher für L-1X

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere CMA Dishmachines Spülmaschine Handbücher

CMA Dishmachines

CMA Dishmachines CMA-180UC Handbuch

CMA Dishmachines

CMA Dishmachines MODEL GL-C Technisches Datenblatt

CMA Dishmachines

CMA Dishmachines CMA-180VL Handbuch

CMA Dishmachines

CMA Dishmachines GL-X Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines CMA-180 TALL Handbuch

CMA Dishmachines

CMA Dishmachines UC65e Handbuch

CMA Dishmachines

CMA Dishmachines CMA-GL-C Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines GW-100 Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines UC65e M3 Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines CMA-44H Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines CMA-B Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines CMA180UCW/CD Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines GL-X Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines L-1Xe Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines CMA-181GW Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines UC60E Handbuch

CMA Dishmachines

CMA Dishmachines H-1X Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines CMA-181VL Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines CMA-180VL Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines L-1C Handbuch

CMA Dishmachines

CMA Dishmachines H-1X Handbuch

CMA Dishmachines

CMA Dishmachines CMA-180UC Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines GW-100 Bedienungsanleitung

CMA Dishmachines

CMA Dishmachines CWS Leitfaden

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
