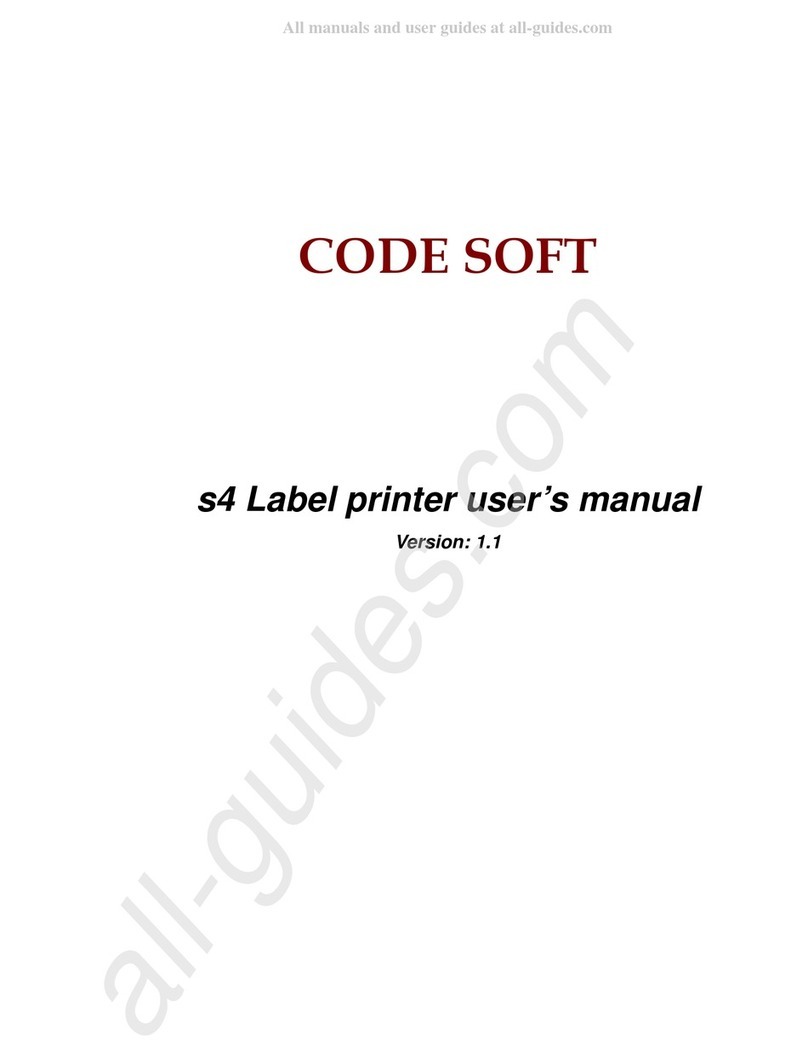

CODE SOFT
s4 Label printer user’s manual
Version: 1.1
Ver:1.1
s4 series user’s manual I
Table of contents
1. Introduction............................................................................................................1
1.1 In the box......................................................................................................1
1.2 Printer Features..........................................................................................2
1.2.1 Front view...........................................................................................2
1.2.2 Rear view............................................................................................2
1.2.3 Interior view........................................................................................3
2. Getting start ...........................................................................................................4
2.1 Loading the ribbon.....................................................................................4
2.2 Loading the media......................................................................................8
2.3 Connecting interfaces.............................................................................12
2.3.1 Centronics port (Parallel port).......................................................12
2.3.2 RS-232 port (Serial port)................................................................12
2.3.3 USB Slave........................................................................................13
2.3.4 Ethernet (Option).............................................................................13
2.4 Power on the printer................................................................................14
2.5 Control panel.............................................................................................14
3. Printer options.....................................................................................................17
3.1 Peeler installation.....................................................................................17
3.2 Cutter installation.....................................................................................24
4. LCD screen icons...............................................................................................30
4.1 LCD screen information .........................................................................30
4.2 Graphic symbol on LCD screen...........................................................31
5. Configuration.......................................................................................................32
5.1 Menu structure..........................................................................................32
5.2 Parameters setup.....................................................................................35
5.2.1 User Setup .......................................................................................35
5.2.2 Communication setup.....................................................................35
5.2.3 Print Setup........................................................................................37
5.2.4 Test....................................................................................................39
5.2.5 Memory.............................................................................................39
5.2.6 Form..................................................................................................39
5.2.7 Warning message ...........................................................................40
5.2.8 Printer status....................................................................................41
6. Troubleshooting..................................................................................................42
6.1 LCD error message..................................................................................42
Ver:1.1
s4 series user’s manual II
7. Specifications......................................................................................................43
7.1 General specifications............................................................................43
7.2 Universal Serial Bus (USB) port pin assignment.............................45
7.3 Serial port pin assignment.....................................................................46
7.4 Ethernet module port pin assignment................................................46
Ver:1.1
s4 series user’s manual III
About this user’s manual
This user’s manual is described with a large quantity of illustrations, let the
users understand, step by step, how to work this printer to its best. This
manual includes also the troubleshooting section which could provide a
pre-way to eliminate or find out the troubles, without the help of technician. If
users still cannot banish the troubles from the printer, please contact directly
the distributors.
Ver:1.1
s4 series user’s manual 1
1. Introduction
1.1 In the box
After unpacking, please inspect carefully and make sure that you receive all
the necessary parts as below:
Printer
Power supply
Power Cord (varies by country)
Software CD ROM
Quick start guide
USB cable
If any parts are missing, please contact the service department of your
distributor.
Save the carton and all packing materials in case you need to reship back.
Ver:1.1
s4 series user’s manual 2
1.2 Printer Features
1.2.1 Front view
1.2.2 Rear view
Ver:1.1
s4 series user’s manual 3
1.2.3 Interior view
Media roll holder
Media guide
Adjustable media
gap sensor
Platen roller
Cover-up sensor
Media holder
lock latch
Supply spindles
Printhead
Array sensors
Take up spindles Tear-o
ff
blad
e
Dispenser (option)
Peel-off roller
P
ee
l
e
r
se
n
so
rPeeler bar
Dispenser cover
Media sensor
Ver:1.1
s4 series user’s manual 4
2. Getting start
2.1 Loading the ribbon
1. Pulling the release latches on two sides toward the front of printer to open
the printer cover.
2. Open the ribbon cover by pushing the ribs (as shown in green) of ribbon
cover. Do not open the ribbon cover by pushing the cover edge which
installed the blade to tear off the label. It might hurt your hands if you push it
hardly.
Ver:1.1
s4 series user’s manual 5
3. Insert the ribbon roll to the supply spindle.
4. Rotate the supply hub until the notches align and lock in to the left side of
supply hub.
