COLBOR CL220R Bedienungsanleitung
Thank you for choosing COLBOR product. Please read this manual
carefully before use and follow all instructions mentioned herein.
Video Light User Manual
CL220R
Caring For Your COLBOR Product
Power Connection

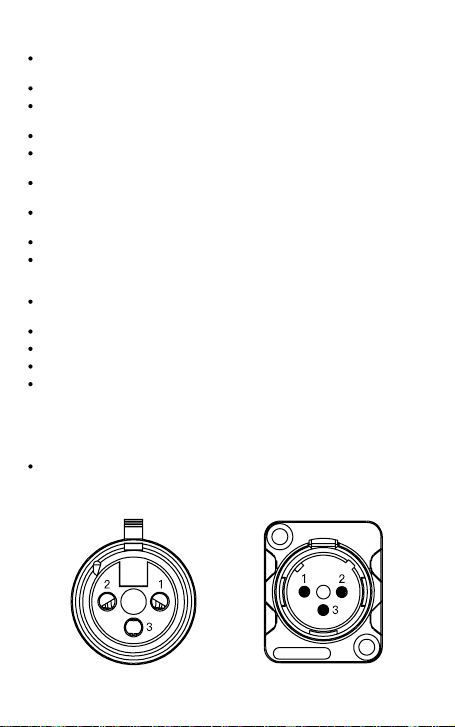

You must use the power adapter that comes with the product rather than
other adapters to avoid damaging the lamp. The positive and negative
connections of the power adapter interface( DC OUT) and the lamp power
interface (DCIN) are shown below:
+ -- +
N N
Keep corrosive chemicals, liquids and heat source away from the product to
prevent mechanics damage.
The product is not waterproof.
Do not leave the product unattended while in use. Keep out of reach of
children.
Do not handle with wet hands. Do not touch the hot COB surface.
Please do not block the ventilation and do not look at the light directly when
it is on.
Do not attempt to disassemble or modify the product. Doing so voids
warranty.
Please have the product checked or repaired by authorized technicians if
any malfunctions happened.
Disconnect from the power supply when it is not in use.
Do not cover, inverted COB and radiator for high temperature, do not cover,
inverted, do not touch the lamp holder and radiator vent with your hands
when the product in use.
Do not use any power adapter of other products to avoid the lamp
malfunction.
Malfunction may be caused by dropping, impact of external force.
Failure to follow all the instructions may result in mechanics damage.
Our company reserves the right of nal interpretation of the product.
Product design and specications are subject to change without prior
notice.
① LED Display Screen
② EFF Mode Button
③ EFF Rate Option Button
④ Mode Button
⑤ Settings Menu Button
⑥ Left Knob/Option Adjustment Knob
⑦ Right Knob/Parameter Adjustment
Knob
⑧ DC 48V Power Port
⑨ Power Button
⑩ Bowens Mount Lock
⑪ Light Source
⑫ Lamp Angle Adjustment Locking
Grip
⑬ Lamp Holder
⑭ Air Outlet
⑮ NATO Rail
⑯ Air Inlet
⑰ Lamp Handle
⑱ Umbrella Hole
⑲ Umbrella Hole Screw
⑳ Lamp Holder Screw
Product Instructions
Light Installation
Hold the COB cover with the Bowens Mount
tenon and rotate it in the direction of the arrow.
Note: Be sure to remove cob protective cover
and cob protective lm before use.
Installation of reector: Align the reector with the groove around the lamp
head and clip it in, turn the reector in the direction of the arrow, and the
reector installation will be completed after the top rod rebounds.
Removal of reector: Please follow the instructions below.
1. Removal of lamp cap protection cover
2. Installation and removal of reector

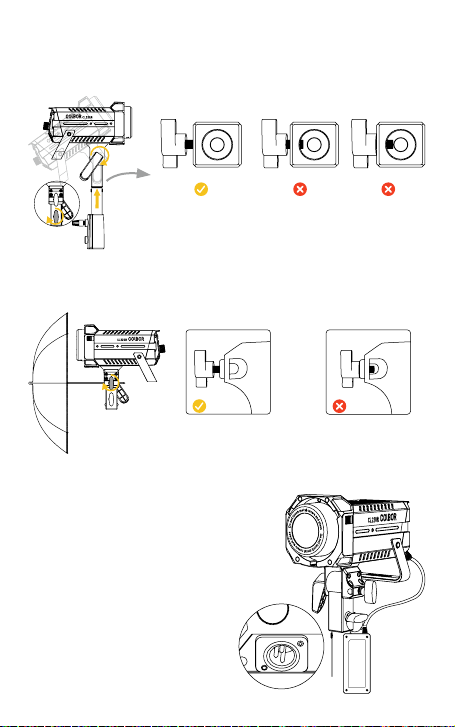

Rotate the lamp holder screw until the inner wall is not shielded and put
the product on the top of the lamp holder to tighten the bracket screw for
xation. Adjust the lamp body irradiation angle and tighten the lamp holder
angle grip.
3. Installation of light
Screw out, the inner
wall of the bracket
without any shelter
Halfway the
screw out
The screw is
not out
at all
Screw out, the inner wall
of the soft light cover
without shelter
The screw is not out
at all
Insert the handle of the soft light umbrella into the umbrella hole and tighten
the screw to lock.
4. Install the soft light umbrella
(1) Power cord adapter fixation
Pass the attached wire rope through the snap
ring of the power adapter and hang it on the
stand.
5. Power Supply
(3) Power cord storage
When pulling out the power cord of
the lamp body, firstly press the spring
beside the connector to unlock it. Do
not pull out the wire forcefully without
unlocking it.
(2) AC power supply
Connect the power adapter, aim the pin at the
DC power interface of the lamp body, and then
power on after the cable is well-placed.
Note:
* For one 14.8V battery powering, the maximum brightness is 50% of full
power.
(4) Power with V-port battery
Attach the V-mount battery to the lamp with the NATO expansion bar and
VM3 (optional), then connect the D-tap to XLR power cord, and power on the
lamp.
None grouping status. The product defaults to the factory
status, and will not be aected by other groups.
③ Group Status Icon
A stands for Group A. There are fteen groups (A~O). T
stands for Tx.
A stands for Group A. There are fteen groups (A~O). R
stands for Rx.
A stands for Group A. There are fteen groups (A~O). TR
stands for TxRx.
Operation Instructions
1. Remove the COB protective cover before powering the light.
2. Power On: After conrming that the power connection is nished, press
the switch to “-” , and the screen will display the brand and product module.
(Default mode: CCT)
3. Power O: Press the switch to “o” to turn it o.

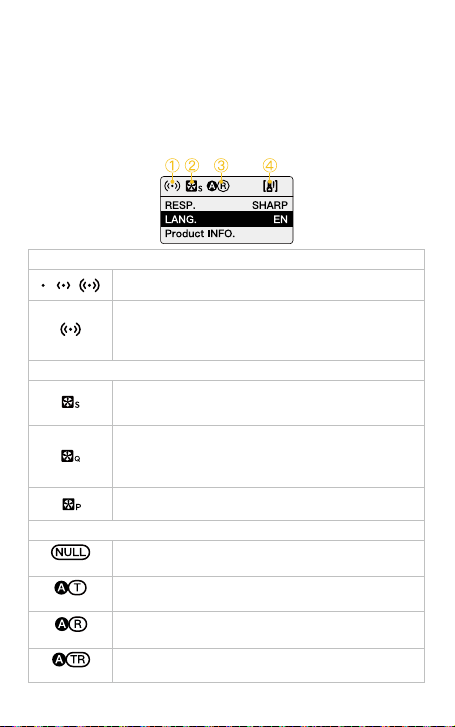

1. Status Icon Description
After selecting wireless connection in Settings menu, the
icon will be displayed dynamically.
The icon is always on to indicate successful pairing with
mobile APP.
The icon disappears to indicate mobile APP pairing
failure, or the product is unpaired.
Smart Mode. The product will adjust the fan speed
according to the internal detected temperature to ensure
that it is in optimal working condition.
Quiet Mode. The fan keeps running at low speed for
minimum noise, and overheating protection will be
activated if the product temperature is higher than the
alarm value.
Performance Mode. Fan runs at the highest speed to
ensure heat dissipation.
① APP Connection Status Icon
② Fan Status Icon
If the icon ashes, it means that the internal temperature
of the product is too high, and cooling measures need
to be taken. If the icon disappears, it means that the
operation is normal.
④ Product Overheated Alarm Icon
2. CCT Mode (Short press Mode Button to switch CCT Mode and HSI
Mode)
* Default: CCT Mode
Brightness
Color Temperature
G/M Balance
MODE Button
Rotate the Knob counterclockwise to adjust options: color
temperature, brightness, G/M Balance.
Rotate the knob counterclockwise to adjust parameter of color
temperature, brightness and G/M Balance:
Brightness (DIM): 0%~100%
Color temperature: 2700-6500K
G/M Balance: Green10~1-0-Magenta1~10
Short press the knob to quickly switch the preset parameter
of color temperature, brightness and G/M Balance:
Preset brightness：0%、25%、50%、75%、100%
Preset color temperature：2700K、3200K、4000K、5600K、
6500K
G/M Balance: Short press return to zero.
Option Adjustment Knob
Parameter Adjustment Knob/Parameter Preset
3. HSI Mode (Short press Mode Button to switch)
HUE
SAT (Saturation)
INT (Intensity)
MODE Button
Rotate the Knob counterclockwise to adjust options:HUE - SAT -
INT
Rotate the knob counterclockwise to adjust parameters of HUE,
SAT, and INT:
SAT :0%~100%
HUE 0° ~359°
INT 0%~100%
Short press the knob to quickly switch the preset parameter of
HUE, SAT, and INT:
HUE：0° /60° /120° /180° /240° /300°
SAT：0%/25%/50%/75%/100%
INT：0%/25%/50%/75%/100%
Option Adjustment Knob
Parameter Adjustment Knob/Parameter Preset

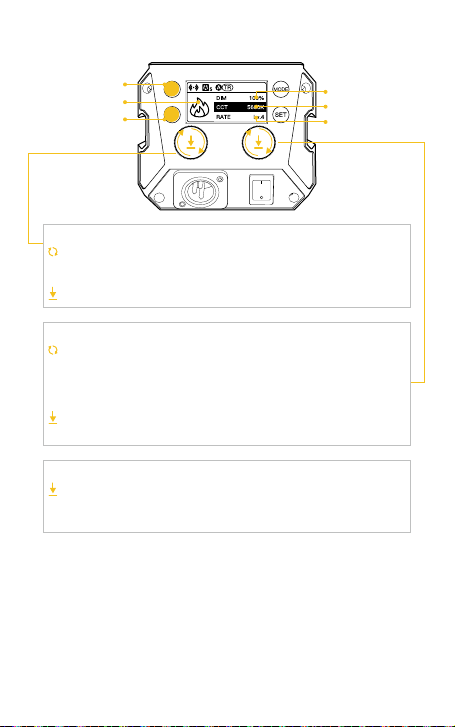

Light Eect Mode
(EFF) Button
Light Eect
Frequency (RATE)
Button
EFF Color Temperature
Brightness
Rate
4. EFF-CCT Mode (Short press EFF Button )
*Default: EFF-CCT Mode
Rotate the Knob counterclockwise to adjust options: brightness,
color temperature.
Short press to switch to EFF-HSI Mode
Rotate the knob counterclockwise to adjust parameters.
Color temperature：2700~6500K
Brightness：0%~100%
Short press the knob to quickly switch the preset parameter.
Color temperature: 2700K/3200K/4300K/5600K/6500K
Brightness：0%/25%/50%/75%/100%
Press to switch light eect:
Fire → Spark → CCT Chase → Pulsing → Beacon → TV → Party →
Explosion → Faulty Bulb → Welding → Strobe → Lightning → SOS.
Option Adjustment Knob
Parameter Adjustment Knob/Parameter Preset
Light Eect Mode (EFF) Button
Light Eect Mode
(EFF) Button
Light Eect
Frequency (RATE)
Button
EFF Color Temperature
Brightness
Rate
5. EFF-HSI Mode (Short press EFF Button then press the left knob to
switch to EFF-HSI Mode.)
Rotate the Knob counterclockwise to adjust options: brightness,
color temperature.
Short press to switch to EFF-CCT Mode
Rotate the knob counterclockwise to adjust parameters.
HUE : 0° ~359°
SAT : 0%~100%
INT : 0%~100%
Short press the knob to quickly switch the preset parameter.
HUE：0° /60° /120° /180° /240° /300°
SAT：0%/25%/50%/75%/100%
INT：0%/25%/50%/75%/100%
Option Adjustment Knob
Parameter Adjustment Knob/Parameter Preset
Short press to switch the frequency varies eect, Lv.1~Lv.5+
RANDOM.
Short press to switch the eect
according to dierent special eects. Some are color, some are
speed, and some are strength.
Light Eect Frequency (RATE) Button
