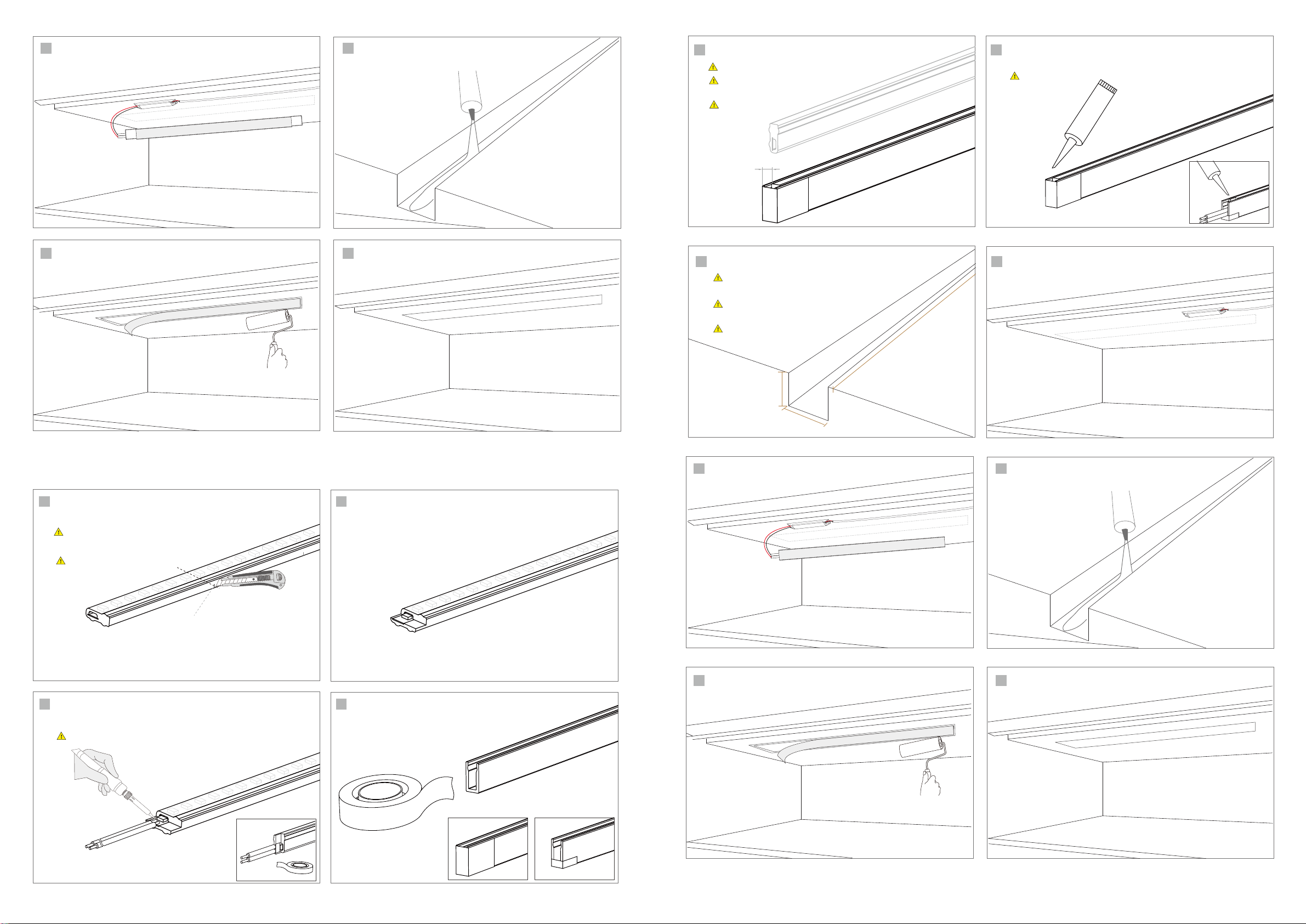

Weld one end of the strip with gray-white wire by using
an electric soldering iron. Insulate the copper foil part
Plugless connection and installation
Minimum cutting unit of the strip
is 50mm
Use the 24AWG gray-white wire
Wait for glue to dry up in 15 minutes, before the next step
Output voltage of the
light strip is
DC24V
While installing, force in one end
firstly then the rest of the strip
X represents the number of
minimum cutting unit
The length of the profile is 50*X+6mm (The
length of the lamp is the length of the profile)
The length of installation trough is
(50*X+6)+2mm
Connect the gray and white wires of the luminaire
with the power supply output terminal
9
Inject glue into the trough
10
Cut out a piece of light strip with proper dimensions
according to requirements
1
Cut at the minimum cutting unit (on the back of strip
is silk-screen cutting line)
Spare a 3mm room between the strip and profile
Cut off the upper layer of silica body wrapping the
copper foil from one end of the piece of strip
2
The minimum unit
3
Seal up both ends of the profile with plastic tape
4
Install the profile into the trough, and cover the
emitting area with textured paper and then
plaster
11
Tear down the textured paper, the end of installation
12
Open up a trough at the installation area
7
Install the power supply at the right position
8
10.5mm
6mm
L (total length of luminaire)
5
Fill up the space within the two ends of the profile
with glue
Install the light strip into a profile
6
textured paper
Connect the gray-white wire with the power supply
output terminal
9
Inject glue into the trough
10
Install the profile into the trough, and cover the
emitting area with textured paper and then
plaster
11
Remove the textured paper to complete the
installation
12
Textured paper
3mm
