CombiSteel 7455.0170 Bedienungsanleitung

Hand Mixer

7455.0170 - 7455.0175 - 7455.0180 - 7455.0185

Whisk for Hand Mixer

7455.0190

User Manual

Gebruikershandleiding

Gebrauchsanweisung

Le mode d’emploi

www.combisteel.com

CONTENT

ENGLISH

HAND MIXER........................................................................................................................................................... 4

MAIN TECHNICAL PARAMTERS ............................................................................................................................... 5

INTRODUCTION ...................................................................................................................................................... 6

OPERATING INSTRUCTIONS .................................................................................................................................... 6

STARTING AND STOPPING THE BLENDER............................................................................................................6

CONTINUOUS OPERATION:................................................................................................................................. 6

VARIABLE-SPEED OPERATION .............................................................................................................................6

WORKING POSITION ........................................................................................................................................... 7

ASSEMBLING / DISMANTLING ............................................................................................................................ 7

CLEANING INSTRUCTIONS ......................................................................................................................................8

TROUBLESHOOTING................................................................................................................................................8

CIRCUIT DIAGRAM .................................................................................................................................................. 9

EXPLODED VIEW & SPARE PART LIST .................................................................................................................... 10

NEDERLANDS

HANDMIXER.......................................................................................................................................................... 14

BELANGRIJKSTE TECHNISCHE PARAMETERS......................................................................................................... 15

INLEIDING ............................................................................................................................................................. 16

GEBRUIKSAANWIJZING ......................................................................................................................................... 16

STARTEN EN STOPPEN VAN DE BLENDER.......................................................................................................... 16

LANGDURIGE BEDIENING: ................................................................................................................................16

VARIABELE SNELHEID BEDIENING..................................................................................................................... 16

WERKPOSITIE .................................................................................................................................................... 17

MONTAGE/DEMONTAGE .................................................................................................................................. 17

REINIGINGSINSTRUCTIES ...................................................................................................................................... 18

PROBLEEMOPLOSSING .........................................................................................................................................18

SCHAKELSCHEMA.................................................................................................................................................. 19

DETAIL OVERZICHT & RESERVEONDERDELEN LIJST ..............................................................................................20

DEUTSCH

STABMIXER............................................................................................................................................................ 24

TECHNISCHE HAUPTPARAMETER..........................................................................................................................25

EINFÜHRUNG........................................................................................................................................................ 26

BETRIEBSANLEITUNG............................................................................................................................................ 26

STARTEN UND STOPPEN DES MIXERS ...............................................................................................................26

DAUERBETRIEB: ................................................................................................................................................ 26

BETRIEB MIT VARIABLER GESCHWINDIGKEIT ...................................................................................................26

ARBEITSPOSITION ............................................................................................................................................. 27

ZUSAMMENSETZEN / ZERLEGEN ......................................................................................................................27

REINIGUNGSINSTRUKTIONEN............................................................................................................................... 28

FEHLERSUCHE UND -BEHEBUNG ..........................................................................................................................28

SCHALTPLAN ......................................................................................................................................................... 29

TEILELISTE .............................................................................................................................................................30

www.combisteel.com

FRANÇAIS

MÉLANGEUR À MAIN............................................................................................................................................34

PRINCIPAUX PARAMÈTRES TECHNIQUES .............................................................................................................. 35

INTRODUCTION .................................................................................................................................................... 36

MODE D'EMPLOI...................................................................................................................................................36

DÉMARRAGE ET ARRÊT DU MÉLANGEUR ......................................................................................................... 36

OPÉRATION CONTINUE:....................................................................................................................................36

FONCTIONNEMENT À VITESSE VARIABLE .........................................................................................................36

POSITION DE TRAVAIL ....................................................................................................................................... 37

ASSEMBLAGE / DÉMONTAGE............................................................................................................................ 37

INSTRUCTIONS DE NETTOYAGE............................................................................................................................. 38

DÉPANNAGE..........................................................................................................................................................38

SCHÉMA................................................................................................................................................................ 39

VUE EXPLICITE ET LISTE DES PIÈCES DE RECHANGE.............................................................................................. 40

www.combisteel.com

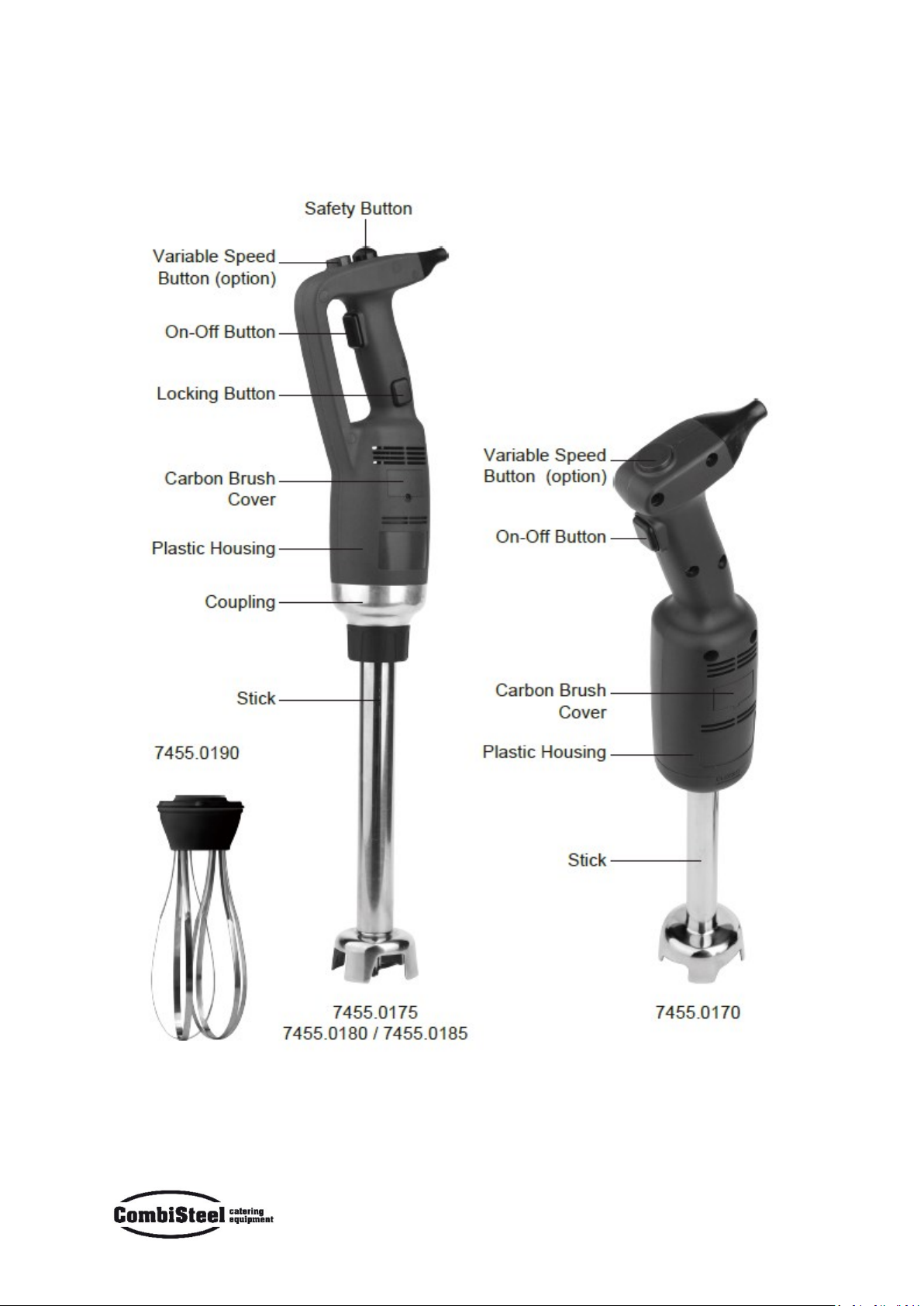

HAND MIXER

www.combisteel.com

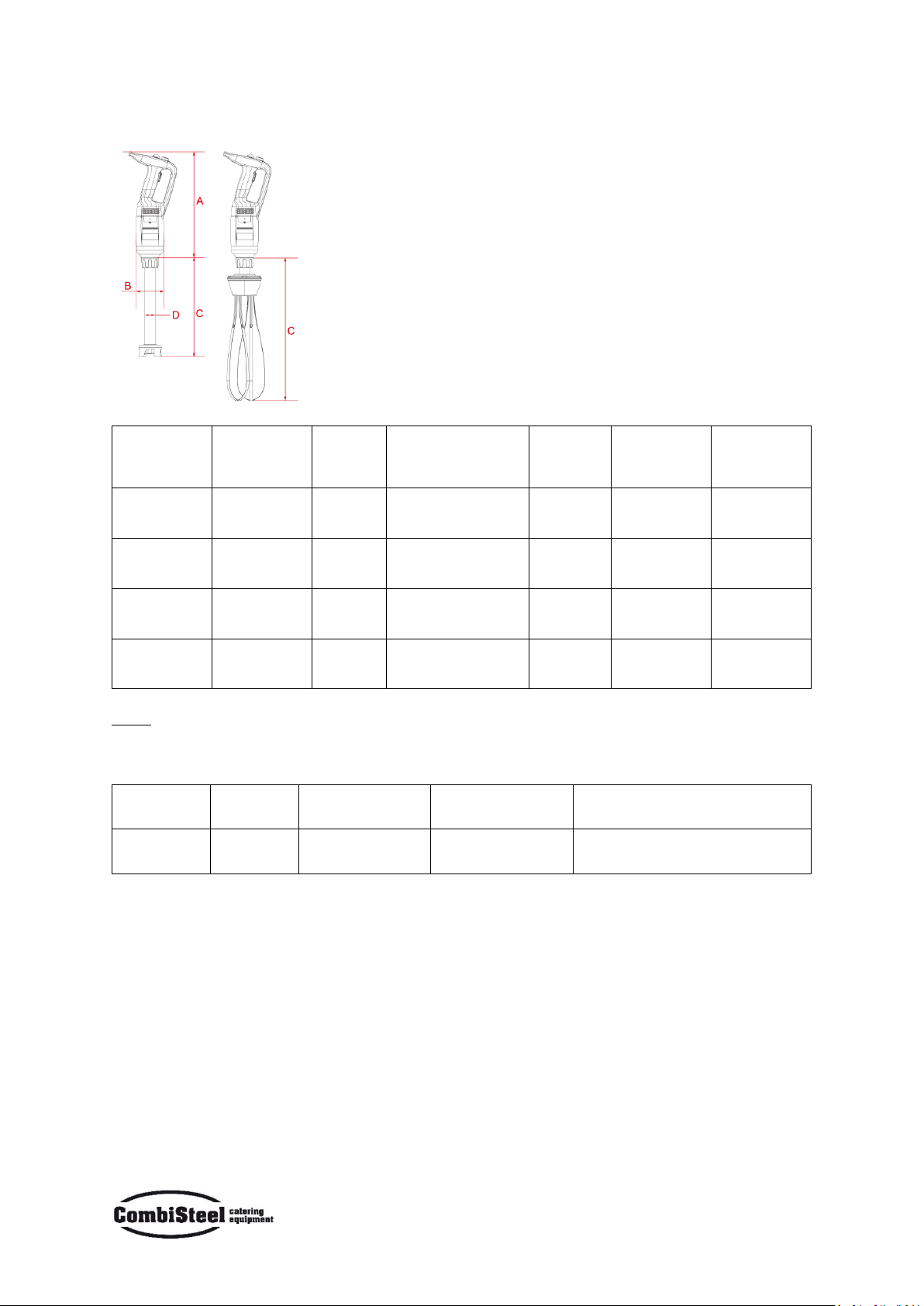

MAIN TECHNICAL PARAMTERS

MODEL

VOLTAGE

POWER

SPEED

BODY

WEIGHT

LENGTH

(mm)

DIAMETER

(mm)

7455.0170

230V~/50Hz

220W

15000 RPM

1.1 KG

304

7455.0175

230V~/50Hz

350W

2000-13000 RPM

2.5 KG

359

7455.0180

230V~/50Hz

500W

2000-14000 RPM

3.1 KG

359

7455.0185

230V~/50Hz

500W

2000-14000 RPM

3.1 KG

359

NOTE:

The machines above don’t include any of the following attachments. In the chart below you can find available

attachments for your choice.

MODEL

WEIGHT

LENGTH (mm)

DIAMETER (mm)

DESCRIPTION

7455.0190

0.5 KG

250

SUIT FOR MACHINE 7455.0175 /

7455.0180 / 7455.0185

www.combisteel.com

INTRODUCTION

1. We advise you to carefully read the instruction included in this package.

2. If you wish to make the best use of the Immersion Blender and all its possibilities, you must be thoroughly

familiar with its performance and operating features.

3. Maintenance requires just a few simple operations that may be carried out by the operator.

4. To ensure a long life and minimize operating costs, you should carefully follow the rules given in this manual.

5. The manufacturer has designed the Immersion Blender to ensure safe operating conditions:

Exclusion or removal of the safety features installed by the manufacturer will seriously undermine the

guaranteed safety conditions.

6. To ensure these conditions you must also fully comply with the instructions regarding the installation and

power supply of the Immersion Blender.

7. The Immersion Blender must be installed in a work environment free of corrosive agents.

8. The installation site must not be subject to explosion.

9. Use only original SPARE PARTS.

10. This manual instruction is an integral part of the Immersion Blender and must be kept in a safe place. The

features, information and drawings published in this manual are the exclusive property of the manufacturer.

11. The appliance’s functions make it possible to carry out all types of processing in the minimum of time with

below recommended food: thick vegetable, soups, mashed potatoes, creams, batters, mayonnaise, almonds pulp,

cream cheese and other similar foods.

OPERATING INSTRUCTIONS

CAUTION: Before connecting your units to the power supply, make sure the machine’s electrical specifications,

printed in the unit’s rating plate, meet your local power supply.

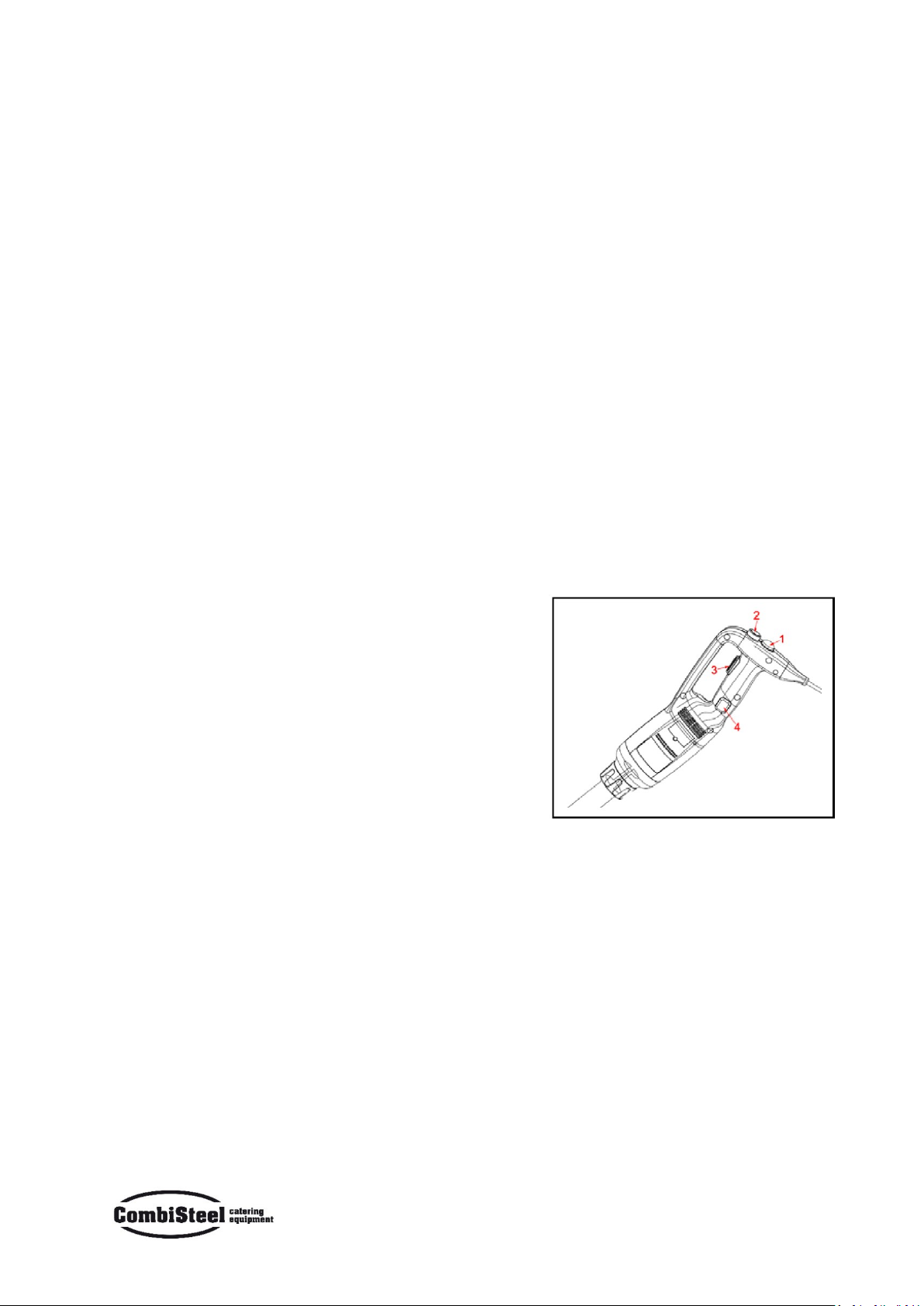

STARTING AND STOPPING THE BLENDER

1. Check that the on-off button (No.3) is in the released position.

2. Connect the appliance to the power supply.

3. Insert the stick or whisk into the appliance.

4. Press and hold down the safety button (No.1) if the appliance has

one.

5. Press the on-off button (No.3), and the blender will start up.

6. To stop the blender, release the on-off button (No.1) and then the

safety button (No.1) will release automatically.

CONTINUOUS OPERATION:

Follow steps 1 to 5 above, then:

6. While the on-off button (No.3) is in the depressed position, press the locking button (No.4).

7. Release the on-off button (No.3), and the appliance will function continuously.

8. To stop the appliance, press and release the on-off button (No.3).

VARIABLE-SPEED OPERATION

Follow steps 1 to 5 above, then:

9. Change the speed of the motor by turning the variable speed button (No.2) towards the maximum or minimum

as required. It is advisable to start at a low speed when using the whisk. With the self-regulating speed system,

once you have selected a speed, it will remain constant, even if the consistency of your mixture changes.

www.combisteel.com

WORKING POSITION

Blender function: For greater control, we recommend that you hold the bender by the handle and the bottom

of the motor unit. Furthermore, we recommend that you tilt the blender at a slight angle to prevent the bell

from touching the bottom of the container. Always make sure that the bell is sufficiently immersed to avoid

splashing and that the air vents of the motor unit do not come into contact with any liquids. For optimal efficiency,

two thirds of the stick should be immersed in the preparation.

Whisk function: You can also hold the appliance by the handle with one hand, leaving the other hand free to

hold the bowl, if necessary. While you process the preparation, we recommend that you move the whisk around

in the bowl, in order to ensure that the mixture is completely homogeneous. We strongly advise you to keep the

whisk from touching the sides of the bowl. For Maximum efficiency, at least one-fifth of the whisk length should

be immersed. But never immerse the whisk holder into the preparation.

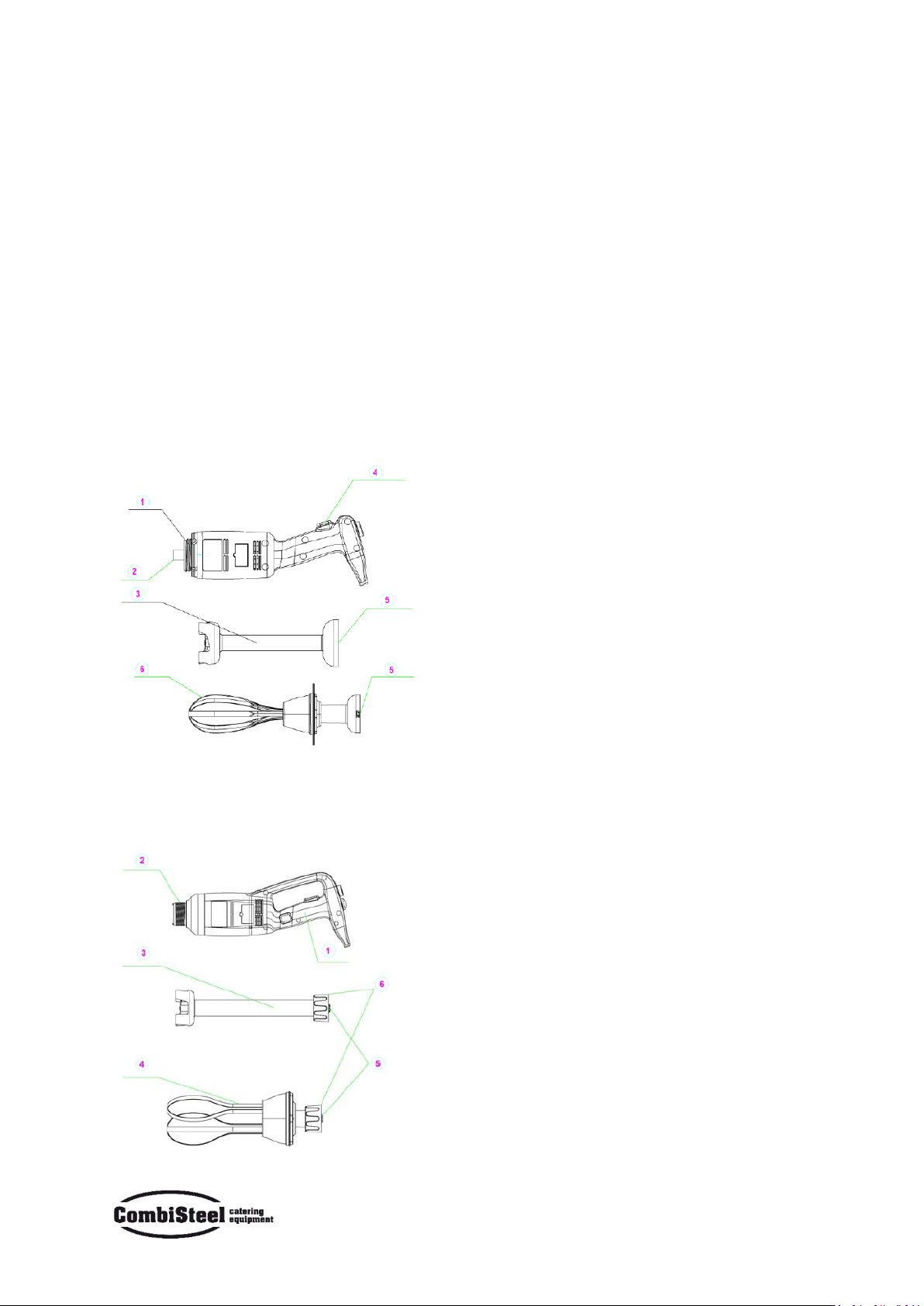

ASSEMBLING / DISMANTLING

The assembly / disassembly operations of every part of the appliance are performed with the appliance

stopped and with the plug disconnected from the socket.

Assembly Model 7455.0170:

1. Align and insert the coupling (5) of the stick (3) or whisk (6) in the clutch (2) of the machine body (1).

2. Screw the stick (3) or whisk (3) up to fasten it firmly to the machine body (1).

Assembly Model 7455.0175, 7455.0180, 7455.0185:

1. Align and insert the coupling (5) of stick (3) or whisk (4) in the clutch (2) of the machine body (1). Be sure the

concave side of coupling catches into the convex of the clutch.

2. Screw the nut (6) up to fasten them firmly to the machine body (1).

www.combisteel.com

The disassembly activities are performed in the opposite way than what described in the assembly phases.

CLEANING INSTRUCTIONS

As a precaution, always unplug your appliance before cleaning it.

1. After using the Immersion Blender and Whisk in a hot preparation, cool the bottom of the stick in cold water

before dismantling the bell from the stick. After completion of preparation, clean immediately to prevent food

from sticking to surfaces.

2. Never put the motor unit and its handle in water, clean them with a damp cloth or a sponge.

3. Blender Stick and Bell cleaning: Place the stick and bell into a suitable container with clean water and switch

on for a few seconds to clean the bell and stick. WARNING: Always dry the blades thoroughly after cleaning to

avoid spotting.

4. Never immerse the whisk holder in water, clean it with a slightly damp cloth or sponge.

5. It is vital to clean it thoroughly between each job using a detergent or disinfectant, but never use pure bleach.

For plastic parts, do not use detergents that are too alkaline.

TROUBLESHOOTING

If it is due to a power cut or if the appliance has been unplugged, release the on-off button (No.3), check the

power supply and then restart the appliance.

If it is due to overheating of the machine, release the on-off button (CB), and then unplug the appliance, wait a

few minutes for the motor to cool down and the thermal safety mechanism to be at reset, and then restart the

appliance.

If you cannot locate the cause of the problem: release the on-off button (CB), unplug the appliance, check:

1. the plug

2. that the blades are free to rotate in the bell,

3. that state of the power cord,

4. that drive shaft is free to rotate. To do this, remove the bell and test the rotation of the end of drive shaft

manually.

If a malfunction occurs which is not on our list of possible faults, consult your retailer or return the appliance to

the after-sales services.

www.combisteel.com

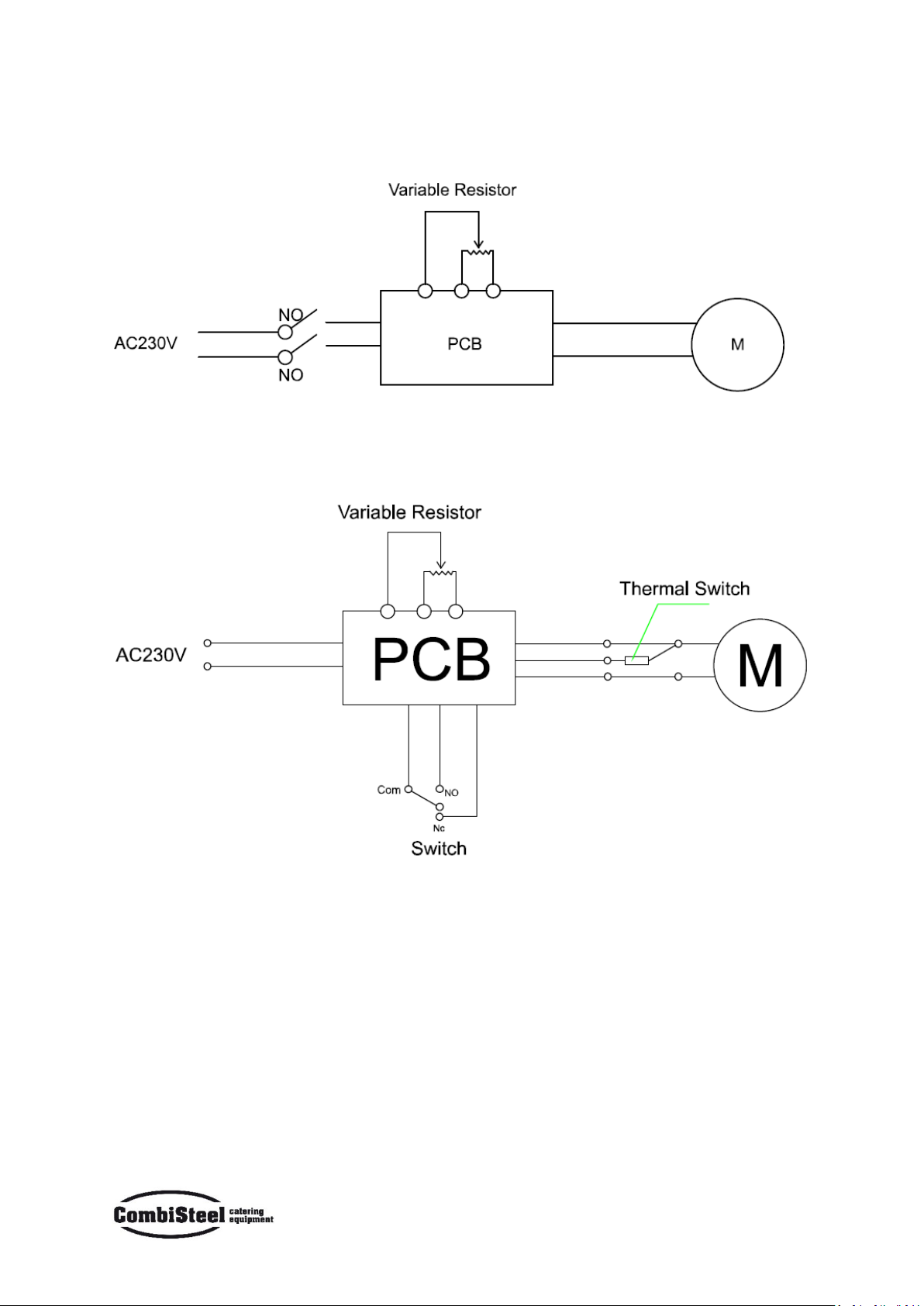

CIRCUIT DIAGRAM

7455.0170

7455.0175 / 7455.0180 / 7455.0185

www.combisteel.com

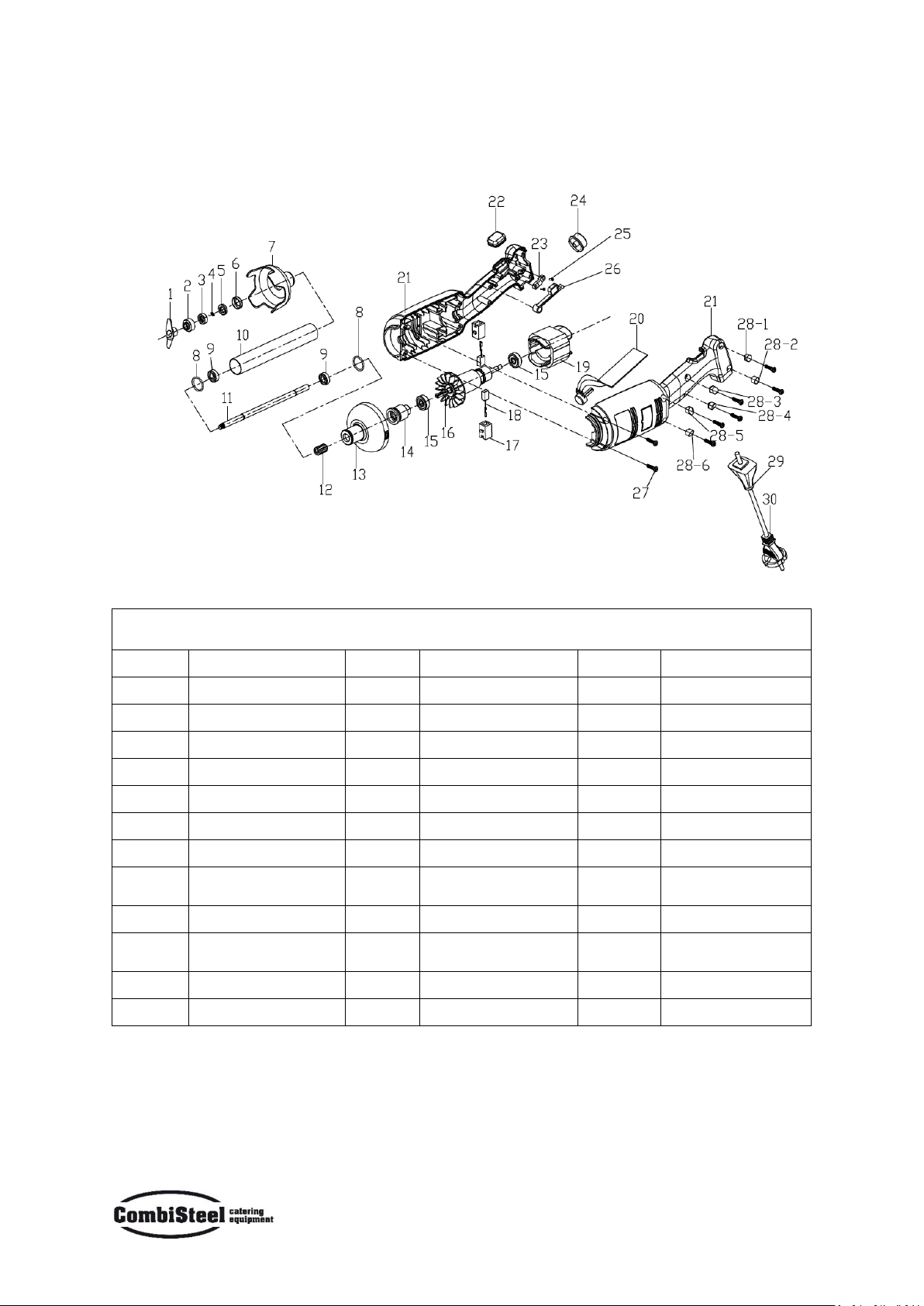

EXPLODED VIEW & SPARE PART LIST

7455.0170

7455.0170 SPARE PART LIST

Part no.

Part name

Part no.

Part name

Part no.

Part name

Blade

Plastic head housing

Pressing board screw

Convex ring

Spline sleeve

Switch osculant staff

Graphite ring spring

Bearing

Housing screw

Graphite ring

Rotor

28-1

Screw plunger 28-1

Ceramic ring

Brush rack

28-2

Screw plunger 28-2

Ceramic ring sleeve

Brush

28-3

Screw plunger 28-3

Knife protector

Stator

28-4

Screw plunger 28-4

Seal ring

PCB speed control

board

28-5

Screw plunger 28-5

Bearing

Left and right housing

28-6

Screw plunger 28-6

S/S tube

Rubber interlocking

protector

Cable sheath

Output axis

Pressing board

Power cord

Spline

Speed control key

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere CombiSteel Handmixer Handbücher

CombiSteel

CombiSteel 7067 Series Bedienungsanleitung

Beliebte Handmixer Handbücher anderer Marken

Philips

Philips Essence 5000 Series Bedienungsanleitung

KitchenAid

KitchenAid 5KHM5110 Bedienungsanleitung

emerio

emerio HM-110921.1 Bedienungsanleitung

KitchenAid

KitchenAid KHMB732 Bedienungsanleitung

ARDES

ARDES ARSBAT01 Bedienungsanleitung

ECG

ECG RS 840 Bedienungsanleitung

TEFAL

TEFAL PREP'LINE HT4111 Bedienungsanleitung

Oster

Oster 2534 Bedienungsanleitung

Bosch

Bosch CleverMixx Spotlight MFQ25 Series Bedienungsanleitung

Grundig

Grundig HM 6280 Bedienungsanleitung

Clatronic

Clatronic ProfiCook SM 3044 Bedienungsanleitung

Oster

Oster 2574 Bedienungsanleitung

DCOOK

DCOOK 5425945 Bedienungsanleitung

Gorenje

Gorenje ME510W Bedienungsanleitung

Oster

Oster 2534 Bedienungsanleitung

Sunbeam

Sunbeam 2484 Bedienungsanleitung

Currys

Currys Essentials C12HMW17 Bedienungsanleitung

Orbegozo

Orbegozo BA 3250 Bedienungsanleitung
