CVM-AX1
3.5mm Dual-Groups Audio Mixer
USER MANUAL
Foreword
Thanks for purchasing COMICA CVM-AX1 3.5mm Dual-Groups Audio Mixer.
The Comica CVM-AX1 is a 3.5mm Dual-Groups Audio Mixer for shooting videos
with any camera and camcorder . It is designed with support positive & passive
mic, real-time monitoring, dual gain-control knobs functions etc. It provides a
compact audio mixing solution.
Please read this manual carefully before using. This product has been precisely
calibrated at the factory, do not assemble and disassemble parts by yourself.

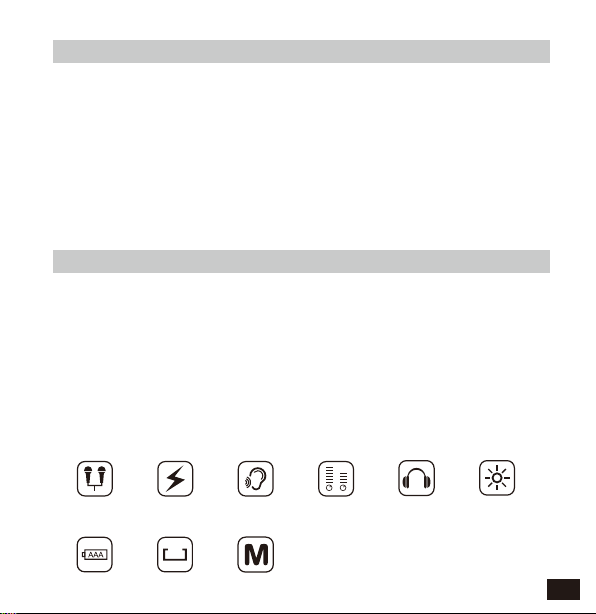

. Dual 3.5mm Mics(2-Groups) Audio Mixer
. Support both Positive and Passive Mic
. Support Real-time Monitoring
. Dual Gain-Control Knobs
. Mono/Stereo Output Switch
. Designed with Working Status Indicator
. Driven by AAA Battery
. Three Cold Shoes for Flexible Use
. Aluminum Alloy Material
Dual Mics
Audio Mixer
Dual Gain-Control
Knobs
Mono/Stereo
Output Switch
Real-time
Monitoring
Support Positive &
Passive Mic
Driven by
AAA Battery
Three Cold-shoes
for Flexible Use
Aluminum Alloy
Material
Working Status
Indicator
Main Features
1
Notice
Mono and stereo inputs cannot be used simultaneously.
Please do not put the device beside the heat or interference source.
Please avoid falling, collision or pounding during usage.
Don’t expose the device in rain or moist environment .

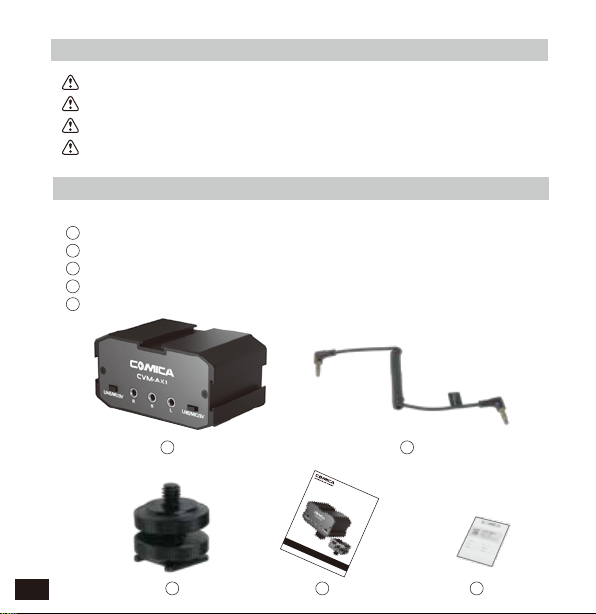

Package Contents
Audio Mixer
3.5mm Audio Output Cable
Cold Shoe Mount
User Manual
Warranty Card
1
1 2
3 4 5
2
3
4
5
CVM-AX1
3.5mm Dual-Groups Audio Mixer
USER MANUAL
2

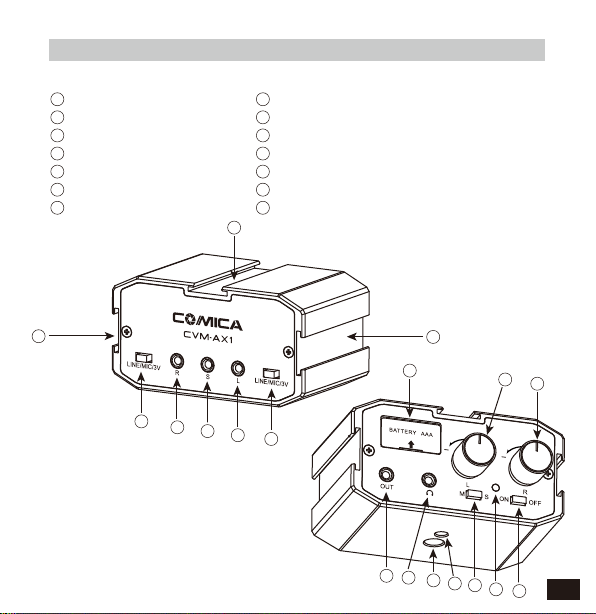

Components and Instruction
Audio Mixer
Cold Shoe Interface
LINE/MIC/3V Switch
Mono Input Jack(Right)
Stereo Input Jack
Mono Input Jack(Left)
AAA Battery Holder
Gain-Control Knob
1
2
3
4
5
6
7
Audio Output Jack
Real-time Monitoring Jack
3/8 Screw Hole
1/4 Screw Hole
Mono/Stereo Switch
Power Indicator Light
Power Switch
8
9
10
11
12
13
14
677
1
1
1
2
8910 11 12 13 14
3452
3
Installation and Usage

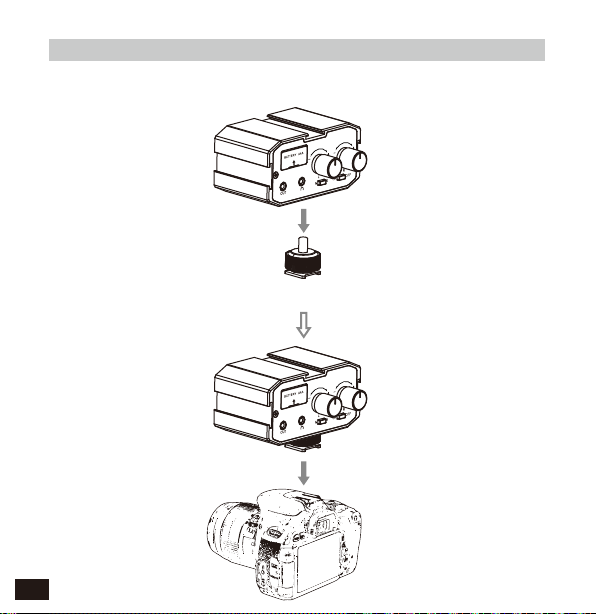

1. Mount the cold shoe mount to the audio mixer
2. Fix the audio mixer to the camera with the cold shoe mount
4

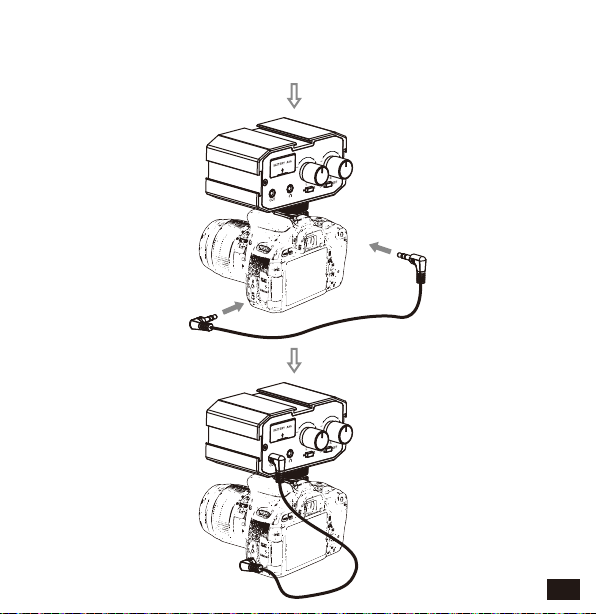

3. Connect audio mixer’s Audio Output Jack(OUT) and camera Audio
Input Jack with a audio cable
5

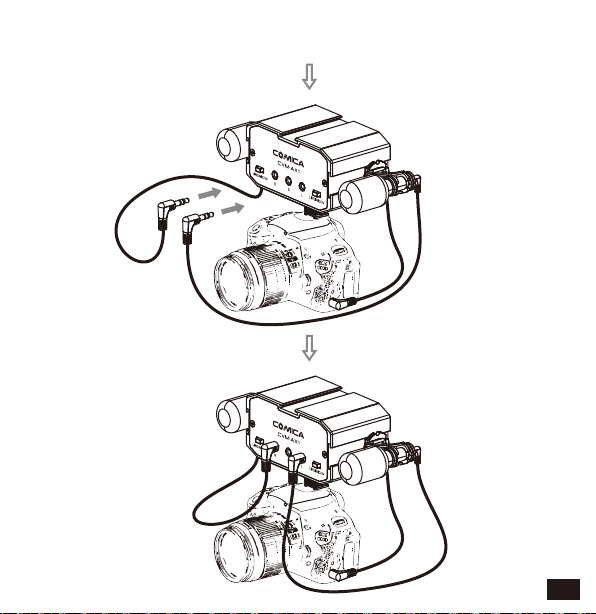

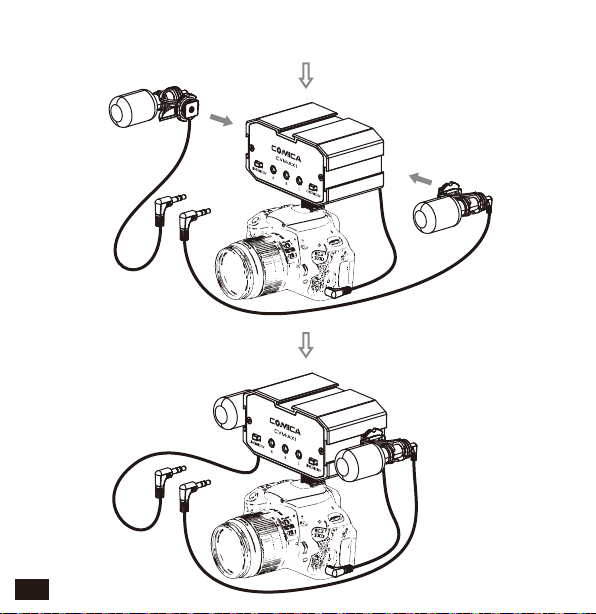

4. Mount mics to the cold-shoe Interfaces of audio mixer
6
5. Connect the mic and audio mixer
7

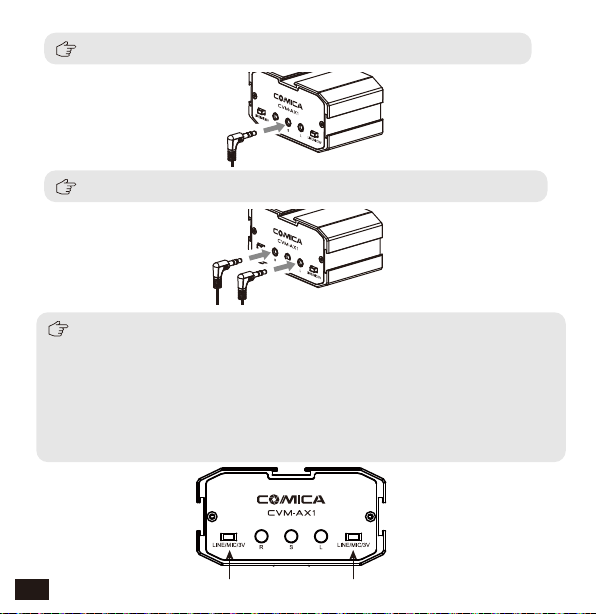

For stereo mic, connect it to the stereo input jack ('S')
For mono mic, connect it to the corresponding 'L' / 'R' input jack
Before using, you need to set the "LINE/MIC/3V switch" to the
corresponding position according to the microphone type
LINE/MIC/3V Switch LINE/MIC/3V Switch
a. If you are using LINE IN input, set the switch to the “LINE”;
b. If you are using a positive microphone(Microphone with internal
battery-powered), set the switch to the “MIC”;
c. If you are using a passive microphone(Microphone without internal
battery-powered), set the switch to the “3V”
8
