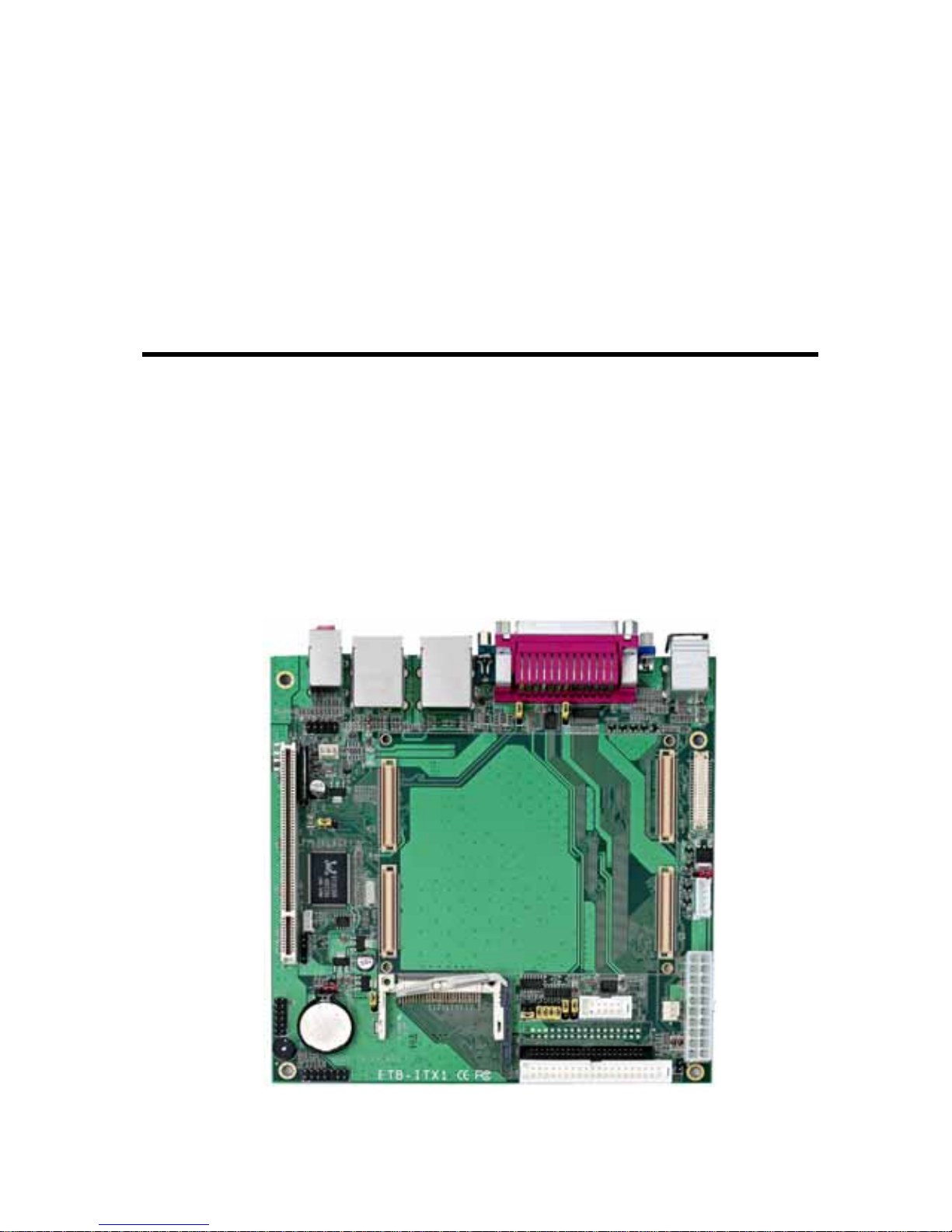

Commell ETB-ITX1 Bedienungsanleitung
ETB-ITX1
ETX Baseboard
User’s Manual
Edition 1.0
2006/5/30
ETB-ITX1 User’s Manual
2
Copyright
Copyright 2006 all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and protected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of
their respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
ETB-ITX1 User’s Manual
3
COM port Cable x 1

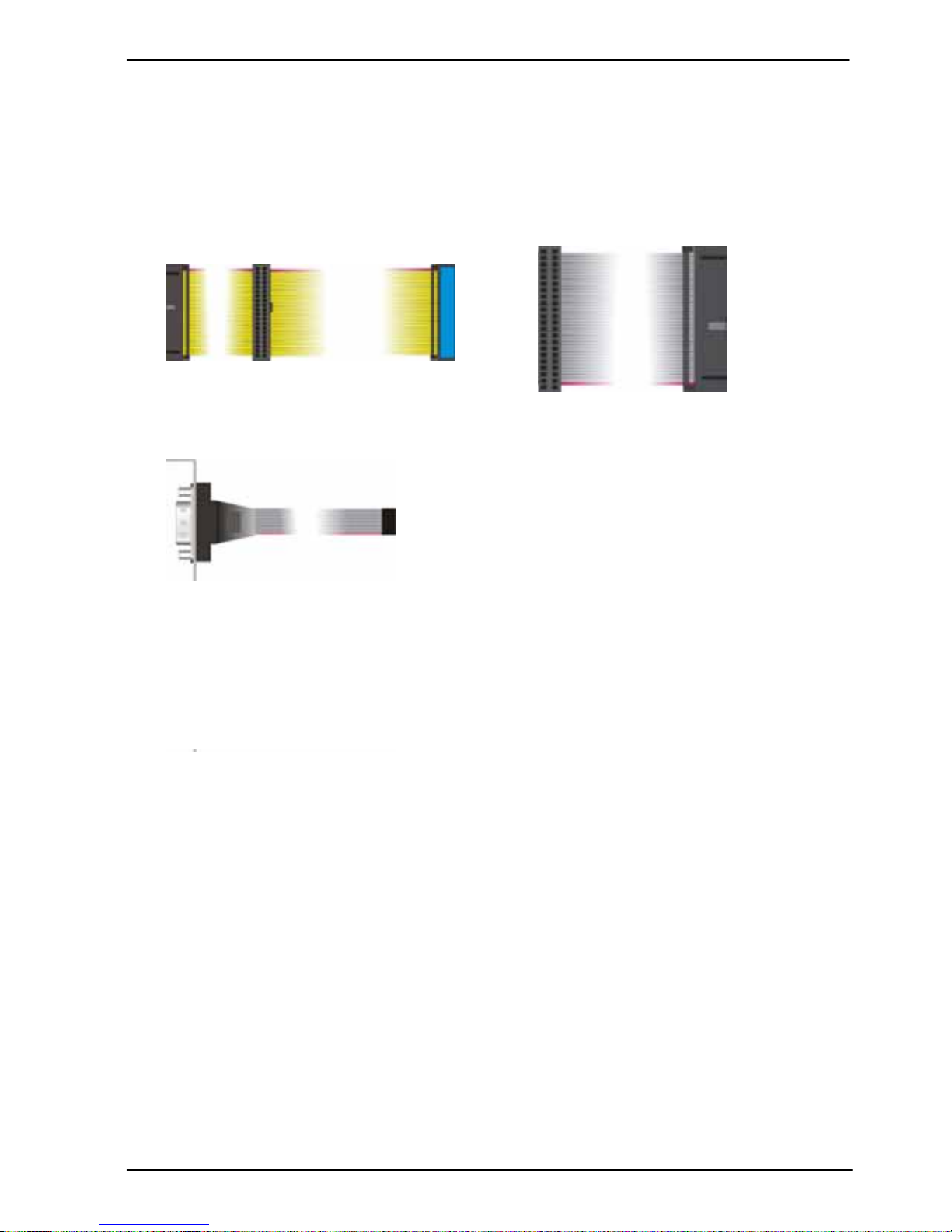

Packing List:
Please check the package content before you starting using the board.
Hardware:
ETB-ITX1 baseboard x 1
Cable Kit:
ATA100 IDE Cable x1
Printed Matters:
User’s Manual x 1
44-pin ATA33 IDE Cable x 1
ETB-ITX1 User’s Manual
4
Index
Chapter 1 <Introduction>................................................................................7
1.1 <Product Overview>............................................................................7
1.2 <Product Specification> ......................................................................8
1.3 <Mechanical Drawing>......................................................................10
1.4 <Block Diagram>...............................................................................11
Chapter 2 <Hardware Setup>........................................................................13
2.1 <Connector Location>.......................................................................13
2.2 <Jumper Location & Reference> ......................................................14
2.3 <Connector Reference>....................................................................15
2.3.1 <Internal Connectors>...........................................................15
2.3.2 <External Connectors>..........................................................15
2.4 <Enhanced IDE Interface>................................................................16
2.5 <Ethernet Interface> .........................................................................17
2.6 <Display Interface> ...........................................................................18
2.6.1 <Analog Display> ..................................................................18
2.6.2 <Digital Display>....................................................................19
2.7 <Audio Interface>..............................................................................22
2.8 <Serial Port Jumper Setting>…...……………………………23
2.9 <GPIO Interface>………………………………………………………...25
2.10 <Power Supply>..............................................................................26
2.10.1 <Power Input>.....................................................................26
2.11 <Switch and Indicator>....................................................................27
Appendix A <I/O Port Pin Assignment>.......................................................29
A.1 <IDE Port>........................................................................................29
A.2 <IrDA Port>.......................................................................................31
A.3 <Serial Port>.....................................................................................31
A.4 <VGA Port>.......................................................................................32
A.5 <LAN Port>.......................................................................................32
A.6< LPT Port >……………………………………………………………….33
ETB-ITX1 User’s Manual
5
Appendix B <Flash BIOS>……………………………………………………….34
B.1 <Flash Tool>.....................................................................................34
B.2 <Flash BIOS Procedure> .................................................................34
Contact Information..........................................................................................35
ETB-ITX1 User’s Manual
6
(This Page is Left for Blank)
ETB-ITX1 User’s Manual Introduction
Product Overview 7
Chapter 1 <Introduction>
1.1 <Product Overview>
ETB-ITX1 is the ETX Module baseboard provide VGA, Audio, PCI slot , LVDS, Dual
LAN, CF, IDE, Serial Port and LPT Port.
All in One multimedia solution
The baseboard provides 18/24-bit dual channel LVDS connector and 2 channels Audio,
to meet the very requirement of the multimedia application.
Flexible Extension Interface
The baseboard provides one PCI slot supports up to 2 PCI devices.
ETB-ITX1 User’s Manual Introduction
Product Specification
8
1.2 <Product Specification>
General Specification
Form Factor Mini-ITX Baseboard
Real Time Clock RTC with lithium battery
Enhanced IDE Provide UltraDMA100 IDE interface supports up to 4 ATAPI devices
One 40-pin and one 44-pin IDE
One Compact Flash Type II socket
Multi-I/O Port
Serial Port One external DB9 male connector on rear I/O panel and one internal
RS-232/422/485 serial port
USB Port Four external Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
on rear I/O panel
Parallel Port One external DB25 female connector on rear I/O panel
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O interface
Fan Two fan connectors
VGA Display Interface
Connector External DB15 female connector on rear I/O panel
Onboard 40-pin LVDS connector
ETB-ITX1 User’s Manual Introduction
Product Specification 9
Ethernet Interface
Chipset Realtek RTL8100B
Type 10/100 Base-T
auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Two External RJ45 connectors with LED on rear I/O panel
Audio Interface
Interface 2 channels sound output
Connector External Audio phone jack for Line-out, Line-in, MIC-in.
Onboard audio connector with pin header (built-in amplifier for speaker
out)
Expansive Interface
PCI One PCI slot for supports up to 2 PCI bus master PCI devices.
(32-bit, 33MHz)
Power supply: +3.3V, +5V
Power and Environment
Power
Requirement Standard ATX Power connector
Dimension 170(L) x 170 (H) mm
Temperature Operating within 0 ~ 60PoPC (32 ~ 140PoPF)
Storage within -20 ~ 85PoPC (-4 ~ 185PoPF)
Ordering Code
ETB-ITX1 ETX Module baseboard
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT
ETB-ITX1 User’s Manual Introduction
Mechanical Drawing
10

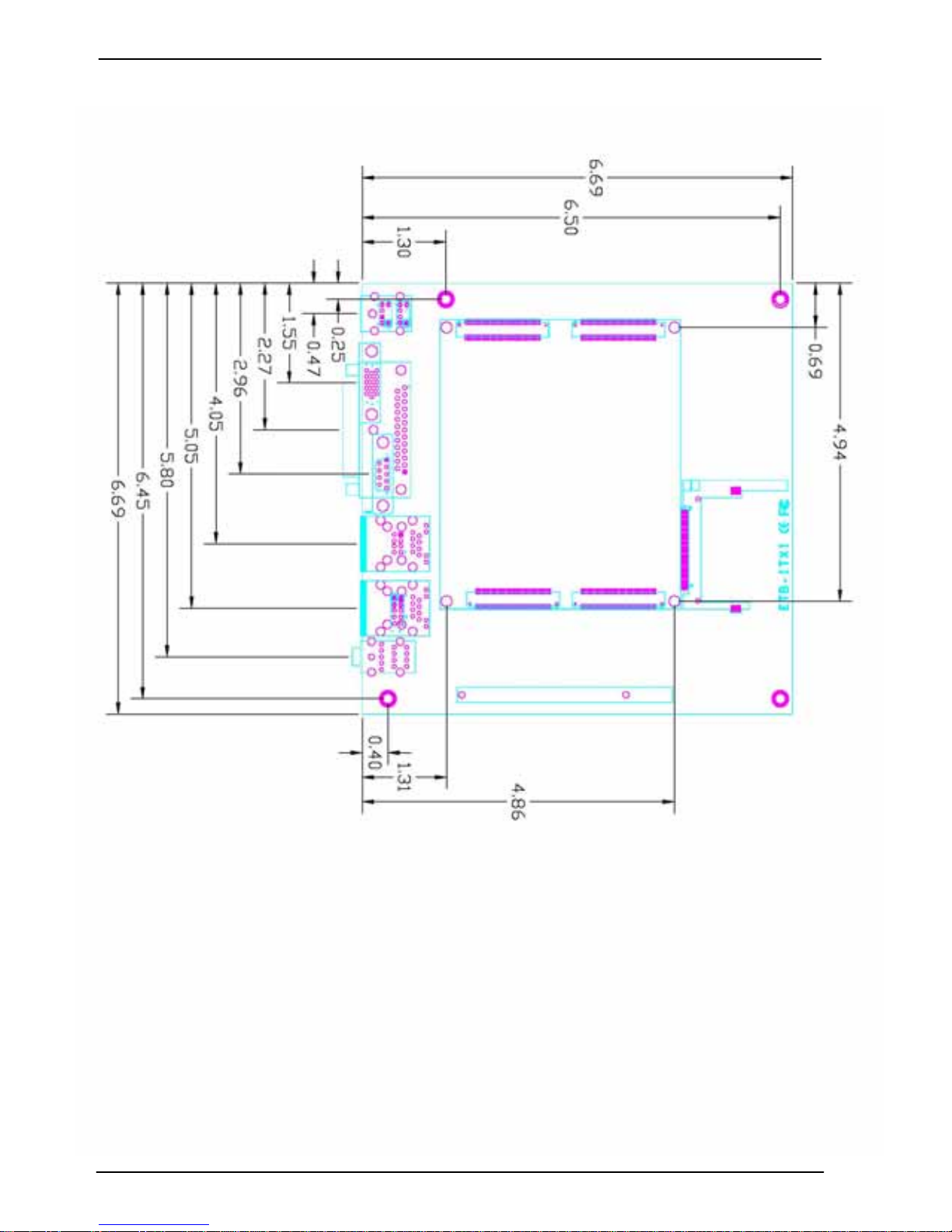

1.3 <Mechanical Drawing>
