LV-667

Mini-ITX Motherboard

User’s Manual

Edition 1.2

2010/01/07

LV-667 User’s Manual

reserved. The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

LV-667 User’s Manual

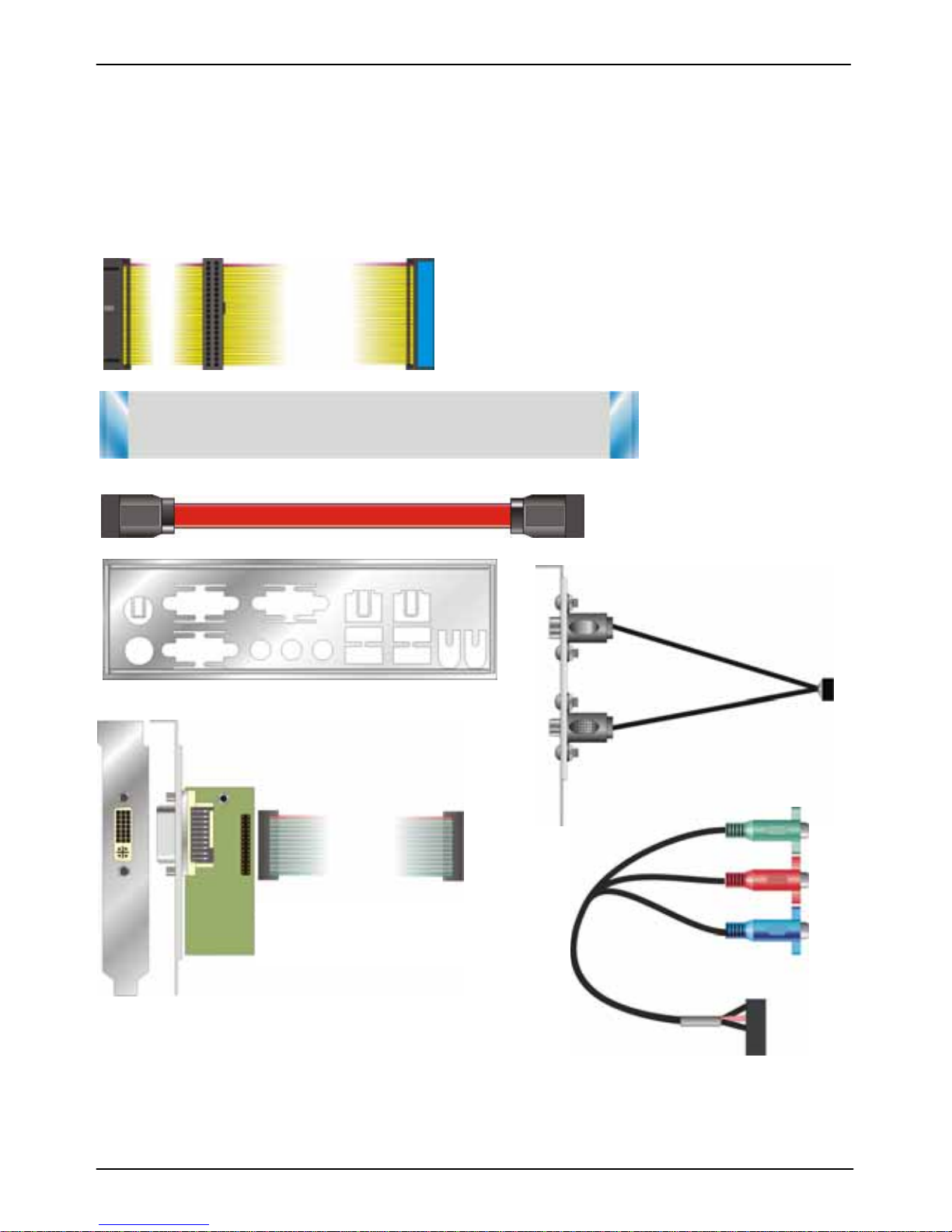

Packing List

Please check the package before you starting setup the system

Hardware:

LV-667 series motherboard x 1

Cable Kit:

40-pin ATA100 IDE flat cable x 1

26-pin slim type floppy cable x 1

Serial ATA ribbon cable x 1

I/O Shield x 1

Other Accessories:

Divers CD (including User’s Manual) x 1

DVI output cable kit (LV-667D only)

SDTV cable (LV-667T only)

YPrPb component cable (LV-667T only)

LV-667 User’s Manual

Index

Chapter 1 <Introduction>.....................................................................................7

1.1 <Product Overview>.................................................................................7

1.2 <Product Specification>...........................................................................8

1.3 <Mechanical Drawing>........................................................................... 11

1.4 <Block Diagram>....................................................................................12

Chapter 2 <Hardware Setup>.............................................................................13

2.1 <Connector Location>............................................................................13

2.2 <Jumper Reference> .............................................................................14

2.3 <Connector Reference>.........................................................................15

2.3.1 <Internal Connector>..................................................................15

2.3.2 <External Connector>.................................................................15

2.4 <CPU and Memory Setup>....................................................................16

2.4.1< CPU>........................................................................................16

2.4.2 <Memory> ..................................................................................16

2.5 <CMOS Setup>......................................................................................17

2.6 <Enhanced IDE & CF Interface>............................................................18

2.7 <Serial ATA Interface>...........................................................................19

2.8 <Floppy Port>.........................................................................................20

2.9 <LAN Interface>.....................................................................................21

2.10 <Onboard Display Interface>...............................................................22

2.10.1 <Analog VGA Interface> ..........................................................22

2.10.2 <DVI Interface (LV-667D only)>...............................................23

2.10.3<TV-out Interface (LV-667T only)>............................................24

2.11 <Onboard Audio Interface>..................................................................26

2.12 <USB2.0 & IEEE1394 Interface>.........................................................28

2.13 <GPIO Interface>.................................................................................30

2.14 <Serial Port> ........................................................................................31

LV-667 User’s Manual

2.15 <Power and Fan Connector>...............................................................32

2.15.1 <Power Input>..........................................................................32

2.15.2 <Fan Connector>......................................................................32

2.16 <Indicator and Switch>.........................................................................33

Chapter 3 <System Configuration>...................................................................35

3.1 <SATA RAID Configuration>..................................................................35

3.2 <Audio Configuration> ...........................................................................37

3.3 <Display Configuration>.........................................................................38

Chapter 4 <BIOS Setup> ....................................................................................41

Appendix A <I/O Port Pin Assignment> ...........................................................43

A.1 <IDE Port>.............................................................................................43

A.2 <Floppy Port> ........................................................................................45

A.3 <IrDA Port>............................................................................................45

A.4 < VGA Port >..........................................................................................46

A.5 <Serial ATA Port>...................................................................................46

A.6 <Serial Port>..........................................................................................46

A.8 <LAN Port>............................................................................................47

A.9 <PS/2 Keyboard & Mouse Port>............................................................47

Appendix B <Flash BIOS>..................................................................................49

B.1 BIOS Auto Flash Tool......................................................................49

B.2 Flash Method...................................................................................49

Appendix C <System Resources> ....................................................................51

C.1 <I/O Port Address Map>........................................................................51

C.2 <Memory Address Map>.......................................................................53

C.3 <System IRQ & DMA Resource>..........................................................54

C.3.1 <IRQ> ........................................................................................54

C.3.2 <DMA>.......................................................................................55

Appendix D <Power Consumption Test>.........................................................57

Contact Information............................................................................................58

LV-667 User’s Manual

(The Page is Left For Blank)

LV-667 User’s Manual Introduction

Product Overview 7

Chapter 1 <Introduction>

1.1 <Product Overview>

LV-667 is the Mini-ITX motherboard based on VIA chipset. It integrates the last VIA

embedded chipset for CN400 with VT8237, DDR266/333/400 SDRAM, and serial ATA with

RAID to provide the economical embedded platform.

VIA CN400 & VT8237 Chipset

The board comes with the VIA last embedded chipset of CN400, supports DDR266/333/400

SDRAM, integrated the S3 Graphics UniChrome Pro IGP graphics core, hardware MPEG-2

and MPEG-4 acceleration and HDTV interface.

The VT8237 provides the board to support Ultra V-Link (1GB/s) with CN400, two serial ATA

ports with RAID array function, 6 x USB2.0 ports and 5.1 channelAC97 audio.

Multimedia solution

Based on VIA CN400 chipset, the board provides optional 18/24-bit LVDS, HDTV and DVI

interface, which supports dual independent display with CRT. The board also has an

optional mini-AGP interface to work with AGP 8x graphic card.

Onboard AC97 codec provides the high quality of sound including 20-bit, stereo ADC and

6-channel stereo DACs.

Dual LAN Interface

LV-667 also comes with dual 10/100Mbps LAN interface, support boot-on-LAN and

wake-on-LAN function.

High Speed Hot-plug Interface

Based on VIA VT8237, the board provides 6 USB2.0 interfaces with up to 480Mbps of

transferring rate, 3 IEEE1394a interfaces with up to 400Mbps of transferring rate.

Expanded UCR for remote Operating SETUP Bios Feature

Expanded Universal Console Redirection (UCR) is a feature for monitoring POST

messages and running Setup and an operation system from a remote serial terminal.

LV-667 User’s Manual Introduction

Product Specification

1.2 <Product Specification>

General Specification

Form Factor Mini-ITX motherboard

CPU Embedded VIA C3/Eden processor

Ratio: 1.0GHz/800MHz

L1/L2 Cache: 128/64KB

Front side bus: 133MHz

Fanless with Eden 800MHz processor

Optional up to 1.2GHz with 200MHz FSB

Memory 1 x 184-pin DDR 266/333/400 SDRAM up to 1GB

Unbufferred, none-ECC memory supported only

Chipset VIA CN400 and VT8237

BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock VIA VT8237 built-in RTC with lithium battery

Enhanced IDE Enhanced IDE interface supports dual channels and up to 4

ATAPI devices at Ultra DMA133

One 40-pin and one 44-pin IDE port onboard

Serial ATA VIA VT8237 integrates 2 Serial ATA interface

RAID 0, 1 array Technology supported

Multi-I/O Port

Chipset VIA VT8237 with Winbond W83697UF controller

Serial Port Two external & two internal RS-232 serial ports

USB Port Six Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

Parallel Port None

Floppy Port One slim type Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

interface

Hardware

Monitor Fan speed, CPU temperature and voltage monitoring

VGA Display Interface

Chipset VIA CN400 built-in S3 Graphics UniChrome Pro IGP graphics core

Core Frequency 200MHz

Memory BIOS selectable 16/32/64MB shard with system memory

Display Type CRT, LCD monitor with analog display

Connector External DB15 female connector on rear I/O panel

LV-667 User’s Manual Introduction

Product Specification 9

Optional SDTV/HDTV Interface

Codec VIA VT1625

TV system NTSC (M and J) or PAL (B, D, G, H, I, M, N and Nc) TV system

Output Interface Composite, S-Video, Component (YPbPr) and D terminal

Output Format SDTV output mode for 525p or 625p

HDTV support for 1080i (D3) and 720p (D4)

Resolution NTSC - 525i(480i) , 525p(480p) , PAL - 625i(576i) , 625p(576p) ,

HDTV - 1080i , 720p

Optional DVI Interface

Codec VIA VT1632

Standard Compliant with DVI 1.0

Input Clock 25 ~ 165MHz

Resolution Up to 1600 x 1200

Output Interface DVI-D

Ethernet Interface

Chipset VIA VT6103 PHY & REALTEK 8100B

Type 10Base-T / 100Base-TX

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector Dual External RJ45 connectors with LED on rear I/O panel

Audio Interface

Chipset VIA VT1616

Interface 5.1 channel 3D audio with Line-in, Line-out and MIC-in

Connector External Audio phone jack for Line-out/Front, Line-in/Rear and

MIC(stereo)-in/Center

Onboard audio connector with pin header

Onboard CD-IN connector

Onboard 5-pin S/PDIF interface (optional output kit required)

Expansive Interface

Mini-AGP 1 x AGP 8x interface supported (Optional)

PCI 1 x PCI slot supports up to two PCI devices through riser card

IEEE1394 VIA VT6306 controller integrated

IEEE1394a supported

Up to 400Mb/s of transferring rate

Power and Environment

Power

Requirement Standard ATX 20-pin power supply

Dimension 170 (L) x 170 (H) mm

Temperature Operating within 0 ~ 60P

PC (32 ~ 140P

PF)

Storage within -20 ~ 85P

PC (-4 ~ 185P

PF)

LV-667 User’s Manual Introduction

Product Specification

Software support

Operation

System Windows 98SE/ME, Windows 2000, Windows XP

Windows CE 4.0 or later, Windows XP Embedded

Linux (Fedora Core 1, Mandrake 9.2 and Red Hat 9.0)

Ordering Code

LV-667 VIA CN400 with Embedded C3 1.0GHz, VGA, SATA, 5.1CH

Audio, CF, PCI, 4 x RS232, Dual LAN, Mini-AGP

LV-667D VIA CN400 with Embedded C3 1.0GHz, VGA, SATA, 5.1CH

Audio, CF, PCI, 4 x RS232, Dual LAN, DVI

LV-667T VIA CN400 with Embedded C3 1.0GHz, VGA, SATA, 5.1CH

Audio, CF, PCI, 4 x RS232, Dual LAN, HDTV

LV-667E8

(Fanless) VIA CN400 with Embedded Eden ESP8000 processor, VGA,

SATA, 5.1CH Audio, CF, PCI, 4 x RS232, Dual LAN, Mini-AGP

LV-667E8D

(Fanless) VIA CN400 with Embedded Eden ESP8000 processor, VGA,

SATA, 5.1CH Audio, CF, PCI, 4 x RS232, Dual LAN, DVI

LV-667E8T

(Fanless) VIA CN400 with Embedded Eden ESP8000 processor, VGA,

SATA, 5.1CH Audio, CF, PCI, 4 x RS232, Dual LAN, HDTV

MA-ATI AGP 8x graphic card with ATI M10 GPU, 64MB DDR VRAM for

Mini-AGP

MA-1631X 18/24-bit LVDS add-on card for Mini-AGP

1. Please do not order other Mini-AGP modules excluded in the list for this board.

2. The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

Inhaltsverzeichnis

Andere Commell Hauptplatine Handbücher

Commell

Commell LP-175 Bedienungsanleitung

Commell

Commell LE-37C-G Bedienungsanleitung

Commell

Commell LV-67H Bedienungsanleitung

Commell

Commell LV-67M Bedienungsanleitung

Commell

Commell LE-37D Bedienungsanleitung

Commell

Commell FS-97A Bedienungsanleitung

Commell

Commell LP-174 Bedienungsanleitung

Commell

Commell LV-6715 Bedienungsanleitung

Commell

Commell LV-67M Bedienungsanleitung

Commell

Commell LV-602 Bedienungsanleitung

Commell

Commell LV-67N-G Bedienungsanleitung

Commell

Commell LV-67R Bedienungsanleitung

Commell

Commell LE-37M Bedienungsanleitung

Commell

Commell LV-674E Bedienungsanleitung

Commell

Commell HE-B72 Bedienungsanleitung

Commell

Commell MS-C72 Bedienungsanleitung

Commell

Commell LV-67P Bedienungsanleitung

Commell

Commell HS-873P Bedienungsanleitung

Commell

Commell LE-37A Bedienungsanleitung

Commell

Commell Mini-ITX Motherboard LV-671 Bedienungsanleitung

Commell

Commell LV670 Series Bedienungsanleitung

Commell

Commell LS-371 Bedienungsanleitung

Commell

Commell LV-651 series Bedienungsanleitung

Commell

Commell LP-177 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
