Commell LV-677 Bedienungsanleitung

LV-677

Mini-ITXexpress Motherboard

User’s Manual

Edition 1.4

2007/12/20

LV-677 User’s Manual

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

LV-677 User’s Manual

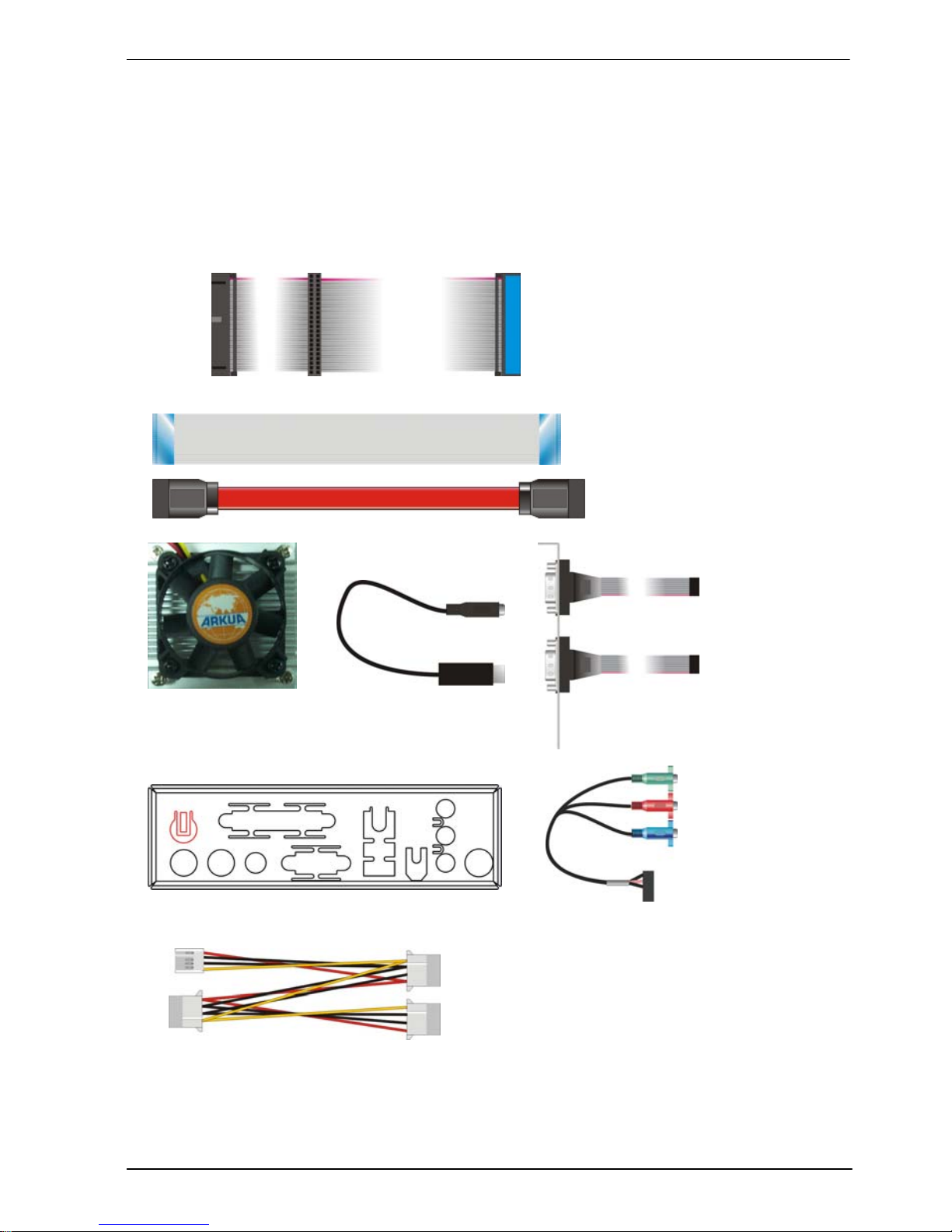

Packing List:

Please check the package content before you starting using the board.

Hardware:

LV-677 or LV-677DC Mini ITX Motherborad x 1

Cable Kit:

44-pin

40-pin

Floppy Cable x 1

SATACable x 2

ATA33 IDE Cable x1

Composite Cable x 1 COM port Cable x 1

I/O Shield x 1

CPU Cooler x 1

4-pin to 4-pin Power Cable x 1

(LV-677DC Only)

Printed Matters:

User’s Manual x 1

Driver CD x 1

YPbPr Cable x 1

LV-677 User’s Manual

Index

Chapter 1 <Introduction>...............................................................7

1.1 <Product Overview> .................................................................7

1.2 <Product Specification>............................................................9

1.3 <Mechanical Drawing>...........................................................11

1.4 <Block Diagram>....................................................................12

Chapter 2 <Hardware Setup>....................................................14

2.1 <Connector Location>.............................................................14

2.2 <Jumper Location & Reference>............................................15

2.3 <Connector Reference>...........................................................16

2.3.1 <Internal Connectors> .........................................................16

2.3.2 <External Connectors> ........................................................16

2.4 <CPU and Memory Setup>.....................................................17

2.4.1 <CPU Setup>.....................................................................17

2.4.2 <Memory Setup>................................................................18

2.5 <CMOS Setup>.......................................................................19

2.6 <Enhanced IDE Interface>......................................................20

2.7 <Serial ATAInterface>............................................................20

2.8 <Floppy Port>..........................................................................21

2.9 <Ethernet Interface>................................................................22

2.10 <Onboard Display Interface>................................................23

2.10.1 <Analog Display>.............................................................23

2.10.2 <Digital Display>..............................................................24

2.10.3 <HDTV Interface> ............................................................28

2.11 <Integrated Audio Interface> ................................................29

2.12 <GPIO Interface>..................................................................31

2.13 <Power Supply>....................................................................32

2.13.1 <Power Input>..................................................................32

2.13.2 <Power Output>................................................................33

2.14 <Switch and Indicator>.........................................................34

LV-677 User’s Manual

Chapter 3 <System Setup>.........................................................35

3.1 <Video Memory Setup> ..........................................................35

Chapter 4 <BIOS Setup>..............................................................37

Appendix A <I/O Port Pin Assignment>............................39

A.1 <IDE Port>..............................................................................39

A.2 <Serial ATAPort>...................................................................40

A.3 <Floppy Port>.........................................................................40

A.4 <IrDA Port>............................................................................40

A.5 <Serial Port>...........................................................................41

A.6 <VGA Port>............................................................................42

A.7 <LAN Port>............................................................................42

A.8 < USB Interface >...................................................................42

Appendix B <Flash BIOS>...........................................................43

B.1 <Flash Tool> ...........................................................................43

B.2 <Flash BIOS Procedure>........................................................43

Appendix C <System Resources>........................................44

Appendix D <Programming Watchdog Timer >..........49

Appendix E <How to setting RS-422 & RS-485>.........50

Contact Information.........................................................................51

LV-677 User’s Manual

(This Page is Left for Blank)

LV-677 User’s Manual

Product Overview 7

Chapter 1 <Introduction>

1.1 <Product Overview>

LV-677 is the new generation of the Mini-ITX motherboard, with supporting Intel Core 2

Duo/Core Duo/ Core Solo processors for 533/667MHz front side bus, Intel 945GM(E)

and ICH7-M chipset, integrated GMA950 graphics, DDR2 memory, REALTEK High

Definition Audio, Serial ATA, PCI Express x1,x16 interface and one Intel 82573L Gigabit

LAN .

Intel Merom dual core Processor

The board supports Intel Core 2 Duo/Core Duo/ Core Solo processors with 533/667MHz

front side bus, 4MB L2 cache, to provide more powerful performance than before.

New features for Intel 945GM(E) chipset

The board integrates Intel 945GM(E) and ICH7-M chipset, to provide new generation of

the mobile solution, supports Intel GMA950 graphics, DDR2 400/533/667 memory,

built-in high speed mass storage interface of serial ATA, High Definition Audio with 5.1

channels surrounding sound.

All in One multimedia solution

Based on Intel 945GM(E) and ICH7-M chipset, the board provides high performance

onboard graphics, 18/24 bit Single/dual channel LVDS interface, HDTV and 5.1

channels High Definition Audio, to meet the very requirement of the multimedia

application.

Flexible Extension Interface

The board provides one PCI-Express x16 slots for graphics card, it also can support

PCI-Express x1 for LAN card or other devices. The board also provides CompactFlash

Type II slot and two mini-PCI slot.

LV-677 User’s Manual

Product Overview 9

1.2 <Product Specification>

General Specification

Form Factor Mini-ITX motherboard

CPU Intel®Core 2 Duo/Core Duo /Core Solo processors

Package type: FC-PGA478

L2 Cache: 4MB

Front side bus: 533/667MHz

Memory 2 x 240-pin DDR2 400/533/667MHz SDRAM up to 3GB

Up to 10.67GB/s of bandwidth with dual-channel interleaved mode

Dual-Channel technology supported

Unbufferred, none-ECC memory supported only

Chipset Intel®945GM(E) (Northbridge) and ICH7-M (Southbridge)

BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min. of

timeout value

Real Time Clock Intel®ICH7-M built-in RTC with lithium battery

Enhanced IDE UltraDMA33 IDE interface supports up to 2 ATAPI devices

One 44-pin IDE port onboard

One CompactFlash Type II socket on solder side

Serial ATA Intel®ICH7-M integrates 2 Serial ATA interfaces(No RAID Function)

Up to 150MB/s of transfer rate

Multi-I/O Port

Chipset Intel®ICH7-M with Winbond®W83627THG controller

Serial Port 1x RS232 Port,1x RS232/422/485 Port

USB Port Six Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

Parallel Port One D-sub 26pin LPT Port

Floppy Port One slim type Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O interface

Smart Fan One CPU fan connectors for fan speed controllable

VGA Display Interface

Chipset Intel®945GM(E) GMCH (Graphic Memory Controller Hub)

Frame Buffer Up to 224MB shared with system memory

Display Type CRT, LCD monitor with analog display

Onboard 18/24-bit single/dual channel LVDS interface

TV-out

Connector External DB15 female connector on rear I/O panel

Onboard 40-in LVDS connector

Onboard Mini Din 7-pin TV-out connector

LV-677 User’s Manual

Product Specification

Ethernet Interface

Controller Intel 82573L Gigabit Ethernet controller

Type Triple speed 10/100/1000Base-T

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector One External RJ45 connector with LED on rear I/O panel

Audio Interface

Chipset Intel®ICH7M with Realtek®ALC880 High Definition Audio compliance

Interface 5.1 channels sound output

Connector External Audio phone jack for Line-out, Line-in, MIC-in.

Onboard audio connector with pin header (built-in amplifier for speaker

out and MIC-in)

Onboard CD-IN connector

S/PDIF on rear I/O panel

Expansive Interface

PCI-Express One x16 PCI-Express slot (compatible with x1 slot)

Up to 8GB/s of transfer bandwidth

Power supply: +3.3V, +12V

PCI Two Mini-PCI socket for TYPE III B (32-bit, 33MHz)

Power supply: +3.3V, +5V

IEEE1394 One IEEE 1394 connector on rear I/O Panel

Power and Environment

Power

Requirement Standard 24-pin ATX power supply (20-pin is compatible)

(LV-677) or 8~21V full range DC Input (LV-677DC)

Input Range 8V ~ 21V full range DC Input (LV-677DC)

Dimension 170 (L) x 170 (H) mm

Temperature Operating within 0 ~ 60PoPC (32 ~ 140PoPF)

Storage within -20 ~ 85PoPC (-4 ~ 185PoPF)

Ordering Code

LV-677 Onboard VGA,LVDS, one Intel Gigabit LAN, 6 x USB2.0,HDTV, 2 x

Mini-PCI, HD Audio, SATA , 24-pin power connector(ATX PSU)

LV-677DC Onboard VGA,LVDS, one Intel Gigabit LAN, 6 x USB2.0,HDTV, 2 x

Mini-PCI, HD Audio, SATA , 4-pin Power Din(DC adapter)

PCIE-SDVOX PCI-Express add-on card for 18/24bit dual channel LVDS Interface

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT
