Commell LV-67D Bedienungsanleitung

LV-67D

Mini-ITX Motherboard

User’s Manual

Edition 1.3

2010/05/11

LV-67D User’s Manual

-1-

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners.

Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

LV-67D User’s Manual

-2-

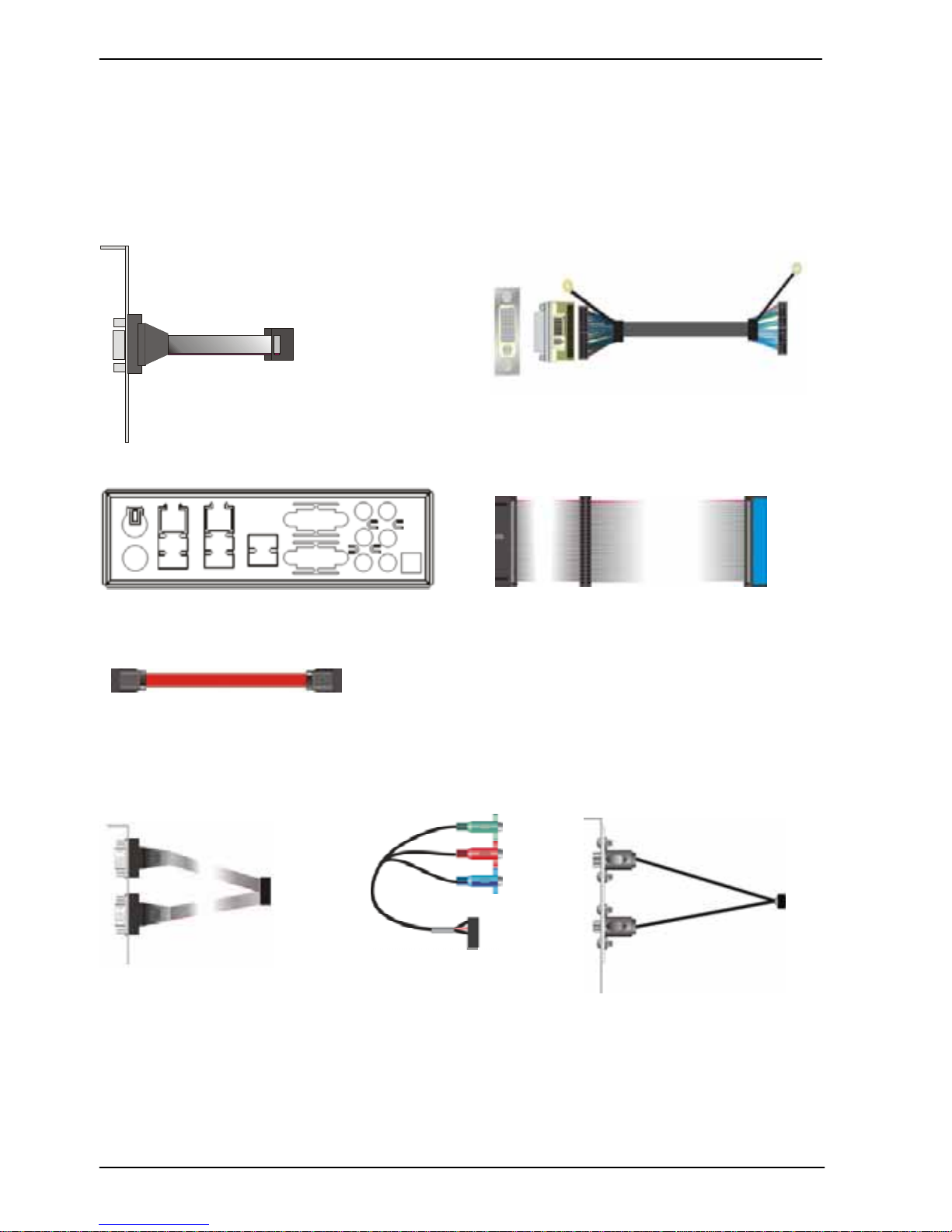

Packing List:

Please check the package content before you starting using the board.

Hardware:

LV-67D Mini-ITX Motherborad x 1

Cable Kit:

COM Port Cable x 1

(OAL1S)

SATA Cable x 1

(OALSATA-L)

40-pin

ATA33 IDE Cable x 1

(OALUDMA33-8)

44-pin

DVI module with DVI Cable x 1

(LV-67DD Only)

(BADPDVI_A + OALDVI-P)

I/O Shield x 1

(OPLATE-P4BWA)

Dual COM PORT cable

(OALES-BKU2)

YPbPr Cable x 1

(OALTV-OUT-H) SDTV Cable x 1

(

OALT

-OUT

)

Optional Cable:

Printed Matters:

Driver CD (Including User’s Manual) x 1

LV-67D User’s Manual

-3-

Index

Chapter 1 <Introduction>..............................................................................................6

1.1 <Product Overview>.........................................................................................6

1.2 < Product Specification >..................................................................................7

1.3 <Mechanical Drawing>.....................................................................................9

1.4 <Block Diagram>............................................................................................10

Chapter 2 <Hardware Setup>......................................................................................11

2.1 <Connector Location>....................................................................................11

2.2 <Jumper Location & Reference>....................................................................12

2.3 <Connector Reference>.................................................................................13

2.3.1 <Internal Connectors> .......................................................................13

2.3.2 <External Connectors>......................................................................13

2.4 <Memory Setup>............................................................................................14

2.5 <CMOS Setup>..............................................................................................15

2.6 <Enhanced IDE & CF Interface>....................................................................16

2.7 <Serial ATA Interface>....................................................................................17

2.8 <Ethernet Interface>.......................................................................................17

2.9 <Onboard Display Interface> .........................................................................18

2.9.1 <Analog Display>...............................................................................18

2.9.2 <Digital Display>................................................................................19

2.9.3 <LVDS2 Interface LV-67DX only >.....................................................20

2.9.4 <Panel type table >............................................................................23

2.9.5 <DVI Interface LV-67DD only > .........................................................24

2.9.6 <HDTV Interface>..............................................................................25

2.10 <Integrated Audio Interface>........................................................................26

2.11 <GPIO Interface & SMBUS> ........................................................................28

2.12 <Serial Port> ................................................................................................29

2.13 <Power Supply>...........................................................................................31

2.13.1 <Power connector>..........................................................................31

2.13.2 <Fan connector & JAT JUMPER>....................................................32

LV-67D User’s Manual

-4-

2.14 <Switch and Indicator> ................................................................................33

Chapter 3 <System Setup>.........................................................................................34

3.1 <Audio Configuration> ...................................................................................34

3.2 <Display Properties Setting>..........................................................................35

Chapter 4 <BIOS Setup>.............................................................................................37

Appendix A <I/O Port Pin Assignment>.....................................................................39

A.1 <Serial ATA Port>...........................................................................................39

A.2 <IrDA Port>....................................................................................................39

A.3 <Serial Port 1>...............................................................................................39

A.4 <IDE Port>.....................................................................................................40

A.5 <VGA Port> ...................................................................................................40

A.6 <LAN Port>....................................................................................................41

A.7 < USB Interface >..........................................................................................41

Appendix B <Flash BIOS>..........................................................................................42

B.1 <Flash Tool>..................................................................................................42

B.2 <Flash BIOS Procedure> ..............................................................................42

Appendix C <System Resources> .............................................................................43

C.1 <I/O Port Address Map>................................................................................43

C.2 <Memory Address Map> ...............................................................................45

C.3 < IRQ Resources>.........................................................................................46

Appendix D <Programming GPIO’s> .........................................................................47

Appendix E <Programming Watchdog Timer > ........................................................48

Contact Information ....................................................................................................49

LV-67D User’s Manual

-5-

(This page is left for blank)

LV-67D User’s Manual

-6-

Chapter 1 <Introduction>

1.1 <Product Overview>

LV-67D is the Mini-ITX miniboard, with Intel® Atom N270 processor for 533 MHz front

side bus, Intel® 945GSE and ICH7M chipset, integrated GMA950 graphics, DDR2

SO-DIMM memory, Realtek HD Audio, Serial ATA and two Intel® 82574L Gigabit LAN.

Intel Atom Processor

The Intel® Atom N270 single core processor is with 533 MHz front side bus, 512KB L2

cache. It's built on 45nm process technology support Hyper-Threading Technology,

Enhanced Intel SpeedStep® Technology reduces average system power consumption.

Mobile Intel® 945GSE chipset

The board integrates Intel® 945GSE and ICH7M chipset. The chipset features

power-efficient graphics with an integrated 32-bit 3D graphics engine based on Intel®

Graphics Media Accelerator 950 architecture with LVDS, CRT, and

TV-Out display ports. It provides I/O capabilities and flexibility via high-bandwidth

interfaces such as PCI, Serial ATA and Hi-Speed USB 2.0 connectivity. It also includes a

single channel for 400/533 MHz DDR2 system memory (SODIMM), HD Audio with

7.1channels surrounding sound.

All in One multimedia solution

Based on Intel 945GSE and ICH7M chipset, the board provides high performance

onboard graphics, 18-bit Dual channel LVDS interface, HDTV and 7.1 channels HD

Audio, to meet the every requirement of the multimedia application.

Flexible Extension Interface

The board also provides Compact Flash Type II socket, PCI, Mini-PCI and one PCIE

mini card socket.

LV-67D User’s Manual

-7-

1.2 < Product Specification >

General Specification

Form Factor Mini-ITX motherboard

CPU Intel® Atom N270 processor

Package type: FCBGA8

Front side bus: 533MHz

Memory 1 x 200-pin DDR2 SO-DIMM SDRAM up to 2GB

Unbufferred, none-ECC memory supported only

Chipset Intel® 945GSE and ICH7M

BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min.

of timeout value

Real Time Clock Intel® ICH7M built-in RTC with lithium battery

Enhanced IDE UltraDMA33 IDE interface supports up to 2 ATAPI devices

One 44-pin IDE port onboard

One CompactFlash Type II socket

Serial ATA Intel® ICH7M integrates 2 Serial ATA interfaces

(No RAID Function)

Up to 150MB/s of transfer rate

Multi-I/O Port

Chipset Intel® ICH7M with Winbond® W83627THG controller

Serial Port One RS-232/422/485 serial port and Five RS-232

USB Port Six external & Two internal Hi-Speed USB 2.0 ports with 480Mbps

of transfer rate

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

interface

Smart Fan One CPU fan connectors for fan speed controllable

Floppy Port One slim type Floppy port

VGA Display Interface

Chipset Intel® 945GSE GMCH (Graphic Memory Controller Hub)

Frame Buffer Up to 224MB shared with system memory

Display Type CRT, LCD monitor with analog display LVDS1, HDTV,

LVDS2 (LV-67DX only), DVI (LV-67DD only)

Connector External DB15 female connector on rear I/O panel

On board 40-pin LVDS1 connector

On board 10-pin TV-out connector

On board 40-pin LVDS2 connector (LV-67DX only)

On board 26-pin DVI connector (LV-67DD only)

LV-67D User’s Manual

-8-

Ethernet Interface

Controller 2 x Intel 82574L Gigabit Ethernet controller

Type Triple speed 10/100/1000Base-T

Auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector Two External RJ45 connector with LED on rear I/O panel

Audio Interface

Chipset Intel integrated with Realtek ALC888 HD Audio

Intel High Definition Audio compliance

Interface 7.1 channels sound output

Connector External Audio phone jack for Line-out, Line-in, MIC-in, Surround,

Center and Backsurround

Onboard front audio connector with pin header

Onboard CD-IN and external optical S/PDIF connector

Expansive Interface

PCI PCI slot (32-bit, 33MHz)

Power supply: +3.3V, +5V, 3VSB +12V, -12V

Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz)

Power supply: +3.3V, +5V, 3VSB

PCIE mini card One PCIE mini card socket

Power supply: +1.5V, 3VSB

Power and Environment

Power

Requirement Standard 24-pin ATX power supply (20-pin is compatible)

Dimension 170 (L) x170(H) mm

Temperature Operating within 0 ~ 60℃

Storage within -20 ~ 85℃

Ordering Code

LV-67D Intel Atom processor with onboard VGA, LVDS for 18-bit

Audio, SATA, GLAN, USB2.0, CF, GPIO, Mini PCI, PCIE mini card

LV-67DD Same as above and with DVI

LV-67DX Same as above and with secondary LVDS for 18/24-bits

ADP-L2T 18bit LVDS to TTL module

MPX-574D PCI Express mini card supports single Giga LAN

MPX-574D2 PCI Express mini card supports dual Giga LAN

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

LV-67D User’s Manual

-9-

1.3 <Mechanical Drawing>

Andere Handbücher für LV-67D

Inhaltsverzeichnis

Andere Commell Hauptplatine Handbücher

Commell

Commell LP-177 Bedienungsanleitung

Commell

Commell LV-67O Bedienungsanleitung

Commell

Commell PMSA Bedienungsanleitung

Commell

Commell Mini-ITX Motherboard LV-671 Bedienungsanleitung

Commell

Commell LE-5Q0 series Bedienungsanleitung

Commell

Commell LE-37I Bedienungsanleitung

Commell

Commell LE-37R Bedienungsanleitung

Commell

Commell LV-674 Bedienungsanleitung

Commell

Commell LV-67R7 Bedienungsanleitung

Commell

Commell LV-67K Bedienungsanleitung

Commell

Commell LV-66A Bedienungsanleitung

Commell

Commell LE-565 Bedienungsanleitung

Commell

Commell LE-37M Bedienungsanleitung

Commell

Commell LE-37N Bedienungsanleitung

Commell

Commell LE-37A Bedienungsanleitung

Commell

Commell LS-378 Bedienungsanleitung

Commell

Commell ADP-TPM Bedienungsanleitung

Commell

Commell LP-174 Bedienungsanleitung

Commell

Commell Pico-ITX LP-171 Bedienungsanleitung

Commell

Commell LE-37C Bedienungsanleitung

Commell

Commell LE-380 Bedienungsanleitung

Commell

Commell LV-67E Bedienungsanleitung

Commell

Commell LV-67U Bedienungsanleitung

Commell

Commell LV-678 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
