commercial cool CCFE54 Bedienungsanleitung
1. READ these instructions carefully before installing and operating the
freezer. Keep them for further reference.
2. Record in the space below the “SERIAL NO.” found on the nameplate on
your freezer and retain this information for future reference.
SERIAL NO.:
Please save sales receipt for warranty.
User Manual
Chest Freezer
MODEL:CCFE35
CCFE54
CCFE7
Page 2
Staple your receipt to your manual.
You will need it to obtain warranty service.
Thank you for purchasing our
W Appliance product. This easy-to-
use manual will guide you in getting
the best use of your freezer.
Remember to record the model and
serial numbers. They are on a label
on the back of the product.
_____________________________
Model number
_____________________________
Serial number
_____________________________
Date of purchase
CONTENTS
PRODUCT REGISTRATION
SAFETY INFORMATION
Important Safety Instructions..........................................................................................................................................3-4
Refrigerant...................................................................................................................................................................................4
Grounding Instructions......................................................................................................................................................... 5
SET UP & USE
Installation Guide .....................................................................................................................................................................6
Starting your New Freezer................................................................................................................................................. 7
Parts & Features ....................................................................................................................................................................... 8
Operation Instructions......................................................................................................................................................8-9
CLEANING & CARE........................................................................................................................................ 10-11
TROUBLE SHOOTING & WARRANTY
Before You Call For Service ................................................................................................................................................12
Customer Service .....................................................................................................................................................................12
Troubleshooting..................................................................................................................................................................12-13
Limited Warranty..................................................................................................................................................................... 14
Page 3
IMPORTANT SAFETY INSTRUCTIONS
1. Use this appliance only for its intended purpose as described in this
use and care guide.
2. This freezer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions
in the installation section.
3. Never unplug your freezer by pulling on the power cord. Always
grasp the plug rmly and pull straight out from the outlet.
4. Do not operate any appliance with a damaged cord or plug. Return
appliance to the nearest authorized service facility for examination,
repair or adjustment.
5. Unplug your freezer before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certied technician performs the service.
Component parts shall be replaced with like components and
servicing shall be done by factory authorized service personell, so
as to minimize the risk of possible ignition due to incorrect parts or
improper service.
6. Do not use any electrical device or any sharp instrument in
defrosting your freezer.
7. DANGER – Risk of child entrapment. Before you throw away your
old freezer or freezer, take off the doors and leave the shelves in
place to that children may not easily climb inside.
NOTE: If the freezer has been placed in a horizontal or tilted position
for any period of time, wait 24 hours before plugging the unit
in.
SAFETY INFORMATION
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
WARNING
When using electrical appliances, basic safety precautions
should be followed, including the following
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
Page 4
8. After your freezer is in operation, do not touch the cold surfaces in
the freezer compartment, particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
9. Do not refreeze foods that have been thawed completely. The
United States Department of Agriculture in Home and Garden
Bulletin No. 69 reads: “…You may safely refreeze frozen foods that
have thawed if they still contain ice crystals or if they are still cold-
below 40˚F.
“…Thawed ground meats, poultry, or sh that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed
ice cream should be discarded. If the odor or color of any food is
poor or questionable, discard it. The food may be dangerous to eat
… Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods.
Use refrozen foods as soon as possible, to save as much of its eating
quality as you can.”
10. This freezer should not be recessed or built-in in an enclosed
cabinet. It is designed for freestanding installation only.
11. Do not operate your freezer in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
REFRIGERANT
GAS WARNINGS
• DANGER - Risk of re or explosion. Flammable refrigerant used. DO NOT use
mechanical devices to defrost freezer. DO NOT puncture refrigerant tubing.
• DANGER - Risk of re or explosion. Flammable refrigerant used. To be repaired
only by trained service personnel. DO NOT puncture refrigerant tubing.
• CAUTION - Risk of re or explosion. Flammable refrigerant used. Consult repair
manual/owner’s guide before attempting to service this product. All safety
precautions must be followed.
• CAUTION - Risk of re or explosion. Dispose of property in accordance with
federal or local regulations. Flammable refrigerant used.
• CAUTION - Risk of re or explosion due to puncture of refrigerant tubing; Follow
handling instructions carefully. Flammable refrigerant used.
SAFETY INFORMATION
DANGER
Risk of child entrapment. Before you throw away your old
freezer or freezer, take off the doors. Leave the shelves in place
so that children may not easily climb inside.
Page 5
GROUNDING INSTRUCTIONS
ELECTRICAL REQUIREMENTS
The electrical requirements are a 115 volt 60 Hz, AC only, 15 amp. It is recommended
that a separate circuit serving only the product be provided. The product is equipped
with a 3-wire cord having a 3-prong grounding plug. It must be plugged into a wall
receptacle that is properly installed and grounded.
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces risk of electric shock by providing an escape wire for the electric current.
The cord provided with this appliance is equipped with a grounding wire and a
grounding plug. The plug must be plugged into an outlet that is properly installed
and grounded.
Avoid the use of three prong adapters or cutting off the third grounding prong in
order to accommodate a two prong outlet. This is a dangerous practice since it
provides no effective grounding for the freezer and may result in shock hazard.
Consult a qualied electrician or serviceman if:
1) The grounding instructions are not completely understood.
2) You are unsure that the appliance is properly grounded.
3) You have any questions about the grounding or electrical instructions.
POWER SUPPLY CORD
1. Avoid the use of an extension cord because of potential safety hazards under
certain conditions. Have a qualied electrician or serviceman to install an outlet
near the appliance.
2. If it is absolutely necessary to use longer cord sets or an extension cord, extreme
care must be exercised.
a) Use only a grounding type 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot receptacle that will accept the plug on the appliance.
b) The marked electrical rating of the cord set or extension cord must equal to
or greater than the electrical rating of the appliance. The longer cord should be
arranged so that it will not drape over the counter top or table top where it can
be pulled on by children or tripped over unintentionally.
NOTE: Neither W Appliance nor the dealer can accept any liability for damage to the product or
personal injury resulting from failure to observe the electrical connection procedures.
SAFETY INFORMATION
WARNING
Improper use of the grounding plug can result
in a risk of electric shock.
Page 6
INSTALLATION GUIDE
1. Unpack your freezer by removing all packaging materials like carton, base, foams,
adhesive tape, etc.
2. Remove all accessories, internal packaging material used to hold shelves, ice tray,
etc. in place.
3. Clean the remains of all adhesive tap used and remove all printed material
supplied.
4. Install the freezer in a convenient location away from extreme heat and cold.
Allow sufficient clearance between the freezer and side wall so the door(s) will
open without obstruction. Freezer is not designed for recessed installation.
5.The floor on which the freezer should be placed must be flat, hard, solid, and
even. The freezer should not be placed on any soft material such as foam, plastic,
etc.
6. The following are recommended minimum clearances around the freezer for
proper air circulation:
Sides: 4” (10cm)
Back: 4” (10cm)
Proper air circulation will help your freezer work at maximum efficiency.
NOTE: · The appliance must be correctly connected to the power supply.
WARNING
It is important to keep the power cord away from the compressor at the
back of the freezer as during operation, the compressor can reach a high
temperature and could cause serious damage to the power cord.
CAUTION
Care should be taken during the handling moving and use of the freezer to
avoid damaging the refrigerant tubing or increasing the risk of a leak.
SET UP & USE
Page 7
PROTECTION FROM HEAT AND MOISTURE
• Do not install your freezer in any location where heavy moisture is present or if
the location is not properly insulated. This freezer is not designed to operate in
temperature setting below 55° Fahrenheit.
• Location for the freezer should be on a hard surface and away from direct
sunlight and heat source, e.g., radiators, baseboard heaters, cooking appliances,
etc.
STARTING YOUR NEW FREEZER
1. After cleaning your freezer thoroughly. Wipe the outside with a soft dry cloth, the
interior with a clean moist cloth.
2. Insert the power supply cord into the electrical outlet.
3. Turn the thermostat dial to an initial setting of “7” for 24 hours and then set the
freezer to your desired setting.
NOTE: · As the door gets pressed in during shipping, the gasket may have to be reset. This is
done to prevent the cool refrigerated air from escaping. If there is a gap between the
door gasket and the cabinet, set the gasket by gently pulling it out of the seal gap.
SET UP & USE

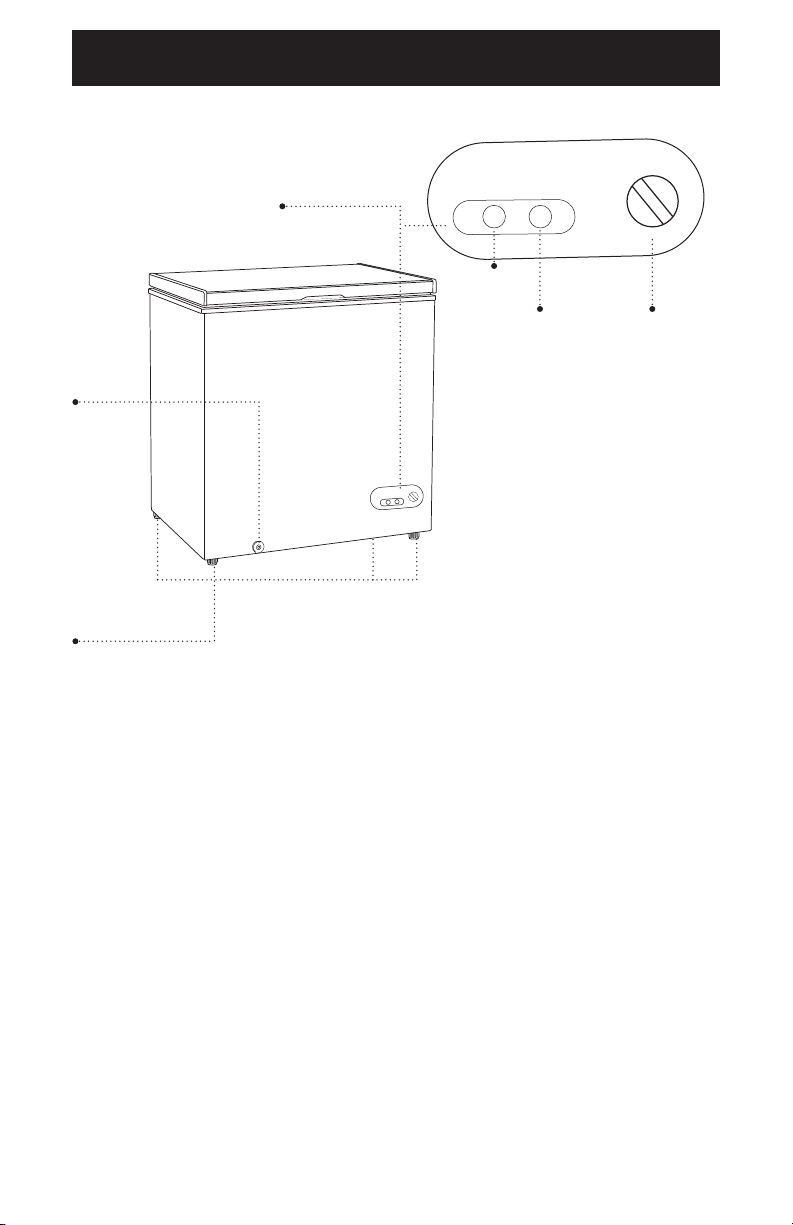

PARTS & FEATURES
Page 8

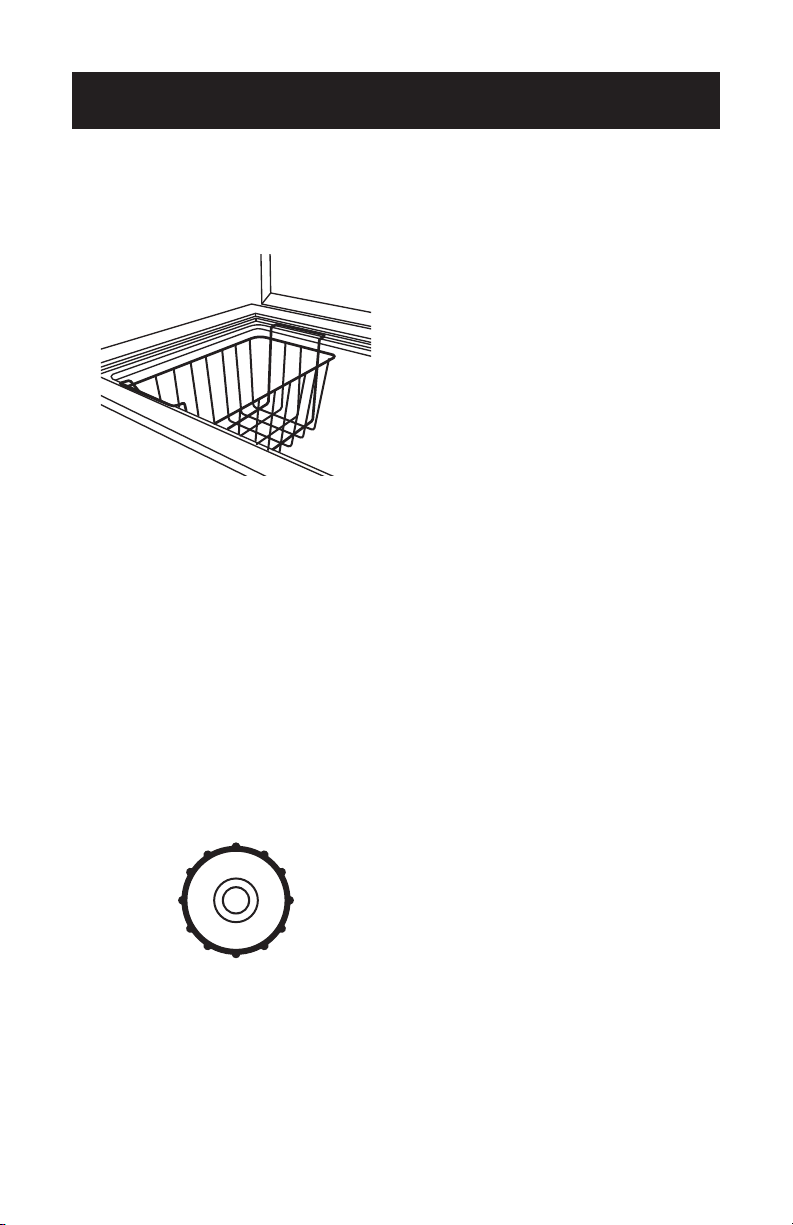

TEMPERATURE CONTROL
OPERATION INSTRUCTIONS
NOTE: If the freezer has been placed in a horizontal or tilted position for any period of time,
wait 24 hours before plugging the unit in.
• The settings of the temperature control are 1 (warmest), 2, 3, 4, 5, 6, 7 (coldest).
Adjust the temperature control to the setting that best suits your needs.
• Turning the temperature to “0” position willl shut off the cooling cycle, but does not
turn off the electrical power to the unit.
• Unplug the unit to shut off the power to the unit.
NOTE:
• Wait 3-5 minutes before restarting if you unplug the freezer. The unit may fail to operate
properly if restarted too quickly.
• If the ambient temperature is too high, the freezer may not reach the desired
target temperature.
• Large amounts of food will lower the cooling efficiency of the appliance.
• Do not place the foods on the air outlet and leave space for airflow.
•If you choose to change the thermostat setting, adjust thermostat one increment at a time.
Allow several hours for temperature to stabilize between adjustments.
• If the temperature control knob sets to 7, the compressor may run continuously.
It’s a quick freeze mode, please do not set to 7 frequently.
1
2
3
4
5
6
7
0
RUNNINGPOWER
1
2
3
4
5
6
7
0
RUNNING
POWER
Controls
Drain
Adjustable
Leveling Legs
Power
Light
Compressor
On Light Temperature
Control
SET UP & USE
Page 9
FOOD STORAGE
• Your freezer has a basket. Removable baskets allow you to store food more
accesibly or you can them if not needed.
DEFROSTING & DRAINING
• Defrost whenever the frost becomes 1/8” thick. Never use a sharp or metallic
instrument to remove the frost, as it may damage the cooling coils. (A punctured
coil will void the warranty).
• Turn the temperature control to OFF position and unplug the unit. Remove the
drain plug from the inside of the freezer. Defrosting usually takes a few hours. To
defrost faster keep the door open.
• For draining place a tray beneath the outer drain dial. Turn the drain dial in a
counter-clockwise direction to remove (see g. #3). This will let the water ow
out into the tray. When nished, replace the drain dial and turn in a clockwise
direction to close. Note: Monitor the container under the drain to avoid overow.
• Wipe the interior of the freezer and replace the electrical plug in the electrical
outlet.
• Reset the temperature control to the desired setting.
SET UP & USE
Page 10
CLEANING AND
MAINTAINING
The freezer should be cleaned and
maintained once a month. Before doing
so, you must unplug the freezer.
POWER INTERRUPTION
In case of a power interruption/outage,
unplug the power cord from the wall
outlet. Replug the power cord to the
wall outlet once the power has been
restored. For long period of power
outage, inspect and discard the spoiled
or thawed foods from the freezer and
freezer compartments. Clean the freezer
thoroughly before using again.
CLEANING METHOD
Prepare a cleaning solution of 3-4
tablespoons of baking soda mixed with
warm water. Use sponge or soft cloth,
dampened with the cleaning solution to
wipe down your freezer.
• Rinse with clean warm water and dry
with a soft cloth,
• Do not use harsh chemicals,
abrasives, ammonia, chlorine bleach,
concentrated detergents, solvents or
metal scouring pads. Some of these
chemicals may dissolve, damage
and/or discolor your freezer.
DOOR GASKET
Clean door gaskets every three months
according to general instructions.
Gasket must be kept clean and pliable to
assure a proper seal.
• Petroleum jelly applied lightly on the
hinge sides of gaskets will keep the
gasket pliable and ensure a good
seal.
CLEANING AND CARE
WARNING
Always unplug your freezer before
cleaning to avoid electric shock.
Ignoring this warning
may result in death or injury
CAUTION
To avoid personal injury or
product damage always read and
follow manufacturer’s instructions and
warnings before using any
cleaning products.
Dieses Handbuch passt für folgende Modelle
2
Inhaltsverzeichnis
Andere commercial cool Gefrierschrank Handbücher
