Compaq ProLiant DL380 G2 Technisches Handbuch

White Paper

Help us improve our technical communication. Let us know what you think

about the technical information in this document. Your feedback is

valuable and will help us structure future communications. Please send

your comments to: customerserv[email protected].

January 2002

Prepared by Customer Service

Training and Development

Compaq Computer Corporation

Contents

Product Description ....................3

Features.....................................3

System and Mechanical

Spare Parts List ...........................4

Servicing Procedures..................9

Removing and Replacing the

Processor...................................9

Service Considerations.............16

References .................................17

Compaq ProLiant DL380 G2

Service Update

Abstract: This service update white paper describes an update to

the Compaq ProLiant DL380 G2 Server and to service

considerations for the controller, battery, and system board. It

provides spares part and option kit numbers for the new 1.4 Ghz

processor and reviews service procedures for removing or replacing

the processor.

Compaq ProLiant DL380 G2 Service Update 2

Rev. 1.0 Page 2 of 17

Compaq and the Compaq logo are registered in the U.S. Patent and Trademark Office. Microsoft and

Windows are trademarks of Microsoft Corporation in the United States and other countries. All other

product names mentioned herein may be trademarks of their respective companies.

Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information

in this document is provided “as is” without warranty of any kind and is subject to change without notice.

The warranties for Compaq products are set forth in the express limited warranty statements accompanying

such products. Nothing herein should be construed as constituting an additional warranty.

Compaq ProLiant DL380 G2 Service Update 3

Rev. 1.0 Page 3 of 17

Product Description

The ProLiant DL380 G2 Server has a new

processor speed, 1.4Ghz. This document

lists the new option and spare part number

and reviews the corresponding procedures

to service.

Features

This is a review of the features pertinent to this update.

■New, faster processor speed: 1.4Ghz

Quick Specs

DL380R02 P1400-512KB, 256MB Processor (1) Intel Pentium III FC PGA2 1.4 GHz

Processor standard (up to 2 supported)

253864-XX1 Cache

Memory

512-KB level 2 ECC cache

Memory 256 MB (Standard) to 6 GB (Maximum)

PC133MHz Registered ECC SDRAM

Network

Controller

(2) Compaq NC3163 Fast Ethernet NIC

(embedded) PCI 10/100 WOL (Wake on

LAN)

Storage

Controller

Smart Array 5i Controller (integrated on

system board)

Hard Drive None ship standard

Internal

Storage

436.8 GB max (with optional hard drives)

Optical Drive 24x IDE CD-ROM Drive (MultiBay)

Form Factor Rack (2U), (3.5-inch)

Compaq ProLiant DL380 G2 Service Update 4

Rev. 1.0 Page 4 of 17

System and Mechanical Spare Parts List

As a review, Figure 1 and 2 illustrate an exploded views of the mechanical and system spare

component parts. Table 1 lists the option and spare part numbers. Part numbers for the new

processor are highlighted in yellow.

Figure 1. Mechanical parts exploded view

Table 1 Mechanical Components Spare Parts List

Item Description Part Number Spare Part Number

1 Access panel (top cover) 218377-001 228523-001

2 Front bezel 218381-001 228512-001

3 Tape drive blank 218512-001 228498-001

4 Hard drive blank 349448-001 122759-001

5 CD blank 229567-001 228500-001

6 Power supply blank 218378-001 228501-001

Compaq ProLiant DL380 G2 Service Update 5

Rev. 1.0 Page 5 of 17

Figure 2. System components exploded view

Table 2 System Components Spare Parts List

Item Description Part Number Spare Part Number

System Components

7 Hot-plug fan 60-mm 218382-001 228513-001

8 Front fan bracket 6-bay 218383-001 228514-001

9 Rear fan bracket 2-bay 218667-001 228493-001

10 Hot-plug power supply 400-W 194989-001 228509-001

11 PCI riser cage, with boards 227238-001 228495-001

12 Intel Pentium III processors

a) 1.13-GHz processor, heatsink, and

heatsink clip

b) 1.26-GHz processor, heatsink, and

heatsink clip

c) 1.4-GHz processor, heatsink, and

heatsink clip

235384-003

235384-002

235384-004

228524-001

228496-001

259593-001

13 Heatsink and heatsink clip 228075-001 228497-001

14 Air baffle 228073-001 228525-001

Boards

15 Processor power module (PPM), 12-V, 28.5-A 217336-001 228506-001

16 Smart Array 5i Controller 011003-003 228510-001

17 System board, with heatsink 010933-001 228494-001

18 Power converter module 207066-001 228505-001

Compaq ProLiant DL380 G2 Service Update 6

Rev. 1.0 Page 6 of 17

Item Description Part Number Spare Part Number

19 SCSI backplane, 6-bay 010936-001 228502-001

20 CD MultiBay adapter board 010984-001 228504-001

21 Power button/LED board 010963-001 228503-001

Mass Storage Devices

22 Diskette drive, slimline, 1.44-MB 235168-001 228507-001

23 CD-ROM drive, IDE, 24X 222837-001 228508-001

Cables

24 SCSI cable kit * — 228517-001

SCSI cable, short, 68-pin 199606-018 —

SCSI cable, long, 68-pin 166298-035 —

25 Signal cable kit * — 228518-001

Power button/LED cable, 14-pin 219048-001 —

CD MultiBay cable, 50-pin 314014-006 —

PCI Hot Plug backplane cable 219049-001 —

26 Miscellaneous cable kit * — 228519-001

System cable (LED/CD-ROM drive or diskette

drive), 50-pin

219047-001 —

Remote Insight Lights-Out Edition interface

cable, 16- to 30-pin

233763-001 —

Rack-mounting Hardware

27 Rack-mounting hardware kit * — 232793-001

Standard rack rail, slide assembly, left 232041-001 —

Standard rack rail, slide assembly, right 232040-001 —

Cable management arm, assembly 227026-001 —

Miscellaneous

28 Hardware kit * — 228527-001

Compaq ProLiant DL380 G2 Service Update 7

Rev. 1.0 Page 7 of 17

Item Description Part Number Spare Part Number

Screws, T-15, flathead 228213-001 —

Expansion slot cover 228072-001 —

29 Plastics kit * — 228516-001

PCI slot release lever 228194-001 —

PCI shipping bracket 233129-001 —

PCI lightpipe, rear 218517-001 —

PCI lightpipe cover 218518-001 —

PCI riser cage door latch 221047-001 —

Thumbscrew with molded cap, PCI slot 1 179333-003 —

30 CD ejector assembly * 233905-001 237158-001

31 PCI expansion board ejector/divider * 218976-001 228515-001

32 Battery, 3.3-V, lithium * 334149-001 179322-001

33 Country kit * 195313-001 228526-001

34 Return kit, pack box and cushions * — 228522-001

35 Maintenance and service guide * 203840-003 228520-001

Memory

36 DIMM, 128-MB, registered 133-MHz SDRAM * 127007-031 164278-001

37 DIMM, 256-MB, registered 133-MHz SDRAM * 127005-031 159377-001

38 DIMM, 512-MB, registered 133-MHz SDRAM * 127006-041 177628-001

39 DIMM, 1-GB, registered 133-MHz SDRAM * 127008-041 163902-001

Options

40 Telco rack-mounting kit * 228892-B21 232794-001

41 Third-party rack-mounting kit * 228894-B21 232795-001

Note: * Not shown

Compaq ProLiant DL380 G2 Service Update 8

Rev. 1.0 Page 8 of 17

Table 3: Processor Option Kit

Description Part Number

Pentium III P1133-512KB Processor Option Kit 201097-B21

Pentium III P1266-512KB Processor Option Kit 201098-B21

Pentium III P1400-512KB Processor Option Kit 201099-B21

Refer to the QuickSpecs for a more complete list of options. (See References.)

Compaq ProLiant DL380 G2 Service Update 9

Rev. 1.0 Page 9 of 17

Servicing Procedures

Removing and Replacing the Processor

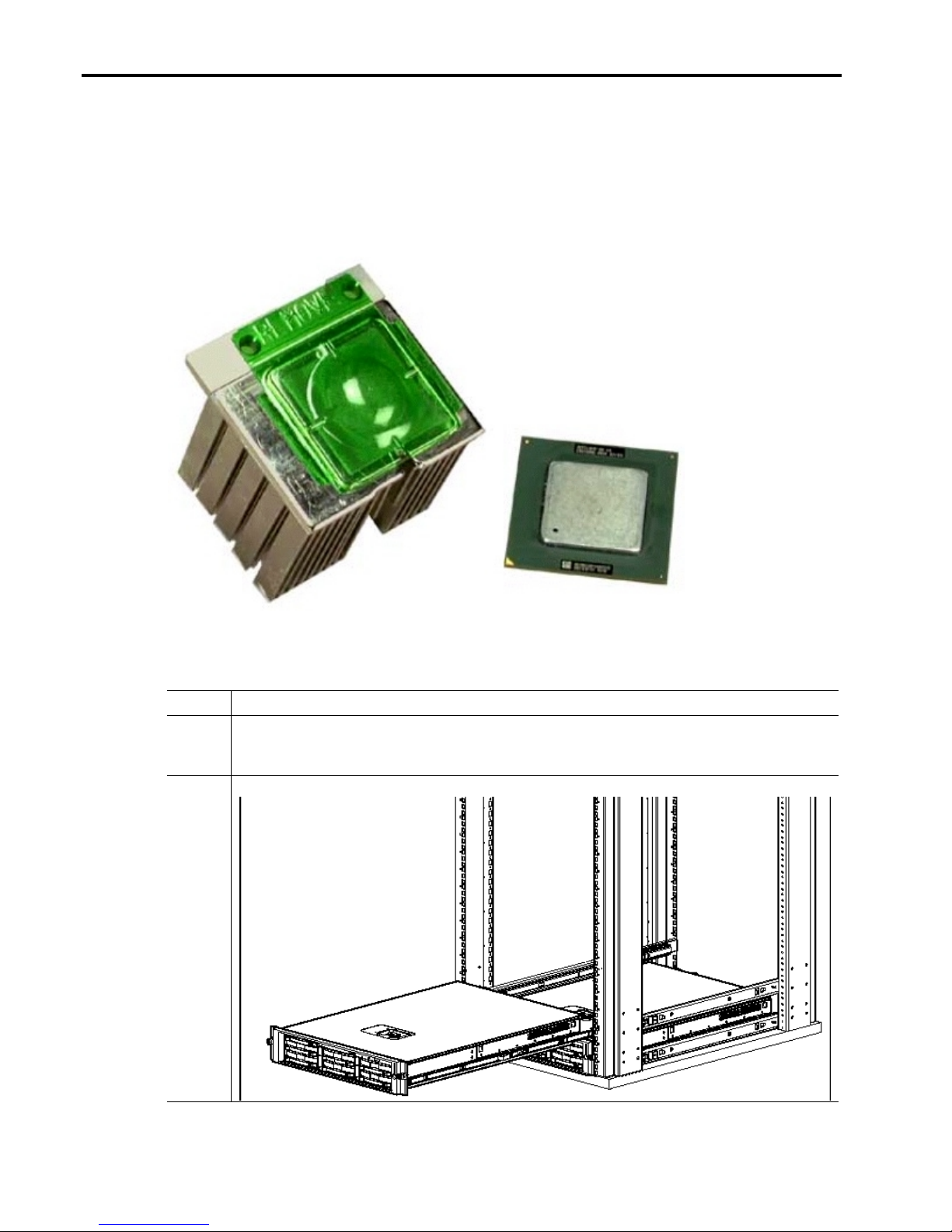

Bottom view of heatsink and top view of processor

Extending the server from the Rack

Step Action

1. Loosen the front panel thumbscrews that secure the server faceplate to the front of the

rack.

2. Extend the server until the server rail-release latches engage.

Compaq ProLiant DL380 G2 Service Update 10

Rev. 1.0 Page 10 of 17

Step Action

After performing the maintenance procedure, slide the server back into the rack:

a. Press the server rail-release latches.

b. Slide the server fully into the rack.

c. Secure the server by tightening the thumbscrews.

Power down the server

Step Action

1. Press the front unit identification LED switch on the server front panel to illuminate the

LED . The rear unit identification LED switch illuminates on the server rear panel.

2. Press the server Power On/Standby button to place the server in standby mode . The

system power LED turns to amber when standby power mode is activated.

3. At the rear of the server, locate the illuminated rear unit identification LED switch that

identifies the server you are servicing.

4. Disconnect all power cords.
