Connects2 CTVIMPO03 Bedienungsanleitung
CTVIMPO03

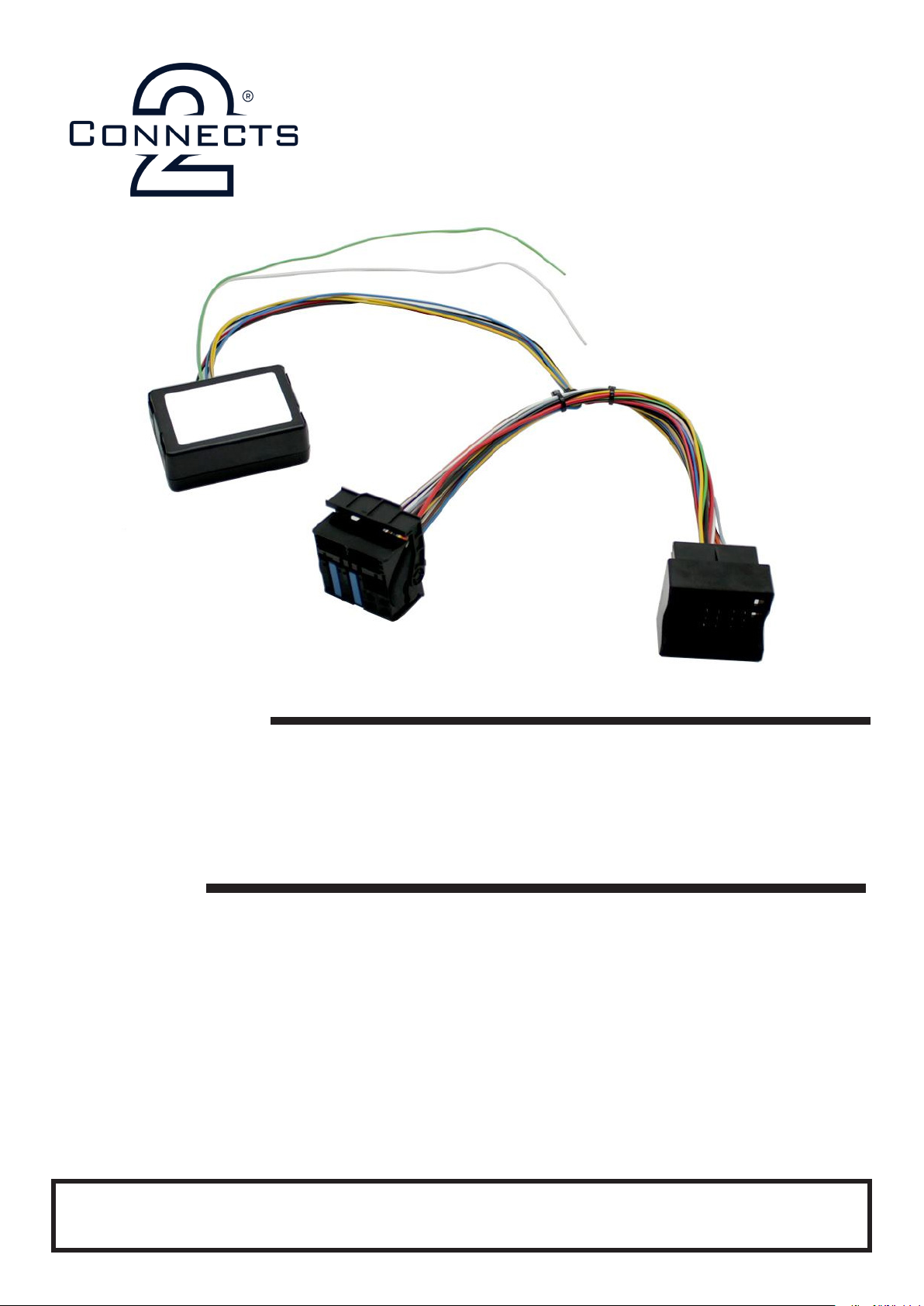

Video in Motion Interface
for Porsche Vehicles
APPLICATION
FEATURES
Porsche Cayenne 2011 - 2015
Porsche Panamera 2009 - 2013
• Provides video-in-motion functionality to the vehicle’s OEM display
• Function can be activated via DIP switch or triggered with included cable
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
Note: Application data is subject to change at any time
DISCLAIMER
For vehicles with PCM 3.1 Navigation OEM systems
CTVIMPO03_IG_en-GB_v1
2CTVIMPO03_IG_en-GB_v1
PRIOR TO INSTALLATION
Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation
must be free of moisture and away from heat sources. Please ensure that the correct tools are used during the
installation to avoid damage to the vehicle or product. Connects2 can not be held responsible for the installation
of this product.
Important!
By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not
accept any liability for material damage or personal injury resulting directly or indirectly, from installation
or operation of this product. This product should only be used while standing or to display xed menus or
rear-view-camera video when the vehicle is moving, for example the MP3 menu for DVD upgrades.

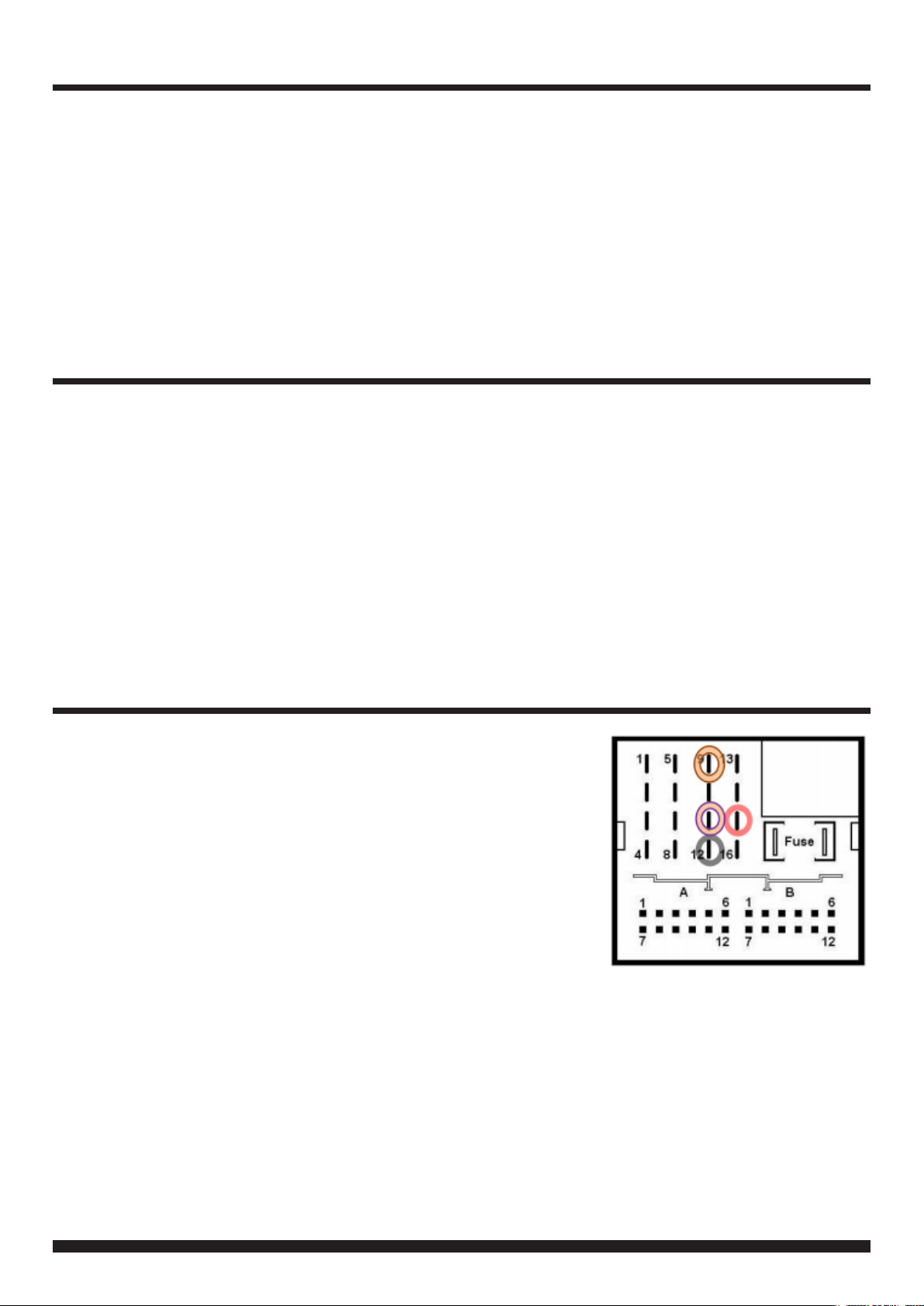

In Vehicle Connector (Quadlock)
● Red +12V Permanent Pin 15
● Black Ground Pin 12
●●Orange/Purple CAN High Pin 9
●●Orange/Brown CAN Low Pin 11
In Interface Connector (8 Pin Molex)
Yellow Pin 4 CAN-HIGH – connection to the head-unit
Blue Pin 3 CAN-LOW – connection to the head-unit
Yellow/Black Pin 8 CAN-HIGH – connection to the vehicle
Blue/Black Pin 7 CAN-LOW – connection to the vehicle
Red Pin 1 +12V permanent
Black Pin 5 Ground
Green Pin 6 Activation of the video-in-motion function
(+12V = TV-free activated)
White Pin 2 Trigger output (+12V DC 500mA)
PIN ASSIGNMENTS
SETTING THE DIP SWITCHES
Vehicle/ navigation DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6
Vehicles without rear-view camera ON* OFF OFF OFF ON ON
Vehicles with aftermarket rear-view camera ON* OFF OFF OFF ON ON
Vehicles with factory rear-view camera ON* ON OFF OFF ON ON
*If using the green cable to trigger the video in motion function, set DIP 1 to ‘OFF’
3
Need help? Visit support.connects2.com/tickets/technical
CTVIMPO03_IG_en-GB_v1
INSTALLATION GUIDE
Before installing the interface, the factory stereo must be removed and disconnected. To do this, please consult
the vehicle owner’s manual/handbook or contact a tting professional. Ensure that the ignition is switched off
and the vehicle battery is disconnected to prevent damage or injury.
See wiring diagram on Pg.4 for more information
4. Test stereo and product functionality before reassembling the vehicle dashboard. If the product is un-
responsive, please uninstall the interface and wiring and reinstall carefully in accordance with the above
steps.
For further help and support, please contact us directly at support.connects2.com/tickets/technical and ll out a
support ticket with the full details of your issue.
1. Disconnect the quadlock connector from the navigation display and connect to the corresponding quad-
lock connector on the CTVIMPO03 harness.
2. Remove both 12 pin inserts from the original quadlock connector and connect those with the optical
leads to the CTVIMPO03 harness
3. Connect the CTVIMPO03 harness to the navigation display
ACTIVATING VIDEO IN MOTION
Permanent
To have the video in motion function activated permanently, move DIP 1 to the
‘ON’ position
Triggered
With DIP 1 set to the ‘OFF’ position, the included green wire can be used to ac-
tivate the video in motion when desired. Simply connect a switch to the green
cable, and connect the cable to +12V ACC.
Note: The loose white cable is not required and must be isolated
4CTVIMPO03_IG_en-GB_v1
SPECIFICATIONS
Operating voltage 10.5 – 14.8V
Stand-by power drain <2mA
Operation power drain ~60mA
Power consumption ~0,08W
Temperature range -30°C to +80°C
Weight 44g
Box Measurements (mm) 76 (W) x 27 (H) x 54 (D) mm
