Conner 800 MB Travan Bedienungsanleitung
I
·
INSTALLATIOt~
MANuAL
BOO
MB
Travan™
Internal
Minicartridge
Drive
.
C
~····~'R.
"......
8
The
Storage
Answer

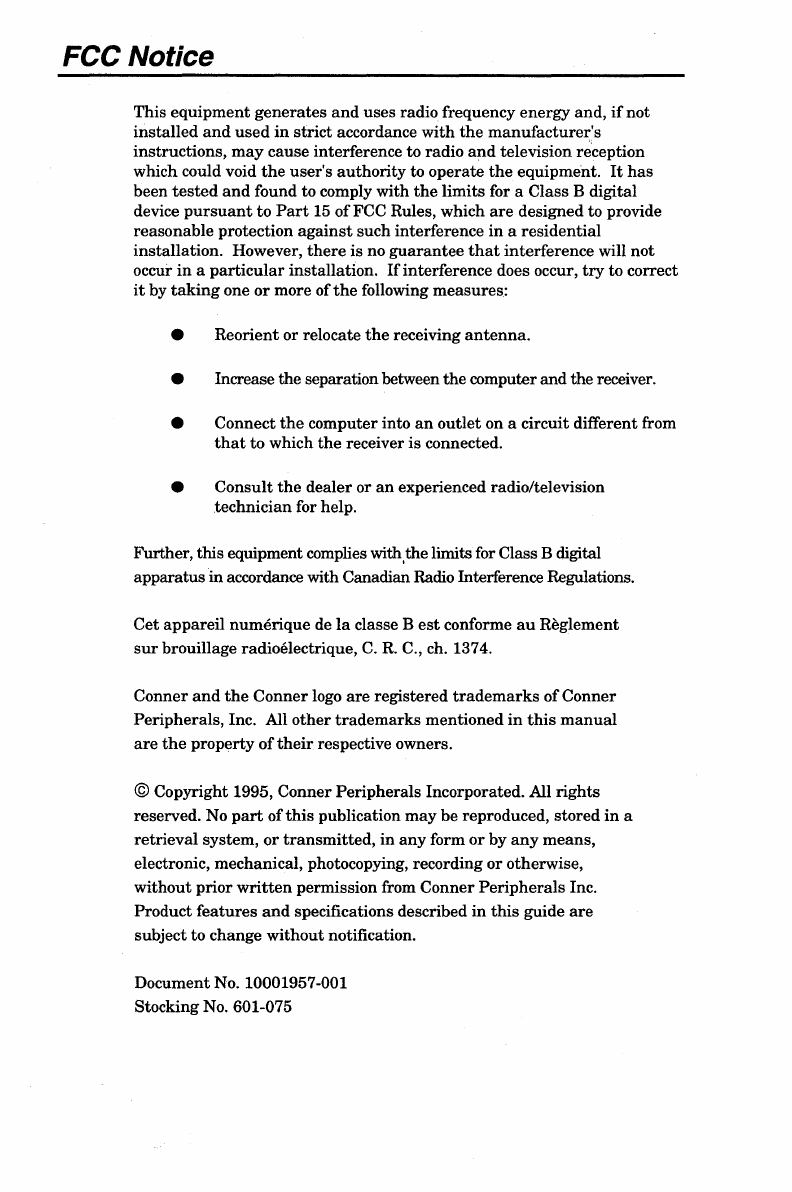

FCC Notice
This
equipment
generates
and
uses radiofrequency energy
and,
if
not
installed
and
used
in
strict
accordance
with
the
manufacturer's
instructions,
may
cause interference
to
radio ap.d television re'ception
which could void
the
user's
authority
to
operate
the
equipment.
It
has
been
tested
and
found
to
comply
with
the
limits for a Class B digital
device
pursuant
to
Part
15
of
FCC Rules, which
are
designed to provide
reasonable protection
against
such interference
in
a
residential
installation. However,
there
is no
guarantee
that
interference will
not
occur
in
a
particular
installation.
Ifinterference
does occur,
try
to
correct
it
by
taking
one
or
more of
the
following measures.:
• Reorient or relocate
the
receiving
antenna.
• Increase the separationbetween
the
computer
and
the receiver.
• Connect
the
computer into
an
outlet
on a circuit different from
that
to
which
the
receiver is connected.
•
Consult
the
dealer or
an
experienced radio/television
technician
for help.
Further, this equipment complies with,thelimits for Class B digital
apparatus
in
accordance with Canadian Radio Interference Regulations.
Cet
appareil
numerique
de
la
classe
Best
conforme
au
Reglement
sur
brouillage radioelectrique,
C.
R.
C., ch. 1374.
Conner
and
the
Conner
logo
are
registered
trademarks
of
Conner
Peripherals, Inc. All
other
trademarks
mentioned
in
this
manual
are
the
property
of
their
respective owners.
© Copyright 1995, Conner Peripherals Incorporated. All
rights
reserved. No
part
of
this
publication
may
be reproduced,
stored
in
a
retrieval
system,
or
transmitted,
in
any
form
or
by
any
means,
electronic, mechanical, photocopying, recording
or
otherwise,
without
prior
written
permission from Conner
Peripherals
Inc.
Product
features
and
specifications described
in
this
guide
are
subject
to
change
without
notification.
Document No. 10001957-001
Stocking
No.
601-075
Introduction
Using
software
data
compression,
the
Conner
internal
Travan
cartridge
drive stores
up
to 800 Megabytes (MB) of
data
on a single
Travan
cartridge
tape.
The
drive
transfers
data
at
1 Megabit/second (Mbps) or
500 kilobits/second (kbps).
If
your
floppy
disk
controller
does
not
support
the
1 Mbps
rate,
you
might
want
to
contact
your
supplier
to obtain a high-speed Conner
controller. A high-speed controller
can
reduce backup
and
restore
times
by
half.
This
manual
guides you
through
installing
the
internal
drive
in
a 5.25-inch by half-high
or
3.5-inch drive
bay
in
an
IBM PC/AT
or
compatible computer. Before you begin
the
i:p.stallation, you
must
check
that
the
drive
select is
correctly
set
for
the
floppy disk controller
in
your
computer. Also,
brief
operating
instructions
and
maintenance
guidelines
are
included
in
this
manual.
Before You Begin
Before you begin
the
installation,
check
to
see
that
your
package
contains
the
following
hardware
parts:
•
Appropriate
tape
drive
unit
(5.25-inch
by
half-high
or
3.5-inch by 1 inch)
•
Installation
Manual
~
Note:
If
you
are
installing
the
drive
as
a
third
internal
device, a
data
cable from
the
floppy
controller
and
a power cable
might
not
be
available
within
your
computer.
In
that
case, contact your
supplier
to
get
a
third
drive
installation
kit.
Installation Manual Page 1
800
MB
Internal Travan Cartridge Drive
Tools Needed for the Installation
To
install
the
drive
in
your computer, you need one
or
both
of
the
these
tools:
• A flat-bladed screwdriver
• A Phillips screwdriver
~
Note:
Be
sure
that
the
screwdrivers
are
the
correct
size for
the
screws, or you could
strip
the
screw
heads.
Precautions for the Installation
To
protectyour equipment from electrostatic damage,
perform
the
installation
at
a static-safe workstation.
If
one
is
not available, follow
these
guidelines.
• Work
in
an
unca,rpeted
area.
• Before you remove any equipment from its antistatic
bag, discharge static electricity by touching
the
metal
chassis ofyourcomputer (or touching anyother
grounded object) while touching
the
antistaticbag.
•
Do
not touch circuit boards unless instructed to
do
so.
Choosing the Correct Drive Select Setting
Page 2
The drive select
setting
is determined by
the
requirements
of
your floppy disk controller board.
For
most systems,
you do
not
need to change
the
factory drive select setting.
As shipped,
the
drive is
set
for soft select, which enables
most
systems to recognize
the
drive, regardless of
its
position
in
the
floppy chain.
However, some floppy disk controller boards require
that
you "hard select"
the
drive select setting. Check
the
manual
that
you received with
your
floppy disk controller
Installation Manual
800 MB Internal Travan Cartridge Drive
manual
that
you received
with
your
floppy
disk
controller
to
determine
whether
or
not
you
need
to
"hard
select"
the
drive
setting.
If
you
need
to
"hard
select"
the
drive
setting,
follow
these
simple steps:
1.
Refer to
the
manual
that
you received
with
your
floppy controller
and
set
the
jumper
on
the
floppy
controller
board
to recognize
either
drive select 1
or
drive select
2.
2.
Set
the
drive select
jumper
on
the
Conner
internal
drive to
match
the
drive select
setting
(drive select 1
or
drive select
2)
on
the
floppy controller board. To
configure
the
drive select, remove
the
plastic
jumper
and
install
it
in
the
correct
position
as
shown
in
Figure
1.
The
figure
presents
the
upside
down,
rear
view
of
the
tape
drive.
Figure
1
Drive
Select
Jumper
Configurations
Drive Select Jumper settings:
Factory Drive Select
Drive Select 1
Installation Manual
Drive Select 2
Drive
Select
Jumper
Page 3
800
MB
Internal Travan Cartridge Drive
Installing the Drive
in
a 5.25-lnch Drive Bay
The
following
steps
guide
you
through
installing
the
internal
drive
in
a 5.25-inch
drive
bay.
Caution:
Turn
off
your
computer
before
you
begin
the
installation.
Failure
to do so
might
result
in
damage
to
your
equipment
or
electrical
shock
to
you.
~
Note:
Because
computer
models
vary
between
manufacturers,
refer
to
your
computer
manual
for
specific
installation
instructions.
1.
Write
down
the
serial
number
and
model
number
shown
on
the
drive
and
put
this
information
in
a
safe
.
place. You
need
this
information
if
you
ever
call for
service.
2.
Refer
to
the
manual
that
you
received
with
your
computer
for
instructions
about
removing
the
computer
cover
and
the
face
plate
from
the
drive
bay
in
which
you
plan
to
install
the
drive.
~
Note:
If
devices
are
installed
in
any
drive
bays
adjacent
to
the
one
your
are
using
for
the
internal
drive,
partially
removing
those
devices
might
give
you
more
working
space.
3.
Check
that
the
drive
select
setting
is
correct. (Refer
to
the
previous
text
under
Choosing
the
Correct
Drive
Select
Setting.)
Page 4 Installation Manual
800 MB Internal Travan Cartridge Drive
4. Locate
the
mounting
screw
holes
in
the
drive
brackets.
Each
side
contains
two
sets
of
holes
(as
shown
in
Figure
2).
Use
the
set
that
aligns
the
drive
properly
within
the
drive bay.
Figure
2
Mounting
Hole
Sets
5. ONLY
if
one
or
more
of
the
following conditions
exist,
remove
the
card
edge
adapter
installed
over
the
34-pin
header
connector
of
the
drive:
•
The
drive does
not
fit
into
the
computer
with
the
adapter
board
installed.
•
Only
header
connectors
are
available
on
the
data
cable from
the
floppy controller.
Instal/ation Manual
PageS
BOO
MB
Internal Travan Cartridge Drive
To remove
the
adapter
board,
pull
it
straight
out.
Figure
3
illustrates
removing
the
card
edge
adapter.
Figure
3
Removing
the
Card
Edge
Adapter
6. Slide
the
drive into
the
5.25-inch drive
bay
so
that
the
mounting
screw holes
on
the
drive
brackets
are
aligned
with
the
mounting
screw holes
in
the
drive
bay.
Page 6 Installation Manual
800 MB Internal Travan Cartridge Drive
Slide
the
tape
drive
into
the
computer
so
that
the
drive
bezel
and
the
computer
face
plate
are
flush.
Then,
align
the
mounting
holes.
Figure
4
illustrates
this
step.
Figure
4
Aligning
the
Drive
in
the
Computer
7.
Connect
the
computer
floppy device
data
cable
connector
to
the
drive
connector.
That
is,
align
pin
1
of
the
data
cable
with
pin
1
of
the
drive
connector;
then
push
the
connectors
together
until
they
are
firmly
seated.
The
colored
stripe
on
the
data
cable
designates
pin
1.
Installation Manual Page 7
800 MB Internal Travan Cartridge Drive
Page 8
Figure
5 shows
the
pin
1
end
(with
the
notch)
of
the
connector
if
the
card
edge
adapter
is
in
place.
Make
sure
that
the
connection
is
secure
and
that
the
cable
will
not
bind
or
become
crimped
when
you
replace
the
cover.
~
Note:
If
you
are
installing
the
drive
as
a
third
internal
device
and
do
not
have
available
data
and
power
cables,
contact
your
supplier
to
get
a
third
drive
installation
kit.
Figure
5
Pin
1
End
of
Card
Edge
Adapter
Connector
Installation Manual
Inhaltsverzeichnis
Beliebte Gleichstromantrieb Handbücher anderer Marken
Vincent Associates
Vincent Associates UNIBLITZ ED12DSS Bedienungsanleitung
EKSMA OPTICS
EKSMA OPTICS DQ-100-4 Stücklistenhandbuch
Chamberlain Garog
Chamberlain Garog D Series Bedienungsanleitung
Parker
Parker PDS Series Bedienungsanleitung
Festo
Festo DGC G Series Einrichtungshandbuch
Binks
Binks QS-5012-1-CE Bedienungsanleitung
