Attention!
May have export limitations depending on
the laws in your region. RoHS
Export of Tracer635/50LRF models.
ATTENTION!
The proper usage of the device is important for safe exploitation!
Therefore read carefully the present manual!
If the device was left in storage for a longer period of time, before
exploitation check its funtionality.
Disassembling of the device is prohibited,except in authorized repair
centers.
The external optical surfaces should be clean at all times.Touching
the optical surfaces with bare hands is not recommended.
Sand and sea water can damage the optical coatings!
Do not point the device directly at the sun!
When left in storage for a longer period of time,batteries have to be
removed and stored in polyethylene bags to prevent contact with
metal.(It is recommended to recharge the batteries every two to
three months)
Image performance is dependent on scenery and atmosphere conditions.
Contrast in the same image may vary as a function of the time of day due
to the effect of the sun.For example,at sunset objects will have absorbed
different levels of heat resulting in greater temperature differences and
better contrast.
ATTENTION!
When carrying or transporting the device,put the protective lens cap!
Condensation can cause fogging of the optical surfaces! Condensation
occurs when the temperature or humidity changes as follows:
· When moving the device from cold to warm place or vice versa;
· In places with high humidity.
When equalizing the temperature of the device with the environmental,
the condensation disappears.Use the towel to remove moistu
Clean the lens surfaces with the Lens Cloth or with the napkin!
Before attaching to weapons,check the regional legal regulations in the area of application.
The attachment to a weapon is always the sole responsibility of the user.
APPEARANCE

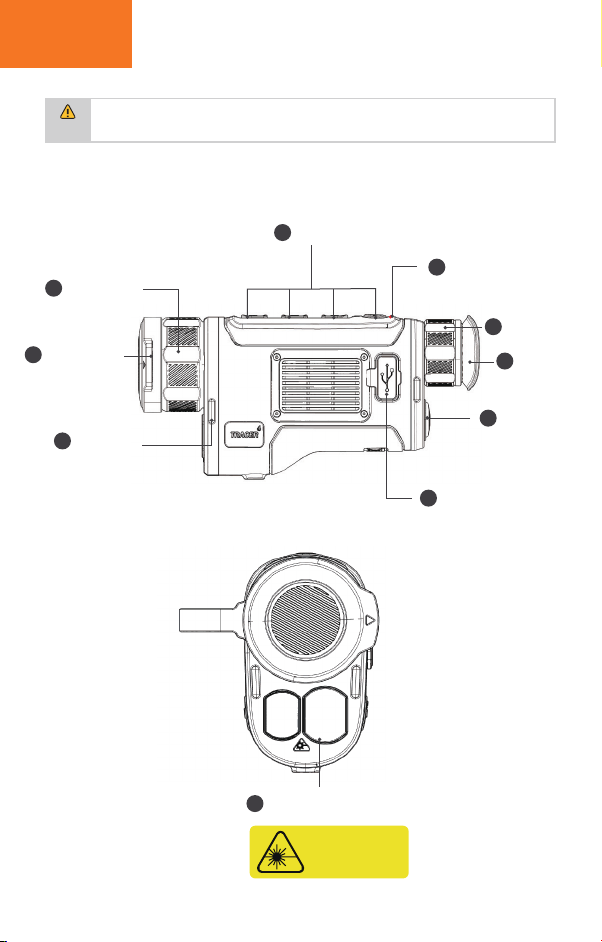

Laser rangefinder
All images used in this instruction manual are for illustrative purpose only.
Actual product may vary due to product enhancement.
NOTE
CLASS 1
LASER PRODUCT
BS/EN 60825-1:2014
10
11

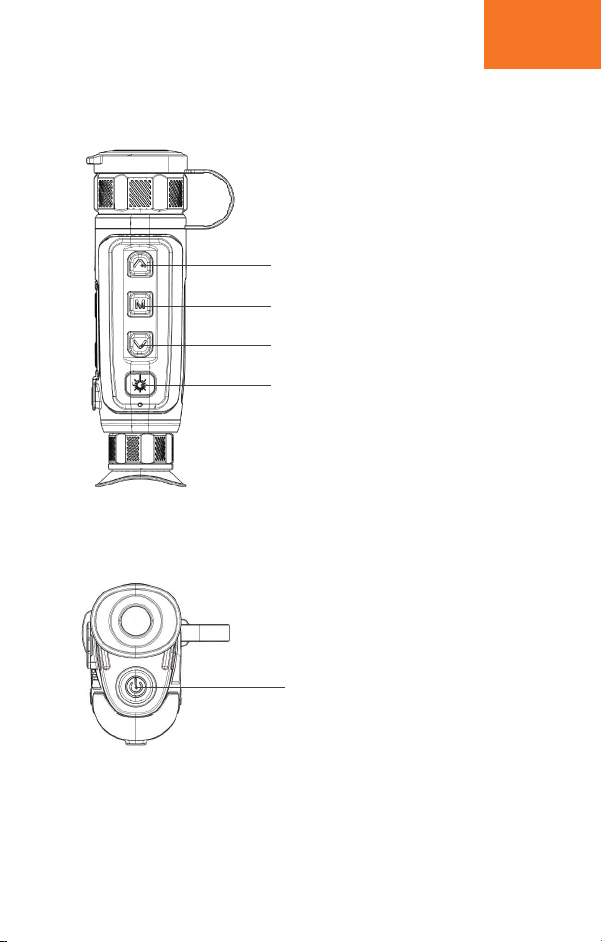

Power
Button
LED indicator
Lens cover
Focus ring
Button
Eyepiece
1
2
3
4
5
7
9
8USB port
Eyepiece
rubber
6
Wrist
band joint
HOT KEY
2
Switch color mode / Perform NUC
Activate quick menu / Enter Setup menu
Take photo/ On-boarding video
Start single measurement
/ Start-stop scan measurement
Standby / Power on - power off
Palette
Short press button to switch the color modes activated in the setup menu.
HOT KEY
3
NUC
Take photo / video recording
Long press button to perform non-uniforming calibration.
Short press button to take photo, number of photo will be shown in the top left of screen.
long press button to start/stop video recording, recording icon will be shown in the top left
of screen.
Take photo by CONOTECH
User can take photo / video by CONOTECH App.
Replay on Smart phone.
To get started, install the free CONOTECH App on your mobile device.
You can search and download at App Store and GooglePlay.
CONOTECH
4
How to replay on PC ?

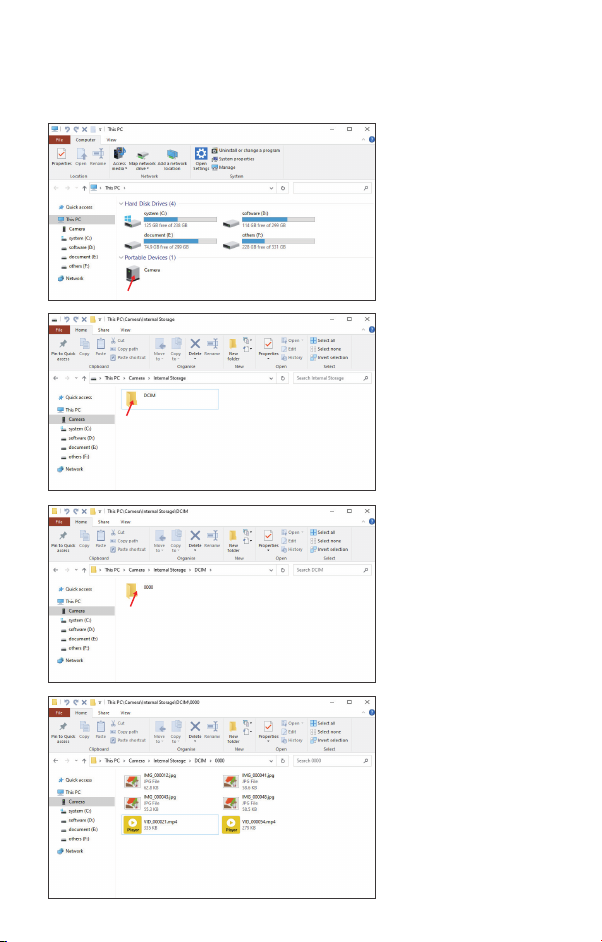

1.Connect the Type-C usb cable to PC.
2.Turn on WIFI and wait 10s.
5
Open this folder.
A new folder is created each time when you
re-power on the device and take
photo/record video.
Open the folder you will see phots / videos that you took.
You will see a folder name “camera”.
Laser rangefinder
Short press the button, the ranging box and distance appear.
Short press the button to have range measured once and displayed.
The distance is displayed for 5 seconds then disappear.
6
9 9 9
OPERATING FEATURES:
1.The accuracy and distance of the measurement depends on the reflection coefficient of
the object surface and weather conditions. The reflection coefficient depends on the
texture, color, size and shape of the object. Generally, lighter colored objects and those with
a shiny surface will have a higher reflection coefficient.
2.Measurement accuracy can be influenced by the light conditions, fog, haze, rain, snow,
etc. The results may be less accurate when operating in sunny weather or if the rangefinder
is directed towards the sun.
3.It is easier and more reliable to measure the distance to large objects than to small ones.
4.The distance of measurement is able to display on your mobile device by CONOTECH App.
Long press button to start the scan mode, and the scan mode ranging box and distance
Long press button again to turn off the scan mode. The ranging box and figures will
appear in the real-time image.
disappear together.
7
