Contacta IL-RX30 Bedienungsanleitung
Rechargeable Loop Listener
IL-RX30 / RX30
Installation &
User Guide
English 2
2
1
3
46
5
1 - Power and Volume control wheel
2 - Power on indicator
3 - Battery compartment cover
4 - Bass cut switch
5 - Lanyard / Belt clip hook
6 - 3.5 mm Audio output
English 3
Safety Precautions
- Before using this device, please be sure to read through all
instructions carefully.
- Keep this user guide in a safe place so that other users have
access to it any time they might need it.
- Always handle the device and any accessories with care and
where possible set them up in a clean and dust free environ-
ment.
Important Note:
Your receiver can be set to a high volume. To protect your hearing
or the hearing of people with unimpaired hearing, particularly of
children, from any damage caused by excessively loud volume,
please observe the following information:
1. Set the volume to low before using the receiver.
2. While using the device, set the volume to a level that is comfor-
table for you.
Intended Use
This product is equipped with a built-in activated T-Coil coupler,
designed to receive signals transmitted by hearing loop systems.
The sound signal received by the device can be heard via a head-
set or earphones connected to its sound output. The sound vol-
ume level can be adjusted to your preferred level.
The sound quality you will experience will greatly depend on the
performance of the hearing loop system you will be listening to,
and the headset/earphones quality. It is recommended to use
the manufacturer’s compatible headset or earphones. These
may be included with the device.
English 4

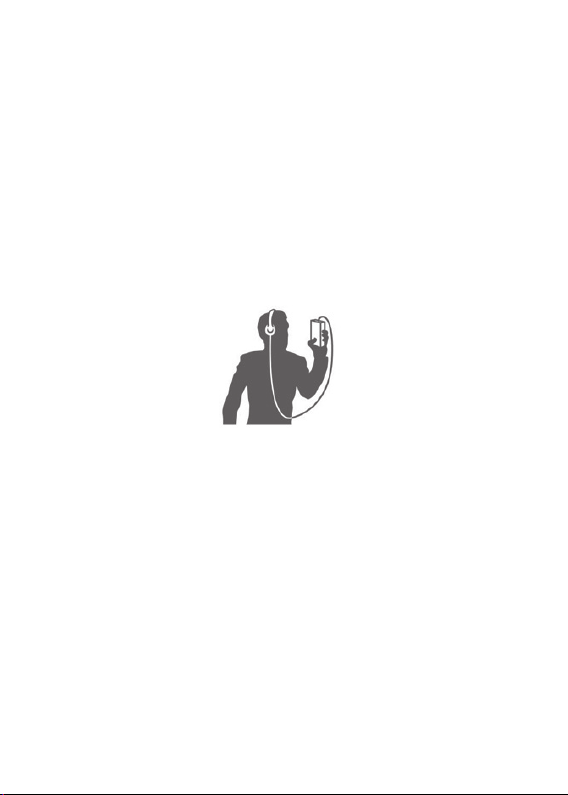

Using the RX30 Hearing Loop Listener
Place the headset over both ears and adjust the side arms until
you have a comfortable t. Ensure the headset is plugged into the
RX30 Hearing Loop Listener via the 3.5mm audio jack.
The control wheel can be used to switch the device on and also
to control the volume. The red LED will light up when the device
is switched on.
Hold the RX30 in a vertical position, adjust holding height to nd
the optimum sound level and quality (this can vary depending on
the installed hearing loop location), this can be achieved using eit-
her the lanyard or belt clip provided with this kit. Changing the
angle of the device could reduce the sound level and its quality.
Make sure that the hearing loop system and the sound source
connected to it are switched on.
Adjust the volume of the RX30 Hearing Loop Listener to a com-
fortable level. The bass cut switch can be used to optimise sound.
Package contents
Please check if all following components are included:
- RX30 Hearing Loop Listener - 2x Rechargeable batteries
- Lanyard - User manual
- Belt clip - Headset (included in IL-RX30
kit only)
If any parts are missing, please contact your dealer or venue.
English 5
Optional Accessories
IR-RX2-DC1 Single bay charger
IR-RX2-DC5 5 Bay charger
IR-DC5-2KIT 10 Bay Charging kit
IR-DC5-3KIT 15 Bay Charging kit
IR-DC5-4KIT 20 Bay Charging kit
IR-HP1 Replacement headset
BATT-RX2-RX30 Replacement pair of batteries
Inserting and charging the Batteries
The RX30 is operated with 2 AAA rechargeable batteries supplied
with the receiver.
NOTE: Use only the supplied batteries and if replacement bat-
teries are needed, please order these from your supplier. Using
other types of batteries can invalidate the warranty and damage
the product.

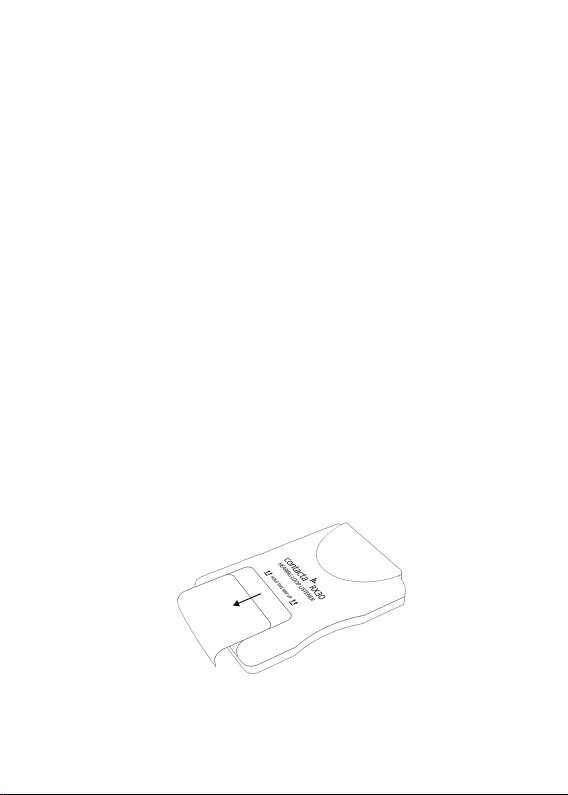

Open the battery compartment by sliding the battery cover in the
direction of the arrow using your thumb. Insert the 2 batteries ac-
cording to the marking inside the battery compartment, ensuring
the correct polarity is adhered to. Replace the battery cover on the
compartment.
Before rst use the rechargeable batteries must be charged for at
least 10 hours.
English 6

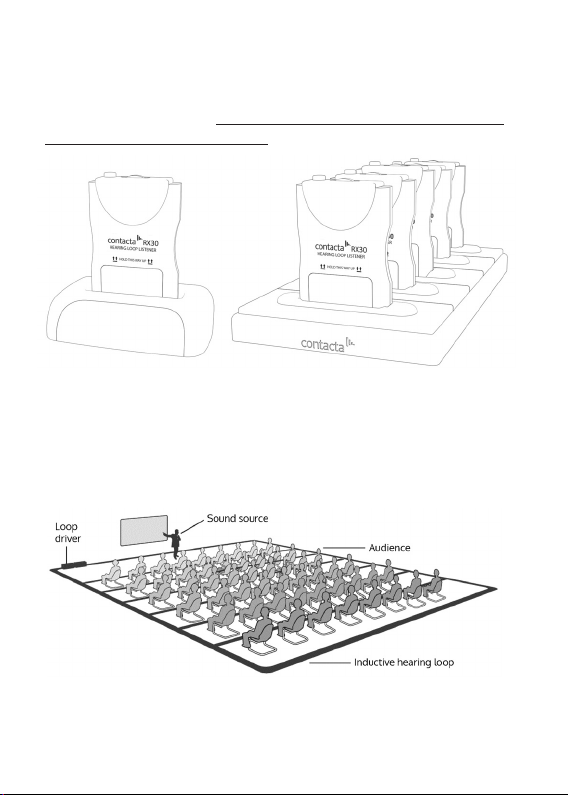

With the batteries in, the product must be charged after each use.
Recharge by placing the unit into a charging bay (sold separately),
ensuring the product is fully in the bay and makes good contact
with the charging pins. Do not force the unit in, simply place it
gently so it slides into position.
Reception Range
The RX30 receiver is functional within the area of an installed and
working hearing loop system, and only when sound is played th-
rough the system. The receiver will operate with limited capacity
outside this area.
English 7
Bass Cut Filter Switch
The Bass Cut switch is located on top of the unit . The Bass Cut can
be used to optimise the sound depending on the circumstances. It
is useful for removing the low frequency humming sounds found
in some venues. The lter is active when the switch is pressed.

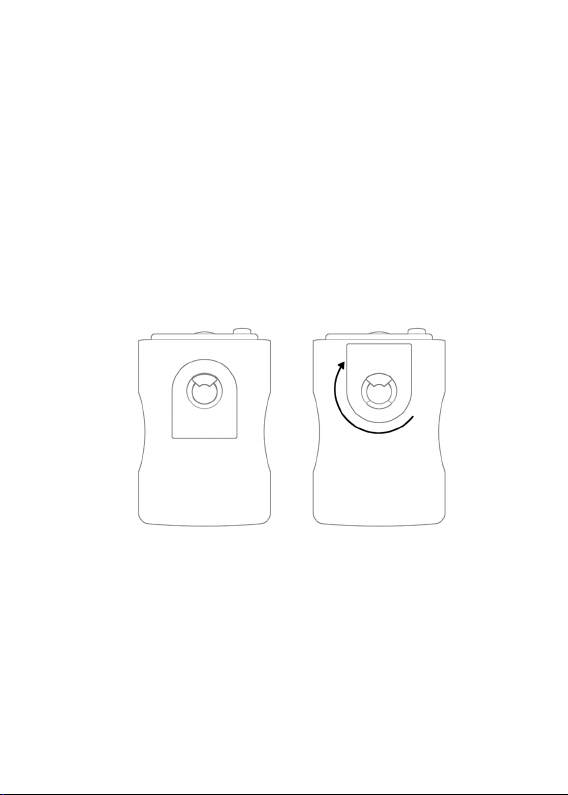

Attaching the Lanyard / Belt Clip
The receiver includes a lanyard and a belt clip which can be atta-
ched to the rear side of the device. To attach the clip to the recei-
ver, place the clip on the hook on the back of the device, turn
the clip 180° until it snaps into place with its flat side facing
upwards.
Connecting Accessories
The following products can be connected to the 3.5 mm audio out-
put of the RX30:
- Stethoset headphones - Audio-Cable binaural
- In-earphones - Audio-Cable monaural
- Lightweight headset - Stereo/ Mono Headphones
English 8
Important Notice
This product is not protected against water, including splashes. Do
not place any containers lled with water, such as ower vases, or
anything with an open ame, such as a lit candle, on or near the
product.
Warranty
The RX30 is a very reliable product. Should a malfunction occur
despite the unit having been set up and operated correctly, please
contact your dealer or the manufacturer directly. It is recommen-
ded that you send in the product in its original packaging, so keep
the packaging for the duration of the warranty period.
The warranty is for production defects only, it does not cover
damage caused by incorrect handling, misuse, damage caused
due to falls, transit, or attempts to repair the unit by people not
authorised to do so (destruction of the seal on the unit). Repairs
will only be carried out under warranty if the product is returned
accompanied by a copy of the invoice/ till receipt. Always specify
the product serial number when making a warranty claim.
Batteries
The batteries that come with the device can be recycled. Please di-
spose of these batteries in receptacles designed for that purpose
or return them to a retail outlet. Dispose only of those batteries
that have been completely discharged to ensure environmental
protection.
English 9
Disposal of used electric and electronic units (applicable in
the countries of the European Union and other European
countries with a separate collection system). The symbol on
the product or the packaging indicates that this product is not to
be handled as ordinary household waste but has to be returned to
a collecting point for the recycling of electric and electronic units.
You protect the environment and health of your fellow man by the
correct disposal of the product.
Environment and health are endangered by a faulty disposal. Ma-
terial recycling helps to reduce the consumption of raw material.
You will receive further information on the recycling of this pro-
duct from your local community, your communal disposal compa-
ny or your local dealer.
Technical data
Audio frequency transmission range: 85Hz - 6kHz ± 0.5dB
Low Cut: 400Hz - 6kHz - 3dB
Distortion: <0.5% THD @ 1KHz
Signal to noise ratio: typ. 60 dB
Output power: >100mW @ 16Ω
Weight: approx. 111 g (incl. batteries)
Batteries
Type: 2 x Rechargeable AAA NiMh batteries
Battery life: 50 hours minimum (dependant on
accessory product used)
Charge time to full capacity: 6 hours approx.
English 10
This device satises the following EU directives:
- 2011 / 65 / EC + 2015 / 863 / EC RoHS-directive
- 2012 / 19 / EC WEEE-directive
- 2014 / 30 / EC EMC-directive
- 2014 / 35 / EC LVD-directive
- 2014 / 53 / EC RED-directive
Compliance with the directives listed above is conrmed by the CE
seal on the device.
This product has been designed and tested to comply with the
following North American and Canadian standards:
- FCC Class “B” EMC (Emissions)
- ICES-003
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause un-
desired operation.
CAUTION: Changes or modications not expressly approved by
Contacta Systems LTD or an authorised partner could void the
user’s authority to operate the equipment.
