Contec SPC-8450-LVA Bedienungsanleitung

SBC Series

Single Board Computer Middle Size PCI

with LAN, VGA, Audio

SPC-8450-LVA

User’s Manual

CONTEC CO.,LTD.

SPC-8450-LVA i

Check Your Package

Thank you for purchasing the CONTEC product.

The product consists of the items listed below.

Check, with the following list, that your package is complete. If you discover damaged or missing

items, contact your retailer.

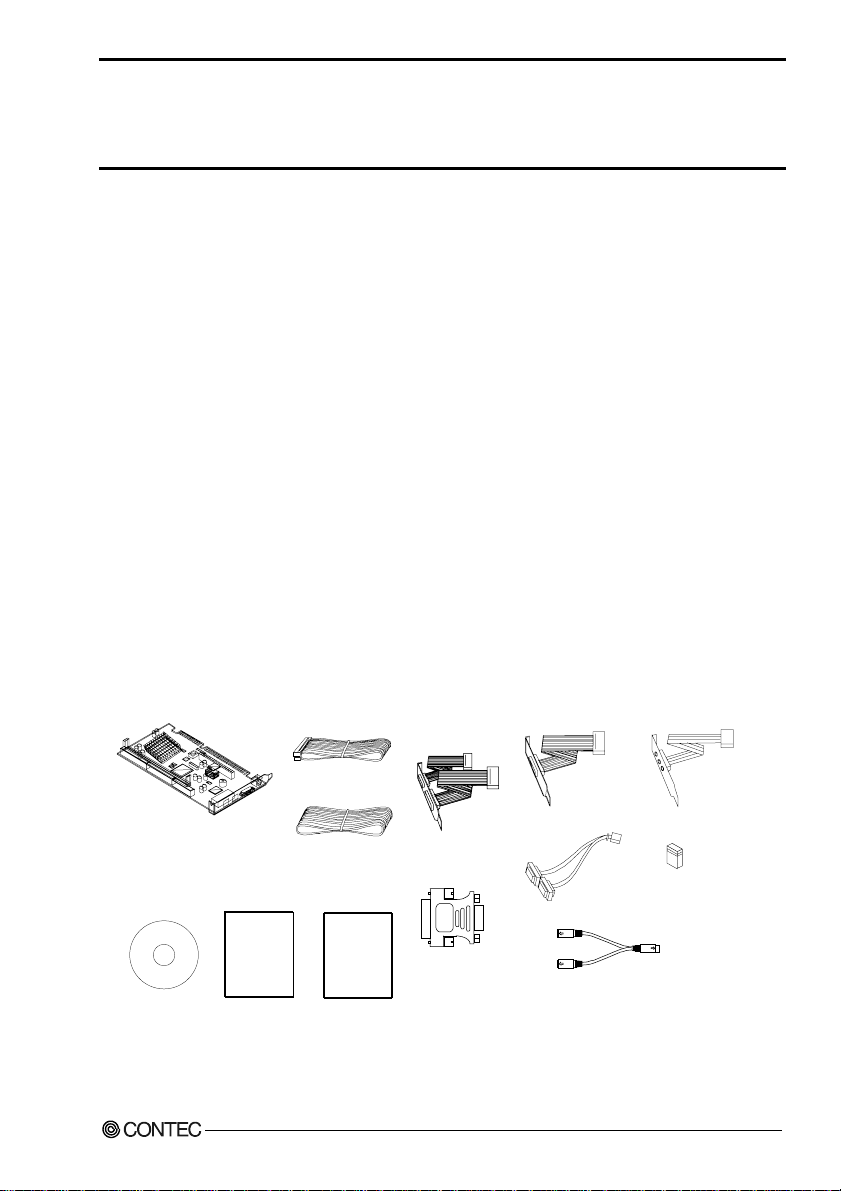

Product Configuration List

- Industrial PCI CPU board (SPC-8450-LVA) …1

- Product Guide …1

- IPC Precaution List ...1

- Driver disk utility *1 (CD-ROM) ...1

- IDE 80Ribbon Cable...1

- FDD Ribbon Cable...1

- Serial port(9pin D-SUB male x 2) ribbon cable(with bracket) ...1

- Parallel port(25pin D-SUB female x 1) ribbon cable(with bracket) ...1

- Audio jack cable(with bracket)...1

- 6 pin mini-DIN cable (2 in 1 for PS2 Mouse & Keyboard functions)

- DVI-Analog RGB conversion adapter...1

- +12V power supply cable...1

- Jumper short pin...5

*1 The CD-ROM contains the driver software and User’s Manual (this Manual)

Serial cable

IDE 80 Ribbon Cable

Floppy Ribbon Cable

DVI-Analog RGB

Converter

Driver disk utility

[CD-ROM]

Product

Guide

Product Guide

IPC Precaution

List

IPC Precaution List

+12V power supply cable

Jumper Short Pin

(2.0mm)

x 5

6 pin mini-DIN cable

(2 in 1 for PS2 Mouse

& Keyboard functions)

CPU board

[SPC-8450-LVA] Parallel cable Audio jack cable

ii SPC-8450-LVA

No part of this document may be copied or reproduced in any form by any means without prior written

consent of CONTEC CO., LTD.

CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this

document. The information in this document is subject to change without notice.

All relevant issues have been considered in the preparation of this document. Should you notice an

omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.

Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may appear

in this document or for results obtained by the user as a result of using this product.

Trademarks

Intel, Celeron and Pentium are registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft Corporation.

All Other product names or trademarks are properties of their respective owners.

Caution about Battery

Replace only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the local ordinances or regulations.

SPC-8450-LVA iii

Table of Contents

Check Your Package ................................................................................................................................i

Copyright.................................................................................................................................................ii

Trademarks ..............................................................................................................................................ii

Caution about Battery..............................................................................................................................ii

Table of Contents....................................................................................................................................iii

1. Introduction 1

About the SBC.........................................................................................................................................1

Features.............................................................................................................................................1

Option List........................................................................................................................................1

Customer Support....................................................................................................................................2

Web Site............................................................................................................................................2

Limited One Year Warranty....................................................................................................................2

How to Obtain Service ............................................................................................................................2

Liability....................................................................................................................................................2

Safety Precautions ...................................................................................................................................3

Safety Information............................................................................................................................3

Handling Precautions .......................................................................................................................3

Environment .....................................................................................................................................4

Inspection..........................................................................................................................................4

Storage..............................................................................................................................................4

Disposal ............................................................................................................................................4

2. System Reference 5

Specifications...........................................................................................................................................5

Power Requirements................................................................................................................................6

Connector & Jumper Location ................................................................................................................7

Block Diagram.........................................................................................................................................8

3. Hardware Installations 9

Installation procedure ..............................................................................................................................9

CPU Installation: ...................................................................................................................................10

Main Memory Installation: CN21.........................................................................................................11

Serial Port Connector: CN1 , CN2........................................................................................................12

RS-422 / RS-485 specifications .....................................................................................................13

USB Connector: CN3, CN9 ..................................................................................................................14

DVI Connector: CN4.............................................................................................................................15

10/100BASE-TX LAN Connector: CN6 ..............................................................................................16

Keyboard / Mouse Connector: CN7......................................................................................................16

iv SPC-8450-LVA

External Keyboard Connector: CN8......................................................................................................17

Audio Connector: CN10 ........................................................................................................................17

CD-IN Connector: CN11 .......................................................................................................................17

External Battery Connector: CN12........................................................................................................17

Primary IDE Connector: CN13..............................................................................................................18

Floppy Disk Drive Connector: CN14....................................................................................................19

Parallel Port Connector: CN16 ..............................................................................................................20

Front Panel Connector: CN17................................................................................................................21

ATX power control Connector: CN18...................................................................................................22

DC Power supply connector: CN19.......................................................................................................23

+12V power supply Connector: PW1....................................................................................................23

FAN Connector: FAN1/FAN2...............................................................................................................23

4. Jumper Setting 25

RS-232C/422/485 Selector: JP1/JP8 .....................................................................................................25

RS-422 Setting................................................................................................................................26

RS-485 Setting................................................................................................................................26

RS-422/485 Terminator: JP7..........................................................................................................28

CF Master/Slave Selector: JP6...............................................................................................................29

ATX/AT Power supply select: JP9........................................................................................................29

Clear CMOS Content: JP10...................................................................................................................29

5. Board Resources 31

System Address Map .............................................................................................................................31

6. Watch-Dog-Timer (WDT) Setting 33

7. BIOS Setup 37

Introduction............................................................................................................................................37

Starting Setup..................................................................................................................................37

Using Setup.....................................................................................................................................37

Main Menu.............................................................................................................................................39

Standard CMOS Setup...........................................................................................................................40

Advanced BIOS Features Setup.............................................................................................................43

Advanced Chipset Features Setup .........................................................................................................47

Integrated Peripherals ............................................................................................................................51

Power Management Setup .....................................................................................................................57

PnP/PCI Configuration Setup................................................................................................................62

PC Health Status ....................................................................................................................................65

SPC-8450-LVA v

Frequency/Voltage Control ...................................................................................................................66

Defaults Menu ................................................................................................................................67

Supervisor/User Password Setting ........................................................................................................68

Exit Selecting.........................................................................................................................................69

POST Messages.....................................................................................................................................69

POST Beep ............................................................................................................................................69

Error Messages ......................................................................................................................................70

POST Codes...........................................................................................................................................74

vi SPC-8450-LVA

1. Introduction

SPC-8450-LVA 1

1. Introduction

About the SBC

This product, which is equipped with an 845GV chip set, is a PCI bus compliant middle-sized single

board computer that supports Pentium(R) 4, Celeron(R) and Celeron(R) D. It features all-in-one-design

with a variety of interfaces including LAN, DVI-I, EIDE, USB2.0, serial, parallel and PS/2. This product

is also equipped with a CF card slot (Type I/II), enabling boot-up from a CF card.

When connecting external devices or building the system, please read this manual carefully.

Features

- Compact PCI bus middle-sized board

- The corresponding CPU is as follows :

Intel(R) Pentium(R) 4 Processor 1.7G - 2.8GHz(FSB400/533MHz)

Intel(R) Celeron(R) Processor 1.7G - 2.6GHz(FSB400MHz)

Intel(R) Celeron(R) D Processor 2.26G - 2.8GHz(FSB533MHz)

- DDR SDRAM of up to 1GB can be mounted.

- Equipped with a CF card slot (Type I/II), enabling boot-up from a CF card.

- Equipped with DVI-I I/F, enabling connection with the CONTEC PanelLink type LCD display.

- Provides the AC97 compliant sound function.

Option List

CPU

- PCP4-28S Pentium 4 2.8GHz CPU with HeatSink-FAN *1

- PCP4C-20S Celeron 2.0GHz CPU with HeatSink-FAN *1

- PCP4-24 Pentium 4 2.4GHz CPU with HeatSink-FAN *2

- PCP4C-20 Celeron 2.0GHz CPU with HeatSink-FAN *2

*1 Since a heatsink-fan interferes to board, the next 4 slots can use only a PCI half size board(length of 120mm).

*2 Since a heatsink-fan interferes to board, the next 3 slots can not use for board.

Memory

- PC-MDD256-200 200-Pin SO-DIMM DDR-Memory(PC2100, 256MB)

- PC-MDD512-200 200-Pin SO-DIMM DDR-Memory(PC2100, 512MB)

- PC-MDD1G-200 200-Pin SO-DIMM DDR-Memory(PC2100, 1GB)

CABLE

- USB Connector Cable USB connector shielded cable

1. Introduction

2SPC-8450-LVA

Customer Support

CONTEC provides the following support services for you to use CONTEC products more efficiently and

comfortably.

Web Site

Japanese http://www.contec.co.jp/

English http://www.contec.com/

Chinese http://www.contec.com.cn/
