Convaid WC19 Bedienungsanleitung

ENGLISH

Transit Guide

READ INSTRUCTIONS BEFORE USING YOUR NEW WHEELCHAIR

SAVE THIS BROCHURE FOR FUTURE REFERENCE

WC19-Compliancy Transit Policy, User’s Manual, Warranty Information

Metro Transit Chair

Cruiser Transit Chair

Cruiser Planar Transit Chair

Scout Transit Chair

EZ Rider Transit Chair

EZ Rider Planar Transit Chair

Convertible Transit Chair

Convertible Planar Transit Chair

Rodeo Transit Chair

Safari Transit Chair

Mountee Transit Seating System

Profiler Transit Chair

Clipper Transit Chair

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wheelchairs Used as Seating in Motor Vehicles . . . .

ANSI/RESNA WC19 . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Securing the Wheelchair . . . . . . . . . . . . . . . . . . . .

Providing Clear Space & Padding . . . . . . . . . . . . .

Restraining the Wheelchair Occupant . . . . . . . . . .

Using Postural Belts & Supports . . . . . . . . . . . . . .

Trays & Other Wheelchair Components . . . . . . . .

WTORS Manufacturers . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For Answers to Your Questions . . . . . . . . . . . . . . .

Table of Contents

Wheelchair Lateral

Stability and Belt

Restraint Accommodation

Ratings

Introduction

Passenger Safety

Proper Use of Equipment

Crash-Tested, WC19-

Compliant Seating

Options

Warnings & Precautions

Convaid Limited Warranty

INTRODUCTION

Congratulations on purchasing your new Convaid transit wheelchair, proven

safer for use as seating aboard a motor vehicle. This guide includes important

information regarding the use of your transit wheelchair. Please read it

carefully and keep it for future reference.

When riding aboard a motor vehicle, it is preferred that the wheelchair user

transfer from the wheelchair into the vehicle manufacturer’s seat and use a

federally approved, crash-tested restraint system. However, it may be

undesirable for some wheelchair users to transfer to the seat provided by the

motor vehicle manufacturer. In these cases, Convaid transit wheelchairs offer

a safe alternative.

All Convaid transit wheelchairs comply with a newly developed transit

wheelchair standard that requires wheelchairs to be dynamically crash tested.

(Largest and smallest sizes of each model have been crash-tested at a leading

U.S. university; intermediate sizes may be certified to standard by Convaid.)

Proper use of your Convaid transit wheelchair will significantly reduce the

likelihood of injury in the event of a motor-vehicle accident.

This guide provides instructions on how to correctly secure your Convaid

wheelchair to the bus or van and safely restrain the wheelchair occupant.

When selecting a wheelchair, choose the size in accordance with the

occupant’s weight as shown in the following table.

Seat Width Occupant Weight Seat Depth

(in. / cm) (lb. / kg) (in. / cm)

10 / 25.5 35-66 / 15.9-29.9 9-11 / 22.86-27.94

12 / 30.5 35-66 / 15.9-29.9 10-13 / 25.4-33.02

14 / 35.5 45-100 / 20.4-45.3 12-15 / 30.48-40.64

16 / 40.5 85-170 / 38.6-77.1 13-16 / 33.02-40.64

18 / 45.5 85-170 / 38.6-77.1 16-19 / 40.64-48.26

Introduction

CONVAIDTRANSIT GUIDE

1. The wheelchair should be used as indicated in the User’s Guide

instructions accompanying the wheelchair. Failure to do so

increases the likelihood of serious injury in a vehicle crash.

2. A three-point occupant restraint and a four-point wheelchair

tiedown system in compliance with SAE J2249 Wheelchair Tiedown

and Occupant Restraint Systems for Use in Motor Vehicles should be

used at all times during transit.

3. Use positioning belts or postural supports in a moving

vehicle only in conjunction with a crash-tested belt

restraint system. NEVER USE POSITIONING BELTS OR

POSTURAL SUPPORTS AS MOTOR VEHICLE

RESTRAINTS, unless they have been designed, tested, and

labeled for this use. (See #4 below.)

4. Wheelchair-anchored lap belts intended for use as an occupant

restraint in a motor vehicle must comply with Section 19

ANSI/RESNA WC/Volume 1, Wheelchairs Used as Seats in Motor

Vehicles, or “WC19.” Your Convaid transit wheelchair provides

the option of using a crash-tested, wheelchair-anchored lap belt.

5. Whenever possible, auxiliary wheelchair equipment (such as an

oxygen tank) should be removed from the wheelchair and secured

in the vehicle during transit so that it does not break free and

cause injury to vehicle occupants during a crash.

6. Adequate clear zones are required for occupants restrained by

both upper- and lower-torso belt restraints. See Figs. 1 & 2.

7. Do not alter or substitute any part or component of the

wheelchair, wheelchair frame or wheelchair seating system.

8. If the wheelchair has been involved in a vehicle crash that requires

the vehicle to be towed, it may have been structurally damaged,

which could compromise its safety and effectiveness. Wheelchairs

involved in such incidents should be returned to Convaid for

inspection and evaluation.

Warnings & Precautions

WARNINGS&PRECAUTIONS

Fig. 2

The rear clear zone is measured from the rearmost

point on an occupant’s head. The front clear zone is

measured from the frontmost point on an

occupant’s head.

Dimensions shown in millimeters.

Note -- Both

pelvic and torso

restraint belts

must be used

while traveling

aboard a motor

vehicle.

Fig. 1

200

400

650

SIDE VIEW

TOP VIEW

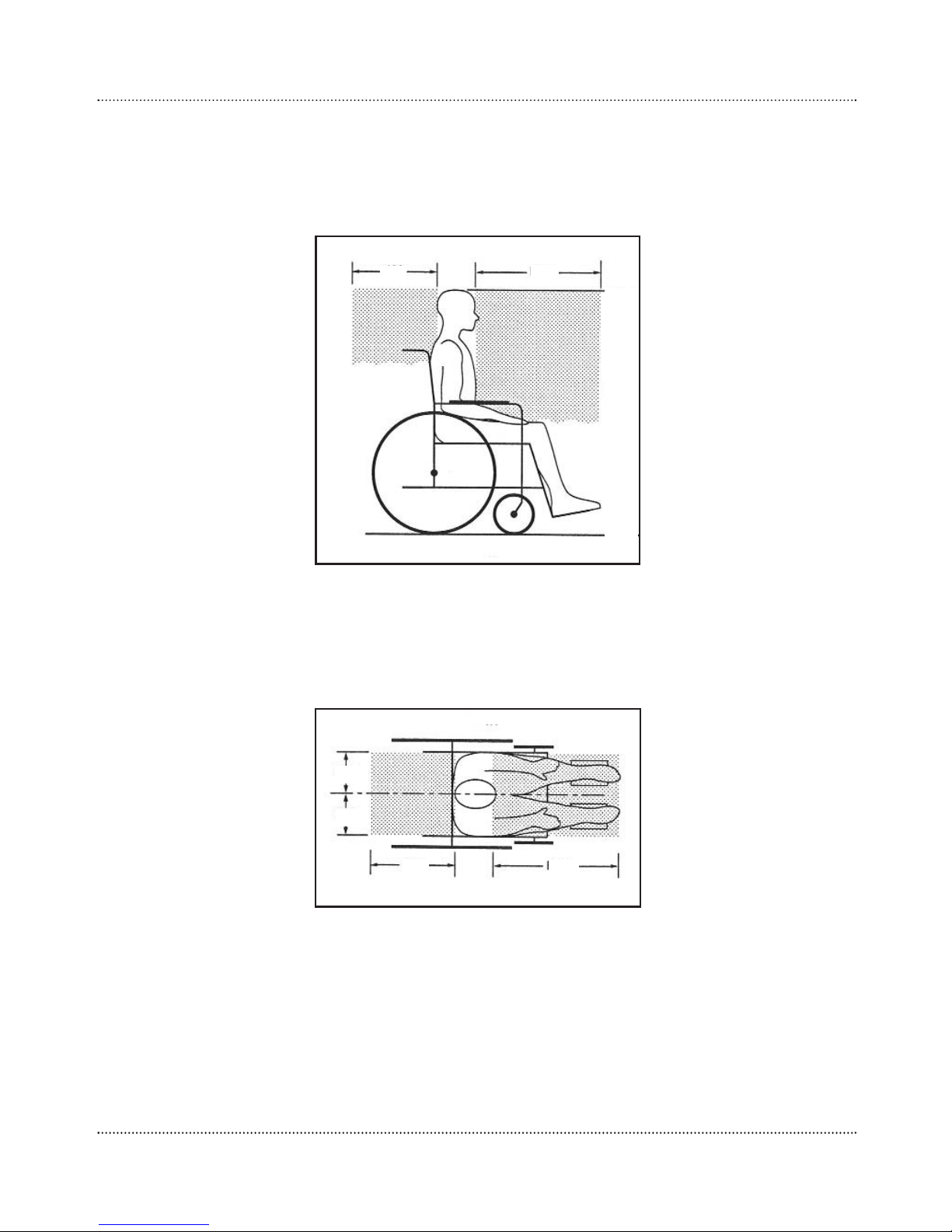

RECOMMENDED CLEAR ZONES IN VEHICLE

CONVAIDTRANSIT GUIDE

Wheelchairs Used as Seating in

Motor Vehicles

Before attempting to use your Convaid transit wheelchair as a seat in a motor

vehicle, please take a moment to become familiar with some fundamental

principles of occupant safety:

Most serious or fatal injuries occur during frontal-impact crashes.

The primary cause of injury to motor-vehicle occupants in frontal

crashes is a lack of effective occupant restraint, which results in

contact with the vehicle’s interior components or objects and

structures outside the vehicle.

Effective protection of occupants in frontal impacts requires the use

of upper- and lower-torso belt restraints that comply with federal

safety standards and WC19. The lower-torso belt restraint should be

positioned snugly across the pelvis and the upper-torso belt restraint

should be positioned snugly over the shoulder and chest. Belt

restraints used in this manner also greatly reduce the likelihood of

injury during vehicle rollovers.

For belt restraints to be effective, the wheelchair must be effectively

secured to the motor vehicle, and the belt restraints must remain in

position on skeletal portions of the body and not place undue stress

on the abdomen.

ANSI/RESNA WC19

For a wheelchair to provide safe seating in a motor vehicle, it is essential that

it comply with the safety standard known as Section 19 ANSI/RESNA

WC/Volume 1, Wheelchairs Used as Seats in Motor Vehicles, or “WC19.”

Convaid’s transit wheelchairs comply with this new voluntary transit

wheelchair standard and have been dynamically tested according to the

Passenger Safety

procedures of Annex A of the standard, which includes the use of a

wheelchair-anchored pelvic belt in a 30 MPH/20 g deceleration, frontal impact.

The purpose of WC19 is to:

reduce the risk of injury to motor-vehicle occupants who remain

seated in a wheelchair during transit and

establish an industry standard so that wheelchairs that comply with

this standard will provide a reasonable measure of safe and suitable

seating during normal transportation and in a frontal impact.

The standard contains a number of design and performance requirements

specifically related to the use of wheelchairs as seating in motor vehicles.

Among the most important of these are that:

wheelchairs provide four easily accessible hook- or strap-type

attachment points for strap-type tiedowns with hook- or strap-type

end fittings to facilitate wheelchair securement in motor vehicles (see

Fig. 3) and

wheelchairs are crash tested at 30 MPH/20 g deceleration while

secured by a four-point strap-type tiedown and loaded with an

appropriately sized crash-test dummy. (Note that this is essentially

the same level of crash testing required by federal safety standards

for passenger motor vehicles.)

When you use your Convaid transit wheelchair as seating in a motor vehicle, it

is vital that you use a wheelchair tiedown and occupant restraint system

(WTORS) that complies with SAE J2249. As stated in this recommended

practice, the wheelchair must be secured in a forward-facing configuration

with a J2249-compliant tiedown. The wheelchair occupant should be

restrained by both upper- and lower-torso belts for optimal crash protection.

PASSENGERSAFETY

Attach tiedown straps to securement points (red brackets) located on the

wheelchair’s legs in accordance with the WTORS manufacturer’s instructions.

Securement points are identified by the symbol in Fig. 4. and their location

on the wheelchair illustrated in Fig. 5. You must use all four tiedown

straps when securing your Convaid wheelchair in a motor vehicle.

Fig. 4

Fig. 3

lap-belt anchorage

red securement

point bracket

hook-type

end fitting

CONVAIDTRANSIT GUIDE

ILLUSTRATION OF SECUREMENT POINT BRACKET ON WHEELCHAIR

FRAME WITH LAP-BELT ANCHORAGE (FIG. 3) AND SYMBOL USED

TO DESIGNATE WHEELCHAIR SECUREMENT POINTS (FIG. 4).

NOTE: Shoulder and pelvic

belt restraints must be in

good contact with the

occupant. Do not place belt

over a structure that would

hold it away from occupant.

Pelvic (lap) belt

anchored directly to

vehicle floor.

Upper shoulder belt

anchorage on vehicle wall.

Front securement-

point bracket.

Front securement

point bracket.

Rear securement-point bracket

(also on opposite side).

Fig. 5: WC19 WHEELCHAIR WITH SECUREMENT POINTS FOR

SECURING WHEELCHAIR TO VEHICLE FLOOR ANCHOR POINTS.

Motor vehicle

floor anchorages

for front tiedown

straps.

Motor vehicle floor

anchorage for rear

tiedown straps.

PASSENGERSAFETY

Optional wheelchair-

anchored pelvic

(lap) belt.

CONVAIDTRANSIT GUIDE

Cruiser Transit 10 19.0 / 8.6 A 0.25 / 6.4

Cruiser Transit 12 19.1 / 8.7 A 0.35 / 8.9

Cruiser Transit 14 21.1 / 9.6 A 1.18 / 30.0

Cruiser Transit 16 24.6 / 11.2 A 1.97 / 50.0

Cruiser Transit 18 29.8 / 13.5 A 1.57 / 39.9

Cruiser Planar 10 26.8 / 12.2 A 0.39 / 9.9

Cruiser Planar 12 28.1 / 12.8 A 0.50 / 12.7

Cruiser Planar 14 32.5 / 14.8 A 0.75 / 19.0

Cruiser Planar 16 38.6 / 17.5 A 1.58 / 40.1

Cruiser Planar 18 46.4 / 21.1 A 1.18 / 30.0

Cruiser Profiler 14 44.0 / 20.0 A 0.66 / 16.8

Cruiser Profiler 16 50.0 / 22.7 A 1.58 / 40.1

EZ Rider Transit 12 19.6 / 8.9 B 0.79 / 20.1

EZ Rider Transit 14 22.1 / 10.0 A 1.18 / 30.0

EZ Rider Transit 16 22.7 / 10.3 A 1.18 / 30.0

EZ Rider Transit 18 25.0 / 11.3 A 1.57 / 39.8

EZ Rider Planar 14 43 / 19.5 A 0.33 / 8.4

EZ Rider Planar 16 43 / 19.5 A 0.83 / 21.0

EZ Rider Planar 18 50 / 22.7 A 0.79 / 20.0

Safari Transit 12 37.5 / 17.0 A 0.79 / 20.0

Safari Transit 14 38.3 / 17.4 A 1.97 / 50.0

Safari Transit 16 40.2 / 18.2 A 1.97 / 50.0

Safari Transit 18 45.0 / 20.4 A 1.97 / 50.0

Mountee 12 48.4 / 22.0 A 0.33 / 8.4

Wheelchair Lateral Stability and

Belt Restraint Accommodation Ratings

Wheelchair

Model

Mass

(Weight) of

Wheelchair

(lb. / kg)

Test Rating

(A,B,C,D)*

Lateral

Stability **

(in. / mm)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Convaid Rollstuhl Handbücher

Convaid

Convaid Trekker Bedienungsanleitung

Convaid

Convaid Metro Bedienungsanleitung

Convaid

Convaid EZ Rider 18 Bedienungsanleitung

Convaid

Convaid CuddleBug Bedienungsanleitung

Convaid

Convaid Trekker Bedienungsanleitung

Convaid

Convaid Vivo Bedienungsanleitung

Convaid

Convaid Rodeo Fehlerbehebungshandbuch

Convaid

Convaid Cruiser 12 Handbuch

Convaid

Convaid Cruiser Bedienungsanleitung

Convaid

Convaid Safari Tilt Bedienungsanleitung

Convaid

Convaid Rodeo Bedienungsanleitung

Convaid

Convaid Trekker Bedienungsanleitung

Convaid

Convaid Rodeo RD12 Bedienungsanleitung

Convaid

Convaid Rodeo Q2 2014 Bedienungsanleitung

Convaid

Convaid Cruiser CX10 Bedienungsanleitung

Convaid

Convaid Flyer Bedienungsanleitung

Convaid

Convaid Cruiser CX10T Bedienungsanleitung

Convaid

Convaid Rodeo Transit Kit Bedienungsanleitung

Convaid

Convaid Rodeo RD10 Bedienungsanleitung

Beliebte Rollstuhl Handbücher anderer Marken

Otto Bock

Otto Bock Skippi plus Bedienungsanleitung

Invacare

Invacare Action 4NG series Bedienungsanleitung

SORG

SORG LoopSORG 802 Bedienungsanleitung

Designability

Designability WizzyBug Montageanleitung

Vermeiren

Vermeiren RAPIDO Bedienungsanleitung

Excel

Excel G5 KIDS 0285 Bedienungsanleitung

M. Bartels

M. Bartels SA-3 Bedienungsanleitung

nino robotics

nino robotics NIno Bedienungsanleitung

Vermeiren

Vermeiren Turios Bedienungsanleitung

Invacare

Invacare MK5 EX Bedienungsanleitung

Invacare

Invacare Solara Spree GT Handbuch

Nova

Nova TKW-12 Bedienungsanleitung

BCW

BCW Advantage Bedienungsanleitung

You-Q

You-Q Luca Bedienungsanleitung

interco

interco Ortolight Standard Bedienungsanleitung

Nova

Nova 7190L Bedienungsanleitung

Vermeiren

Vermeiren EZ1 Bedienungsanleitung

PaceSaver

PaceSaver Scout M-300 Bedienungsanleitung
