Cooper & Hunter 230V Bedienungsanleitung

HIGH-WALL DUCTLESS

AIR CONDITIONING &

HEATINGSYSTEM

INSTALLATION MANUAL

Models:

CH-S30FTXW-SV (230V)

CH-S36FTXW-SV (230V)

SOPHIA

IMPORTANT NOTE:

Read this manual carefully before installing

or operating your new air conditioning

unit. Make sure to save this manual for

future reference.

Table of Contents

Installation Manual

Indoor Unit Installation ......... 11

1. Select installation location ......................... 11

2. Attach mounting plate to wall ................ 12

3. Drill wall hole for connective piping ...... 12

4. Prepare refrigerant piping ......................... 14

5. Connect drain hose ..................................... 15

6. Connect signal cable .................................. 17

7. Wrap piping and cables ........................... 18

8. Connect indoor power wire ................... 18

9. Mount indoor unit ..................................... 18

Outdoor Unit Installation

.. 20

1. Select installation location ............... 20

2. Install drain joint ................................. 21

3. Anchor outdoor unit ......................... 22

4. Connect signal and power cables .. 23

Safety Precautions ................................... 4

Accessories

.................................................. 6

Unit Parts .................................................. 10

Installation Summary - Indoor Unit

.......

Refrigerant Piping Connection ........ 25

A. Note on Pipe Length ............................................................. 25

B. Connection Instructions –Refrigerant Piping ............... 25

1. Cut pipe ............................................................................... 25

2. Remove burrs ..................................................................... 26

3. Flare pipe ends ................................................................. 26

4. Connect pipes .................................................................... 27

Air Evacuation ....................... 29

1. Evacuation Instructions .......................... 29

2. Note on Adding Refrigerant ................ 30

Electrical and Gas Leak Checks ......... 31

Test Run .................................................... 32

European Disposal Guidelines ....... 34

MC MC

Page 4 

This symbol indicates that ignoring instructions may cause death or serious

injury.

This symbol indicates that ignoring instructions may cause moderate injury

to your person, or damage to your unit or other property.

Safety Precautions

Read Safety Precautions Before Installation

Incorrect installation due to ignoring instructions can cause serious damage or injury.

The seriousness of potential damage or injuries is classiﬁed as either a WARNING or CAUTION.

WARNING

CAUTION

WARNING

Do not modify the length of the power supply cord or use an extension cord to power the unit.

Do not share the electrical outlet with other appliances. Improper or insucient power supply

can cause re or electrical shock.

When connecting refrigerant piping, do not let substances or gases other than the specied

refrigerant enter the unit. The presence of other gases or substances will lower the unit’s capacity,

and can cause abnormally high pressure in the refrigeration cycle. This can cause explosion and

injury.

Do not allow children to play with the air conditioner. Children must be supervised around the

unit at all times.

1. Installation must be performed by an authorized dealer or specialist. Defective installation can

cause water leakage, electrical shock, or re.

2. Installation must be performed according to the installation instructions. Improper installation can

cause water leakage, electrical shock, or re.

(In North America,installation must be performed in accordance with the requirement of NEC and

CEC by authorized personnel only.)

Contact an authorized service technician for repair or maintenance of this unit.

4. Only use the included accessories, parts, and specied parts for installation. Using non-standard

parts can cause water leakage, electrical shock, re, and can cause the unit to fail.

5. Install the unit in a rm location that can support the unit’s weight. If the chosen location cannot

support the unit’s weight, or the installation is not done properly, the unit may drop and cause

serious injury and damage.

This symbol indicates that you must never perform the action indicated.

Page 5 

WARNING

6. For all electrical work, follow all local and national wiring standards, regulations, and the

Installation Manual. You must use an independent circuit and single outlet to supply power. Do

not connect other appliances to the same outlet. Insucient electrical capacity or defects in

electrical work can cause electrical shock or re.

7. For all electrical work, use the specied cables. Connect cables tightly, and clamp them securely to

prevent external forces from damaging the terminal. Improper electrical connections can overheat

and cause re, and may also cause shock.

10.

11.

All wiring must be properly arranged to ensure that the control board cover can close properly. If

the control board cover is not closed properly, it can lead to corrosion and cause the connection

points on the terminal to heat up, catch re, or cause electrical shock.

In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed

air-conditioning units is highly recommended.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly

qualied persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced Physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children

without supervision.

CAUTION

For units that have an auxiliary electric heater, do not install the unit within 1 meter (3 feet) of

any combustible materials.

Do not install the unit in a location that may be exposed to combustible gas leaks. If combustible

gas accumulates around the unit, it may cause re.

Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Too

much exposure to water can cause electrical components to short circuit.

1. The product must be properly grounded at the time of installation, or electrical shock may occur.

2. Install drainage piping according to the instructions in this manual. Improper drainage may cause

water damage to your home and property.

Note about Fluorinated Gasses

1. This air-conditioning unit contains ﬂuorinated gasses. For specic information on the type of gas

and the amount, please refer to the relevant label on the unit itself.

Installation, service, maintenance and repair of this unit must be performed by a certiﬁed

technician.

Product uninstallation and recycling must be performed by a certiﬁed technician.

If the system has a leak-detection system installed, it must be checked for leaks at least every 12

months.

5. When the unit is checked for leaks, proper record-keeping of all checks is strongly

recommended.

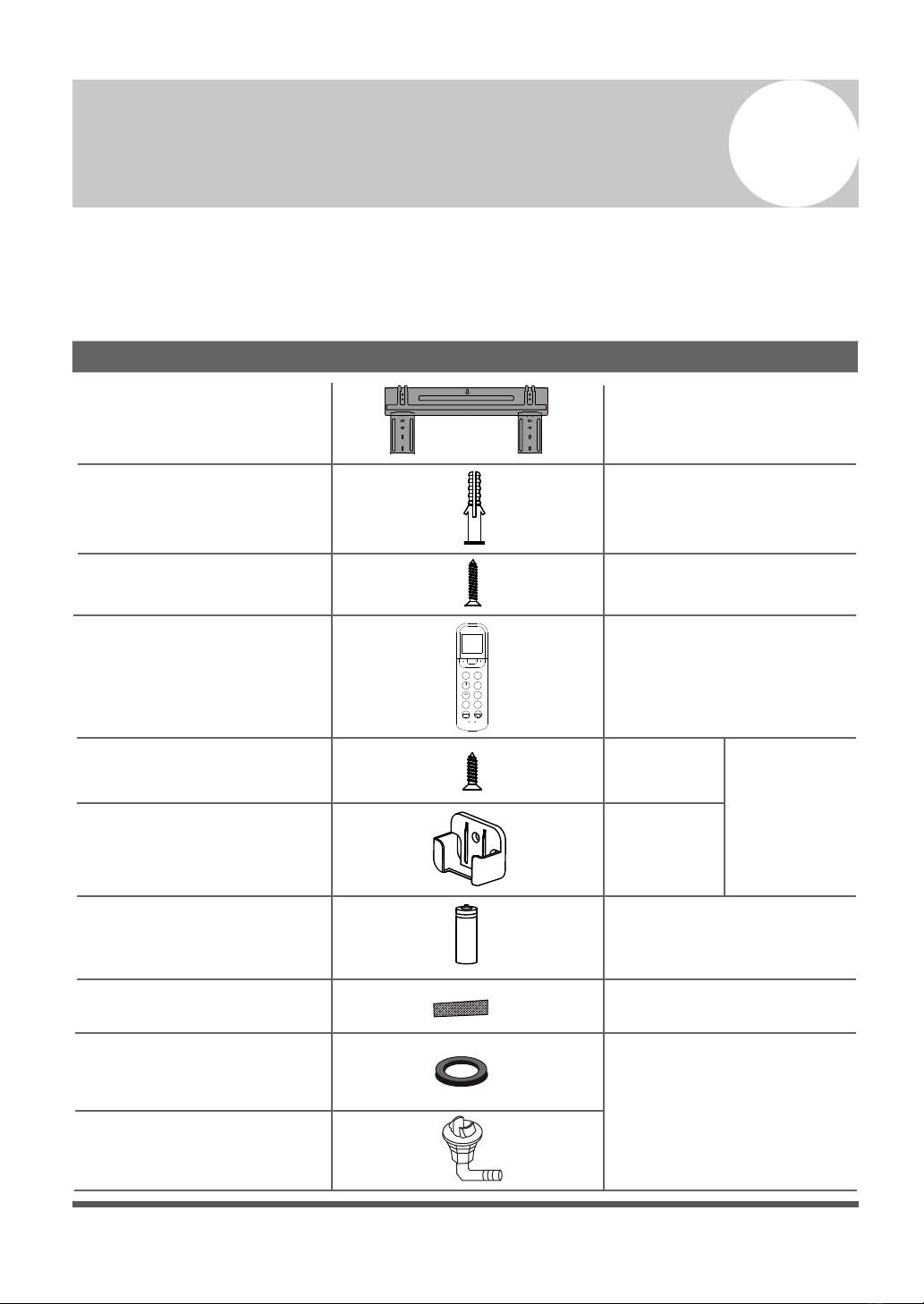

Name

Shape Quantity

(for cooling & heating

models only)

Clip anchor

Mounting plate xing

screw ST3.9 X 25

Remote controller

Fixing screw for remote

controller holder ST2.9 x 10

Remote controller holder

Dry battery AAA.LR03

Air freshening lter

Seal

Drain joint

Mounting plate

Accessories

The air conditioning system comes with the following accessories. Use all of the installation parts and

accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock

and re, or cause the equipment to fail.

Optional

Parts

Page 6 

TURBO

SELF

CL EAN

SLEEP

SILENCE

TIMER

OF F

LOCK RESET

LED

FAN

SPEED

SWING

MODE

TEMP

ON/OFF

SWING

Owner’s manual

Installation manual

Quick Start Guide

Page 7 

Name

Shape Quantity

Parts you must purc hase.

Consul t the dealer about

the pipe si ze.

Connecting pipe

assembly

Liquid side

Gas side

1/4i n(6.35mm)

3/8in(9. 52mm)

1/2in(12.7mm)

5/8in(16mm)

HIGH-WALL DUCTLESS

AIR CONDITIONING &

HEATINGSYSTEM

Models:

CH-S30FTXW-SV (230V)

CH-S36FTXW-SV (230V)

SOPHIA

IMPORTANTNOTE:

Readthis manual carefully before installing

oroperating your new air conditioning

unit.Make sure to save this manual for

futurereference.

HIGH-WALL DUCTLESS

AIR CONDITIONING &

HEATINGSYSTEM

Models:

CH-S30FTXW-SV (230V)

CH-S36FTXW-SV (230V)

SOPHIA

IMPORTANTNOTE:

Readthis manual carefully before installing

oroperating your new air conditioning

unit.Make sure to save this manual for

futurereference.

HIGH-WALL DUCTLESS

AIR CONDITIONING &

HEATING SYSTEM

Quick-Start Guide

SOPHIA

TURBO

SEL F

CLEAN

SLEEP

SILENCE

TIMER

OFF

LOCK RESET

LED

FAN

SPEED

SWING

MODE

TEMP

ON/OFF

SWING

Page 8

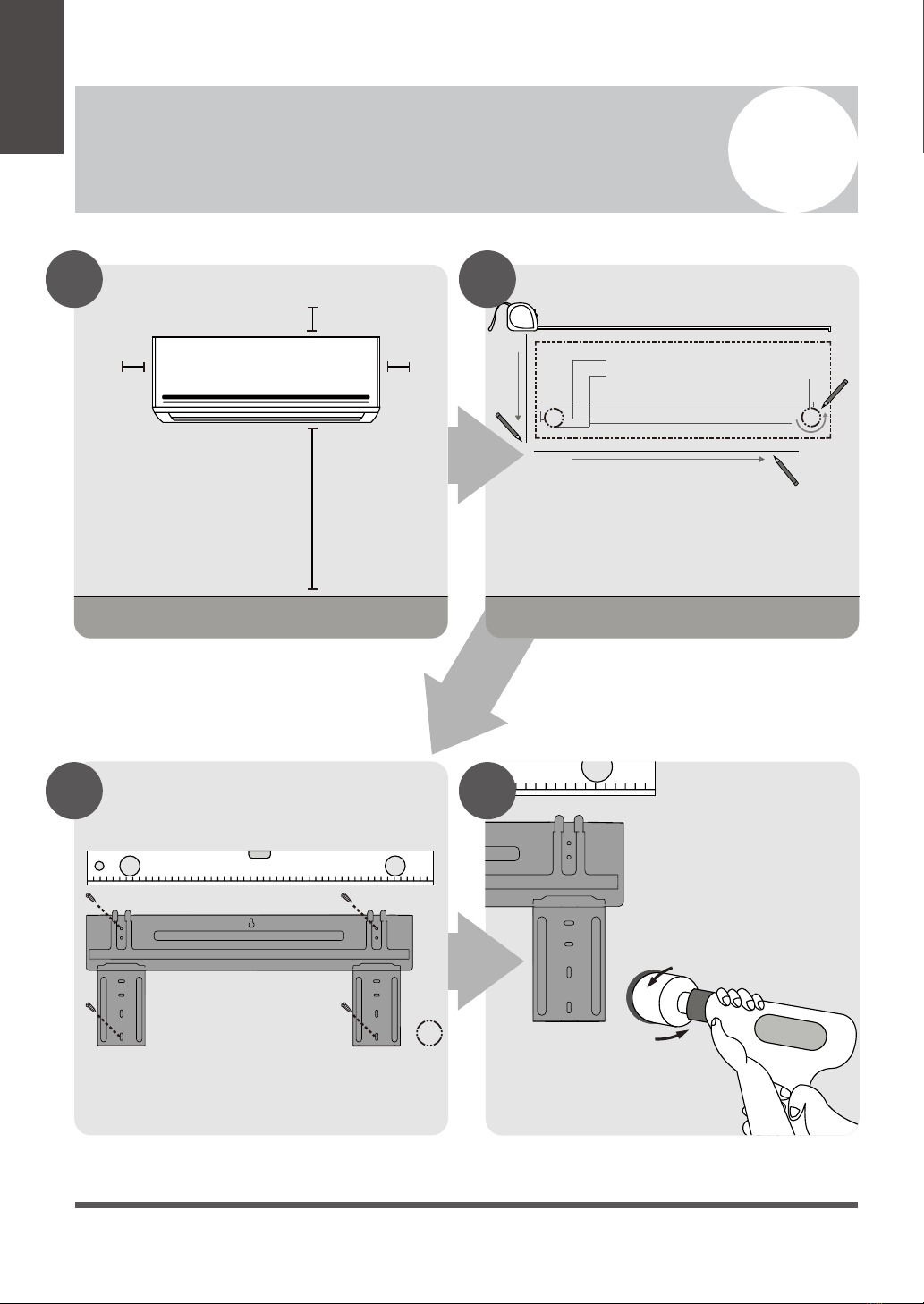

Select Installation Location

(Page 11)

Attach Mounting Plate

(Page 12)

Drill Wall Hole

(Page 12)

Installation Summary - Indoor Unit 2

Installation

Overview

Determine Wall Hole Position

(Page 12)

3 4

4.75in

(12cm)

90.55in (2.3m)

4.75in

(12cm)

5.9in (15cm)

Page 9 

Mount Indoor Unit

(Page 18)

STEP 8

Wrap Piping and Cable

(Page 18)

1(L) 2(N) 3(S)

Connect Piping

(Page 25)

Connect Wiring

(Page 17)

Prepare Drain Hose

(Page 14)

5 6 7

Installation

Overview

Page 10

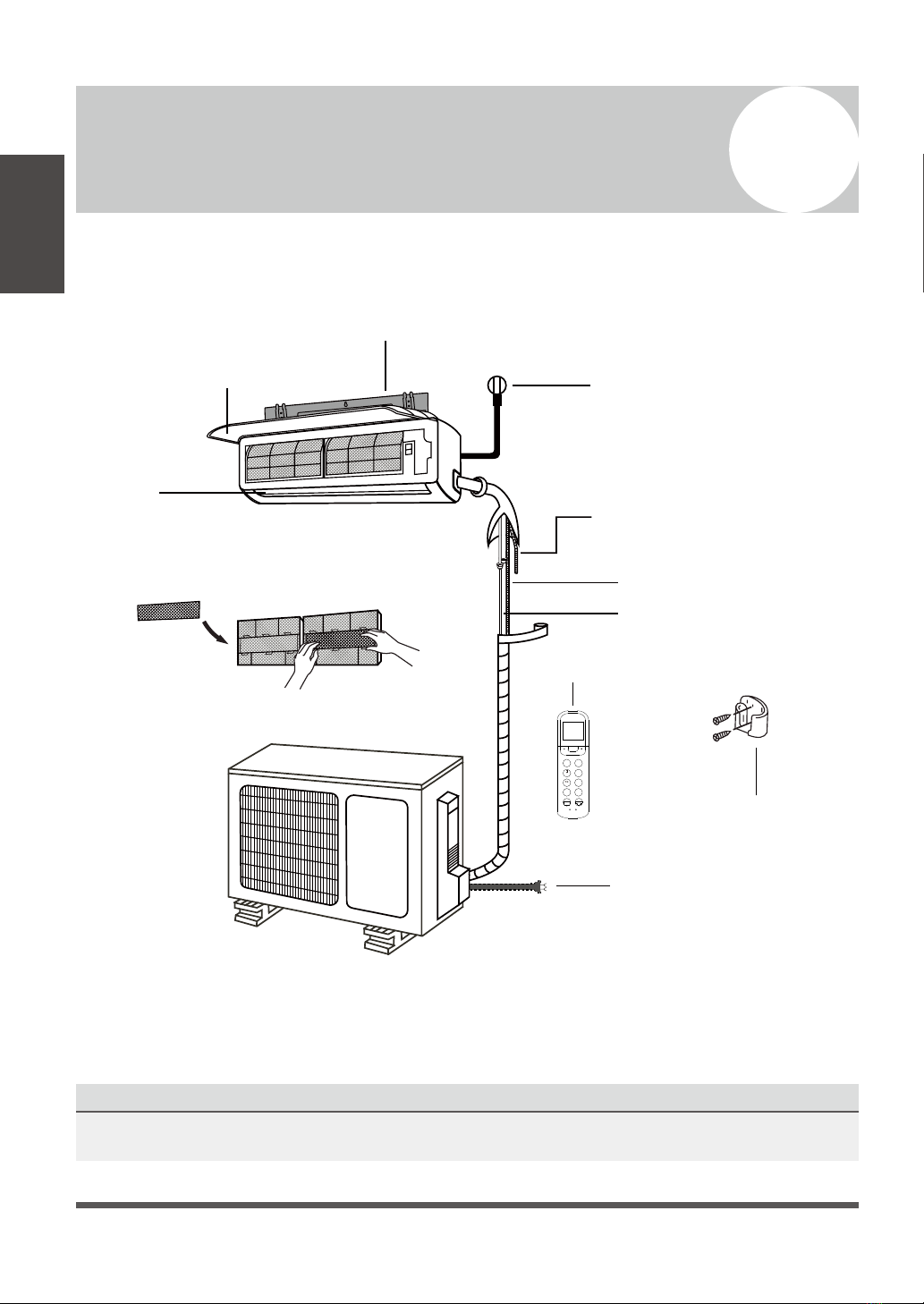

Unit Parts 3

Installation

Overview

Fig. 2.1

NOTE ON ILLUSTRATIONS

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be

slightly dierent. The actual shape shall prevail.

Wall Mounting Plate

Power Cable (Some Units)

Refrigerant Piping

Signal Cable

Remote Control (Some Units)

Drainage Pipe

Louver

TURBO

SELF

CL EAN

SLEEP

SILENCE

TIMER

OF F

LOCK RESET

LED

FAN

SPEED

SWING

MODE

TEMP

ON/OFF

SWING

Remote Holder

Functional Filter

(On Front of Main Filter - Some Units)

Front Panel

Outdoor Unit

Power Cable

(Some Units)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Cooper & Hunter Klimaanlage Handbücher

Cooper & Hunter

Cooper & Hunter CH-S12FTXQ (WI-FI) Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter CH-PT09HPGF Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter NORDIC COMMERCIAL 4 Series Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter SOPHIA CH-12MSPHDT-230VI Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter NORDIC MULTI LIGHT Series Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter CH-S18FTXE-NG Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter AIR MASTER INVERTER Series Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter VERITAS NG Series Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter CH-CC5CHNK Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter CH-HYP36CLUO Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter IBD20NM Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter Victoria CH09VCT115VI Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter EVOLUTION Series Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter NORDIC MULTI LIGHT Series Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter CH-IC035RK Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter CHV5 Series Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter SOPHIA CH-HYP19MSPH-230VO Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter UNIVERSAL Series Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter CH09UFC230VI Service-Handbuch

Cooper & Hunter

Cooper & Hunter CH-IK030RKE Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter CH-M18AHU Reparaturanleitung

Cooper & Hunter

Cooper & Hunter CH-IF035NK Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter CH-IF035RK Bedienungsanleitung

Cooper & Hunter

Cooper & Hunter SOPHIA series Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
