These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible contingency during installation,

operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please contact your nearest representative.

NOTE: Specifications and dimensions subject to change without notice.

Ridgeview LED

Sheet 1 of 2

1/8/10 IMI-726

INSTALLATION INSTRUCTIONS

IMPORTANT : READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN FOR FUTURE REFERENCE

GENERAL: Upon receipt of the fixture, thoroughly inspect for any freight

damage which should be brought to the attention of the delivery carrier.

Compare the catalog description listed on the packing slip with the

fixture label on the housing to assure you have received the correct

material.

SAFETY: This fixture must be wired in accordance with the National

Electrical Code and applicable local codes and ordinances. Proper

grounding is required to insure personal safety. Carefully observe

grounding procedure under installation section.

WARNING: Make certain power is OFF before starting installation or

attempting any maintenance. Risk of fire/electric shock. If not qualified,

consult an electrician.

• RISK OF ELECTRIC SHOCK—Disconnect power at fuse or circuit

breaker before installing or servicing

• RISK OF BURN—Disconnect power and allow fixture to cool before

servicing

• RISK OF PERSONAL INJURY—Fixture may become damaged and/or

unstable if not installed properly.

• DO NOT mount luminaire within 6" of a combustible surface.

DO NOT handle luminaire by the glass. DO NOT touch LEDs.

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801 ADH100009

NOTE: This lighting fixture is designed for outdoor lighting services and should not be used in area of limited ventilation or in high ambient

temperature enclosures. It must be stored in a dry location prior to installation. Do not expose lighting fixture to rain, dust or other

environmental conditions prior to installation and insertion of photocontrol or shorting cap [if so equipped]. Construction is suitable

for down lighting only. Best results will be obtained if installed and maintained according to the following recommendations:

INSTALLATION:

Your lighting fixture has been shipped complete with one of several mounting options.

Please follow the installations instructions specific to the catalog part that you ordered.

TOOLS REQUIRED:

Ratchet, 1/2" socket, flat blade screw driver, electrical wiring tools.

POLE MOUNT:

1. Loosen four [4] screws on front of light fixture. Remove cover and set aside.

2. Remove Lightbar assembly from fixture by inserting a screwdriver and carefully

lifting the Lightbar assembly. This assembly is secured to fixture by a safety lanyard

to prevent damage/injury. Do not remove this lanyard.

3 Install the 1st mounting bolt through the top side hole at the back of the fixture.

Slide a lock washer and nut onto the bolt inside the housing but do not tighten FIG. 1.

4. Install the 2nd mounting bolt through the bottom side hole at the back of the fixture.

Slide a lock washer and nut onto the bolt inside the housing but do not tighten FIG. 1.

5. Remove the pole top cap.

6. Insert the mounting bolts from steps 3 & 4 through the upper and lower holes of the arm FIG. 2.

7. Pull service wires through the center opening of the arm and into the center hole of the housing.

8. Hold the nut plate on the inside of the pole and insert the mounting bolts through the pole and

thread into the nut plate. Assure that bolt is completely threaded through the nut plate FIG. 2.

9. Tighten bolts within the fixture to 45-50 ft-lbs.

10. Attach the supply side ground wire to the ground terminal connector [green wires].

11. Connect the supply side line voltage wire to the fixture side line voltage terminal connector [black wires].

12. Connect the supply side neutral wire to the fixture side neutral wire terminal connector [white wires].

13. Replace Lightbar assembly back onto fixture housing. Assure that no wiring is trapped between Lightbar assembly &

housing as this may permanently damage or degrade your fixture’s performance.

14. Replace the cover and tighten four [4] screws to lock Lightbars and cover into place.

15. Replace pole top cap after completion of fixture installation and wiring.

LOCK WASHER #2

1/2" NUT #2

LOCK WASHER #1

1/2" NUT #1

FIG. 1

operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please contact your nearest representative.

NOTE: Specifications and dimensions subject to change without notice.

Ridgeview LED

Sheet 2 of 2

1/8/10 IMI-726

INSTALLATION INSTRUCTIONS

IMPORTANT : READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN FOR FUTURE REFERENCE

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801 ADH100009

NOTE: For installation to round poles follow the same instructions as the square pole installation with the additional round pole (continued)

adaptor inserted between the pole and the arm. FIG. 2. Care must be taken not to set lighting fixture down on optical lenses or lift

the fixture in the lens area.

TOOLS REQUIRED:

Phillips tip screw driver, electrical wiring tools.

WALL MOUNT FIG. 3:

1. Pull the supply wires out of junction box

[not included] and through the large hole in the center of the

attachment plate.

2. Secure attachment plate to junction box using two [2] screws.

3. Connect supply wires to appropriate fixture leads:

a. Supply side line voltage wire to black fixture lead.

b. Supply side neutral wire to white fixture lead.

c. Supply side ground wire to green fixture lead.

4. Push the wire splices back into junction box and assemble the

fixture assembly to the attachment plate by tightening the two [2]

set screws at the top and bottom of the decorative wall mount plate.

NOTE: For use in wet environments, an appropriate sealant should be

used between the mounting plate and wall surface to prevent

water intrusion into any wiring junctions.

NEMA PHOTOCONTROL ORIENTATION [IF EQUIPPED]

NOTE: The orientation procedure is only required for photocontrols which specifically require the

cell to be aimed north. Otherwise factory orientation will function properly. Follow the

directions recommended by the photocontrol supplier for proximity to light sources.

Lighted signs, building surface reflection, floodlights, tree branches, etc. may affect final

position of the photocontrol.

1. Loosen the two [2] screws to allow rotation of the receptacle FIG. 4.

2. Insert screwdriver into center slot and rotate receptacle until indicator arrow points north.

3. Retighten screws.

4. Insert the photoelectric control [or shorting cap] into receptacle and twist into locked position.

NOTE: The photocontrol [not included] must contain a soft, resilient gasket fastened to the bottom

surface to assure a proper weather seal between the control and the receptacle.

BI-LEVEL SWITCHING [IF EQUIPPED]

For bi-level switching, the input leads to the fixture will be independently labeled to indicate dimming preferences as appropriate

[as defined by the order requirements). Two [2] separate supply lines of line voltage, neutral and ground must be provided to the fixture to

enable the bi-level switching functionality of the fixture.

MAINTENANCE

A regular maintenance schedule should be followed to retain optimal light output and thermal performance. Optical lens cleaning should be

performed with a clean dry cloth to remove any dust or other contaminants. Additional cleaning can be performed with non-abrasive acrylic

cleansing solution.

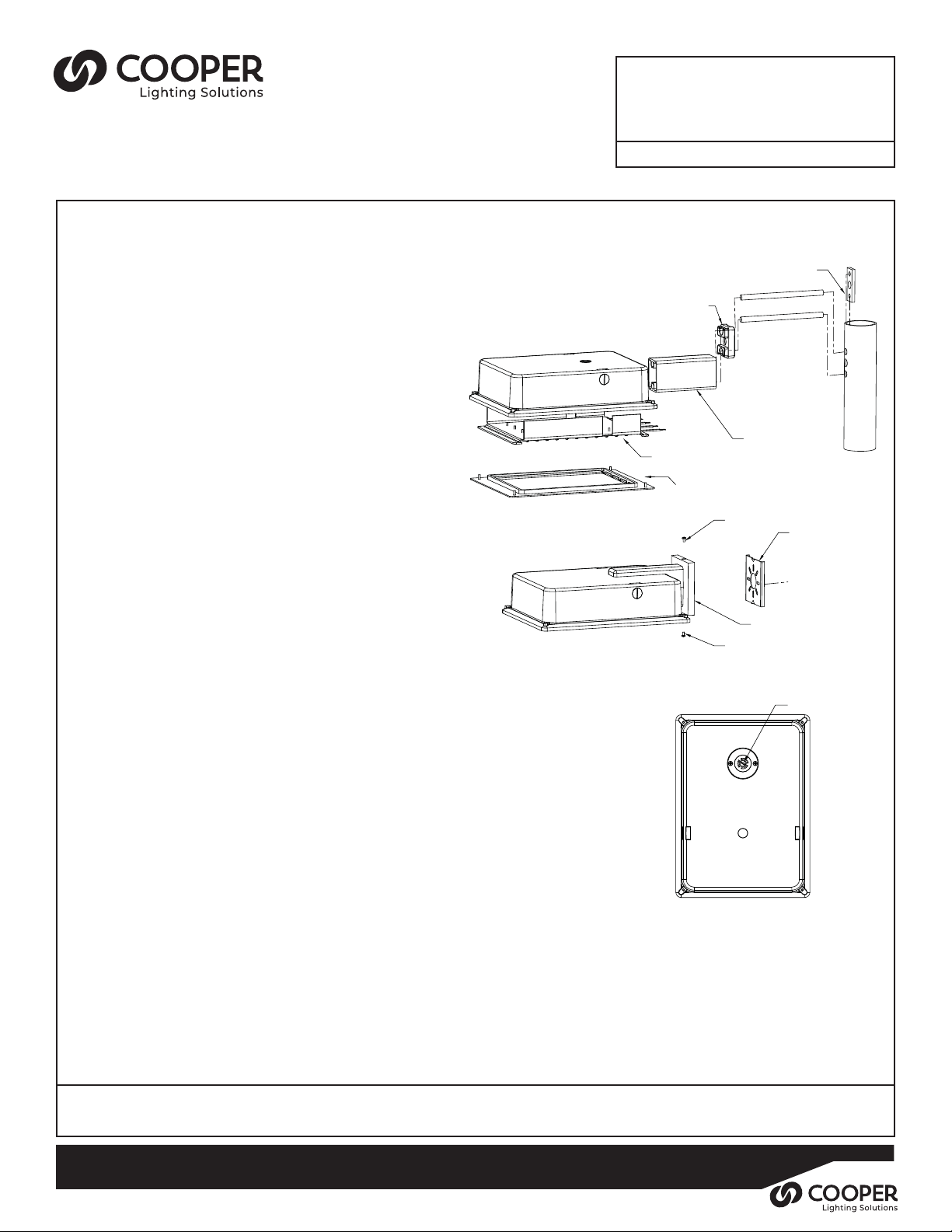

ARM

ROUND POLE ADAPTOR

NUT PLATE

LIGHTBAR ASSEMBLY

FIG. 2

COVER

ATTACHMENT PLATE

SET SCREW

FIG. 3

DECORATIVE WALL PLATE

TO JUNCTION BOX

(NOT SUPPLIED)

SCREWDRIVER SLOT

FIG. 4

operation or maintenance. When additional information is desired to satisfy a problem not covered sufﬁciently for user’s purpose, please contact your nearest representative.

NOTE: Speciﬁcations and dimensions subject to change without notice.

Ridgeview LED

Sheet 2 of 2

1/8/10 IMI-726

INSTALLATION INSTRUCTIONS

IMPORTANT : READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN FOR FUTURE REFERENCE

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801 ADH100009

Warranties and Limitation of Liability

Please refer to www.cooperlighting.com/legal for our terms and conditions.

Garanties et limitation de responsabilité

Veuillez consulter le site www.cooperlighting.com/legal pour obtenir les conditions générales.

Garantías y Limitación de Responsabilidad

Visite www.cooperlighting.com/legal para conocer nuestros términos y condiciones.

FCC Statement

Declaration of Conformity

Note: This equipment has been tested and

found to comply with the limits for a Class

A digital device, pursuant to part 15 of

the FCC Rules.These limits are designed

to provide reasonable protection against

harmful interference when the equipment is

operated in a commercial environment.This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instruction

manual, may cause harmful interference

to radio communications. Operation of this

equipment in a residential area is likely to

cause harmful interference in which case

the user will be required to correct the

interference at his own expense.

Declaración de la FCC

Declaración de conformidad

Nota: Se ha probado este equipo y se ha

determinado que cumple con los límites

de la FCC. Estos límites están diseñados para

proporcionar una protección razonable contra

interferencias perjudiciales cuando el equipo

se opera en un entorno comercial. Este equipo

genera, utiliza y puede irradiar energía de

radiofrecuencia y, si no se instala y utiliza

de acuerdo con el manual de instrucciones,

puede causar interferencias perjudiciales en

las comunicaciones de radio. Es probable que

el funcionamiento de este equipo en un área

residencial cause interferencia perjudicial, en

cuyo caso el usuario deberá corregirla a su

propio costo.

Énoncé de la FCC

Déclaration de conformité

Cet équipement a été mis à l’essai

et déclaré conforme aux limites établies pour

Ces limites sont conçues pour assurer une

protection raisonnable contre tout brouillage

nuisible lorsque l’équipement fonctionne

dans un environnement commercial. Cet

équipement produit, utilise et peut émettre

de l’énergie radioélectrique et, s’il n’est

pas installé et utilisé conformément aux

instructions, il peut créer des parasites

nuisibles aux communications radio.

L’utilisation de cet équipement dans une

installation résidentielle est susceptible

de provoquer des interférences nuisibles,

auquel cas l’utilisateur devra corriger ces

interférences à ses propres frais.
