Copeland E3 Bedienungsanleitung

E3 Supervisory Control

(Contrôle du superviseur E3)

Quick Setup Guide

(Guide d’installation rapide)

iii

Technical Speciﬁcations.........................................................................................6

Wiring.............................................................................................................................7

Ethernet Connections..............................................................................................7

E3 RS485 Wiring Guide Example ........................................................................8

Direct Connect Instructions - Connect your Laptop to E3’s Ethernet

Port ETH1:.....................................................................................................................9

Logging Into the E3 Controller.......................................................................... 10

How to Change the IP Address ......................................................................... 11

Setup Wizard ...........................................................................................................12

Contents

Table des matières

English

Français

Spéciﬁcations techniques................................................................................... 14

Câblage......................................................................................................................15

Connexions Ethernet.............................................................................................15

Exemple de guide de câblage E3 RS485 ......................................................16

Instructions de connexion directe - Connectez votre ordinateur portable

au port Ethernet ETH1 de l’E3 :..........................................................................17

Connexion au contrôleur E3...............................................................................18

Comment changer l’adresse IP......................................................................... 19

Assistant de conﬁguration .................................................................................20

The E3 is a system that combines energy

management with the ability to monitor various

facility systems and provide alerts when there

are issues that need attention. This system

provides HVAC control, Refrigeration System

Monitoring and Control, as well as Lighting

Control. In addition, the E3 can monitor and

report energy consumption and take action to

reduce the energy demand during peak periods.

This can have a direct impact on utility bills by

reducing total energy costs. E3 ensures that the

HVAC and lighting systems are on and off at the

appropriate times. This ability to monitor store

conditions can potentially minimize energy

consumption.

Technical Speciﬁcations

*Operating Temperature -40°F to 113°F (-40°C to 45°C)

*Tested to UL60730-1 standard

Operating Humidity

Storage Humidity

5% - 95% RH non-condensing at 90°F

5% - 100% RH

24 VAC 24 VAC ±20%, 50/60 Hz, Class 2

Dimensions 12” L x 12.5” W x 3.75 H”

4 RS485 ports

COM 1 = RS485-COM2A and RS485-COM2B

COM 2 = RS485-COM6<ISOLATED>

COM 3 = <ISOLATED>RS485

COM 4 = RS485-COM4A and RS485-COM4B

2 Ethernet ports ETH 0, ETH 1

2 USB ports J2, J3

External Pollution Rating All Models: Pollution Degree 3

Rated Impulse Voltage 2500/4000V

Lithium Battery Marking

Caution: The cell used in this device may present a ﬁre or

chemical burn hazard if mistreated. Do not disassemble, heat

above 212°F (100°C), or incinerate.

E3 Supervisory Control

Quick Setup Guide

PIB Board Layout

Ethernet Connections

• ETH 0 is used to connect to corporate LAN.

• ETH 1 is designed to be used for directly

connecting to PIB, and laptop or PC and

network devices.

The default IP for ETH 1 is 192.168.1.250.

ETH Ports

Wiring

1. Connect the RS485 Communication wire to the terminal block headers as shown. The Cables are

numbered 1 through 4.

2. Connect the 2-pin 7.5mm power connector and Ground wire as shown in PIB Board Layout illustration.

3. Connect the other end of the power cable to one of the 50VA P/N 640-0040 transformers.

4. Plug the 50VA P/N 640-0040 Transformers into a 120VAC outlet.

5. Turn the power switch ON (up position). The unit should boot up to the home screen.

6. You can log into the unit the ﬁrst time by using the below username and password if needed.

• Username = user

• Password = pass

7. Once logged in you will be prompted to change your password.

E3 RS485 Wiring Guide Example

• For E3 Serial IO Net connections, connect the white wire to the positive terminal and the black wire to

the negative terminal.

• For 8RO and MultiFlex RS485 IO Net connections, connect the white wire to the positive terminal and

the black wire to the negative terminal.

• Connect the shield wire to earth/chassis at the end of the IO Net (network) segment. Connect the shield

wire to the center terminal (0V) of the IO Net connector on the E3.

• For daisy-chain conﬁgurations, terminate devices at the beginning and the end of the network segment.

All other devices in the network segment are not terminated (termination jumpers in the not-terminated

position).

E3, MultiFlex, and 8RO Wiring Layout

E3 and XR75 Wiring

DEVICE

MAX

NUMBER ON

NETWORK

MAX CABLE

RUN LENGTH

9600 BAUD

MAX CABLE

RUN LENGTH

19.2k BAUD

MultiFlex +

8RO

32 Max

Devices 4000 ft 4000 ft

NOTES:

1. Transformers for 8RO and MultiFlex 16AI must be center-tapped,

24VAC, 15VA minimum per board.

2. Transformer for MultiFlex ESR must be center-tapped 24VAC,

50VA P/N 640-0040 minimum per board.

3. All other MultiFlex board can be non center-tapped or

center-taped 24VAC, 15VA minimum per board.

4. For MODBUS device wiring, set jumpers above COM connection

to MOD (top 2 pins) and connect devices as indicated by the

device manual or quick start guide.

DEVICE

MAX

NUMBER ON

NETWORK

MAX CABLE

RUN LENGTH

9600 BAUD

MAX CABLE

RUN LENGTH

19.2k BAUD

XR75

(120V) 50 2500 ft 1250 ft

NOTES:

1. Ground shields at ends of communication run.

2. Terminate MODBUS Network at furthest device.

3. Set Com mode using jumpers for the E3 Com port used.

4. Consult factory for congurations with mixed models.

5. Ectrical loading only. Software limitations may apply.

6. RS485 COM polarity is reversed between the

E3 and XR75CX.

Direct Connect Instructions - Connect your Laptop to E3’s Ethernet

Port ETH1:

All conﬁguration can be accomplished through the E3’s built-in display or through a laptop, PC, or tablet.

On your PC:

1. Under Control Panel - Network and Sharing Center, select Change adapter settings.

2. Select the Local Area Connection port being used.

3. Select Properties.

4. Highlight the section Internet Protocol

Version 4 (TCP/IPv4) and click Properties:

5. Click Use the following IP address: and

enter the IP address 192.168.1.251 and

the Subnet mask 255.255.255.0 of the PC

being used on the Local Area Network or

direct connection and click OK.

Change Adapter Settings

Highlight Internet Protocol Version 4 (TCP/IPv4)

IP Address and Subnet Mask

Logging Into the E3 Controller

1. Launch a preferred Web browser: Google Chrome 105.0.5195 and later, Firefox 105.0 and later, MAC

Safari 14.1.2 and later, iOS Safari 14.7 and later, Microsoft Edge 84.0.522 and later, and Chrome/

WebView 105.0.5195 and later are the supported browsers.

2. Enter the IP Address of the device.

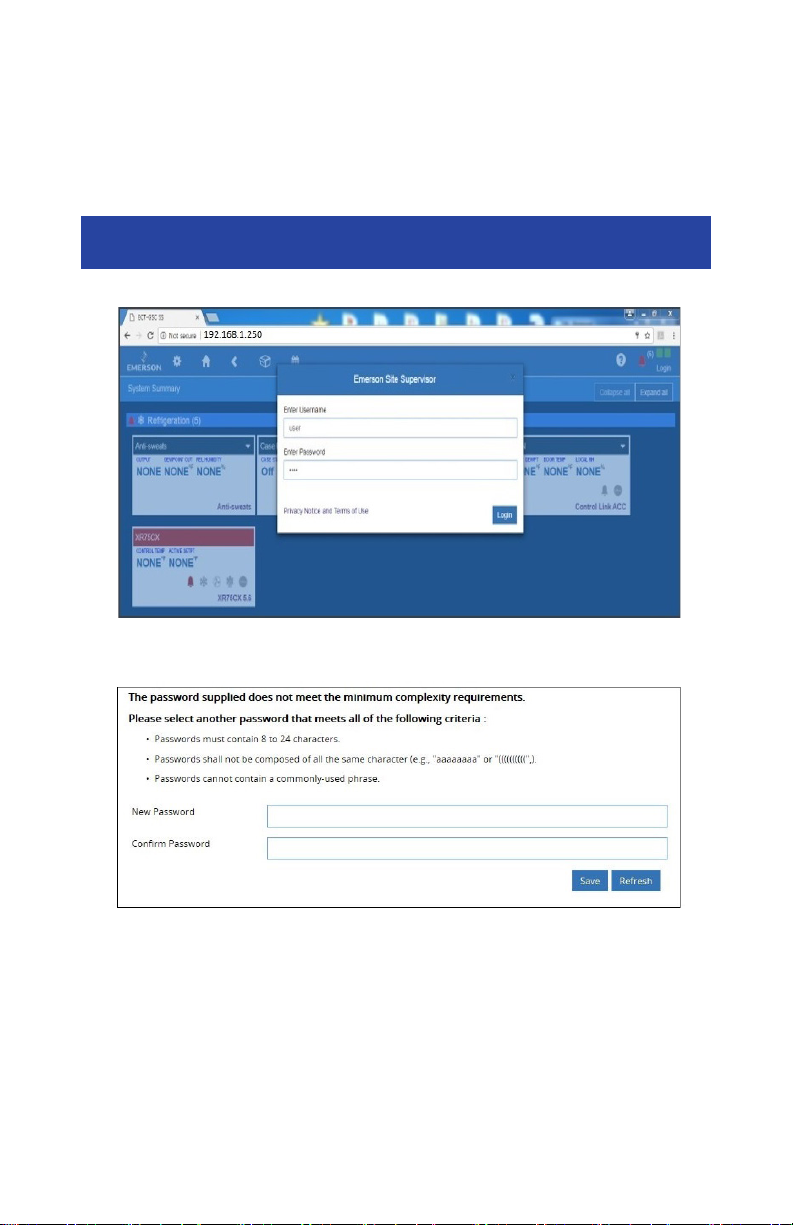

3. Enter your Username/Password (default user/pass) and click Login. Then update your password to

the minimum complexity requirements and click Save.

Update Password

Note that when directly connecting your laptop or PC to ETH1, enter the default IP into the

browser address bar: ETH1 Default IP Address is 192.168.1.250.

How to Change the IP Address

Method 1: Direct Connect

1. Select the Main Menu icon > Conﬁgure System > General System Properties > Network

Settings:

2. On the INTERNET (TCP/IP) section on the screen, enter the IP Address in the ETH 0 IP Address ﬁeld.

Method 2: USB Port

1. Create a “network.txt” with your desired settings (Enter IP Address in the ETH 0 IP Address Field):

2. Save to the root folder of a thumb drive. Insert the thumb drive into the USB port of E3.

3. Power cycle the E3. The new IP Address will be saved.

Network.txt Notepad

Enter IP Address in the ETH 0 IP Address Field

Note that you can set up the Peer Group, Unit Number, Network Mask, and Default Gateway on

this screen.
