Cornelius MFV Installations- und Benutzerhandbuch

How To Replace Solenoid Plunger

Tips on MFV Valve

IDC Pro 255

The only tool needed to perform this procedure!

Removing the Upper Splash Panel

** This must be removed to gain access to the MFV shutoffs**

•Remove the thumb screw

behind the door

•Pull the panel up and

forward to release. Guide

the panel down making sure

to clear ice dispense lever

and nozzles

•NOTE: Re-insert thumb

screw to avoid losing it.

Accessing the Service Screen on

IDC Pro

Enter an Access Code (default values)

•Service Technician (3333)

•Supervisor (2222)

•Operator (1111)

… and press Enter.

1. Display the keypad screen by tapping each corner of the

video screen starting in the upper right corner and

continuing to tap each corner in a counterclockwise

direction, in the form of a “C”.

2. A keypad will appear

Accessing Unit Setup

Select Unit Setup - Service Technician

Only

Locating the Correct Valves

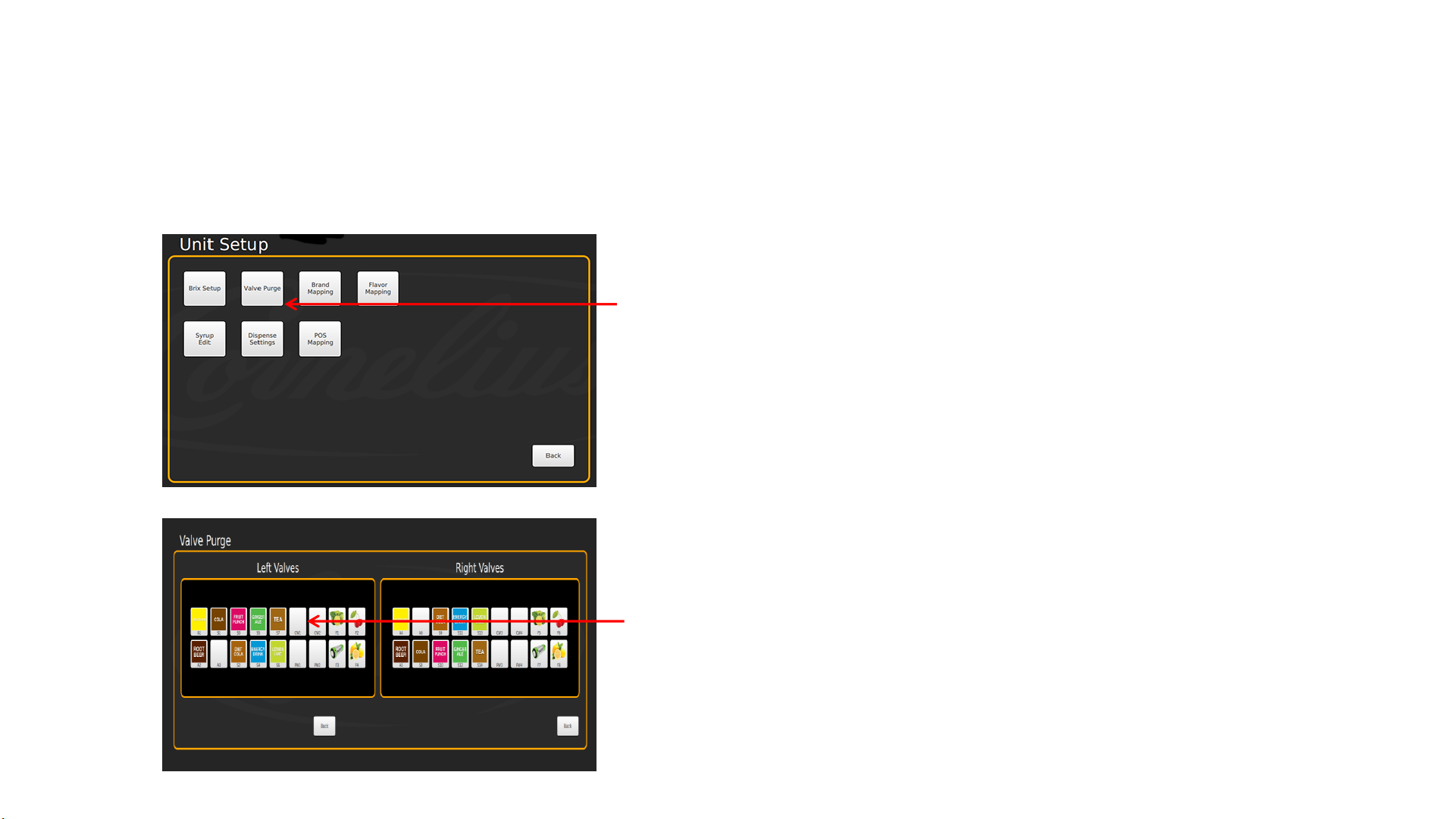

While in Unit Setup - select Valve

Purge

The valve layout on the screen is

laid out the same orientation of

the physical valves. If you were to

take the valve purge screen and

lay it over the valves it will show

you what valve is what. EX: you

are working on valve CW1; it is the

6th valve from the left on the top.

**We will use the valve purge option to identify the correct valve**

MFV Shut offs

Procedure to remove an individual MFV module

1. Look for round spindles (white tab) on the bottom back

of the valves; there will be one per valve that controls

flow to the top and bottom flow controls. Locate the

correct valves. To shut off flow to the valve, these

spindles must be pushed UP. You will see a black

spindle pop up from the top of the valve indicating it is

shut off.

2. Once spindles are pushed up, you should activate the

valves in the valve purge screen to release pressure on

the backblock before depressing the dovetails, then

deactivate the valves before proceeding. This will also

confirm you have the correct valve shut off. Steps for

purging on the next page.

3. Once the white spindles are pushed up and pressure is

relieved, push the black dovetails (between the white

spindles) up to release the entire valve module from the

valve block.

Relieving pressure between backblock and valve

While in Unit Setup - select Valve

Purge

The valve layout on the screen is

laid out the same orientation of

the physical valves. If you were to

take the valve purge screen and

lay it over the valves it will show

you what valve is what. EX: you

are working on valve CW1; it is the

6th valve from the left on the top.

**This step will confirm you have the correct valve shut off.**

Select Unit

Setup - Service

Technician Only

You do not have to remove the MFV

module all the way out of the machine

The next steps in this guide will have the valve and valve bank removed.

This will provide a better view and show you in more detail how to

remove the valve from the valve bank and the solenoid from the valve.

Disassembly of MFV for service

•NOTE: YOU DO NOT HAVE TO

DISCONNECT BEVERAGE TUBING OR

WIRING FROM THE VALVE / VALVE BANK

TO REMOVE AN INDIVIDUAL VALVE.

•Make note of wire harness

locations before unplugging (if

needed) as there is 6 connections

per module. You can use the valve

purge screen to assist with wiring.

•Using a screwdriver or needle nose

pliers, pry up on the stainless steel

retaining clip and remove.
