IMICORNELIUSINC.

OneCorneliusPlace

Anoka,MN55303-6234

Telephone1-800-238-3600

Facsimile1-800-258-0255

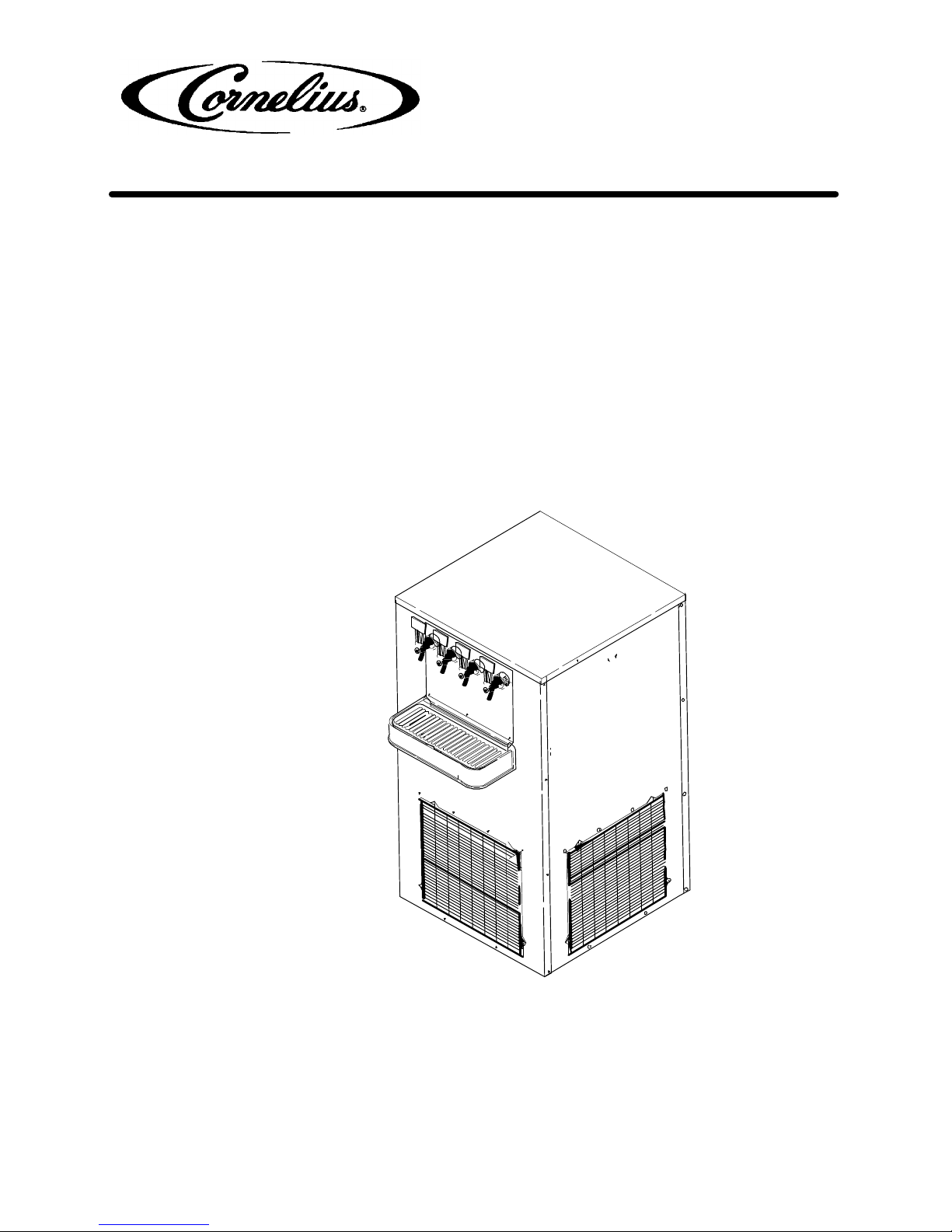

ILLUSTRATEDPARTSLIST

UNIVERSAL1550 PRE-MIXDISPENSER

MODELNO.

284974xxx

ManualPartNo.309989003

7-30-87 Revised:5-15-95

1 of8

IMICORNELIUSINC.

OneCorneliusPlace

Anoka,MN55303-6234

Telephone1-800-238-3600

Facsimile1-800-258-0255

ILLUSTRATEDPARTSLIST

UNIVERSAL1550 PRE-MIXDISPENSER

FIGURE1.UNIVERSAL1550 PRE-MIXDISPENSER ASSEMBLY

234

ManualPartNo.309989003

7-30-87 Revised:5-15-95

IMICORNELIUSINC.

OneCorneliusPlace

Anoka,MN55303-6234

Telephone1-800-238-3600

Facsimile1-800-258-0255

ILLUSTRATEDPARTSLIST

UNIVERSAL1550 PRE-MIXDISPENSER

Item

No.PartNo.Name

1 319837004 Coil and Tube Ass’y(Includes2-7)

2 319244000 Tube Ass’y,Coil toValve,No.1,2

and 3 (See Figure 3)

319481000 Tube Ass’y,Coil toValve,No.4

(See Figure 3)

3 309952005 Coil,Product

4 2248 Rack,Coil

5 318880000 Tube Ass’y, Inlet(See Figure 3)

6 176067000 Ferrule,For.312 O.D.Tube

7 176035000 Ferrule,For.312 O.D.Tube,Short

8 319765044 Panel,Front

9 316963000 Bushing,Snap

10 186573039 DripTray

11 185176000 Retainer,ControlBulb

12 186642000 Cup Rest

13 310392000 Leg

14 188346000 Washer,No.10

15 319386000 Expansion Valve

16 323264000 TwinNut, No.10-32

17 398022409 Machine Screw,SlPan Hd., No.

10-32 By3/8-In.Long

Item

No.PartNo.Name

18 319428000 Clamp,SensorBulb

19 331303000 Bushing,Snap

20 319786000 Panel,Valve

21 310445000 Tube, .500 I.D.By60-In.Long

22 311849044 Cover

23 Dispensing ValveAss’y(See Figure

24 319781000 Plate,Backup

25 319941000 Thread Rolling Screw,HexWasher

Hd., No.8-32 By3/8-In.Long

26 1650 Shield,Corner

27 319856000 Plate,HeatTransfer

28 186599000 Slinger

29 3600 Blade,AgitatorMotor

30 186610000 Pin,Blade

31 2218 Bracket, AgitatorMotor

32 310154000 AgitatorMotor,115V60HZ

33 310437000 Tube,HeatTransfer

34 4187 IceBankControl

ManualPartNo.309989003

7-30-87 Revised:5-15-95

IMICORNELIUSINC.

OneCorneliusPlace

Anoka,MN55303-6234

Telephone1-800-238-3600

Facsimile1-800-258-0255

ILLUSTRATEDPARTSLIST

UNIVERSAL1550 PRE-MIXDISPENSER

FIGURE2.UNIVERSAL1550 REFRIGERATION ASSEMBLY

11 13

15 16

ManualPartNo.309989003

7-30-87 Revised:5-15-95

IMICORNELIUSINC.

OneCorneliusPlace

Anoka,MN55303-6234

Telephone1-800-238-3600

Facsimile1-800-258-0255

ILLUSTRATEDPARTSLIST

UNIVERSAL1550 PRE-MIXDISPENSER

Item

No.PartNo.Name

1 319767044 Panel,Back

2 186299000 StrainRelief

3 2247 Tank,WaterBath

4 319770000 Insulation,Side

5 319768000 Insulation,Back

6 319227000 Conduit, Corner

7 318148069 Base

8 319817039 Grille

9 309939000 ServiceCord

10 313621000 StrainRelief

11 309645000 Switch,Rocker

12 319941000 Thread Rolling Screw,HexWasher

Hd., No.8-32 By3/8-In.Long

13 319940000 Cover,SwitchHole

14 319888000 ControlBoxAss’y(Includes15-26)

15 319880000 ControlBox

16 319867000 Strap,Capacitor

17 186125000 Grommet

18 360020000 TerminalBlock

19 319858000 Capacitor,Run,115V60HZ

20 319859000 Capacitor,Start, 250V60HZ

21 319861000 Relay,115V60HZ

22 360668000 Bushing,Snap

23 320289000 Thread Rolling Screw,Phil Pan Hd.,

No.6-32 By1/4-In.Long

24 392065000 Machine Screw,HexHd., No.8-32

By1-In.Long

25 319941000 Thread Rolling Screw,HexWasher

Hd., No.8-32 By3/8-In.Long

26 186150000 Machine Screw,Phil Pan Hd., No.

8-32 By3/8-In.Long

27 309966000 Bulkhead,Cabinet

28 319766044 Panel,Side

29 140135000 Clamp,For.687 O.D.Tube

Item

No.PartNo.Name

30 187512000 Tube, .500 I.D.By40-In.Long

31 312859000 CompressorKit, 3/4HP115V60HZ

32 186818000 Grommet

33 186819000 Sleeve

34 186147000 Washer, .312 I.D.

35 186148000 Lock Washer, .312 I.D.

36 186144000 Cap Screw,HexHd., 5/16-18 By

1-1/4-In.Long

37 319769000 Insulation,Front

38 319772000 Insulation,Bottom

39 319403000 Dryer

40 319807000 Tube,Copper,20-In.Long

41 309107000 Plate,Switch

42 319373011 CondenserCoil

43 309978000 Motor,Fan,115V60HZ

44 319358000 Fan,6-Blade

45 319776000 Shroud,Condenser

46 319385000 Holder,ControlBulb

47 186770000 Machine Screw,Phil RdHd., No.

10-24 By5/8-In.Long

48 120227000 Lock Washer,No.10

49 320539000 Washer,No.8

50 321484000 Grommet

51 319377000 Bracket, Motor

52 186154000 Machine Screw,Phil Pan Hd., Sems,

No.8-36 By3/8-In.Long

53 398023199 Thread Cutting Screw,SlHex

WasherHd., No.6-32 By5/16-In.

Long

54 142345013 Spacer,EvaporatorCoil

55 2246 EvaporatorCoil

56 309974000 Rod,Support

57 316753000 Push-on Nut

ManualPartNo.309989003

7-30-87 Revised:5-15-95

IMICORNELIUSINC.

OneCorneliusPlace

Anoka,MN55303-6234

Telephone1-800-238-3600

Facsimile1-800-258-0255

ILLUSTRATEDPARTSLIST

UNIVERSAL1550 PRE-MIXDISPENSER

Item

No.PartNo.Name

319244000 Tube Ass’y,Coil toValveNo.1,2

and 3

319481000 Tube Ass’y,Coil toValveNo.4

318880000 Tube Ass’y, Inlet toCoil

1 174004000 Tube, .156 I.D.By14-In.Long

174083000 Tube, .156 I.D.By29-In.Long

174478000 Tube, .265 I.D.By96-In.Long

2 176004000 Ferrule,For.312 O.D.Tube

176000000 Ferrule,For.465 O.D.Tube

176035000 Ferrule,For.312 O.D.Tube,Short

Item

No.PartNo.Name

3 176017000 SwivelNut, 7/16-20

4 77010600 Nipple,For.156 I.D.Tube

77010400 Nipple,For.265 I.D.Tube

FIGURE3.TUBEASSEMBLY

ManualPartNo.309989003

7-30-87 Revised:5-15-95

IMICORNELIUSINC.

OneCorneliusPlace

Anoka,MN55303-6234

Telephone1-800-238-3600

Facsimile1-800-258-0255

ILLUSTRATEDPARTSLIST

UNIVERSAL1550 PRE-MIXDISPENSER

10 11

FIGURE4.DISPENSINGVALVE ASSEMBLY

Item

No.PartNo.Name

1 150792100 Fitting,Elbow,7/16-20 By1/2-16

150807100 Fitting,7/17-20 By1/2-16

2 151202039 Dispensing ValveAss’y(Includes

3-16)

3 150065000 O-Ring,1.05 I.D.By.070 C.S.

4 150998000 Shaft and SeatAss’y

5 150141000 Sleeve, Inner

6 150189000 Spring

7 150142000 Sleeve,Outer

8 150907000 Machine Screw,Phil Truss Hd.,

ChromePlated Brass,No.10-24 By

5/16-In.Long

9 151009039 Body

10 150113000 Slotted Adjusting Screw

Item

No.PartNo.Name

11 140092000 O-Ring, .114 I.D.By.070 C.S.

12 151062000 LeverSpring,Knob

13 151061000 Lever,Knob

14 150055000 Ball Washer, .390 I.D.

15 110015000 Friction Washer

16 151742039 Bonnet, Knob

17 150199000 Coupling Nut

18 150099000 Shank,Long

19 150058000 O-Ring, .301 I.D.By.070 C.S.

20 150200007 Sleeve,End Shank

21 150095000 Compensator

22 150150000 ShankNut

23 151741039 Knob

ManualPartNo.309989003

7-30-87 Revised:5-15-95

IMICORNELIUSINC.

OneCorneliusPlace

Anoka,MN55303-6234

Telephone1-800-238-3600

Facsimile1-800-258-0255

ILLUSTRATEDPARTSLIST

UNIVERSAL1550 PRE-MIXDISPENSER

ACCESSORIES/KITS

WHEELAND PUSH BAR KIT

(0519)

CASTER KIT

(310340000)

AGITATORMOTOR ASS’Y

(310373088)

VALVE LOCK BOXW/PADLOCK

(186859044)

EVAPORATOR KIT

(319827088)

ManualPartNo.309989003

7-30-87 Revised:5-15-95
