Corsair 760T Bedienungsanleitung
CONGRATULATIONS!
!
Thank you for purchasing
a Graphite Series®760T
Full-Tower PC case.
The Graphite Series 760T full-tower PC
case has it all: a visually stunning design
that’s a match for its stunning perfor-
mance potential. The smart features that
make it fun to work with and satisfying to
use. The materials and craftsmanship that
make it as pleasing to the touch as it is to
the eye, and give it the durability to last
through several system builds. Plus, of
course, the room to build a world-class
system with more than enough room for
all the components, storage, and cooling
you need.
Graphite Series®760T
full-tower case with two
AF140L 140mm front
intake fans and one
AF140L exhaust fan
Installation Guide
Accessory Kit
MaximumGPUlength
Topslots mm
Lowerslots mm
MaximumCPU
coolerheight
mm
mm mm
mm
760T
SERIES®
GRAPHITE
CONTENTS
x x x x
MBD/HDD screws Long fan screws Short fan screws SSD/ODD screws
x x xx
Motherboard
standos
SSD pan
head screws
HDD tray screws Cable ties
A
A
B
C
D
E
F
G

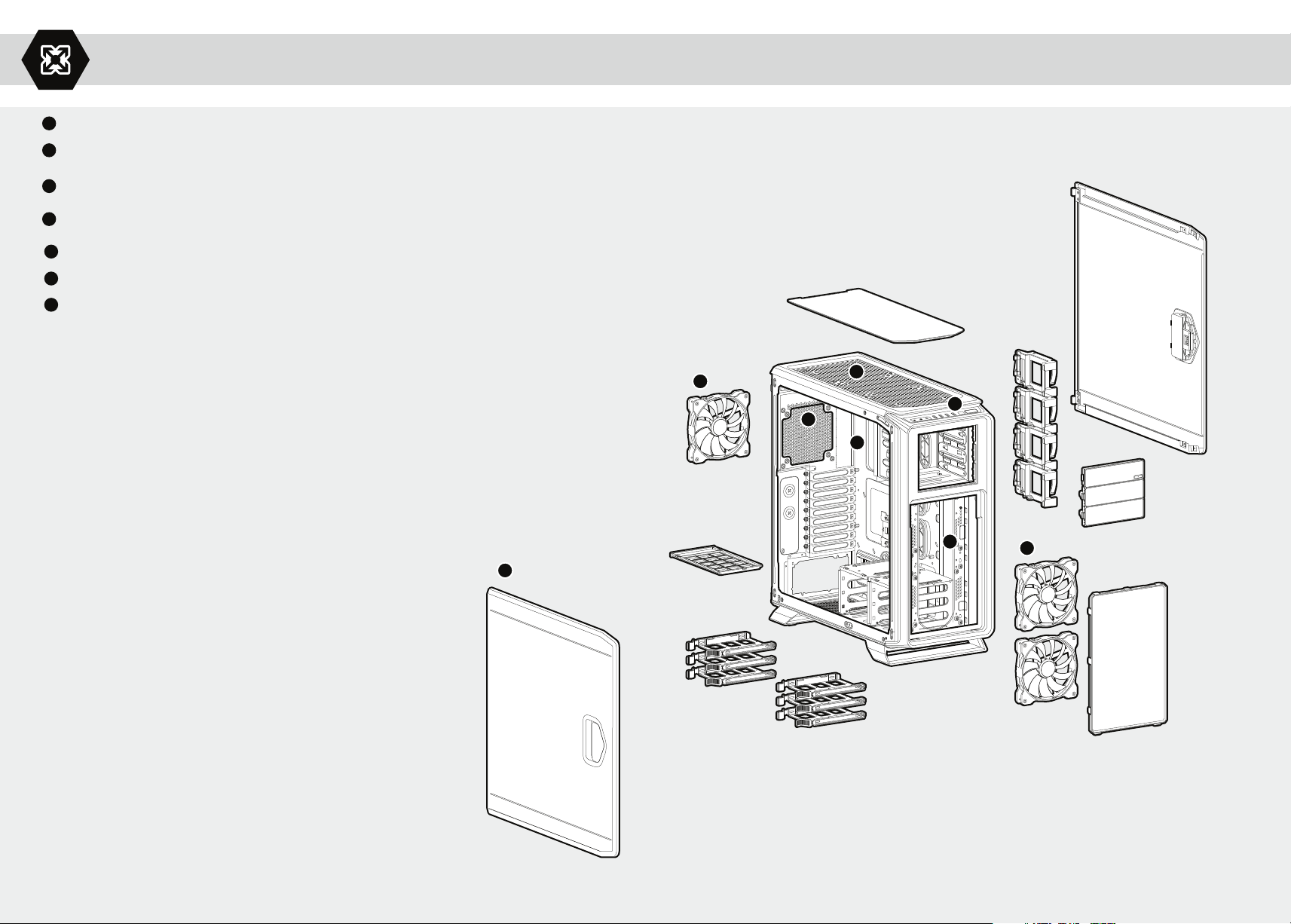

GRAPHITE SERIES®760T FULL-TOWER PC CASE GRAPHITE SERIES®760T FULL-TOWER PC CASE
(x3) Corsair AF140L fans included
Top triple 120mm or dual 140mm fan mounts
compatible with 240/280/360mm radiators
Rear 120/140mm fan mounts compatible
with 120/140mm radiators
Front dual 120/140mm fan mounts
compatible with 240/280mm radiators
A
(x2) USB 3.0, (x2) USB 2.0, Headphone/Mic, Power/Reset
Full windowed side panel
CPU backplate cutout
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
H
I
J
K
L
M
N
O
P
GRAPHITE SERIES®760T FULL-TOWER PC CASE GRAPHITE SERIES®760T FULL-TOWER PC CASE
Built-in cable routing cutouts with grommets
(x3) Tool-free removable optical drive bays
Tool-free 3.5" hard drive cages with 2.5" compatibility
(x4) Tool-free 2.5" SSD side-mounted drive bays
(x9) Expansion slots for GPUs
Removable bottom low restriction dust filters
Bottom 120mm fan and 120mm radiator mount
Removeable magnetic solid top panel cover
Dual-speed fan selector for performance or silence
> Install your motherboard's I/O shield
(see your motherboard’s manual for guidance).
> Align the motherboard with the standos in the case.
> Secure with the included screws (MBD/HDD screws).
Installing the motherboardRemoving the windowed side panel
> Pull the handle to open and release the side panel.
> Lift the entire side panel up and out from the hinges to remove the side panel.
> Remove thumbscrews and corresponding slot cover(s).
> Install the add-on card and secure with thumbscrews.
Installing the PCI-E/PCI cardsInstalling the power supply (PSU)
> Seat the PSU on the bottom of the case.
> Align holes and secure the PSU with screws.
Note: PSU can be installed in either fan up or fan down orientations.
A B

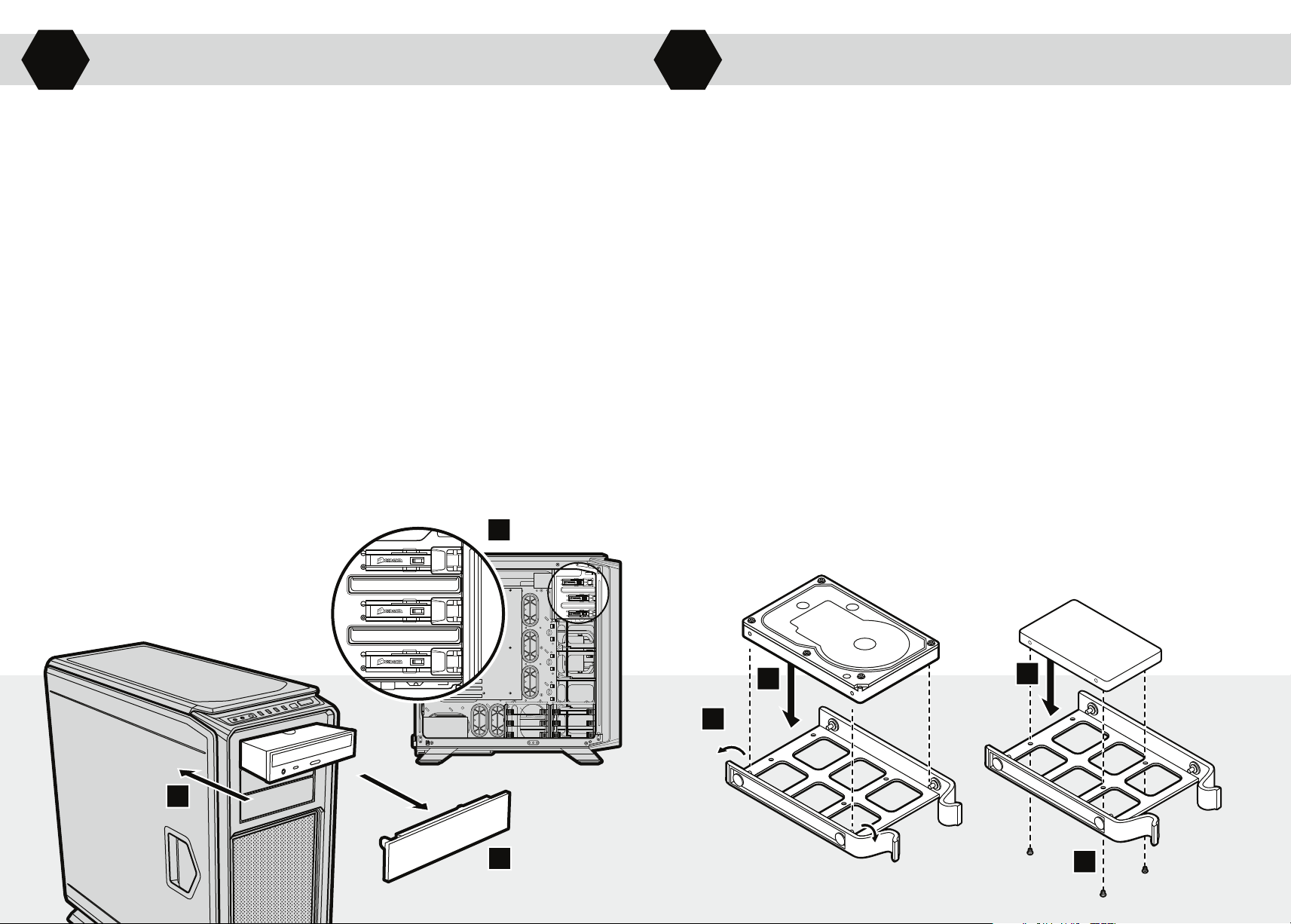

Installing a 5.25" drive/devices (ODD)
> Remove the front panel 5.25" drive bay cover.
> Insert the ODD into the drive bay until the tool-free
latch clicks, securing the drive.
> To remove, push the tool-free tab to release
the ODD drive and remove.
> Remove the tool-free 3.5" HDD tray.
> Insert the HDD into the HDD tray.
> Align the HDD holes with the tray pins to secure.
Note: To mount a 2.5" drive in this tray, it is necessary to remove one
of the side pins and secure the drive from underneath with screws.
Installing a 3.5" HDD/ 2.5" SSD
A.
B.
> To remove the magnetic solid top panel cover,
locate the top panel cut out and lift the top panel o the case
> To remove the bottom dust filter, first locate the pull tab
underneath the PSU, then pull the bottom dust filter out.
Removing the solid top panel cover and bottom dust filterInstalling a 2.5" SSD into tool-free expandable SSD cage
> Pull down the tab and place the SSD into
the tool-free cage until you feel it secure.
> To remove the SSD, pull the tab down to release.
USB 3.0
HD AUDIO
USB 2.0
RESET SW POWER LED +
POWER LED –POWER SW HDD LED
> See your motherboard’s manual for front panel header locations and pin-outs.
Installing the front I/O connectorsAttach case fan cables to motherboard headers
> See your motherboard’s manual for fan header locations.

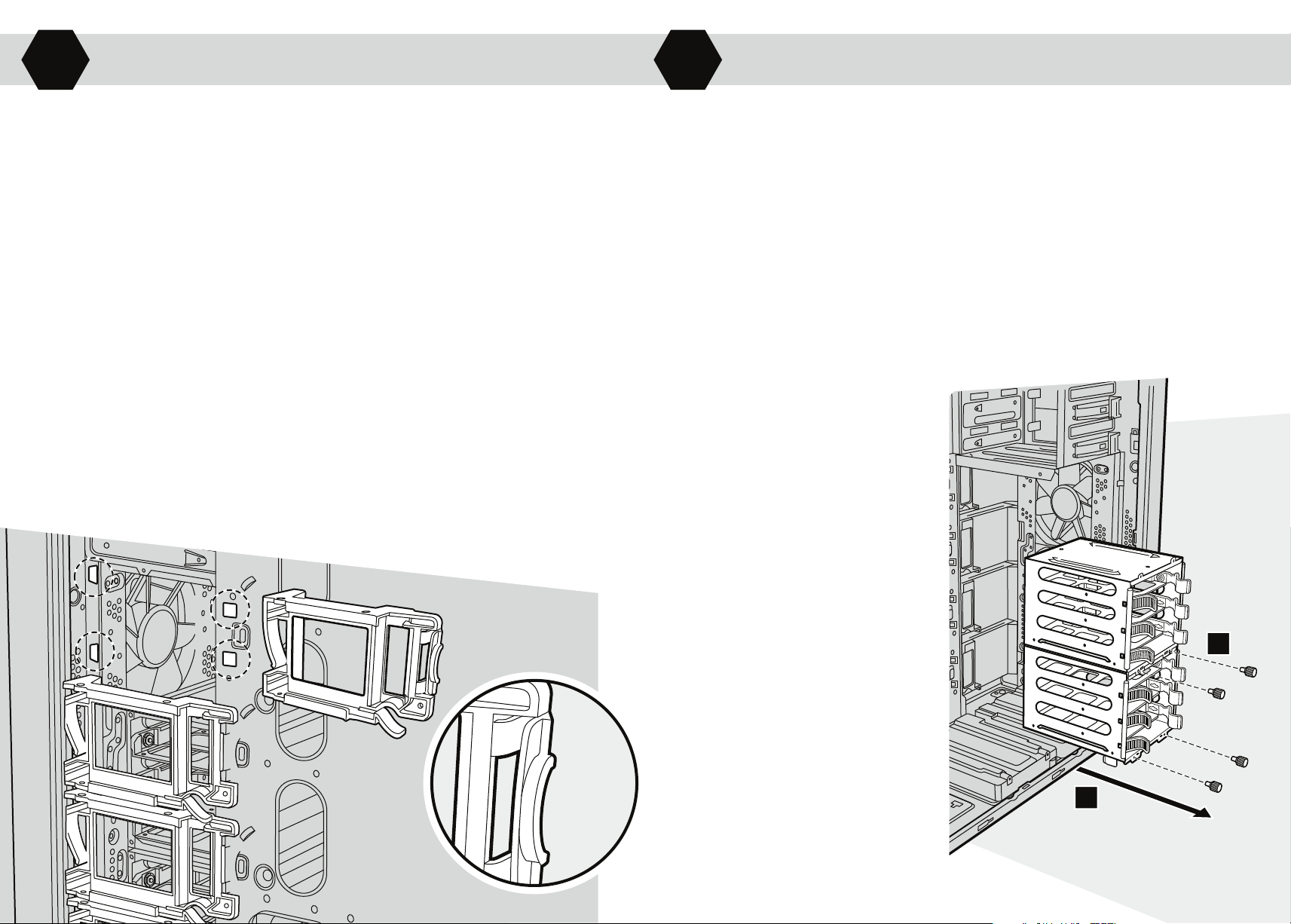

> Locate and remove the two screws securing the
cage to the base on the bottom of the case.
> Pull the HDD cage out.
> HDD cages are stackable and can be installed on top of
each other or completely removed for improved cooling.
Note: The HDD cage can also be removed by removing the four
screws located directly under the base on the bottom of the case.
How to remove the HDD cageHow to remove the SSD caddy
> To remove the SSD caddy, locate the center tab to the right
of the caddy and then pull the tab in and lift to release the caddy.
> To install the SSD caddy, align the SSD caddy with the holes
from left to right and secure into place.
