Corsair Dominator Bedienungsanleitung

Performance Hardware

User’s Guide

Version 1.0 February, 2010

R e m o v i n g D o m i n a t o r

DHX- 2 C o o l i n g F i n s

An illustrated step-by-step guide to removing the cooling fins

from Dominator and Dominator GT DDR3 memory modules.

Removing Dominator Cooling Fins

1 Dominator and Dominator GT

Removable Fins

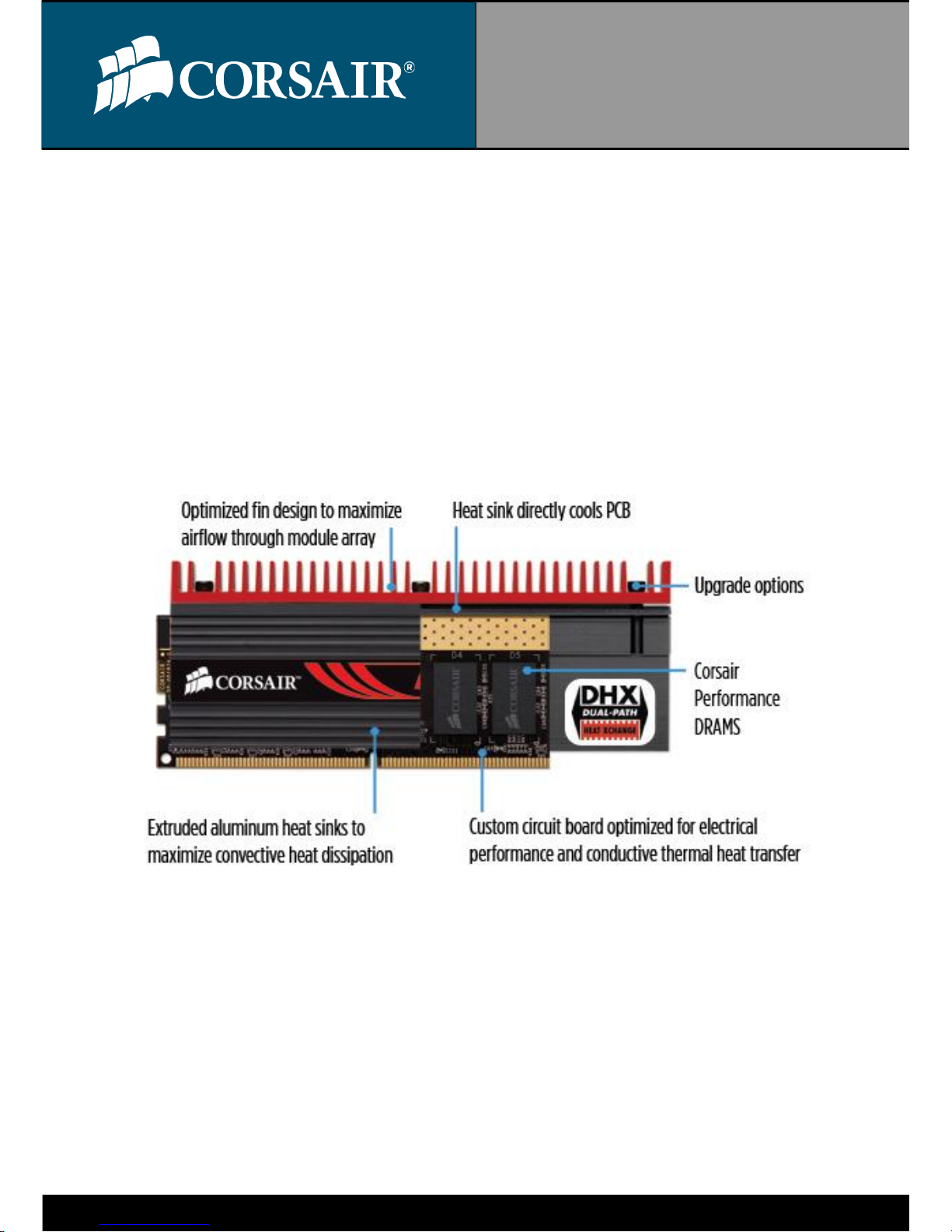

Dominator and Dominator GT DDR3 memory modules are made using DHX-2 features, a

revision of our original DHX cooling technology. One of the primary improvements is the

use of removable cooling fins. The fins can be removed so that end users can easily add

custom cooling fins for aesthetic and cooling improvements as well as adding custom mem-

ory cooling solutions such as the H-30.

Extended Cooling Fin (Black)

Extended Cooling Fin (Red)

Corsair H-30

Memory Cooler

Removing Dominator Cooling Fins

2 Removing the Cooling Fins

The cooling fins are attached using 3 screws. You will need a 3/32” hex key or allen wrench

to remove these screws.

Removing Dominator Cooling Fins

3 Remove the 3 Screws

Use the hex key to turn the screws counter clockwise. Once all 3 screws are removed, the

cooling fin will come off.

Removing Dominator Cooling Fins

4

Once the cooling fins are removed, the modules are ready for the installation of upgraded

cooling fins or custom cooling solutions. The grey material on the top of the heat sinks is

thermal interface material or TIM. This is a thermally conductive material used to facilitate

heat transfer from the heat sinks to the cooling fins. This material can be retained if needed

and reused with the replacement fins or cooling solution or it can be discarded if not

needed. You may want to retain it in the event that you need to reinstall the original cooling

fin.

The Cooling Fin Removed

Removing Dominator Cooling Fins

Resources

Corsair Dominator and Dominator GT memory specifications can be

found here: http://www.corsair.com/products/memory_home.aspx

Additional information on the Corsair H-30 memory cooler can be

found here: https://shop.corsair.com/store/item_view.aspx?id=833087

Corsair Extended Cooling Fins can be found here: https://

shop.corsair.com/store/default.aspx

© February, 2010, Corsair Memory, Incorporated. All rights reserved. All trademarks and registered trade-

marks are the property of their respective owners in the United States and/or other countries.
