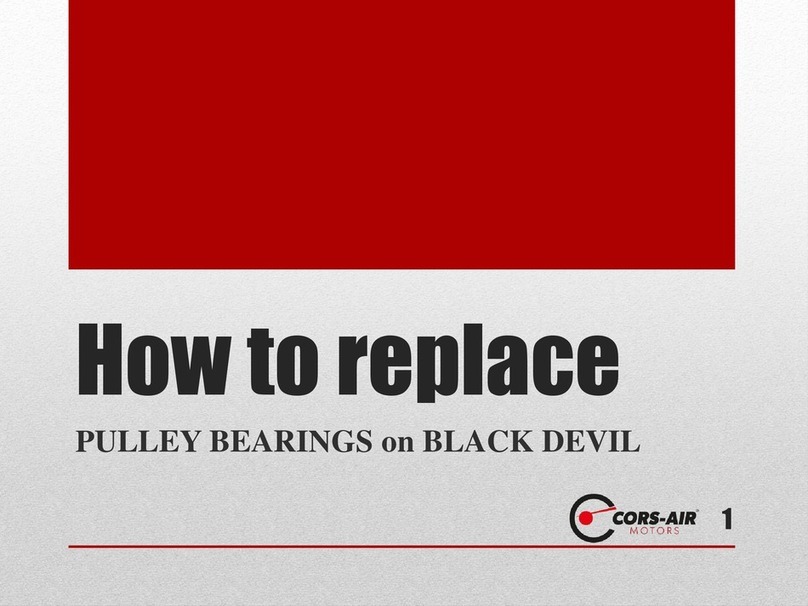

How to replace
PULLEY BEARINGS on BLACK DEVIL
1
All manuals and user guides at all-guides.com
Should you not have a press
you can use an ejector
STEP 1. take off the seeger from
pulley
Step 2. position pulley on press
for ejecting the bearings
2
All manuals and user guides at all-guides.com
STEP 3. insert a tool to press out
the cam of pulley
Step 4. cam of pulley with
bearings ejected from pulley
3
All manuals and user guides at all-guides.com
STEP 5. take off seeger on
bearings
STEP 6. with a long tool eject
bearings from cam of pulley
4
All manuals and user guides at all-guides.com
STEP 7. bearings ejection on
press
STEP 8. using a cylinder shape core
dry pressing install the first
bearings
5
All manuals and user guides at all-guides.com
STEP 9. insert fist bearings on
cylinder shape core dry pressing STEP 10. press it down cam of pulley
6
All manuals and user guides at all-guides.com
STEP 11. insert the washer in between
the two bearings, you have
previously took off
STEP 12. press second bearing using
following again steps 8-9-10
7
All manuals and user guides at all-guides.com
STEP 12. install the seeger back on
top of bearings
STEP 13. insert the cam of pulley with
bearings on pulley
8
All manuals and user guides at all-guides.com
STEP 13. insert pulley
seeger back on.
9
All manuals and user guides at all-guides.com
